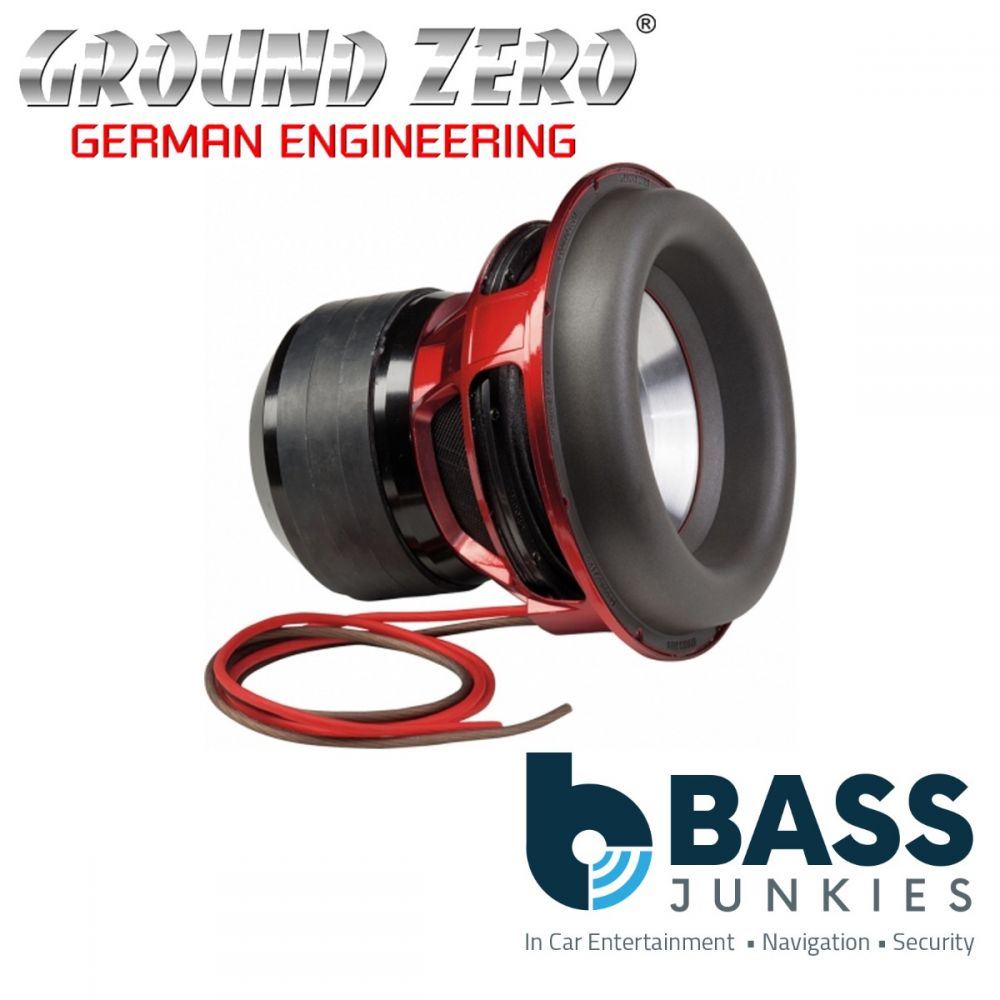

Ground Zero GZNW 12Xmax - 12" Inch 30cm 5000 Watts SPL Xmax Dual 1-Ohm Car Sub Subwoofer
Key Features
- High power 12” subwoofer
- Klippel® optimized
- Massive aluminum cone
- 3” round wire CCA voice coil
- 3-layer high-roll surround
- Progressive 4-layer Nomex spider
- 10 mm² / 7 AWG connection cable with 4.92 ft length
- Massive aluminum cast basket
Technical Data
Describes the subwoofer's ability for each kind of use.
- ☺ = Good ability
- ☺☺☺☺☺☺ = Excellent ability
Model - GZNW 12Xmax
- Diameter - 314 mm / 12.36“
- Mounting diameter - 282 mm / 11.1“
- Mounting depth - 250 mm / 9.84“
- Voice coil - 3" round wire
- Cone - Aluminum
- Power Handling - 3000 WRMS
- Impedance - 2 x 1 Ohm
- SPL - 83 dB
- Xmax - 60 mm / 2.36"
- Fs - 35.6 Hz
- Qts - 0.61
- Vas - 13.59 L / 0.48 cu.ft.
- Sound Quality * - ☺☺☺☺
- SPL Competition * - ☺☺☺☺
- Low bass performance 20 - 50 Hz * - ☺☺☺☺☺
- Mid bass performance 50 - 80 Hz * - ☺☺☺☺
- Box recommendation - see owner's manual & data sheet
- Box recommendation - see owner's manual & data sheet
