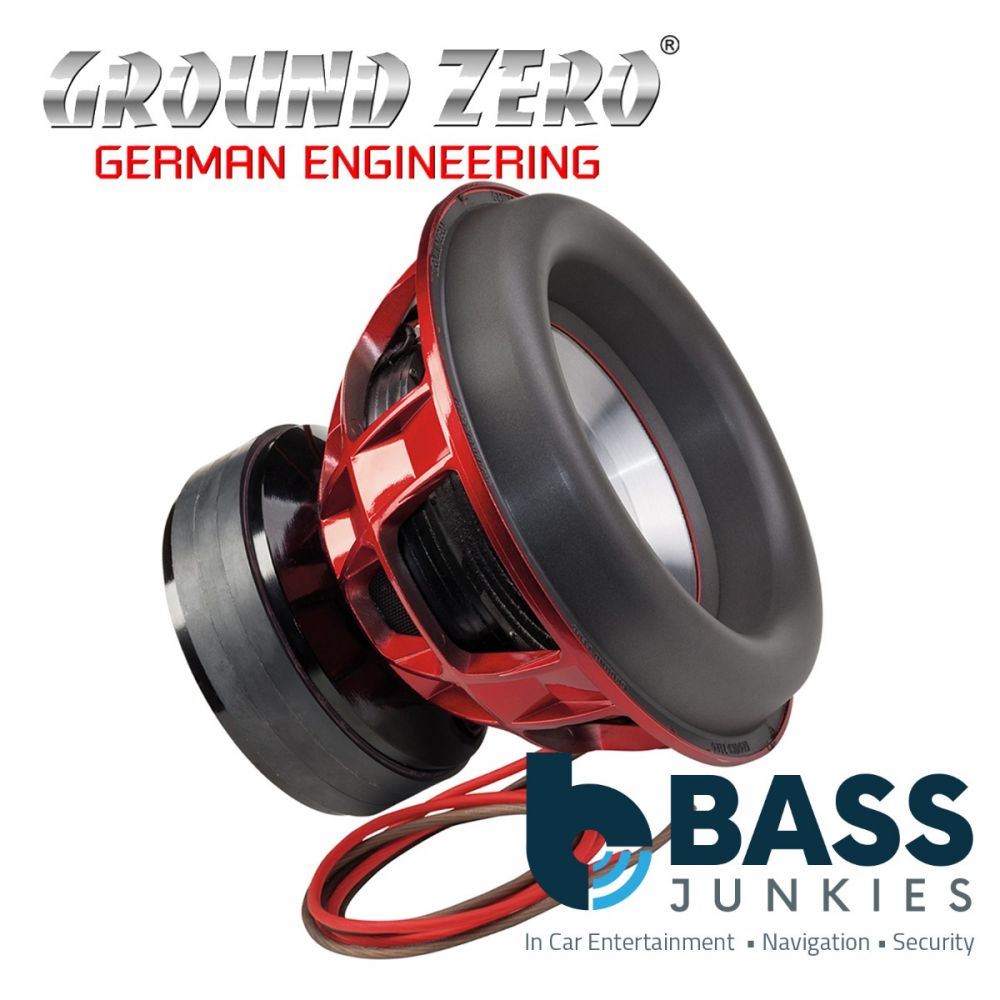

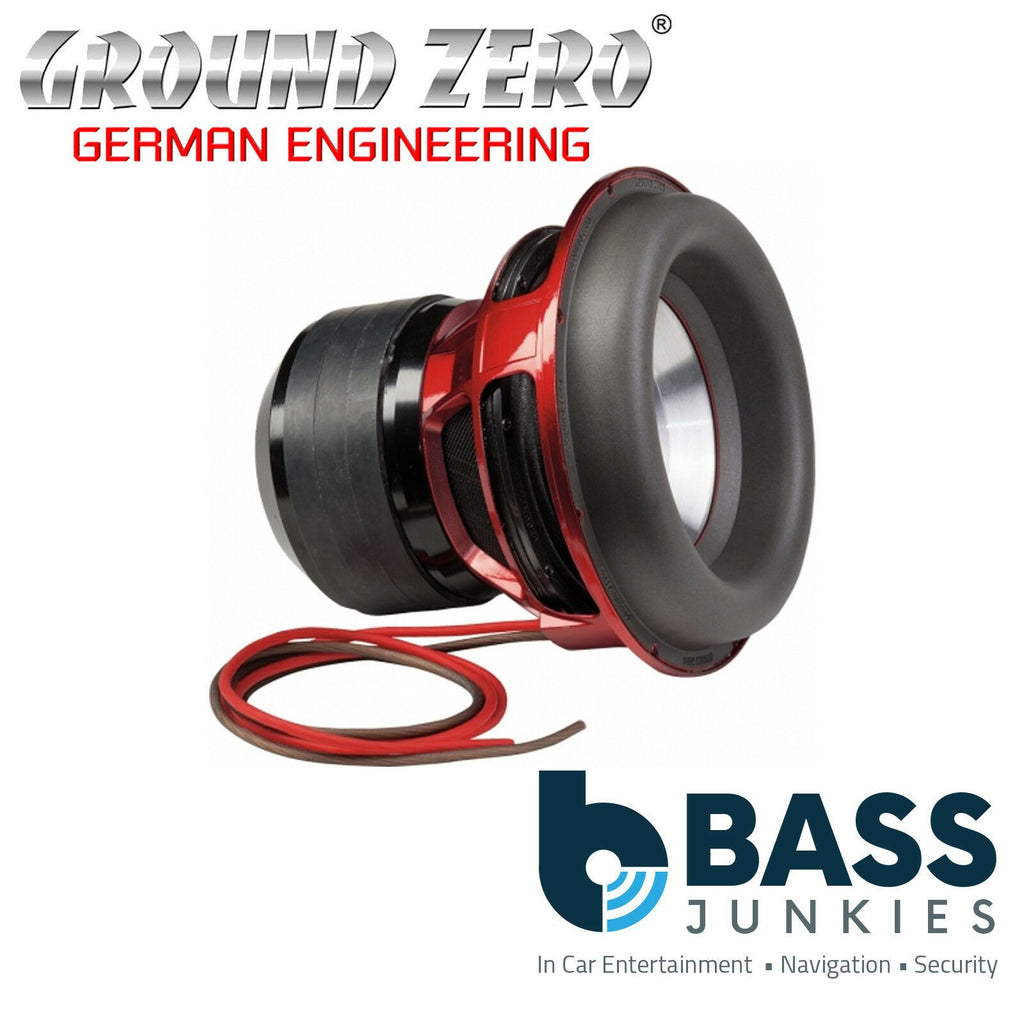

Ground Zero GZNW 15Xmax - 15" Inch 38cm 5000 Watts SPL Xmax Dual 1-Ohm Car Sub Subwoofer
Key Features
- High power 15” subwoofer
- Klippel® optimized
- Massive aluminum cone
- 3” round wire CCA voice coil
- 3-layer high-roll surround
- Progressive 4-layer Nomex spider
- 10 mm² / 7 AWG connection cable with 4.92 ft length
- Massive aluminum cast basket
Technical Data
Describes the subwoofer's ability for each kind of use.
- ☺ = Good ability
- ☺☺☺☺☺☺ = Excellent ability
Model - GZNW 12Xmax
- Diameter - 392 mm / 15.43“
- Mounting diameter - 358 mm / 14.09“
- Mounting depth - 285 mm / 11.22“
- Voice coil - 3" round wire
- Cone - Aluminum
- Power Handling - 4000 WRMS
- Impedance - 2 x 1 Ohm
- SPL - 87 dB
- Xmax - 80 mm / 3.15"
- Fs - 29.5 Hz
- Qts - 0.33
- Vas - 35.72 L / 1.26 cu.ft.
- Sound Quality * - ☺☺☺☺
- SPL Competition * - ☺☺☺☺
- Low bass performance 20 - 50 Hz * - ☺☺☺☺☺☺
- Mid bass performance 50 - 80 Hz * - ☺☺☺☺
