Description

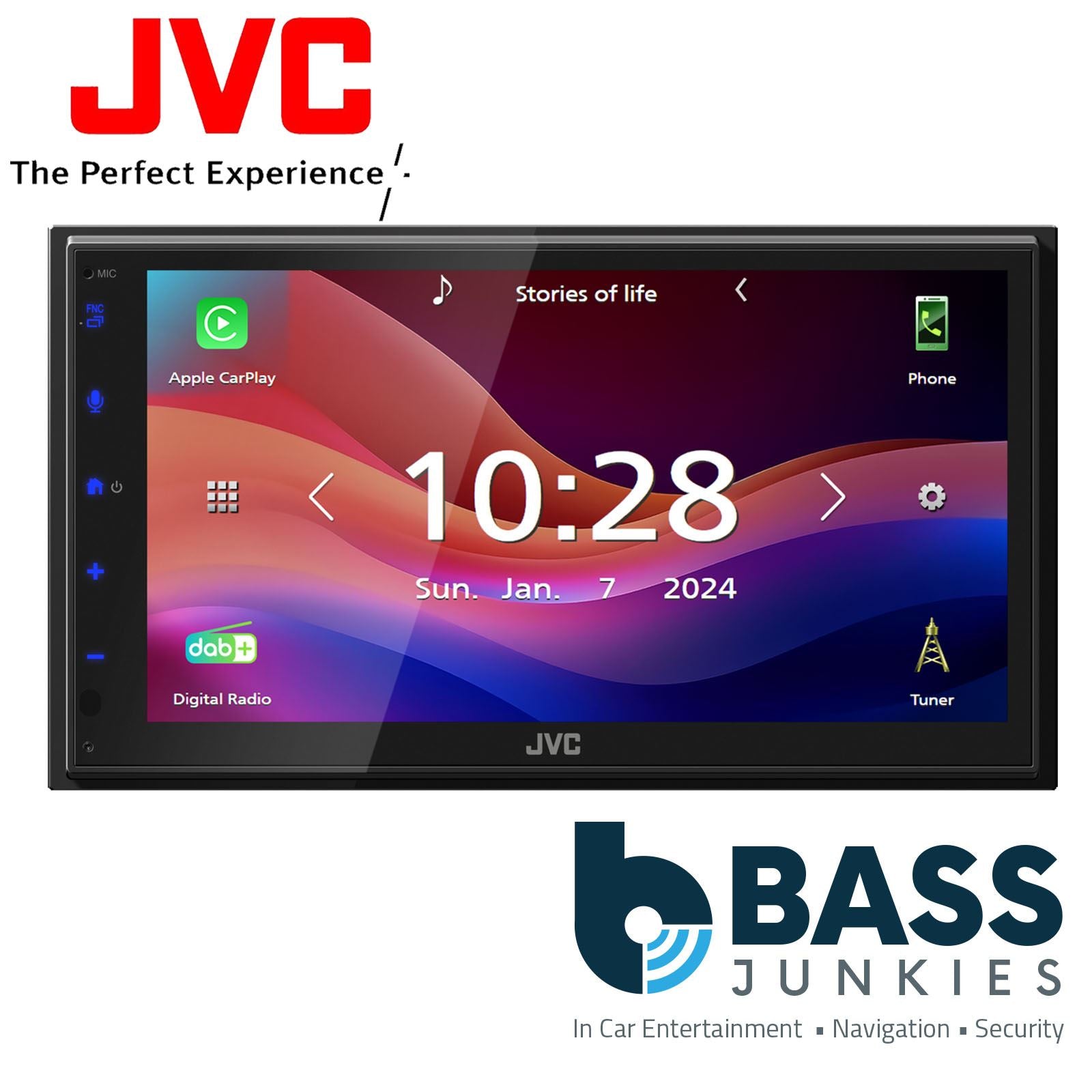

JVC KW-M593BT-6.8 inch Bluetooth Wired CarPlay Android Mirroring Radio Car Stereo
Digital Media Receiver featuring 6.8 inch High Res WSVGA Monitor / Wired Apple CarPlay & Android Auto / iPhone & Android USB Mirroring / Bluetooth / 13-Band EQ / Short Chassis
Features:
- Apple CarPlay & Android Auto Ready
- USB Mirroring for iPhone/Android
- Advanced Wireless Bluetooth Technolgy
- High Speed USB port with up to 2.1A High Current Charging
- Rear View Camera Input with Parking Guidelines
- 2 Preouts 2.5V & Subwoofer Out
- 6.8 inch WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
- Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
- Short body (86mm) for easy installation in a wide range of cars
Monitor Features
- Screen Size WSVGA (1024 x 600px) with Clear Capacitive Touch Screen
- Touch Panel Type Capacitive
- White key illumination
- Fixed Panel
- 3 Display Mode: Full(Initial) / Auto(Full / Normal) / Normal
- Screen adjustments: Brightness, tint, colour, contrast and Backlight
- Dimmer sensor: Manual / Sync & Dimmer level control (Auto/On/Off)
- NTSC / PAL judge (Auto)
- Display OFF mode
Graphical User Interface
- Demonstration Mode (default ON)
- Home screen, 4 Top SRC keys are customisable
- Wallpaper customizable (6 presets + 2 user set)
- Text scroll
- Rear view camera interrupt with parking guide lines & caution on screen
- Visual source mode: Mirroring / CarPlay / Android Auto
- Selection of 14 languages for menu & text:
- English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian, Portuguese, Hebrew, Greek, Polish, Czech and Hungarian
Tuner Features
- FM / AM(LW/MW) radio / 24 x FM and 12x AM Presets
- RDS / EON / Radio text plus / PTY / Local seek / Traffic information
- Manual/Auto memory entry
- Auto1/Auto2/Manual tuning mode/seek mode/ Seek/scan up/down
Bluetooth Features
- High quality wide-band Hands-free speech (HFP V1.7)
- High quality microphone built-in
- Private mode
- Interrupt call request
- Audio streaming (A2DP V1.2) with AAC / SBC codec support
- Music library browsing (AVRCP V1.6)
- Album artwork display
- Accessible phonebook entries (PBAP) with alphabet search (English / Hebrew)
- Secure Simple Pairing (SSP)
- Auto pairing via USB (iPhone & Android)
- Optimised Noise & Echo canceller
USB Input Features
- High speed type-A USB port / FAT16/32 NTFS/exFAT
- Max. 2.1A quick charge for selected phones (BC 1.2 compatible)
- Mass storage class
- Tag information display / Album art display / Time code display
- List access / Category search and Link search
- Folder or All random play / Folder, File or Repeat All play / Skip
- Drive change/Last position/resume play
Supported CODEC (USB)
- Audio: MP3 / WMA / AAC / WAV / FLAC
- Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / MKV
- Pictures (for user Wallpaper): JPEG / PNG / BMP
Android Features
- Works with Android Auto via USB
- USB mirroring for Android with MirrorApp+ smartphone app
- Music playback via Bluetooth

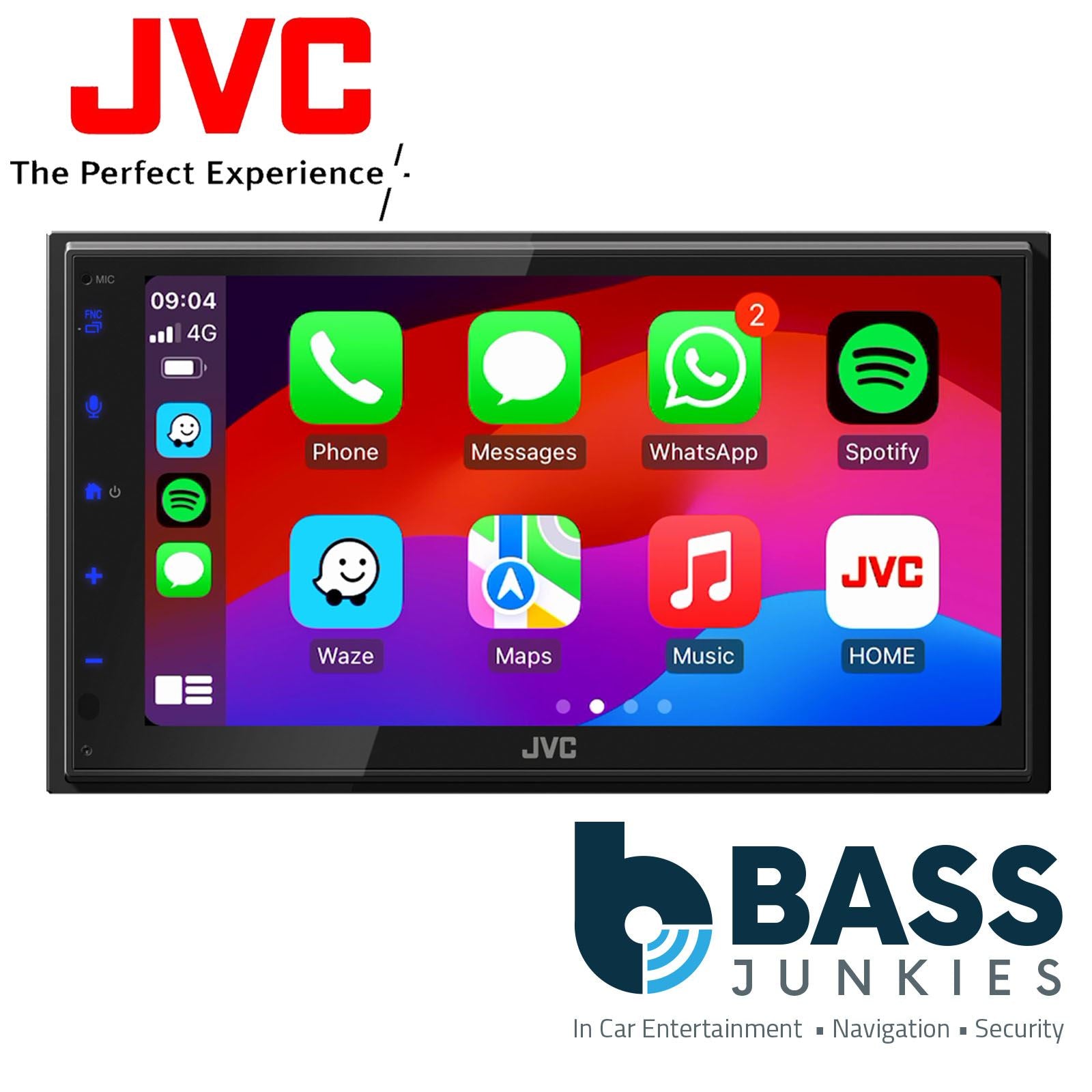

Apple CarPlay/iPhone Features
- Made for iPhone
- Works with Apple CarPlay (via USB)
- USB mirroring for iPhone with MirrorApp+ smartphone app
Audio Features
- 50W x 4 Max power output / 22W x 4 RMS
- 2 RCA pre-outs (Front & rear) + Subwoofer (mono) with 2,5V Preout level
- Reverse with Attenuator (-20dB) / Mute
- Beep On / Off (default)
- Balance & Fader control
- Volume offset for each source
- Built-in amplifier Off
Video Features
- AV-out: Available Source: USB
- Rear Camera Input (NTSC/PAL auto Switching)

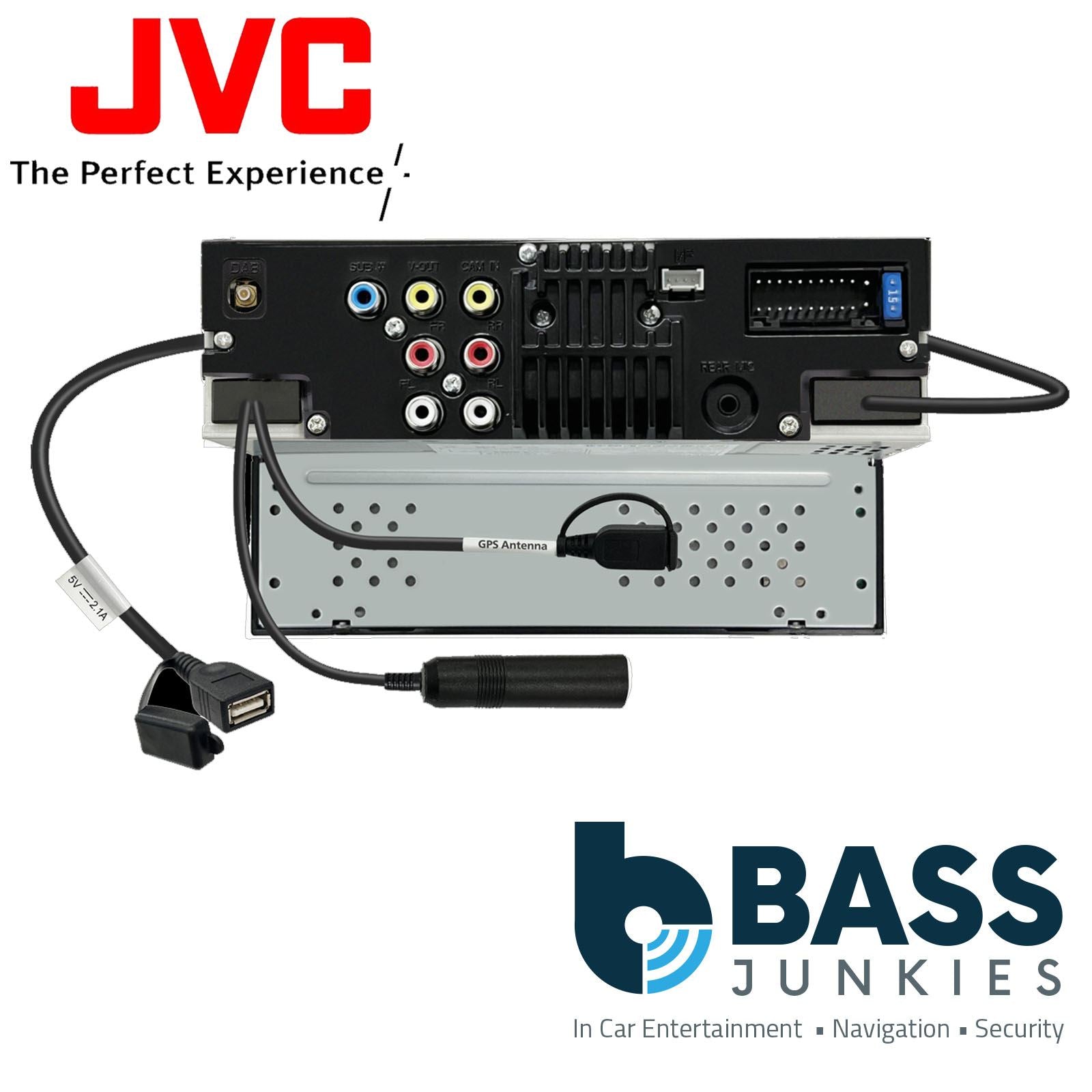

Connectivity
- Third-party Wired Steering Remote Interface ready. (Optional interface required)
- Learning Steering Remote (RESISTIVE protocols only)
- Rear view camera input (RCA)
- Video-out (RCA)
- Rear USB2.0 (pigtail 1m cable)
- 2 RCA pre-outs (Front & rear) + Subwoofer (mono)
- FM/AM antenna input (JASO)
- DAB antenna input (SMB)
- 22 Pin Molex Connector:
- Power Antenna Control
- Power Control (P-Cont)
- Illumination/Dimmer Wire
- Wired Remote Wire
- Reverse sensor wire
- Parking brake sensor wire
General Features
- Optional IR remote controller: KNA-RCDV331
- Firmware/software update via USB
- Backup memory
- Installation Dimensions (WxHxD): 182x112x86mm (with Sleeve)
- Operating Voltage: 14.4V (10.5-16V allowable)
- Maximum Current Consumption: 15 A
- Weight: 1,3kg
Disclaimer
If unsure of the part that you require for your vehicle then please message us before you make your purchase as we cannot be responsible for returns and postage costs.
JVC KW-M593BT-6.8 inch Bluetooth Wired CarPlay Android Mirroring Radio Car Stereo
Digital Media Receiver featuring 6.8 inch High Res WSVGA Monitor / Wired Apple CarPlay & Android Auto / iPhone & Android USB Mirroring / Bluetooth / 13-Band EQ / Short Chassis
Features:
- Apple CarPlay & Android Auto Ready
- USB Mirroring for iPhone/Android
- Advanced Wireless Bluetooth Technolgy
- High Speed USB port with up to 2.1A High Current Charging
- Rear View Camera Input with Parking Guidelines
- 2 Preouts 2.5V & Subwoofer Out
- 6.8 inch WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
- Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
- Short body (86mm) for easy installation in a wide range of cars
Monitor Features
- Screen Size WSVGA (1024 x 600px) with Clear Capacitive Touch Screen
- Touch Panel Type Capacitive
- White key illumination
- Fixed Panel
- 3 Display Mode: Full(Initial) / Auto(Full / Normal) / Normal
- Screen adjustments: Brightness, tint, colour, contrast and Backlight
- Dimmer sensor: Manual / Sync & Dimmer level control (Auto/On/Off)
- NTSC / PAL judge (Auto)
- Display OFF mode
Graphical User Interface
- Demonstration Mode (default ON)
- Home screen, 4 Top SRC keys are

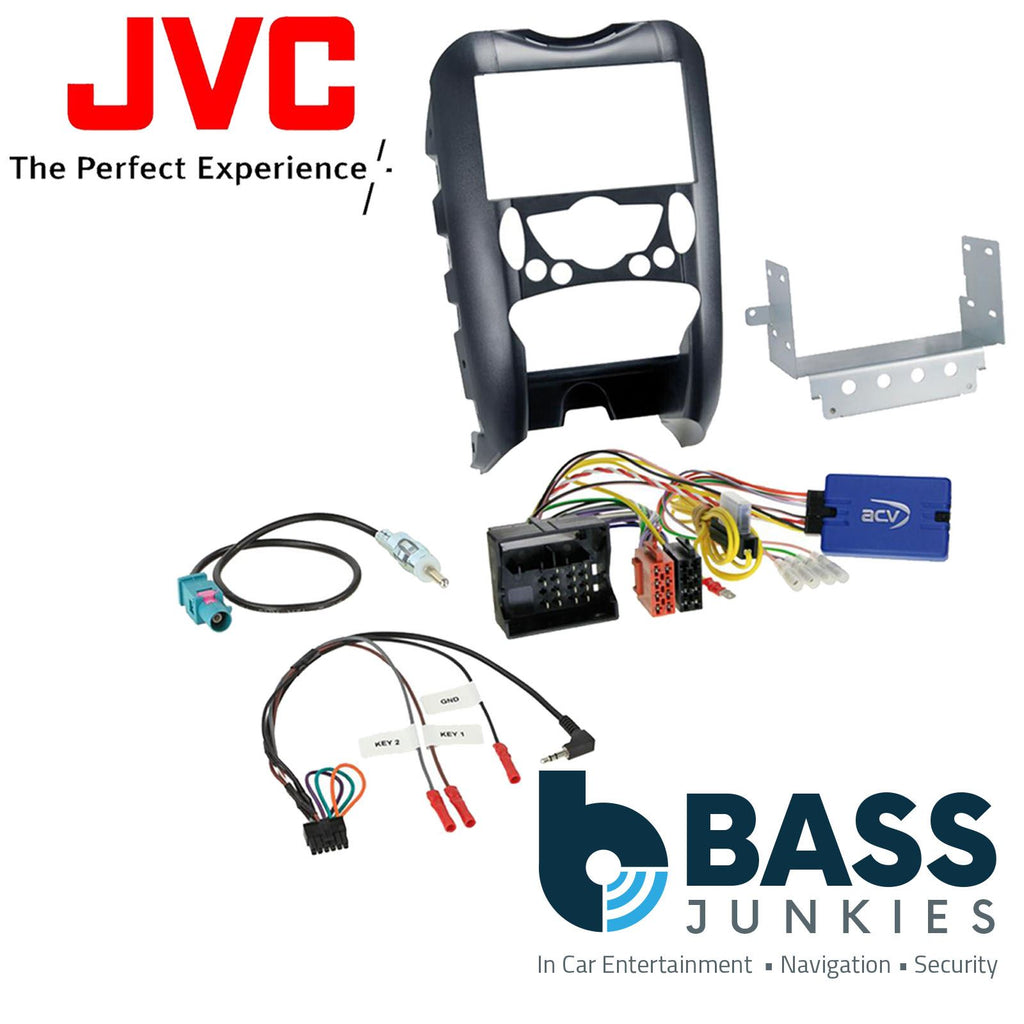

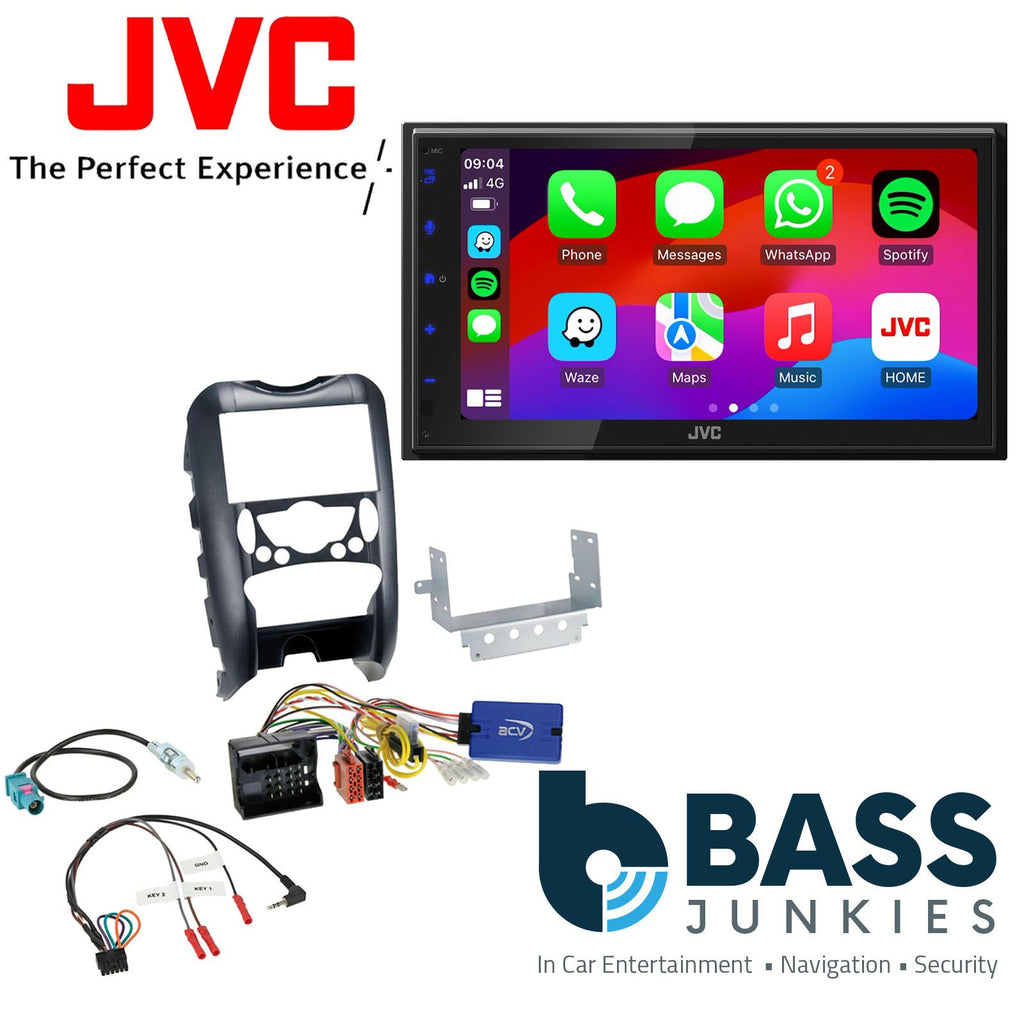

Car Stereo Double Din Fascia Panel & Steering Wheel Stalk Control & Mobile Phone Button Lead Interface & Fitting Kit
This complete Installation Kit allows the fitment of an aftermarket headunit to the listed vehicle. The kit is supplied with everything you require to complete the installation including with fascia, Steering Wheel Control Interface, Antenna Adapter & Universal Patch lead which is compatible with most Aftermarket radios.
Please makes sure your Stereo is compatible with this fitting kit before purchasing
Steering Wheel Control (SWC) Features
Steering Wheel Control interfaces allow plug and play installation of a new aftermarket car stereo head unit into a vehicle whilst maintaining use of the existing steering wheel volume, track up and down and mobile phone answering controls if factory fitted.
Mobile Phone Buttons (MPB) Features
Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible an aftermarket Bluetooth Head Unit you install.
Please Note this kit is compatible with the following radio brands. If you have a different brand of unit other than what is listed below please call as a different patch lead maybe required at an additional cost
Alpine
Clarion
Grundig
JVC
Kenwood
Pioneer
Road Angel
Sony
Vehicle Compatibility- BMW Mini Clubman Cooper R55 11/2007 - 08/2010
- BMW Mini Clubman Cooper R55 09/2009 - 07/2014
- BMW Mini Clubman One R55 03/2009 - 08/2010
- BMW Mini Clubman One R55 09/2010 - 07/2014
- BMW Mini Cooper R56 11/2006 - 08/2010
- BMW Mini Cooper R56 09/2010 - 11/2013
- BMW Mini Cooper Cabrio R57 03/2009 - 10/2015
- BMW Mini One R56 04/2007 - 08/2010
- BMW Mini One R56 09/2010 - 11/2013
- BMW Mini One Convertible R57 03/2009 - 08/2010
- BMW Mini One Convertible R57 09/2010 - 10/2015
- Vehicles with Business Professional OEM Device
- Vehicles without iDrive
- Vehicles without OEM MOST Sound System
- PDC / Warning Tones Not Supported*
Please note every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer
It is your responsibility to ensure the compatibility and we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase or you will have to return the incorrect item at your cost. If still unsure please contact us via the eBay messaging system with pictures that must be attached of the wiring and connections that you are trying to install so our tech guys can help and advise before you make your purchase
This panel is designed to fit most 6"- 7" double din units. Japanese brands such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion will suit this panel.
If you are fitting a NON branded unit from China with brands such as EONON and Xtrons, there is a VERY high possibility YOU will have to modify this panel to suit the stereo and accommodate it in your dash however by doing this you will NOT be able to return the panel back for a refund and this is at your own risk.
These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from China can be different sizes and we can not guarantee the stereo will fit without modification.
/
