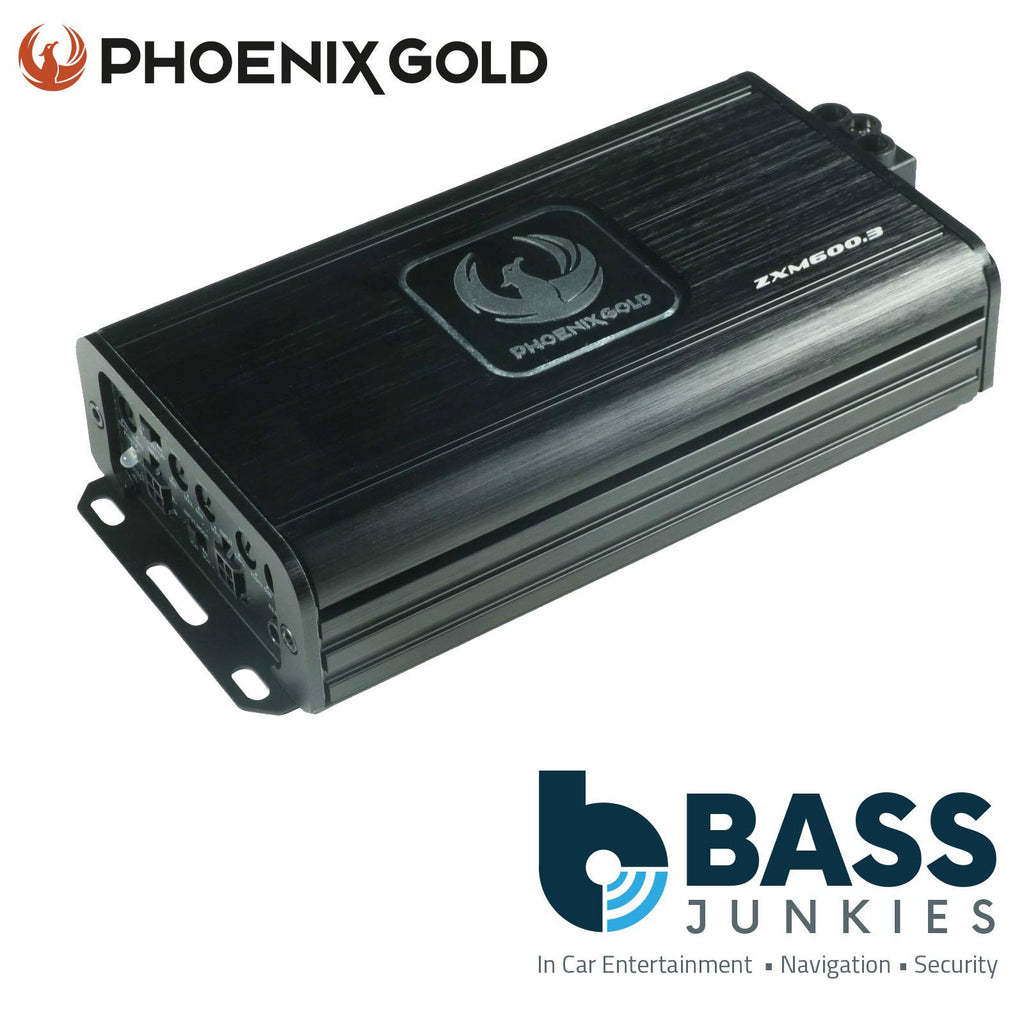

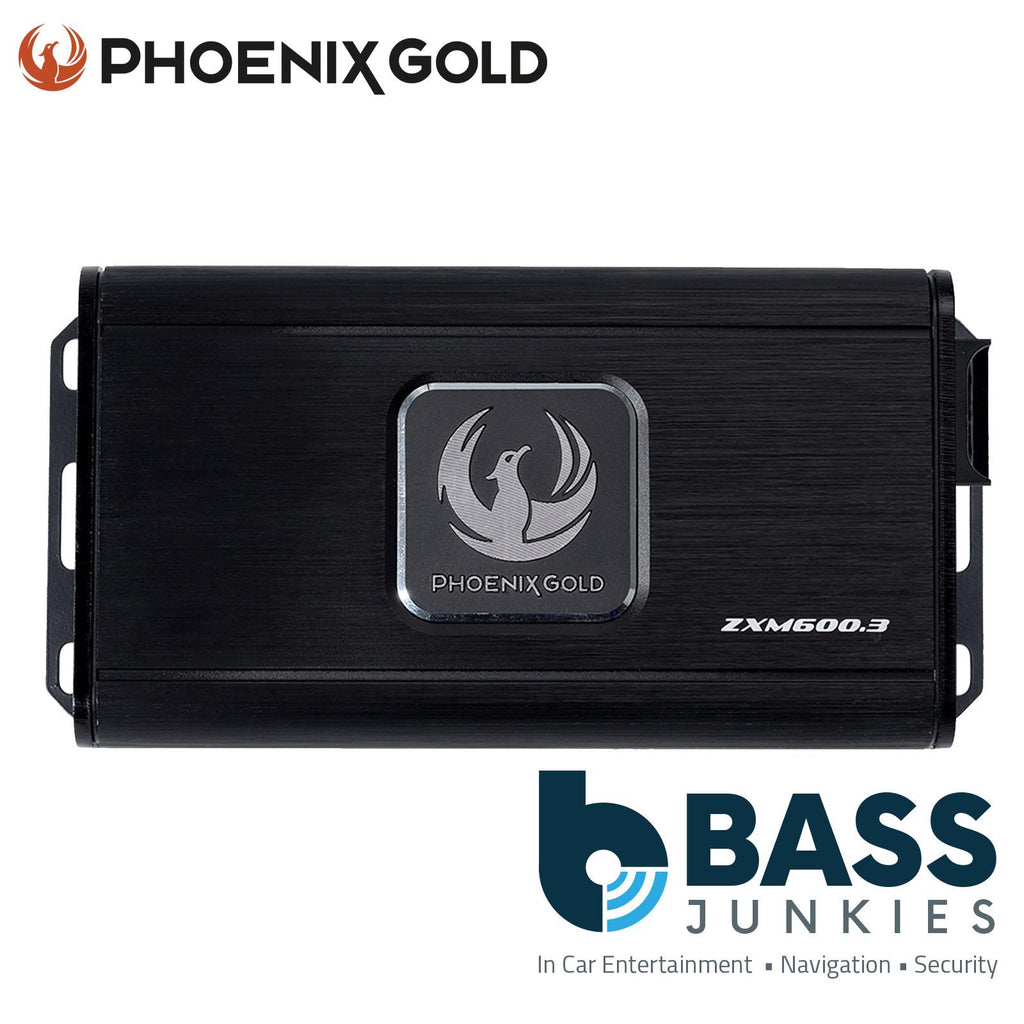

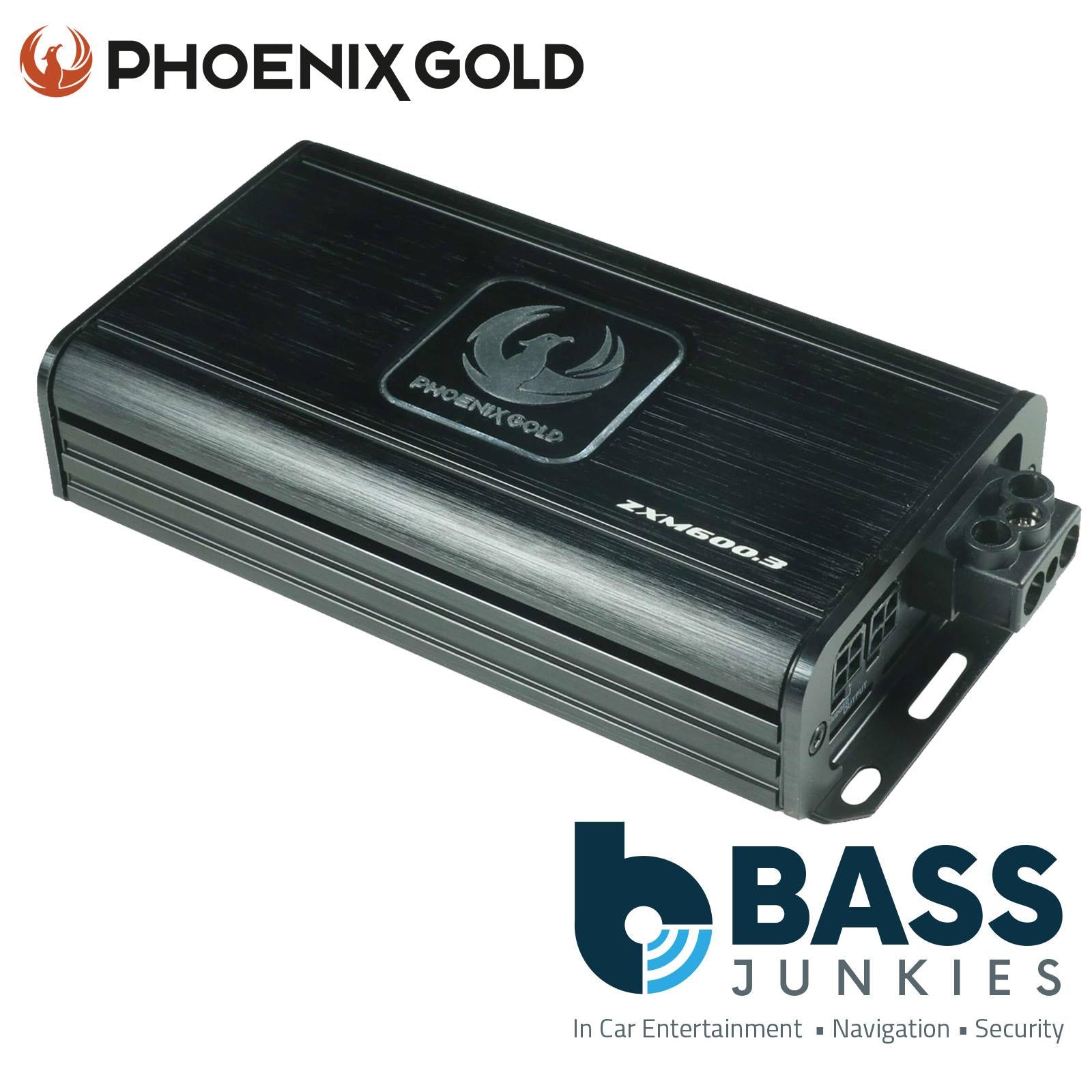

Phoenix Gold ZXM600.3 AMP ZX 3 Channel Mini Amplifier
ZXM600.3 – Small in size big in power
The ZXM600.3 is an impressive 3-channel Mini Amplifier. The ZXM amplifiers are made as small as possible without compromising sound quality, power and functions. The ZXM300.3 3-channel amplifier outputs over 600W RMS in the same size chassis as our award-winning ZXM500.4
ZXM600.3 – 3 Channel Mini Amplifier
Power and Performance in the Palm of Your Hand
Introducing the ZXM600.3, the latest evolution in our acclaimed ZXM range. Designed with cutting-edge technology, this compact powerhouse delivers over 600W RMS, all within a chassis that fits comfortably in your hand. Whether you’re upgrading your car audio system or building a new setup from scratch, the ZXM600.3 provides the perfect blend of size, power, and versatility.
Key Features:
- Massive Power, Minimal Footprint: Despite its compact size (165x83x35mm), the ZXM600.3 outputs a stunning 600W RMS, making it a perfect solution for those seeking powerful sound without sacrificing space.
-
Flexible Channel Configuration: The amplifier offers both 2-channel and 3-channel outputs, allowing you to drive a powerful front system and a subwoofer with ease. At 14.4V with less than 1% T.H.D, it delivers:
- 2x75W + 230W @ 4-Ohm
- 2x125W + 350W @ 2-Ohm

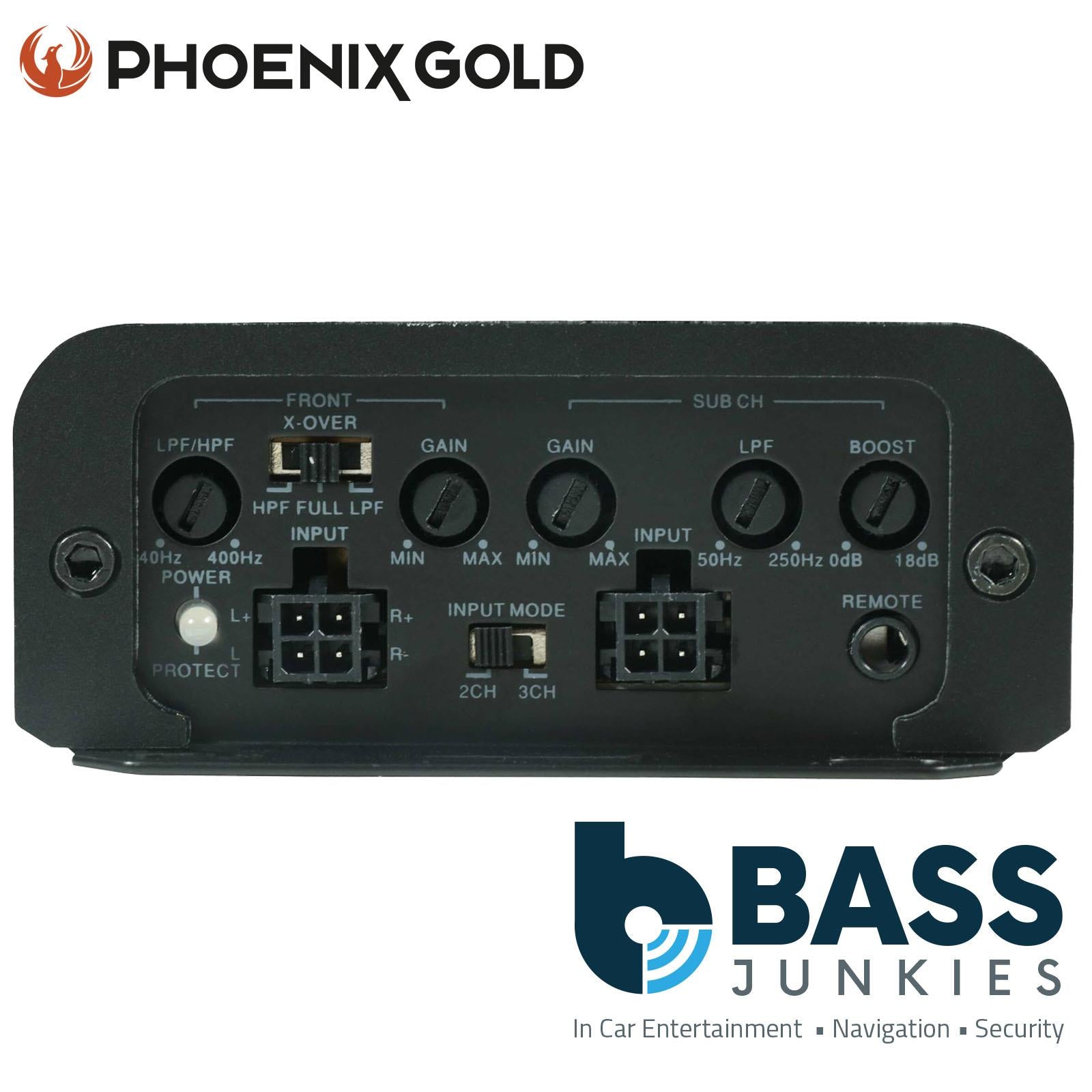

- Advanced Filters: Equipped with high-pass (HP) and low-pass (LP) filters for the 2 channels (48 – 480Hz, 12dB) and LP filters for the sub channel (24dB), ensuring precise audio control and superior sound quality.
- Versatile Input Options: The ZXM600.3 supports both high-level and low-level inputs, accommodating various audio sources and installation preferences.

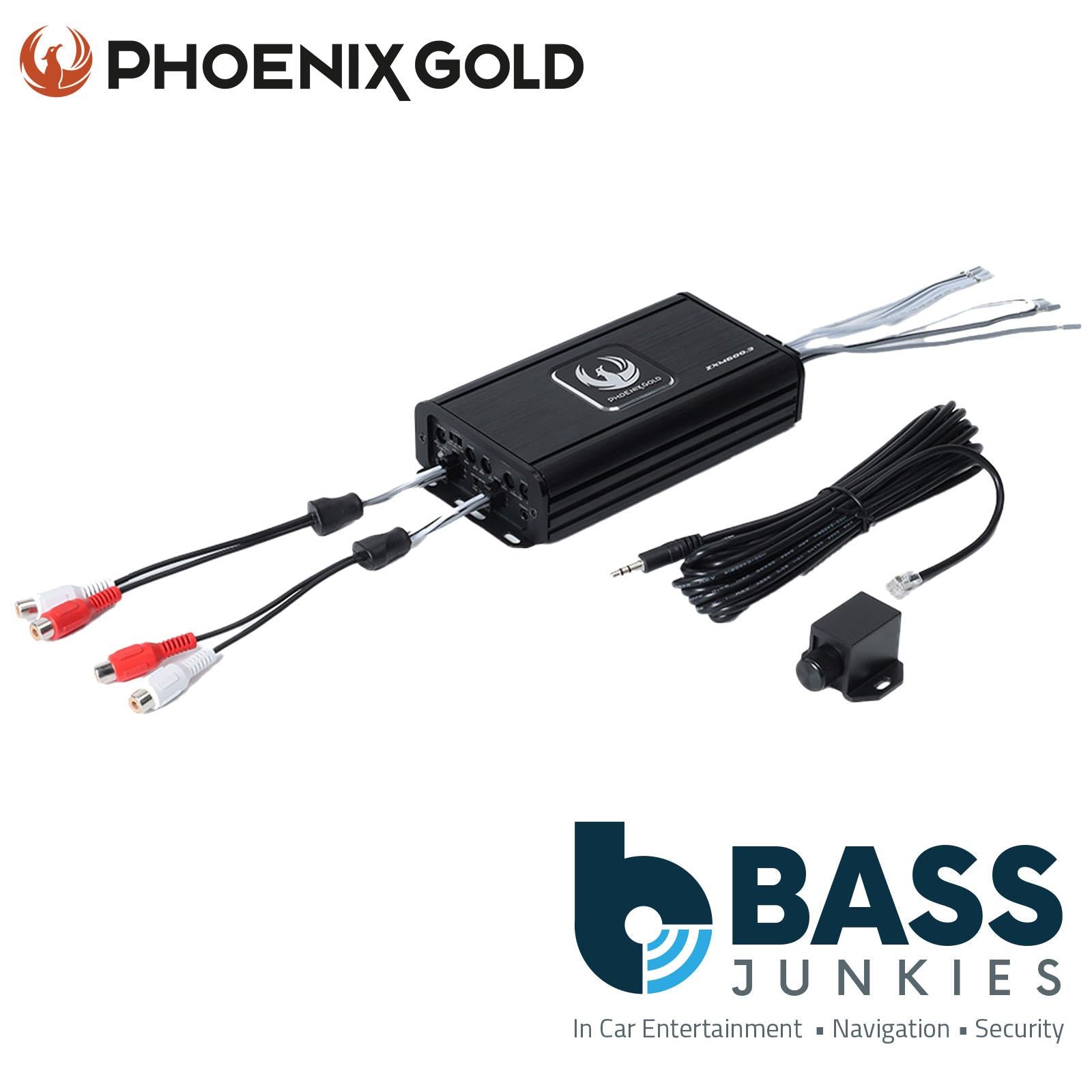

- Bass Boost & Remote Control: Tailor your audio experience with a 0-18dB bass boost and fine-tune the sound directly from the included remote gain controller.
- Superior Sound Quality: With an input sensitivity range of 0.2V-10.0V, a signal-to-noise ratio of over 90dB, and total harmonic distortion of less than 1.0%, the ZXM600.3 ensures crystal-clear audio reproduction.

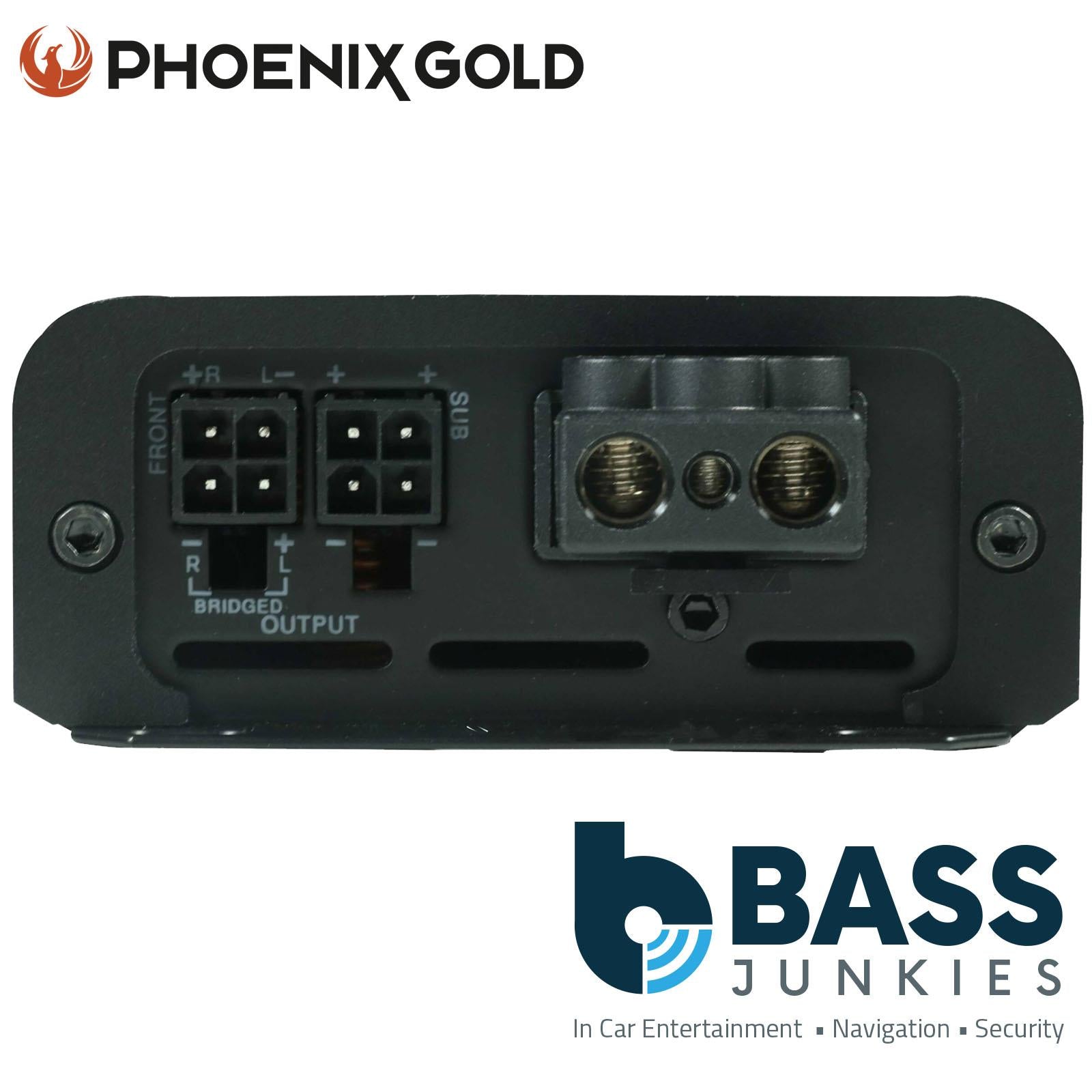

- Quick and Easy Installation: The newly designed quick connector for power, ground and remote streamlines the installation process, saving you time and effort.
Specifications:
-
Rated @ 14.4V < 1% T.H.D:
- 2x75W + 230W @ 4-Ohm
- 2x125W + 350W @ 2-Ohm
-
Filters:
- HP & LP Filters for 2 channels: 48 – 480Hz, 12dB
- LP Filters for SUB channel: 24dB
- Bass Boost: 0-18dB
- Input Sensitivity: 0.2V-10.0V
- Signal/Noise Ratio: >90dB
- Total Harmonic Distortion: <1.0%
- Remote Bass Knob: Included
- Dimensions: 165x83x35mm
Experience the Future of Car Audio
The ZXM600.3 is more than just an amplifier; it’s a revolution in compact audio technology. Upgrade your car’s audio system today and enjoy the perfect balance of power, precision, and portability. The future of car audio has arrived, and it fits right in the palm of your hand.
