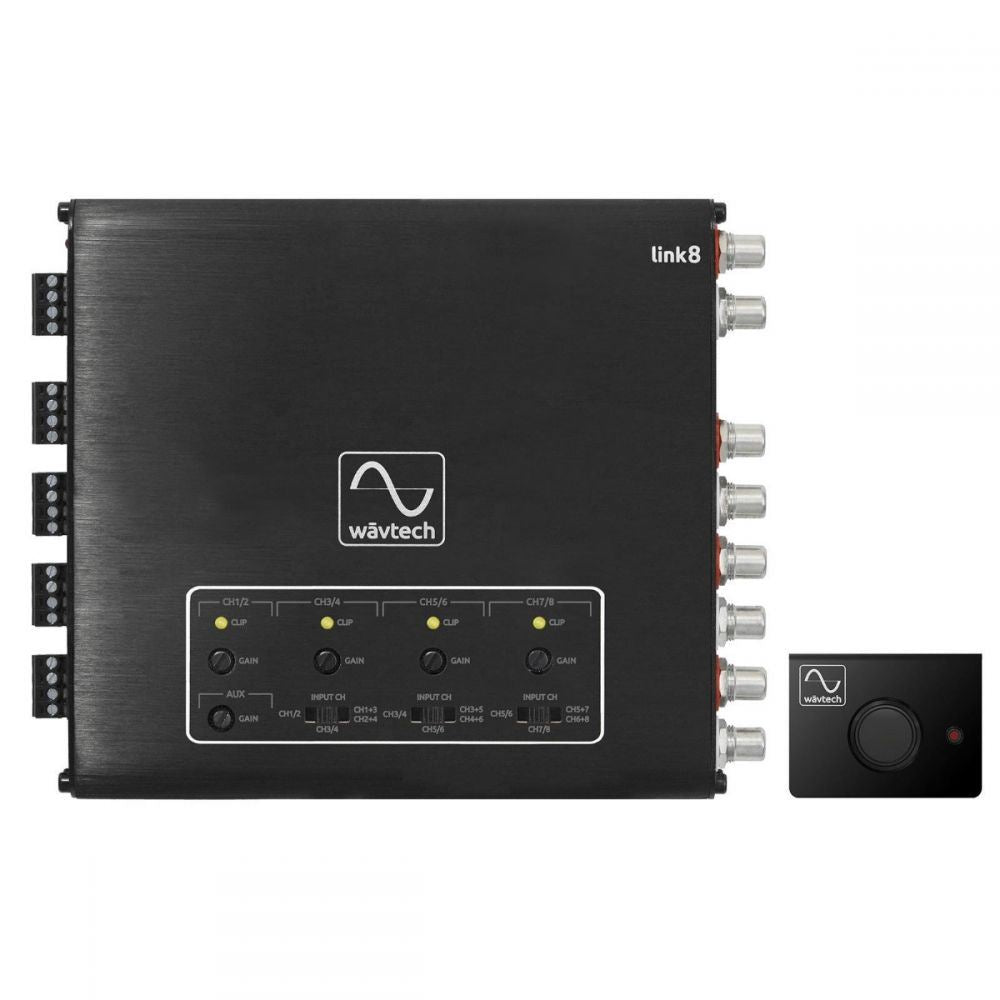

Wavtech LINK8 8 Channel Line Output Driver
Today’s factory installed audio systems are becoming more complex. With many of the vehicles controls and operations integrated into the source unit, replacing it is no longer an option. Some vehicles have amplifiers dedicated to each individual speaker. When you aren’t satisfied with the OEM systems sound, these factors make it increasingly difficult when it comes time to upgrade. That is why you need a link8.
The link8 is about as versatile as an analog integration product can be. The link8 has 8-channels of high level inputs that can be configured in a number of ways. With just 2-channles of input, signal can be achieved at all 8-channels of output. With 4-channels of input, you can have front, rear and subwoofer output. If you are dealing with a complicated OEM system, you can sum sets of input channels for the desired effect. These are just a few of the configurations available. What sets this apart from similar products are the easy to use top mounted switches that control combining, direct and summing inputs. It is no longer necessary to take the unit apart and deal with all of the confusing jumpers just to make adjustments.
Another benefit of the link8 is the auxiliary input. This provides access to your phone or other mobile device through the audio system. The "Patent Pending" Multifunction Remote level/ Source Control can switch between your subwoofers output level, the volume of the auxiliary source or even serve as a Master Volume Control for your entire system. This is especially useful in OEM systems where speed sensitive volume or equalization are present. You can even program the remote so the sequence and priority of the functions suites your specific system needs.
LINK8 Features:
- 8-Channel Line Output Converter w/ Summing Capability
- 8-Channel Summing Processor
- Multi-Function Remote
- Master Volume Control
- AUX Volume Control
- Independent Ch7/8 Level
- Source/Function Select
- AUX 3.5mm Input
- Differential Balanced Inputs
- Low Output Impedance
- Indenpendant Variable Gains with Clip LEDs
- 2ch/4ch/6ch/8ch Input Select
- 2/3/4-Way Summing
- Never Zero Ch7/8 Output with Front & Rear Input
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible
- Selectable Ground Isolation
- Professional Grade Panel Mount RCA’s
- Detachable Power and Speaker Terminals
- Aluminum Chassis w/Detachable Mounting Tabs
- Multi-Function Remote Level Control (RLC) Included
LINK8 Specifications:
- Output Voltage (RCA)>10V RMS
- Output Impedance <50Ω
- Input Sensitivity (SPK/AUX) 2-20Vrms /0.5Vrms
- Max Input Voltage (SPK) 40Vrms (<5s peak)
- Frequency Response <5Hz to 100kHz
- THD+N (SPK/AUX) <0.05% /<0.05%
- S/N (SPK/AUX) >114dBA />113dBA
- Turn-On Trigger +12V, DC-offset & Audio Detect
- Generated +12V Output >500mA
