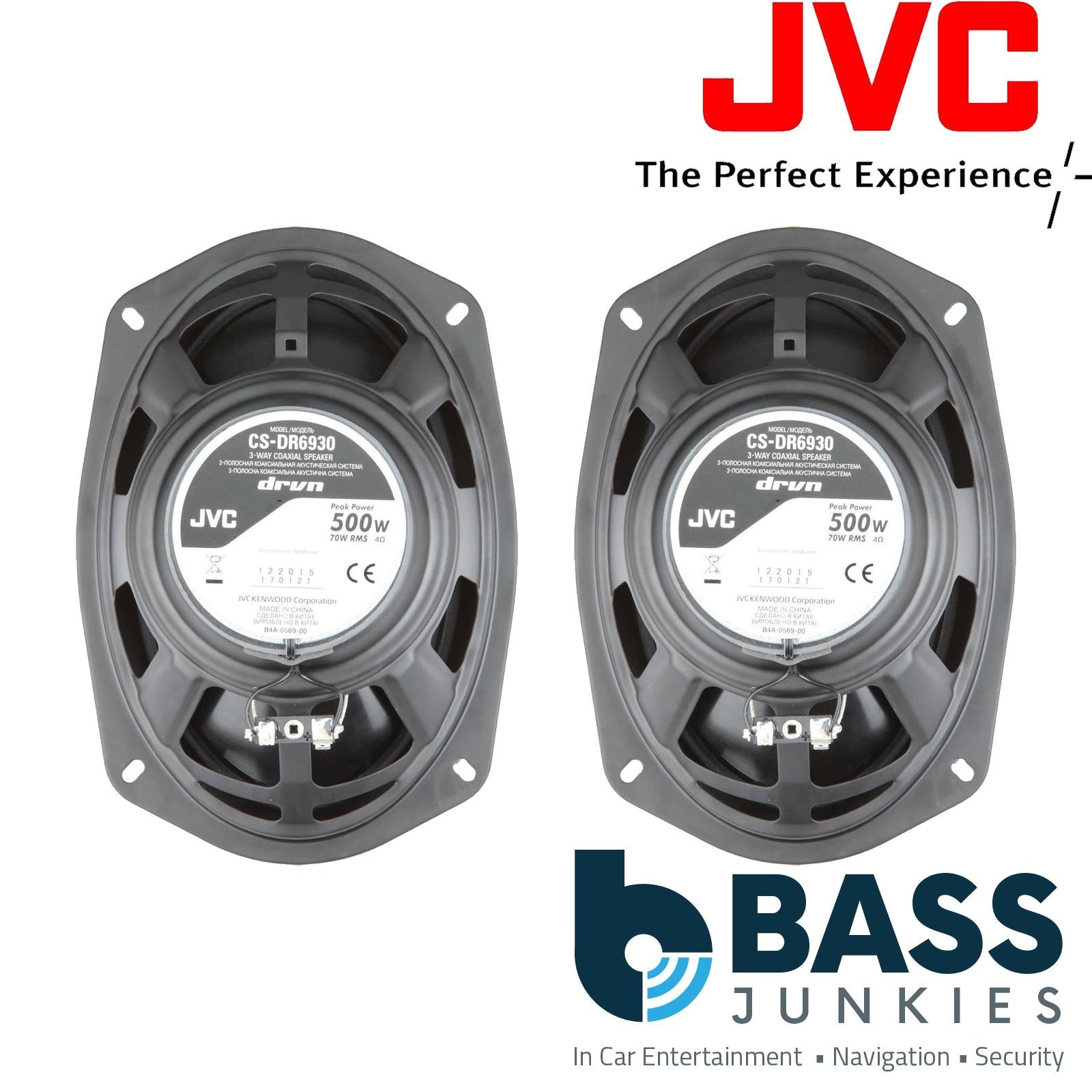

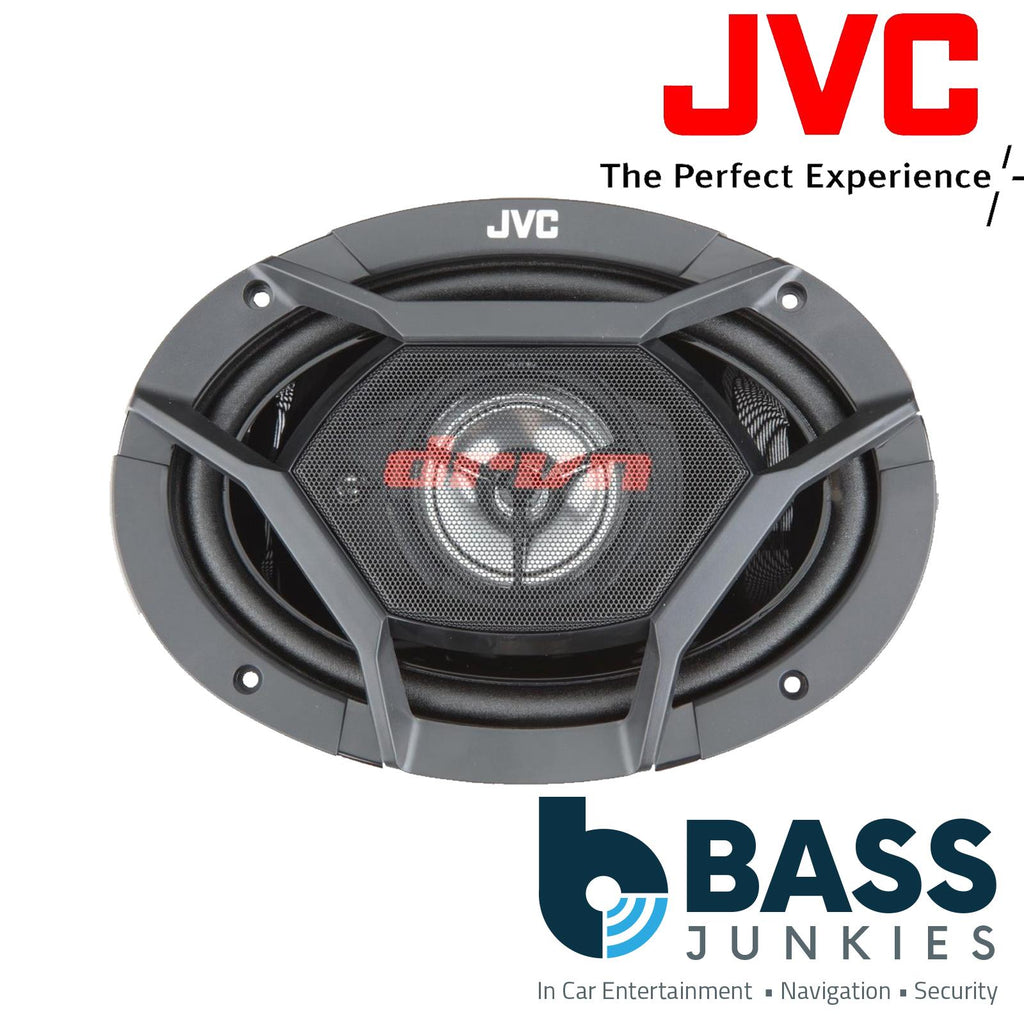

The JVC CD-DR6930 3-Way Coaxial Car Speaker 6 X 9 inch (15 x23 cm) has the power to deliver a whopping 500W at peak. Stylish designed for the rear shelf placement. The combination of powerful magnet, cone woofer built with robust, lightweight carbon mica material for high frequency and powerful bass clear an undistorted sound reproduction.
Features:
- 3-Way Coaxial
- 1000 Watts Peak Per Pair
- 500 Watts Peak Each Speaker
- 140 Watts RMS Power Per Pair
- 70 Watts RMS Power Per Speaker
- Frequency Response: 58 - 21,000Hz
- Sound Pressure Level: 88dB/W.m
- 15 x 23 cm (6" x 9") Carbon Mica Cone Woofer
- 6.6cm (2-5/8") Poly-Ether Imide Cone Midrange
- 1.5 cm (19/32") Poly-Ether Imide Dome Tweeter
- Ferrite Magnet (Woofer)
- Hybrid Surround
- Mounting Depth: 79 mm (3-1/8")
Technical Specifications
- Woofer
Size: 15 x 23 cm (6" x 9")
Diaphragm: Carbon Mica Cone
Surround: Hybrid Surround (Rubber & Cloth)
Magnet: Ferrite
- Midrange
Size: 6.6 cm (2-5/8")
Type: Cone
Diaphragm: Poly-Ether Imide
Magnet: Ferrite
- Tweeter
Size: 1.5 cm (19/32")
Type: Dome
Diaphragm: Poly-Ether Imide
- General
Frequency Response: 58 - 21,000Hz
Power Handling Capacity (RMS): 70W Per Speaker
Power Handling Capacity (Peak Power): 500W Per Speaker
Impedance: 4 ohms
Sound Pressure Level: 88dB
Weight: Weight (w.Grille): 1.07kg (2.4lbs)
Weight (w/o Grille): 0.99kg (2.2lbs)
Magnet Mass: 285g (10oz)
Mounting Depth: 79 mm (3-1/8")

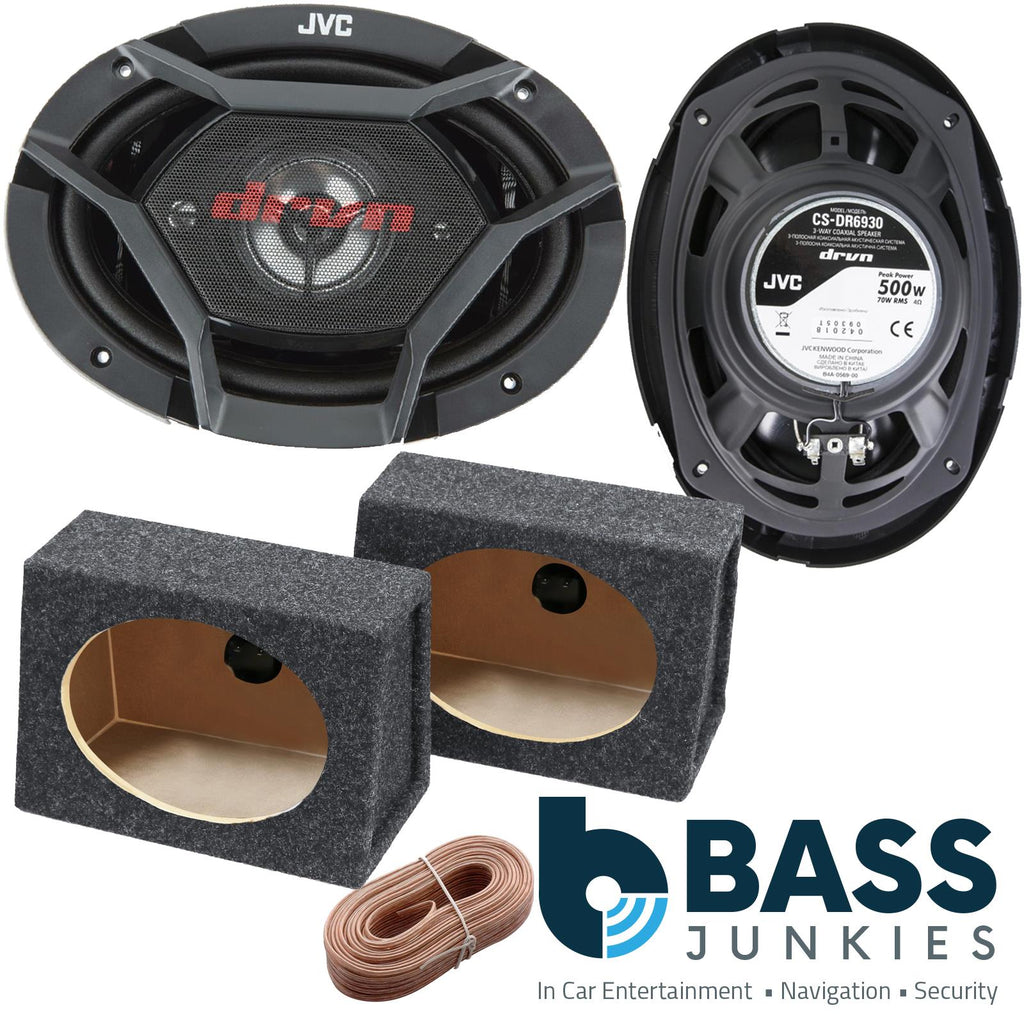

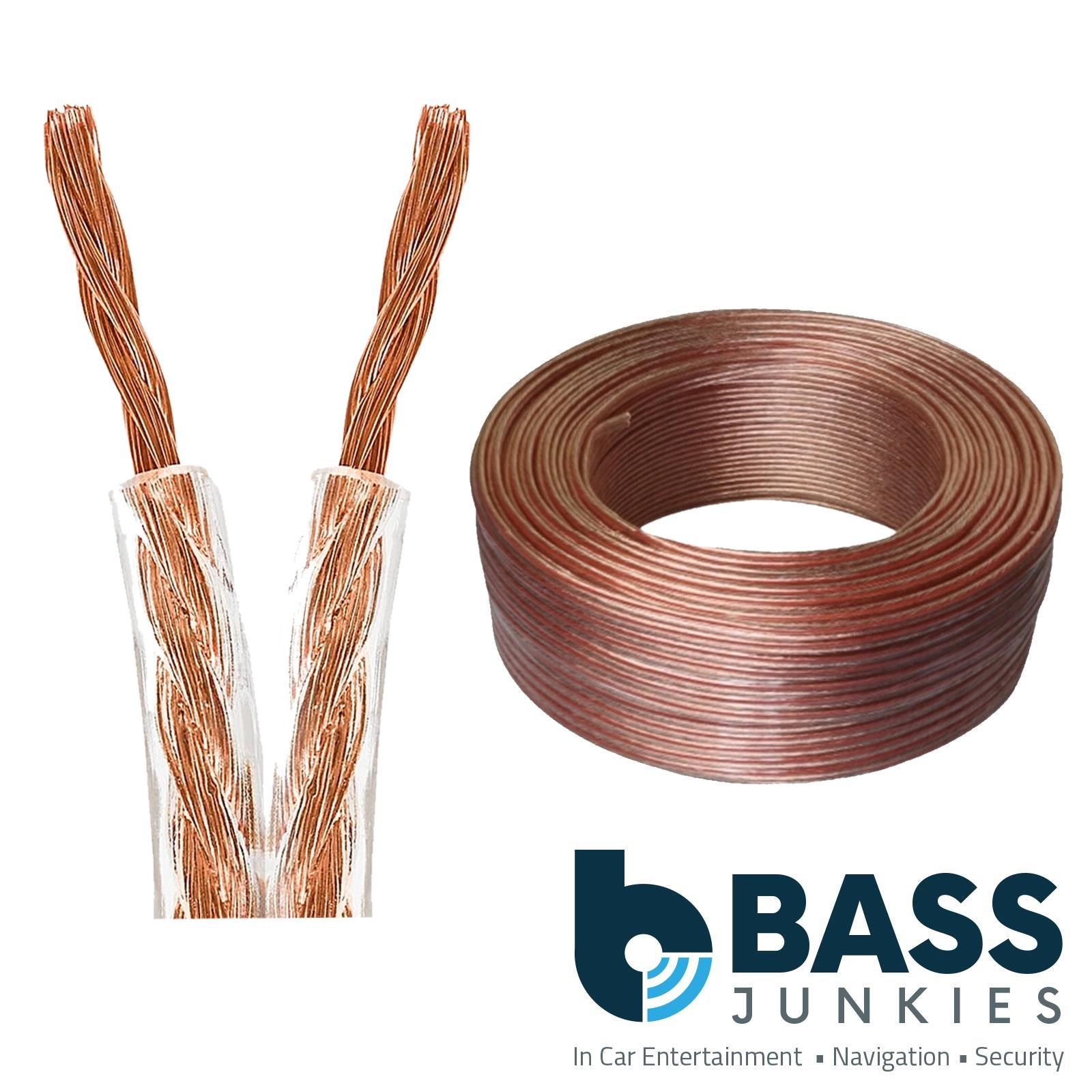

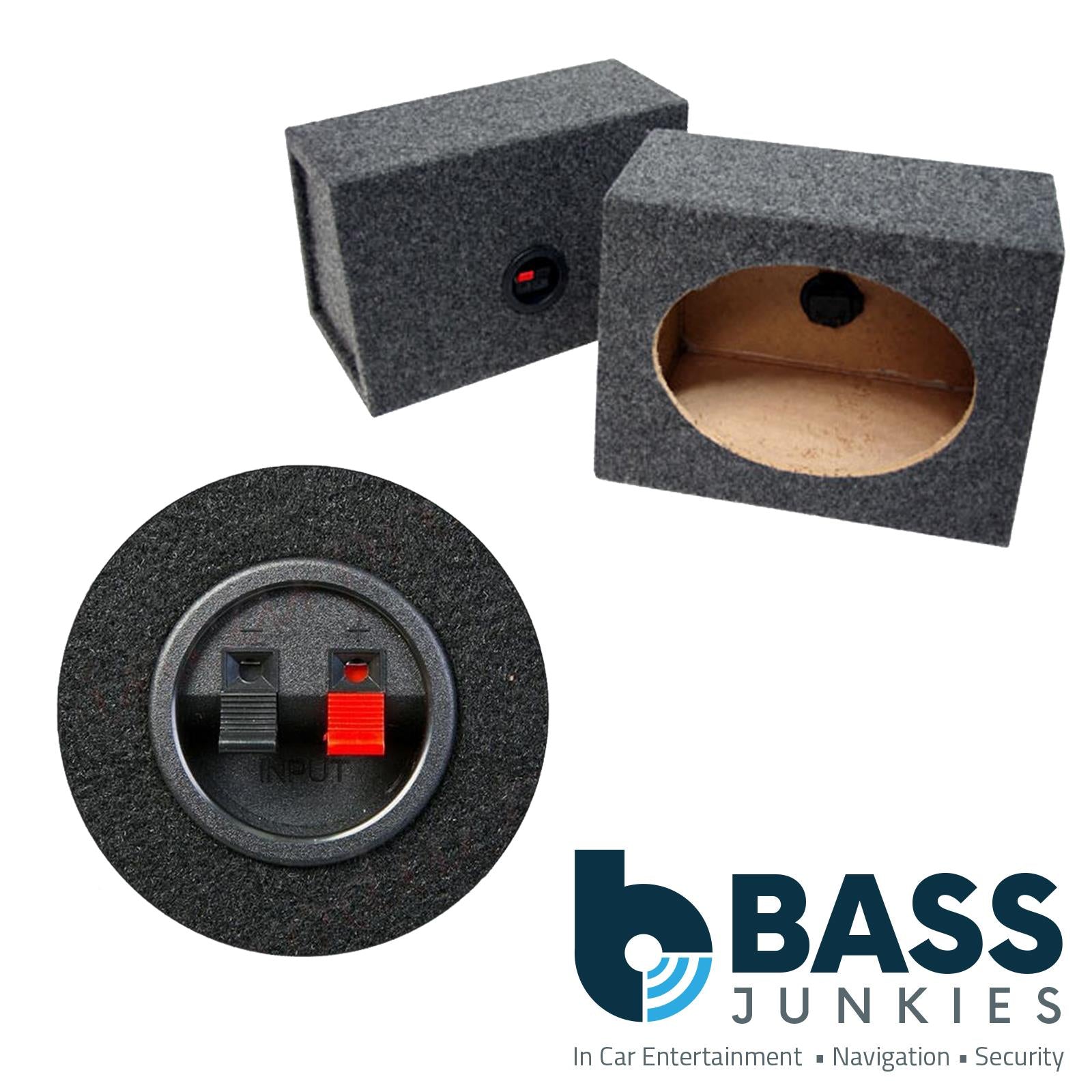

+ 6x9" Grey Boxes (1 for each speaker) & 8 metres of 16AWG Oxygen Free Speaker Cable
