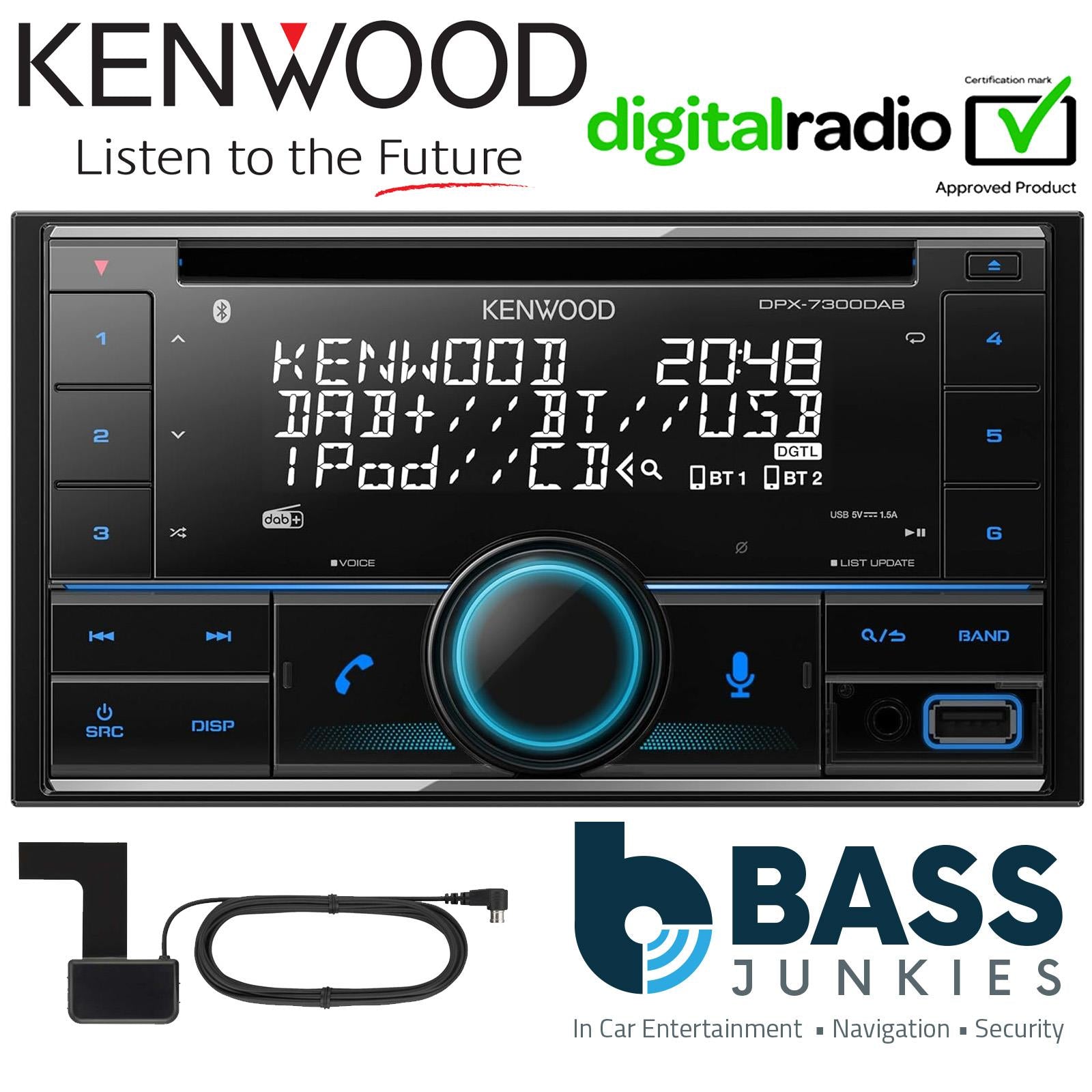

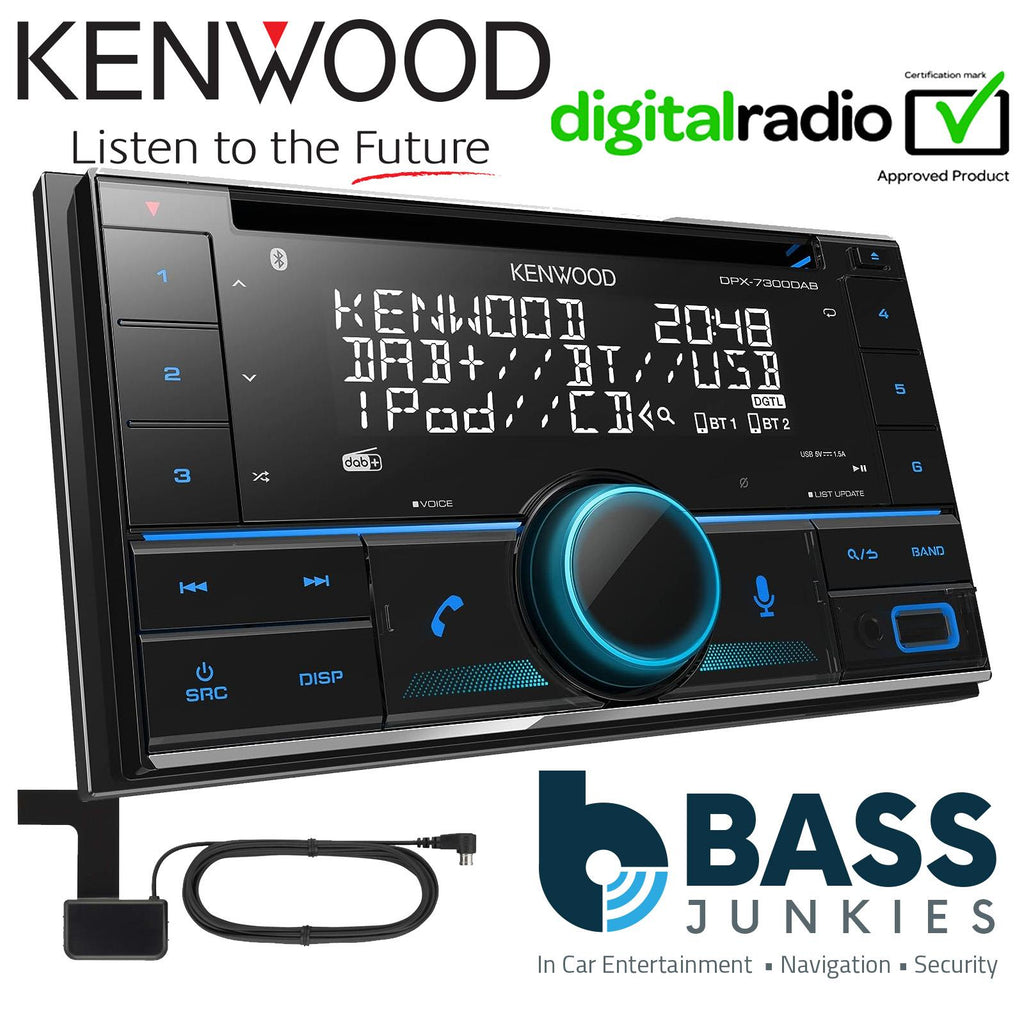

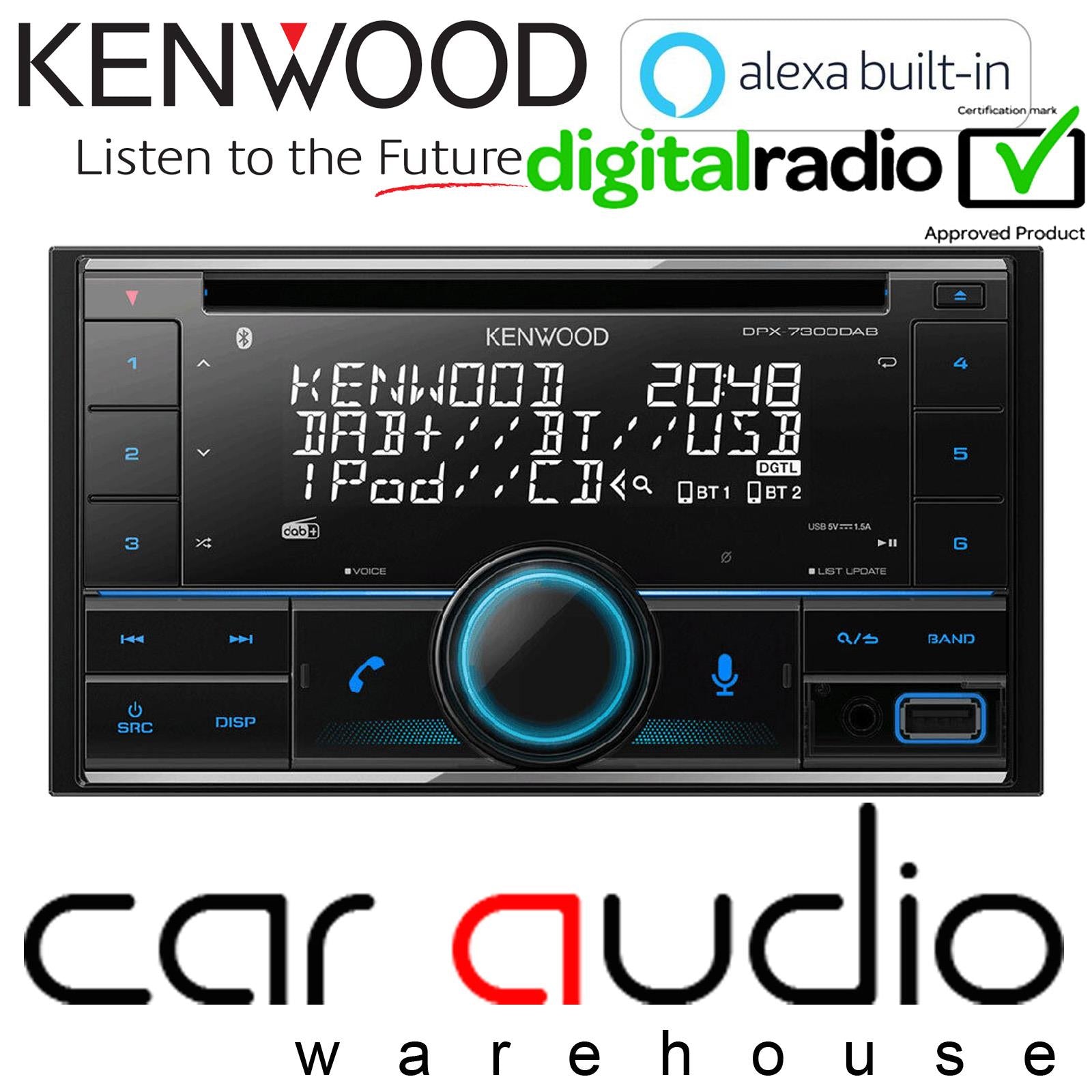

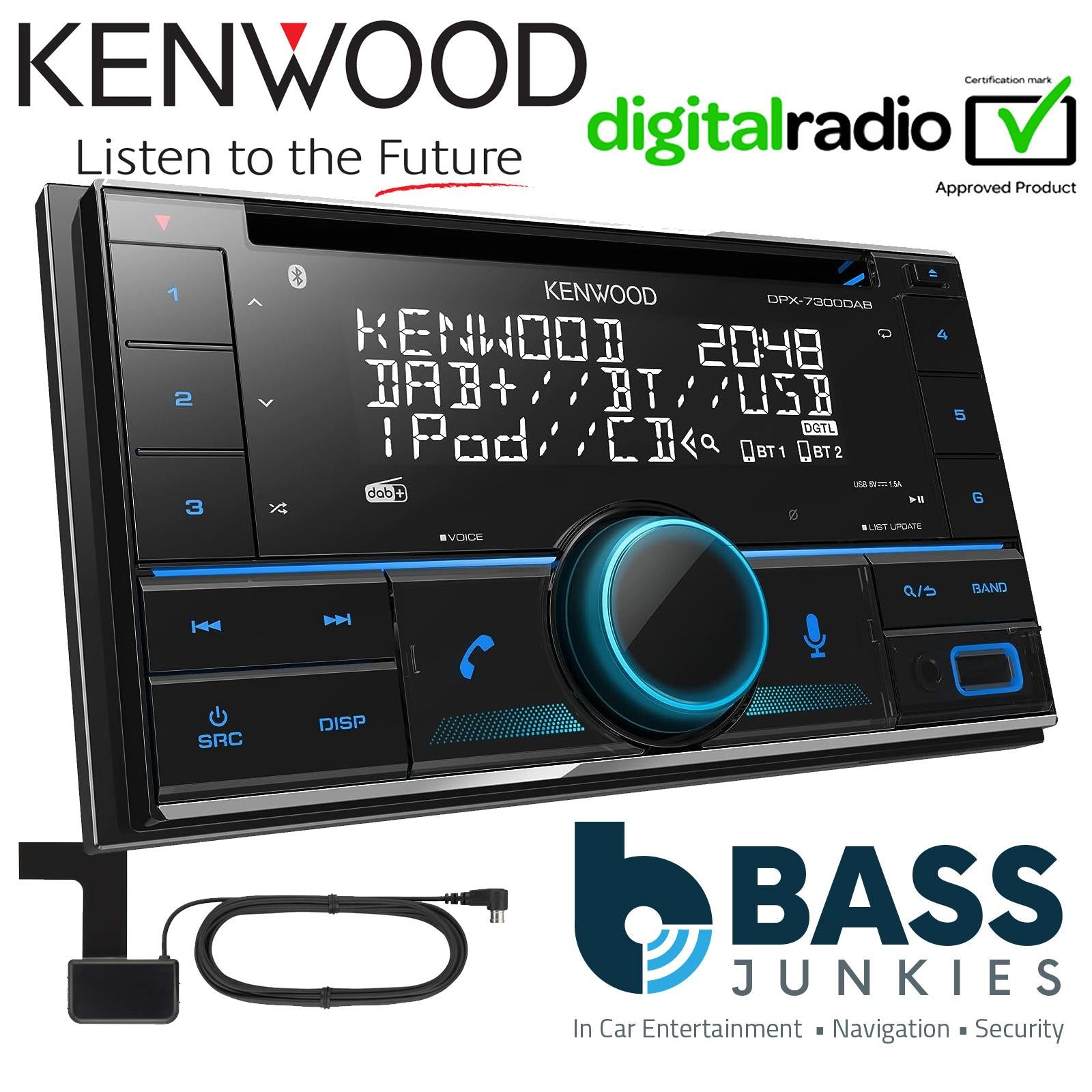

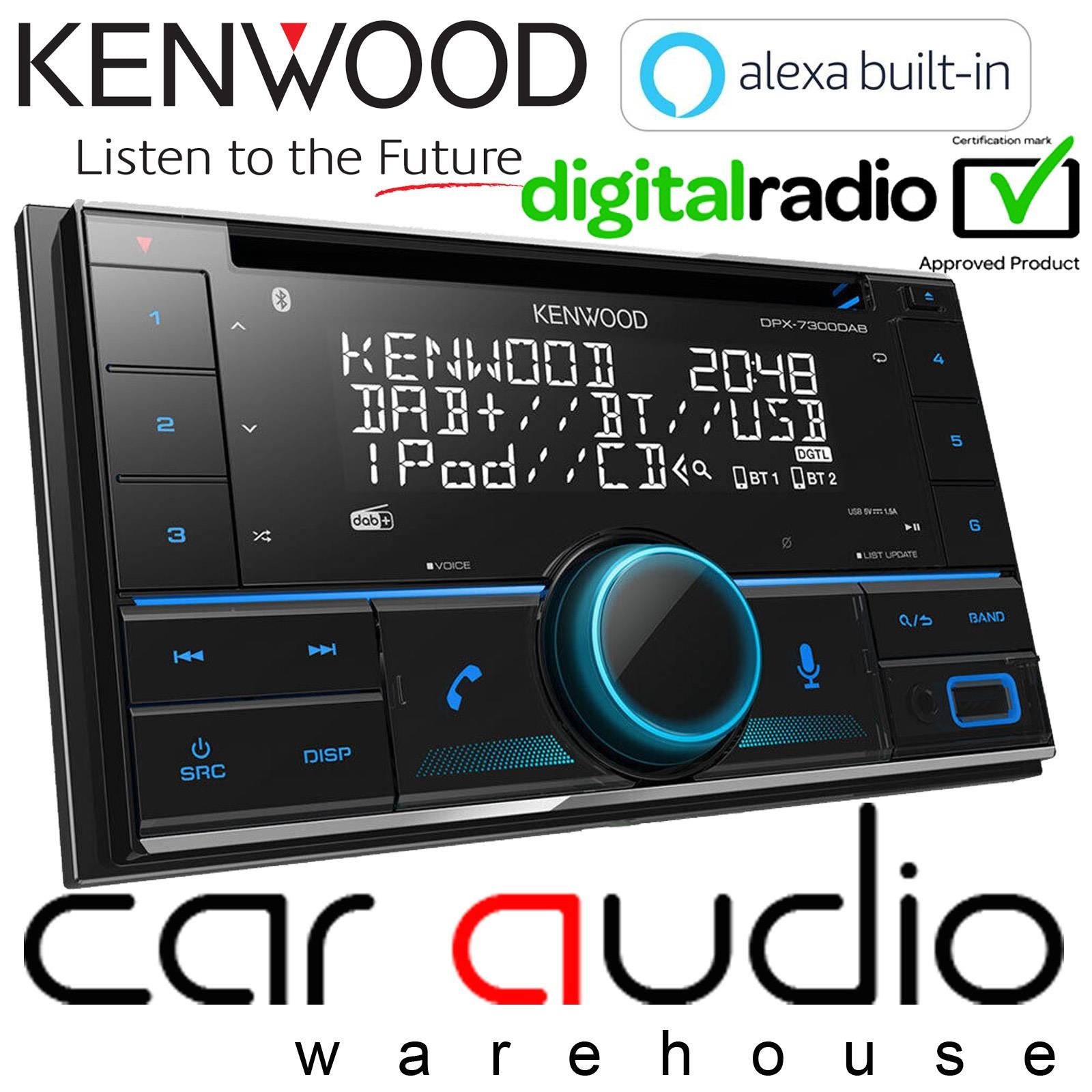

Kenwood DPX-7300DAB - Double Din CD/MP3 Bluetooth DAB+ USB iPhone Alexa Android Car Radio Stereo & DAB Aerial
COMES WITH DAB AERIAL
CD/USB Receiver with Digital radio DAB+, Bluetooth technology & Amazon Alexa voice service.
Enjoy convenient control. Cristal clear Digital Radio DAB+. Built-in Bluetooth technology for hands-free calls and music streaming, the ability to use your smartphone like a wireless remote control and interactions with Amazon Alexa cloud-based voice service. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.
Key Features
- DAB+ Digital radio, analog FM radio with RDS functionality and AM radio reception.
- Bluetooth technology for hands-free calls and music streaming.
- Use your smartphone like a wireless remote control with the KENWOOD Remote app.
- Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix
- Amazon Alexa cloud-based voice service ready.
- MP3 / WMA / AAC / WAV / FLAC music file playback.
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- 3 high power (2.5V) RCA preouts to connect multiple power amplifiers.
- Large 3 line LCD display with high contrast, wide viewing angle & variable-colour backlight.
- Menu language in English(default), Russian, Spanish, French or German.
General Features
- DIN Size 2 DIN
- Key Illumination Variable LED
- Rotary Encoder & Control Knob
- Dual Accent Key Handsfree & Voice Assistant
- Back-up Memory Menu Settings
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Digital Clock (24H)
- All-off Select (20/40/60 minutes)
- Built-in Connector Mitsumi, 16 pin
- Bluetooth unit built-in
- Firmware upgreadable
Display Features
- Display Layout 3 line text + custom icons
- Vertical Aligment Liquid Crystal Display
- Display Illumination Variable by RGB LED
- Dimmer Control Manual / Set by Timer
- Brightness control 0 - 31 steps
- Demo Mode
- Menu text in selectable language English(default) / Spanish / French / German / Russian
- TAG Language Display English / Spanish / French / German / Russian / Greek
Cosmetics Features
- Dress plate Black Injection
- Preset key finish Black Injection
- Escutcheon finish Black Injection
- Volume & operation knob or wheel Transparant Lighting
- Triangle Illumination Red LED
- Key illumination Variable by RGB LED
- Illuminated front USB port Variable by RGB LED
- Brightness Control (Key) 0 - 31 step
- Dimmer Control (Key) Manual / Set by Timer
- Variable color illumination
- Color Zone Concept 3 zone colour control
- Chrome-finished accents faceplate
Tuner Features
- Station Select Manual / Preset
- FM Reception
- AM (MW/LW) Reception
- Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
- Preset memory w/o back-up power
- Mixed preset memory (FM & AM) 6 presets
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selector
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- AF Regional Selectable: AF/AF Reg/OFF
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB Tuner Features
- DAB+ tuner built-in
- Digital Radio Certification Mark
- Intelligent seek
- Ensemble seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 6 ch * 3 bank presets,
- Auto service memory (AME)
- Service list by alphabet order
- Preset list
- Related service
- Audio interrupt standby by PTY
- Audio interrupt standby by announcement
- DAB-RDS integrated TI
- Traffic Information
- DAB-AF (Alternative frequency)
- Announcement Switching (ASW) Select
- DMB Audio (Digital multimedia broadcasting)
- Soft linking
- Antenna power supply on/off switch

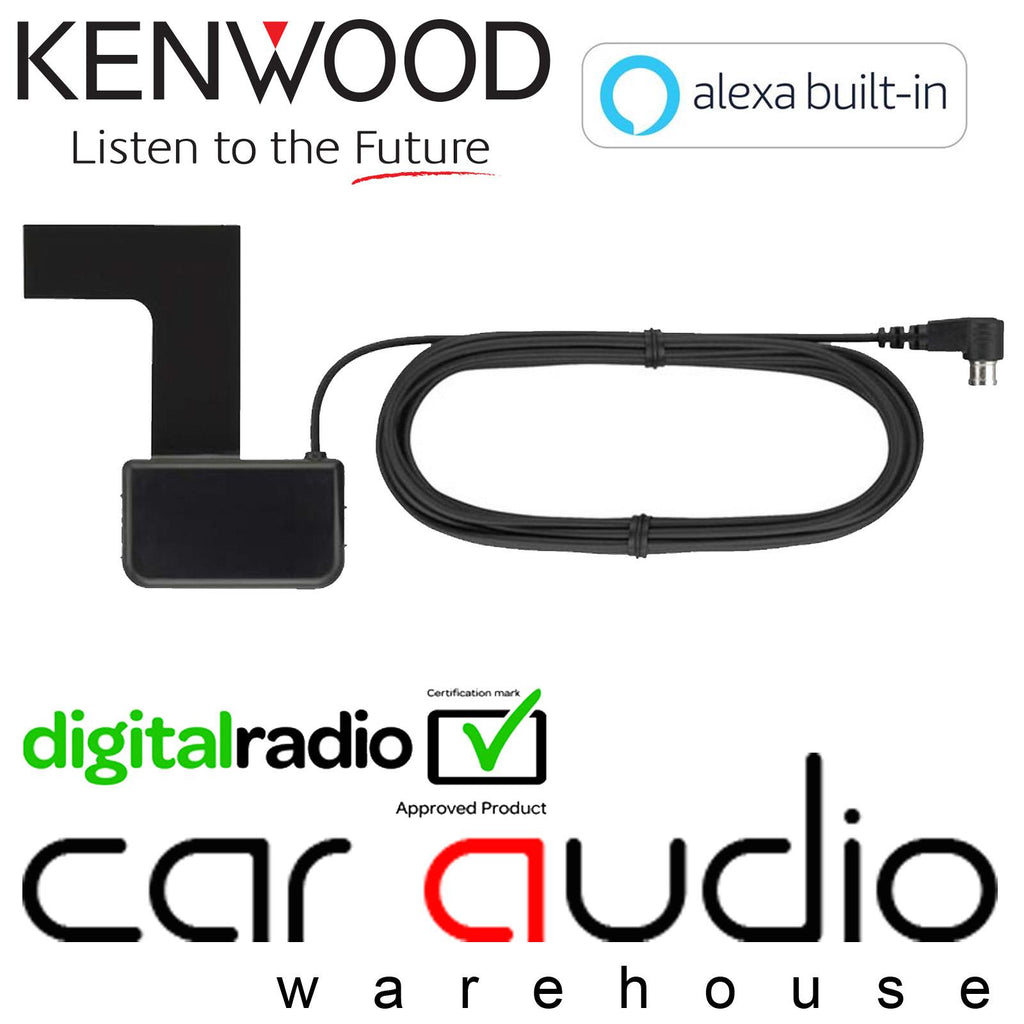

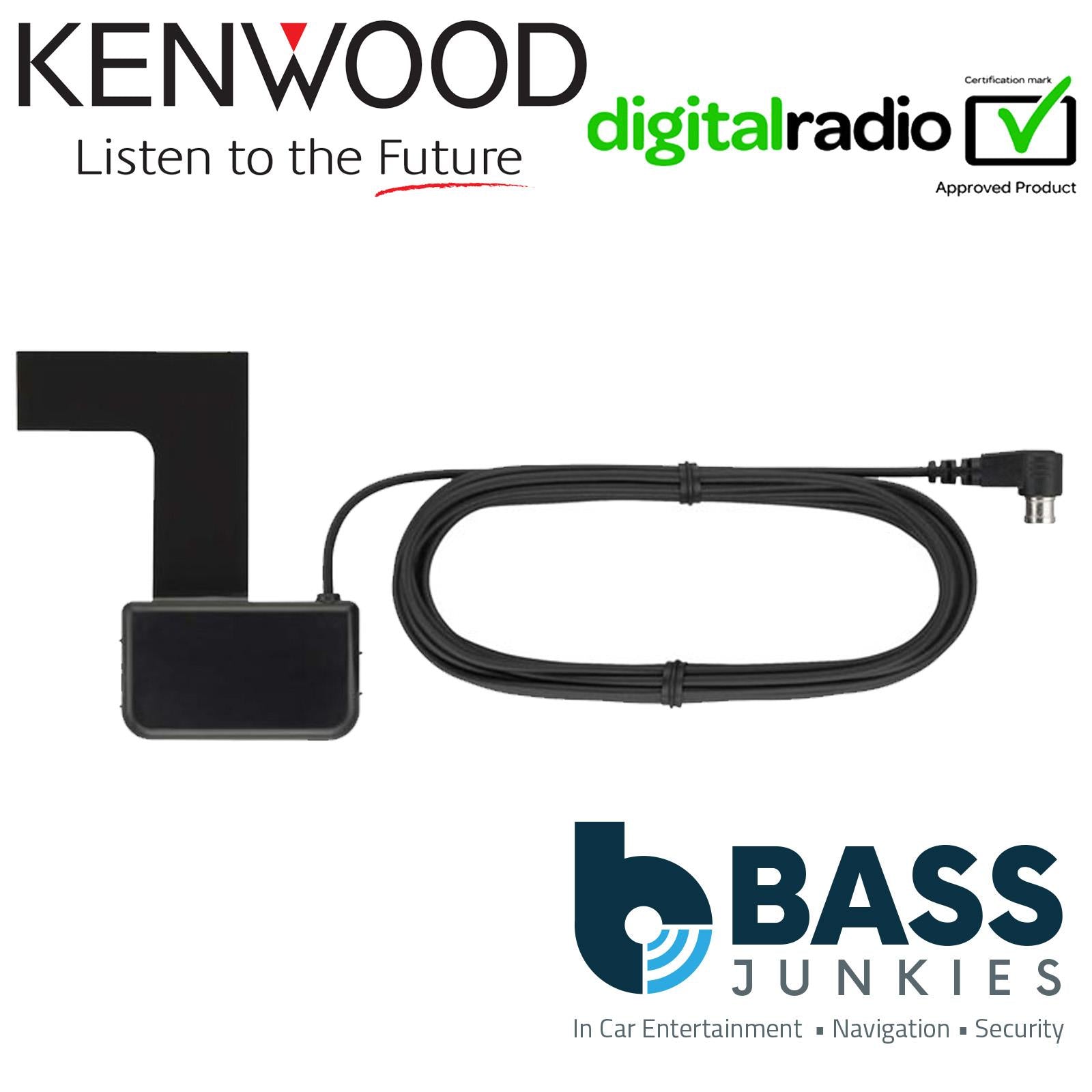

- DAB Antenna Included
Playable Audio File
- AAC (*.m4a) files are playable USB
- AAC (*.aac) files are playable CD/USB
- MP3 files are playable CD/USB
- WMA (.wma) files are playable CD/USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
CD Features
- CD-R/RW Compatible
- MP3, WMA & AAC playback
- CD Text with special Character Support English, Spanish, Russian & Greek
- D.A.C. processing 24bit
- 0 bit Mute
- Random Function DISC Random/Random OFF
- Repeat Function Track Repeat/All Repeat
USB Features
- USB terminal Front side with dust cover
- USB Type 2.0 High speed
- Drive Change
- MP3, WMA, AAC, WAV, FLAC playback
- Repeat/Scan/Random search
- Repeat / Random Play
- Direct search
- Resume play
- Time code display
- 1A Charge Capability for Smartphone.
- 1,5A Smartphone Quick Charge
iPod Features
- Made for iPod & iPhone
- USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
- Music playback
- Alphabet search
- Skip search
- Related search
- Direct Search
- iPod EQ Mode
- Control by hand
- App & iPod control mode
- Spotify App Link
- Reverse browsing
- Battery charge + power control
- * Always update to latest Apple firmware
Audio Features
- Maximum Output Power 50W x 4
- MOSFET Power IC
- Auxiliary Type Mini-jack, front panel
- Pre-out 3 RCA
- Pre-out Output Level 2.5V
- Subwoofer Reference Level Adj
- 2-Way X'over network
- 3-Way x'over (bi-amp connection)
- Tone Control / Easy EQ 13 band, 8 presets
- Balance/Fader/Loudness Control
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Att.(-20dB) with smooth Volume Return
- Equalizer built-in
- Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital Sound Processor (DSP) Built-in
- Digital Time Aligment (DTA)
- Low- & High-pass Filter
- Speaker Size Control Off/10cm/13cm/16cm/6x9inch
- Kenwood Sound Reconstruction
- Sound Reconstruction
- Space Enhancer
- Realizer
- Stage EQ
- Drive EQ
Bluetooth General Features
- Max num. of regist. phones for HFP & A2DP 5 phones
- Hands Free Profile with High Sound Quality HFP V1.7.1
- Max num. of regist. phones for HFP 5 phones
- 2 phones fulltime connection
- Audio Streaming (A2DP)
- High Quality Audio Streaming SBC/AAC
- Max num. of regist. units for A2DP 5 units
- Serial Port Profile (SPP)
- Phonebook Access Profile (PBAP)
- Audio/Video Remote Control Profile (AVRCP) V1.6.1
- Easy pairing function
- iPhone & Android automatic pairing via USB
- Voice Dialing / Siri Eyes Free
- Spotify App Link
- KENWOOD Remote App Ready
- KENWOOD Music Mix Support
- Amazon Alexa ready
- Catchphone / Call Waiting
- Private mode
- Alphabet Search (Phonebook)
- Noise Canceller
- Echo Canceller
- Phone device status display
- Audio device status display
- Signal strength display
- Remaining battery display
- Bluetooth Paring Indicator
- High-quality noise canceling microphone Rear Wired
- Bluetooth firmware upgradeable
- * depends on phone model/make & Kenwood unit

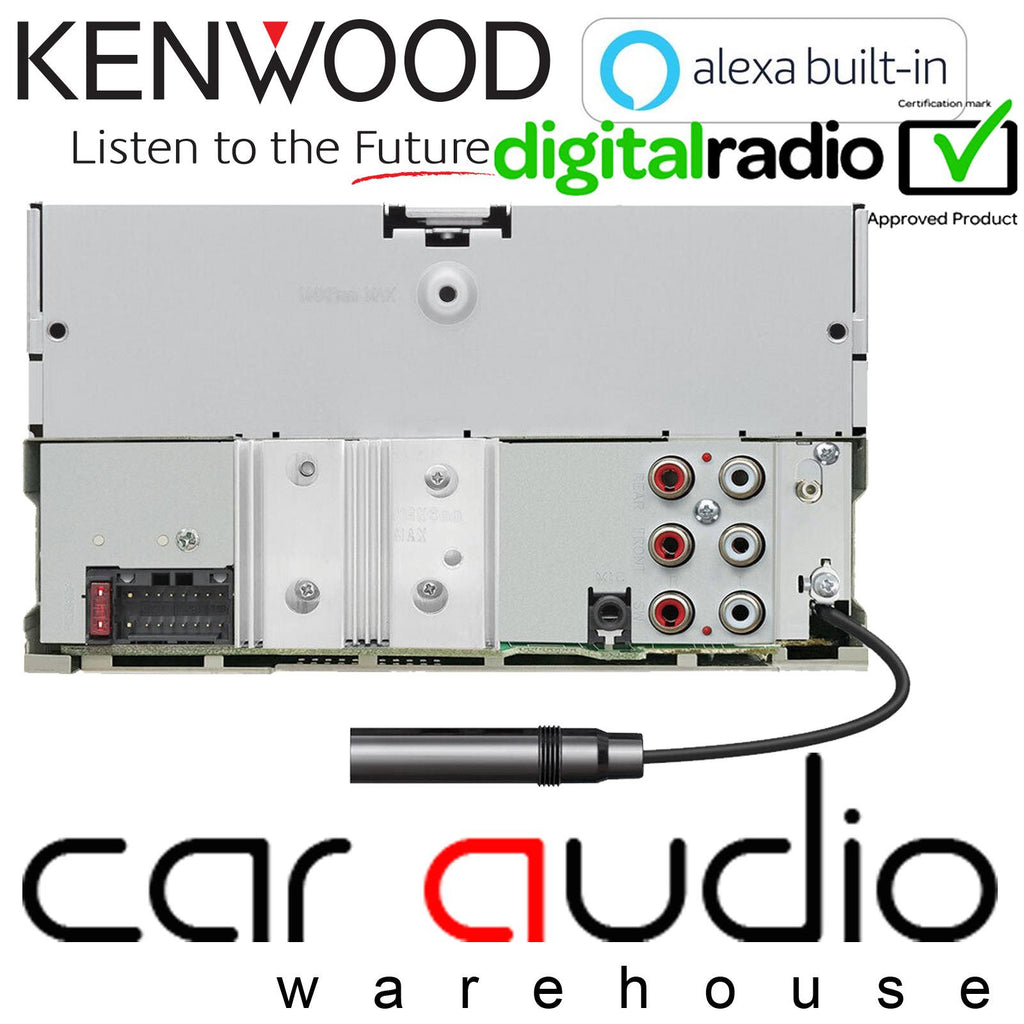

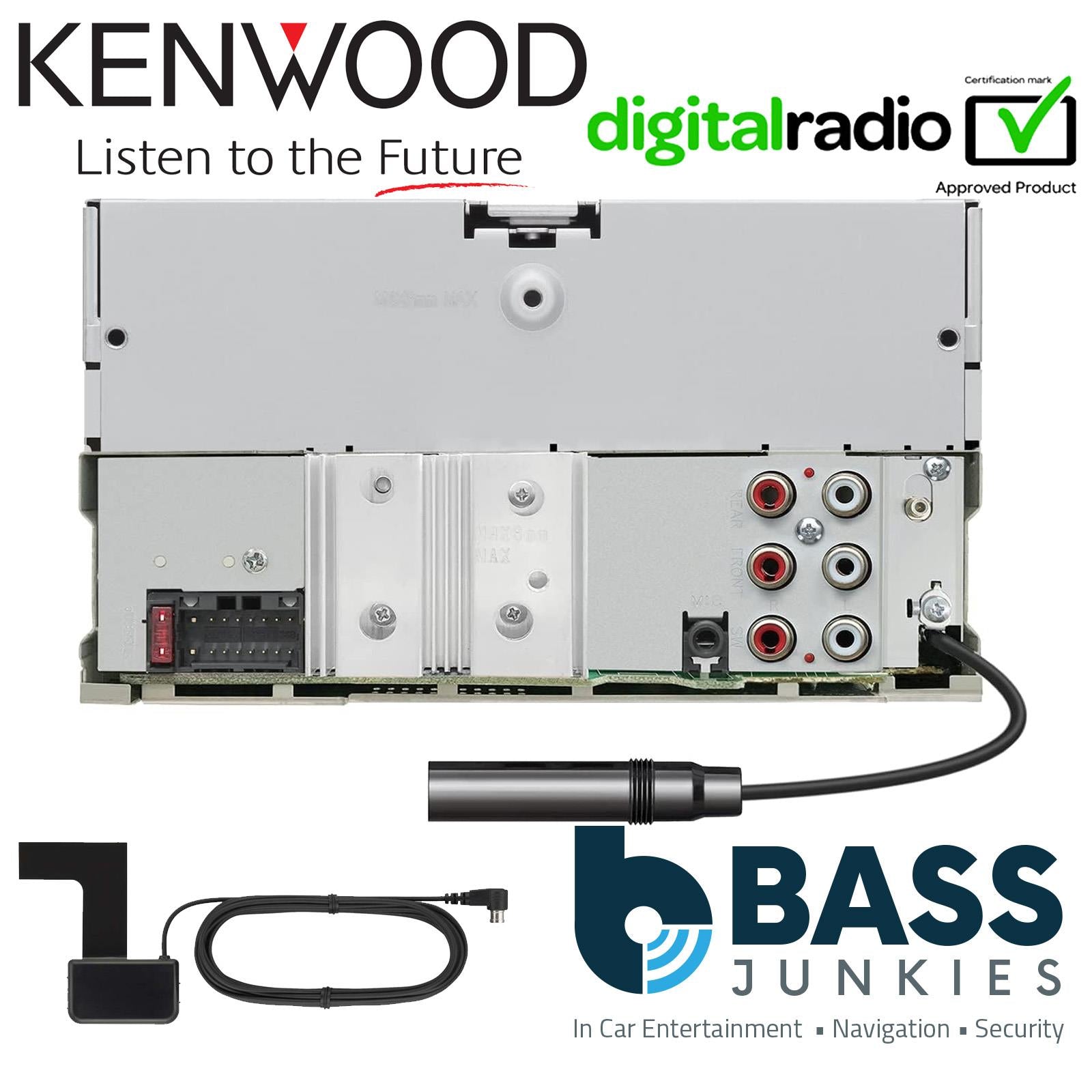

Connectivity
- Front USB & AUX Input
- OEM Wired Remote Control ready
- DC-Cord Mitsumi to ISO
- Power Control (P.CON) wire
- Amplifier pre-out RCA: Front/Rear/Subwoofer
- FM Antenna Input JASO connector
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
Installation Tips
You may require a fascia panel, aerial adaptor , wiring harness or a even a steering wheel interface kit to fit this unit into your vehicle. Here at Bass Junkies we can advise you on full fitting kit to install this unit so please message us via the messaging system on your requirements informing us of the year make and model of your vehicle and our tech guys will be more than happy to help.
