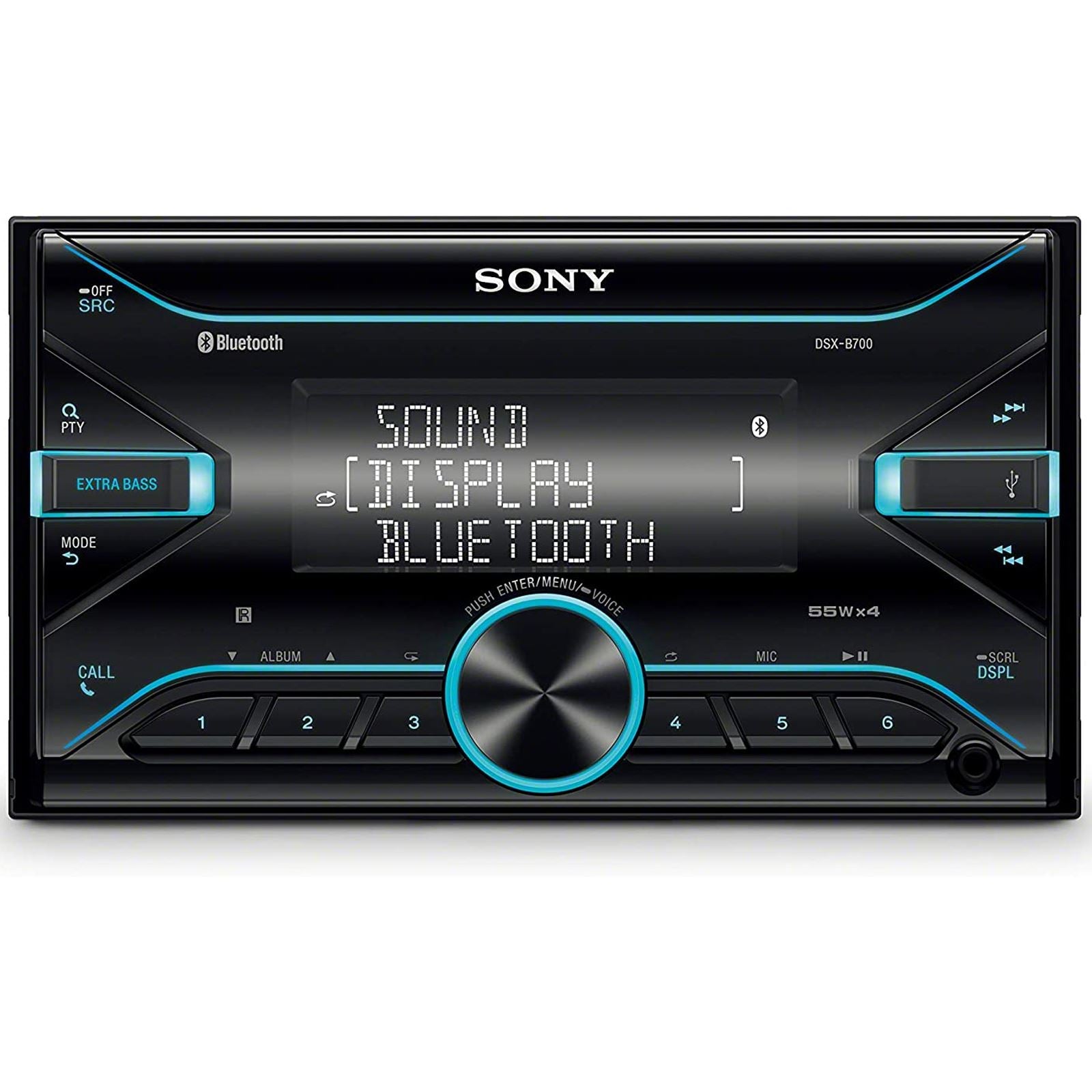

Sony DSX-B700 Bluetooth MP3 USB AUX 4 x 55W Double Din Car Stereo Radio Player + Connects2 Double Din + Steering Wheel Controls fits Mitsubishi Lancer 2008-10

Stay connected on the road with the Sony DSX-B700 Double-DIN media receiver with Dual BLUETOOTH® connectivity

Keep in touch on the road with dual Bluetooth connectivity. Enjoy powerful audio on your journey, and let the Sony | Music Center app and 3-line high-contrast LCD screen ensure smooth, simple operation � including voice control for a range of functions.

Expand your sound system
Three pre-outs mean you can hook up external amplifiers for an even more powerful system.

Connect to your smartphone
Enjoy hands-free calling and wireless audio streaming.

Control with your voice
Use voice commands to get directions, play music, and communicate with contacts when connected with your smartphone.

Connect two smartphones, with Dual Bluetooth

Pair your first phone using Bluetooth for full access to navigation, music playback, and communication features. A second phone can be connected simultaneously for making and receiving hands-free calls.

Bring Siri on the road
Hook up your iOS device to control the music in it, navigation, messaging and more, using Siri Eyes Free.

Voice control for Android
Use voice control to get directions, send messages and play tracks on your smartphone.

Control by talking

Enjoy helpful smartphone features without taking your eyes off the road. Voice control lets you manage music, get real-time directions, and communicate with contacts � all via simple spoken commands.

Bring more immersive sound on every journey

Enjoy clear and natural audio, driven by powerful amplification and customisable audio settings.

High-power amp for rich, clear sound
The built-in four-channel amplifier delivers 4x55W of power, for loud and natural sound.

EXTRA BASS� boosts the beat
Bring out the dynamics in your music, with enhanced low frequencies from EXTRA BASS.

10-band digital equaliser customises your sound
With 10 adjustable EQ sliders, you can easily fine-tune the sound to your personal tastes. The new Karaoke Mode quietens vocal tracks for those times when you just can't help singing along.

Expand your sound system
With three pre-outs you can add components of your choice, like extra amplifiers and subwoofers.

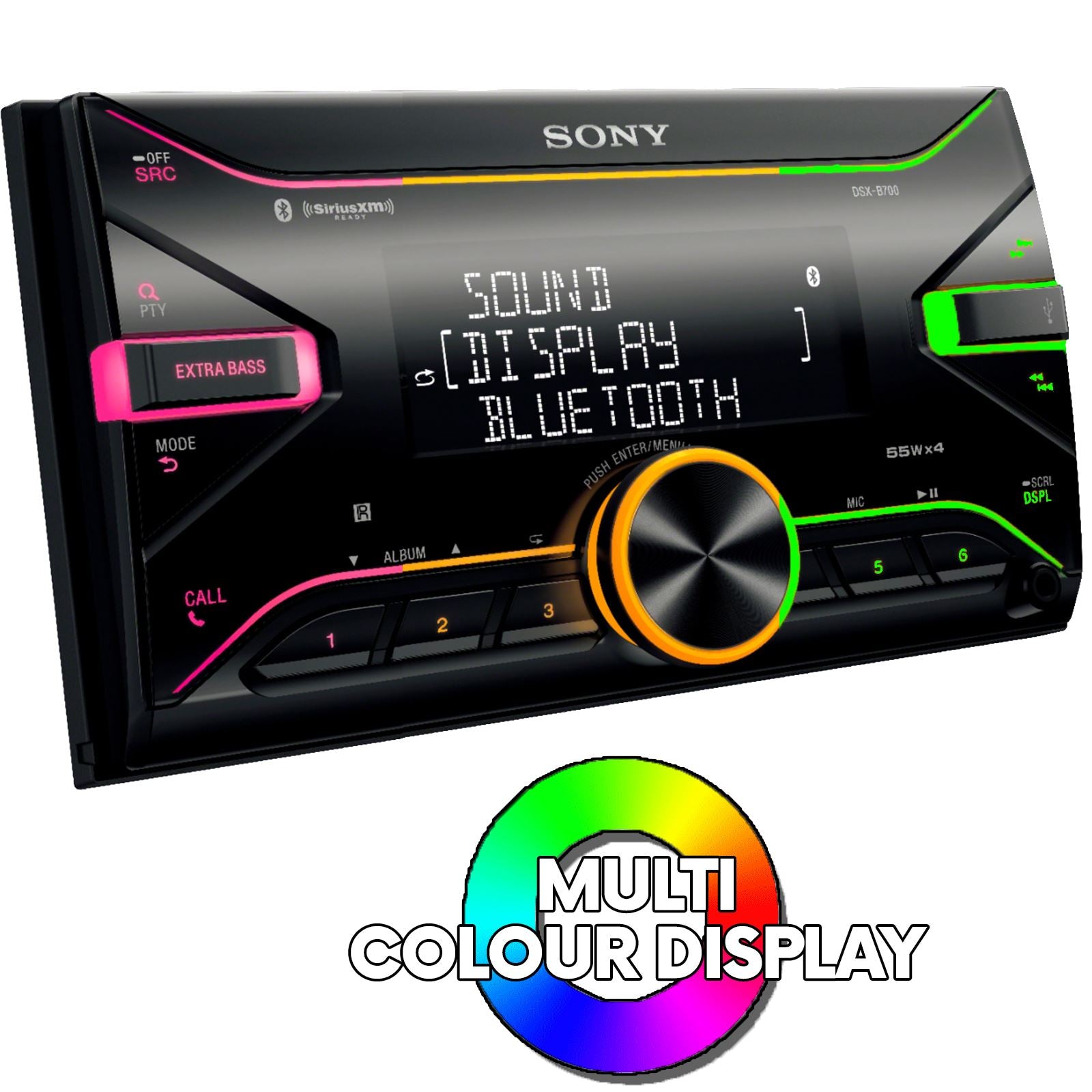

Brighten up your dashboard

Choose from a range of colours and patterns to match your in-car decor with Dynamic Colour Illuminator. Watch the colour of your unit change in synchronisation with your music.

Play FLAC files
FLAC compatibility lets you play lossless audio files, so you can enjoy every detail of the music. USB icon

AOA 2.0 compatible USB port
The front USB port can play tracks from drives, music players and iOS phones, and can stream audio from Android devices.
Read easily with high-contrast LCD
With five times the contrast of conventional screens, plus an optimised viewing angle, the screen is always easy to read.

USB input lets you play music from your iPhone or iPod

You can easily play music from your iOS devices. Just plug in with a USB cable and control basic playback functions while seeing track information on the display.

Simple control

Our 3-line high-contrast display makes it easy to read, wherever you�re sitting. A rotary dial gives you simple control of music and more.

Specifications & Features:
Keep in touch on the road with Dual Bluetooth connectivity from the DSX-B700. EXTRA BASS enhances the beats in your music, while the 4 x 55w amplification gives you all the volume you need. Stream tracks from your iPhone and Android smartphone easily with the AOA 2.0 compatible front USB port.

Features:
• Dual Bluetooth lets you connect two smartphones simultaneously
• Voice control with Siri Eyes Free and Android
• 4 x 55W
• Turn on EXTRA BASS for a dynamic low end boost
• AOA 2.0 compatible USB terminal lets you connect music players and smartphones

Specifications:
• Size & Weight
Dimensions (W x H x D) 178 x 100 x 177mm
Weight 1.0kg
• General:
Bluetooth� Yes
USB Yes (Front)
AUX Yes (Front)
EQ EQ10
High Pass Filter Yes (80 / 100 / 120)
Low Pass Filter Yes (80 / 100 / 120)
Subwoofer Direct Connection Yes (Easy)
EXTRA BASS Yes (1,2)
Output Power 4 x 55W

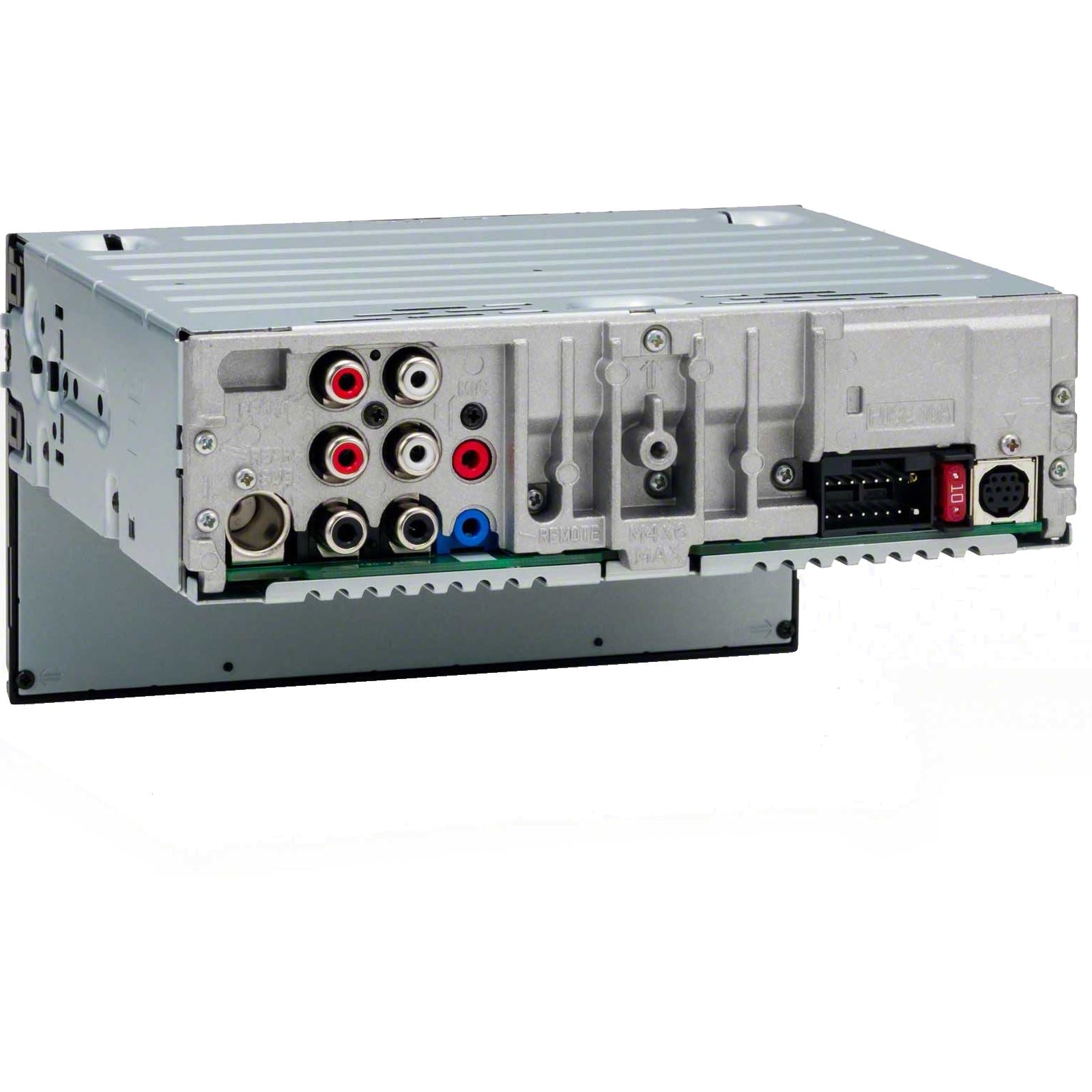

Pre Out x 3
Sub Out Yes
• Tuner Features:
Preset EUR: FM18 / AM6 / LW6,RU2: FM12 / FM6 (EE) / AM6 / LW6
RDS / EON Yes
• Panel Design
Display Color (Color Variation / Negative or Positive) Black
Key Illumination Variable
Dimmer Yes (On / Off / AT / Clock)
• iPhone / iPod Music Playback Control via USB
Pause Yes
Repeat OFF / ONE / ALL
Resume Yes
Shuffle OFF / SONG / ALBUMS
• Bluetooth Features
Voice Control Yes
Siri Eyes Free Yes
External Microphone Yes
Mic Gain Adjustment Yes (Low / Mid / Hi)
ersion Bluetooth Version 3.0
• Bluetooth Audio Features
Audio Codec SBC, AAC
Audio Level Adjustment Yes (-6dB - +6dB)
Cue / Rev Yes
Pause (Bluetooth Audio) Yes
Track +/- Yes
• Smartphone Apps for Bluetooth
Music Center (iOS) Yes
Music Center (Android�) Yes
• USB Mass Storage Device Control Features
Jump Mode Yes
Compatible File Formats (Codec) MP3, WMA, FLAC, AAC.
List Browse Yes
Pause Yes
Repeat ALL / TRACK / ALBUM
Resume Yes
Shuffle OFF / ALBUM / DEVICE
• Remote Control
Supplied Remote Model Number No
Optional Remote Model Number RM-X8S
• USB Profile
USB Mass Storage Device Yes
USB Media Transfer Protocol Yes
USB Android Open Accessory Protocol Yes (2.0)
• What's In The Box
• External Microphone
• ISO connector
• Trim Ring(hard type)
• Mounting Sleeve & Release Keys

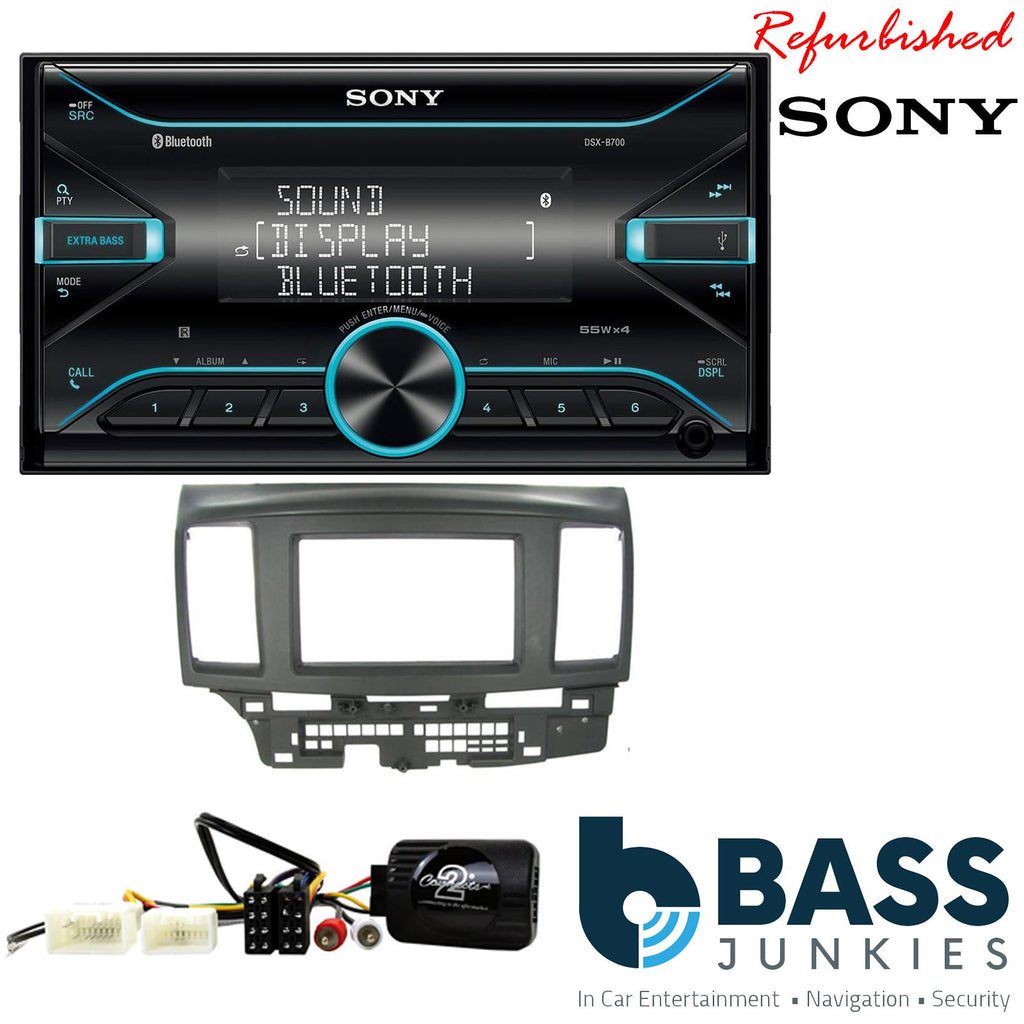

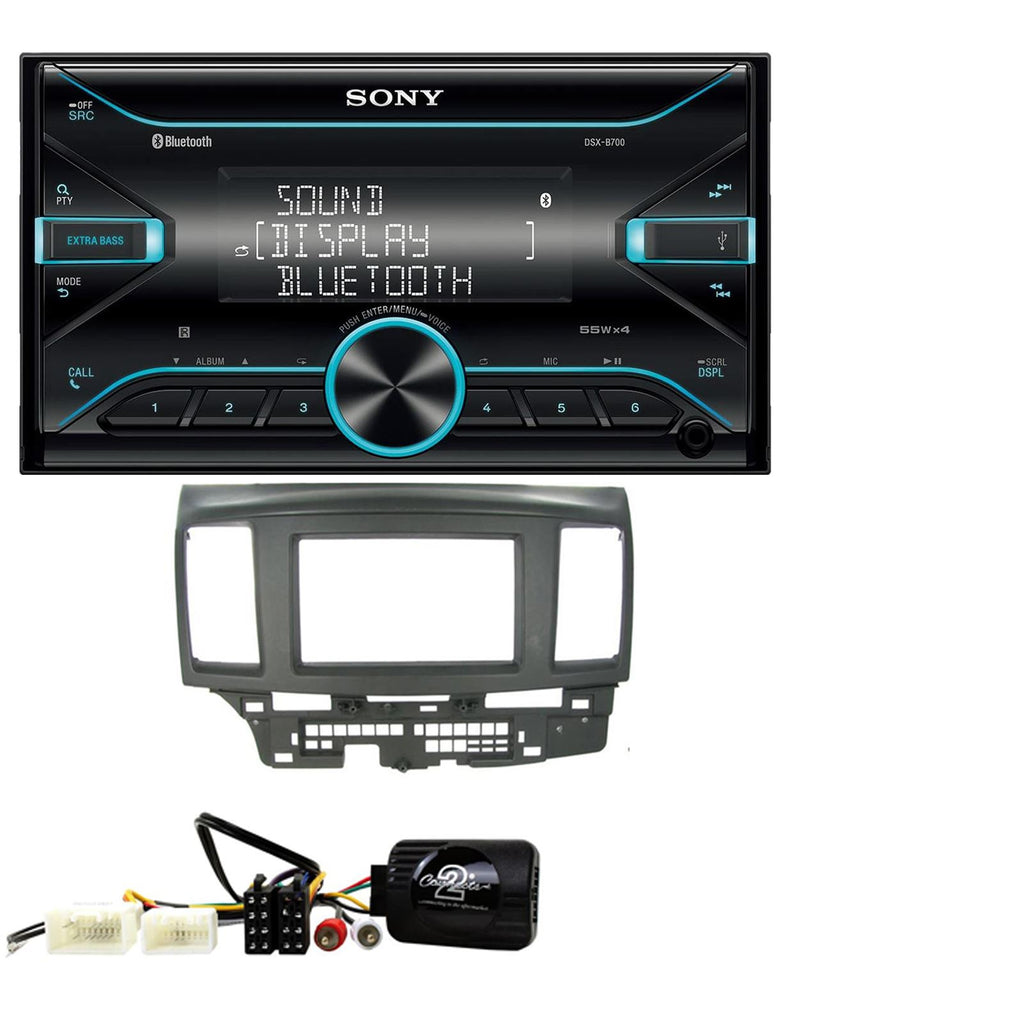

Connects2 Full Fitting Kit for Mitsubishi Lancer 2008-2010. Mitsubishi Lancer Installation Kit. Supplied With Black Double DIN Fascia, Steering Wheel Control Interface & Universal Patchlead *Note - RCA Connections For OEM AUX Retention (If Feature Is Available)

• Contains universal patchlead CTMULTILEAD.2
• This product has been developed through carefully documented data and research.

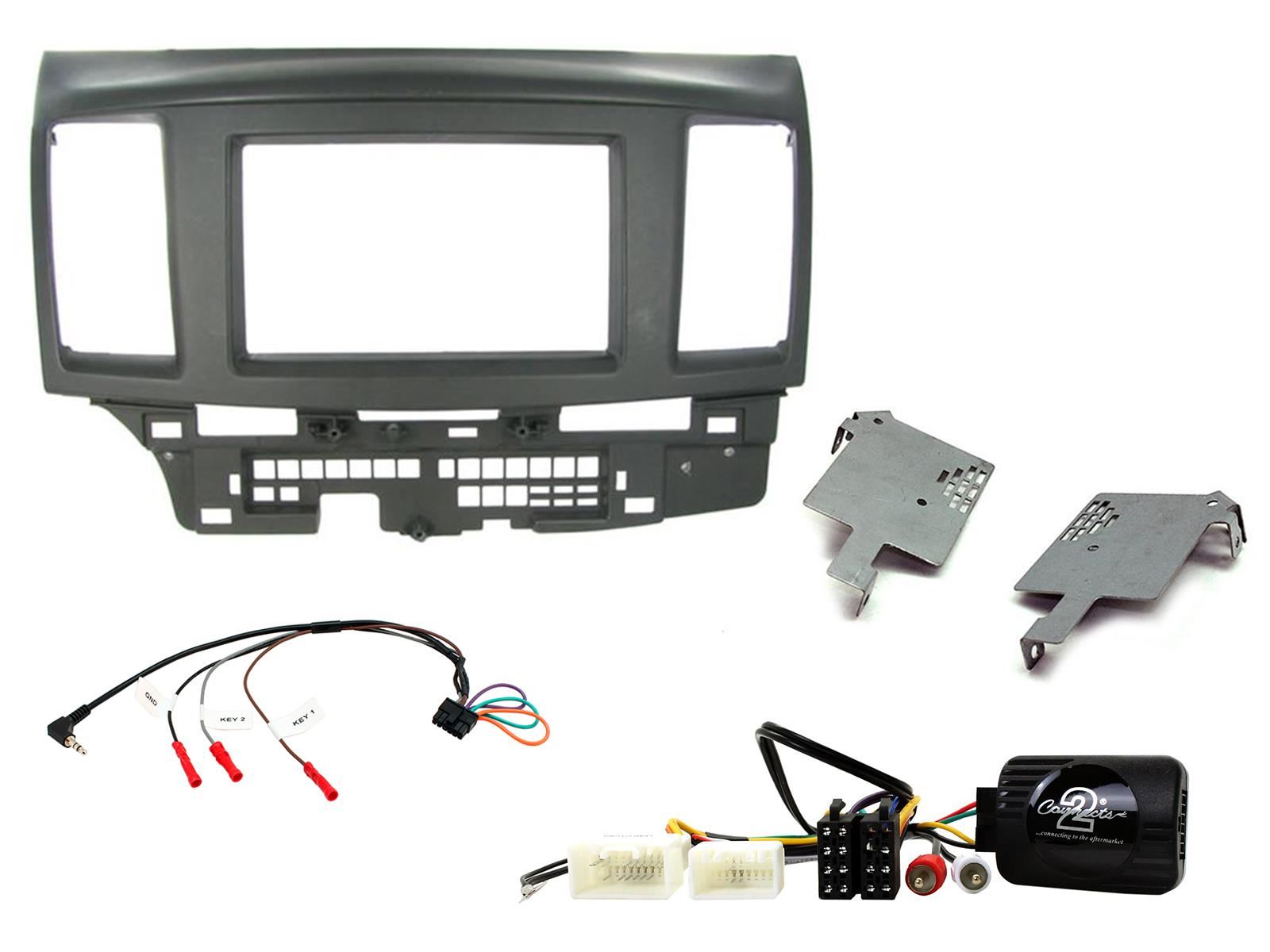

Fitting Kit Breakdown:

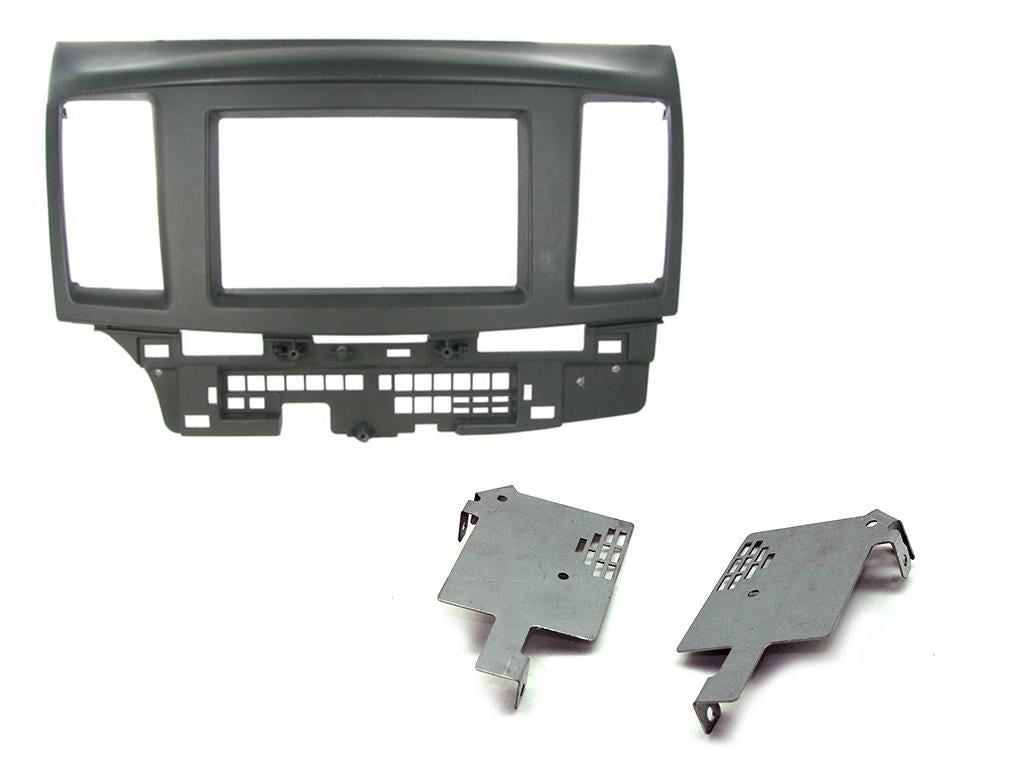

Fascia Panel
Mitsubishi Double Din Fascia Plate (Black)
This fascia kit allows the installation of an aftermarket head unit into a non din sized aperture
High quality finish designed to match the vehicle dashboard
Fascia kit supplied with brackets or cage if required (please see product image)
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

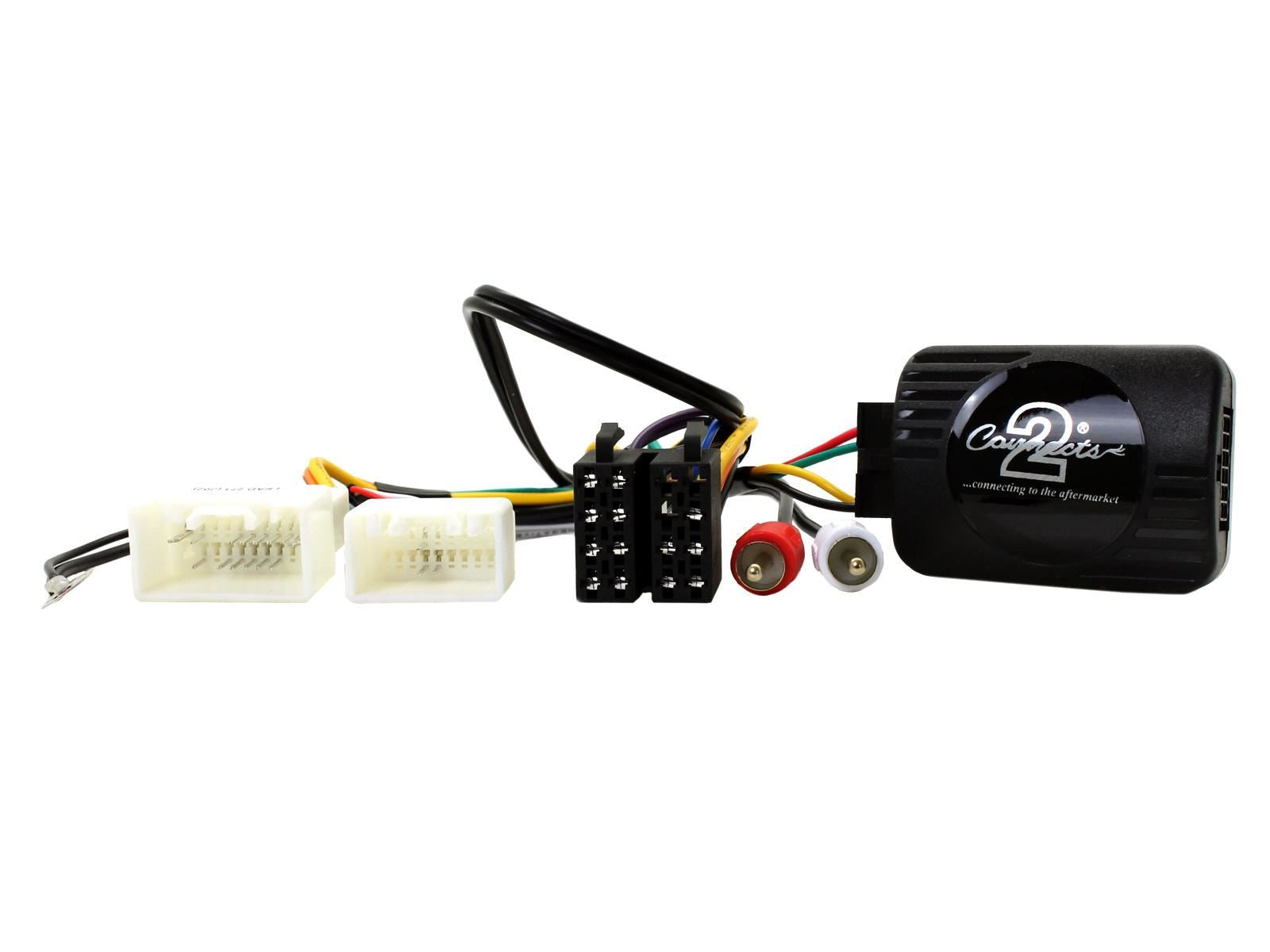

Steering Controls Adapter
Universal patch lead to connect an aftermarket stereo to a Connects2 interface. Supports most major head unit brands including Alpine, Clarion, JVC Kenwood, Panasonic, Pioneer, Sony and more.
This head unit connection lead can be used with all of the Connects2 steering wheel control interface range
Steering Controls Adapter
Mitsubishi Steering Wheel Control Interface. For Non Amplified Vehicles. RCA Connections For OEM AUX Retention (If Feature Is Available)
Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
Plug and play, no cutting of wires required
Maintains the original features of the vehicle such as date, time and temperature display
Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
For interfaces where phone buttons are supported, the following brands allow pick up/hang up in Bluetooth mode: Alpine, Clarion, Kenwood, Pioneer and Zenec. Please see icon list below to see if this interface supports phone buttons.
Please check the connections in the vehicle match the harness you are purchasing
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

This kit is designed to fit the following vehicles:
• Mitsubishi Lancer 2008-2010
  [Headunit: Non Amplified - Connection: OEM Specific]

Please note: every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer

It is your responsibility to ensure the compatibility and we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase or you will have to return the incorrect item at your cost. If still unsure please contact us via the eBay messaging system with pictures that must be attached of the wiring and connections that you are trying to install so our tech guys can help and advise before you make your purchase.
