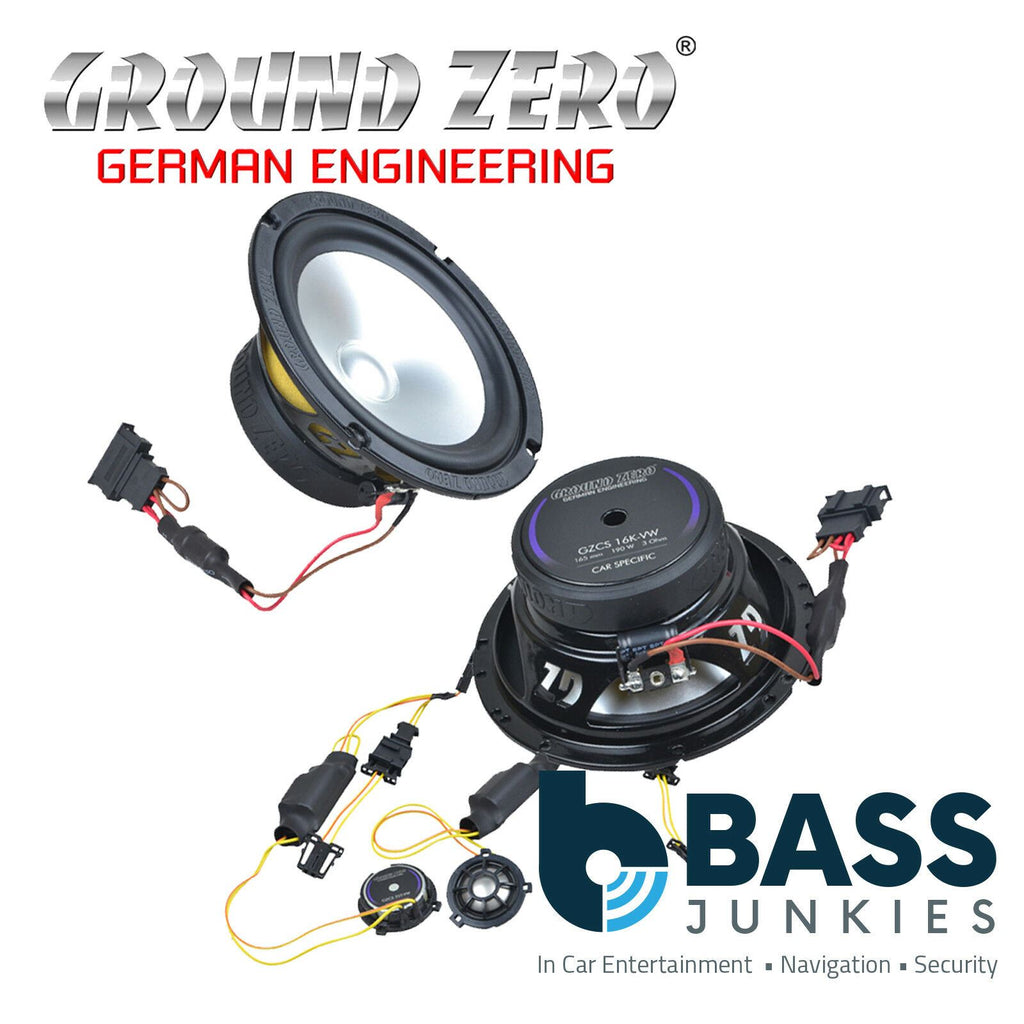

Ground Zero GZCS 165VW - 6.5" Inch 120 WRMS Watts 2-way 3-Ohm Component Door Car Speakers
The GZCS 165VW speakers can be connected directly to the original wiring and be used with the original
or aftermarket head unit. For best performance however, it’s recommended to install a separate amplifier
with higher power output. Please note that the impedance of the GZCS 165VW is 3 ohms per channel.
Due to the variety of mounting positions for the tweeter, it might be necessary to adjust the tweeter level
to achieve a balanced audio reproduction. In this case, cutting the cable loop at the crossover decreases
the tweeter level around 3 dB.
The GZCS 165VW speakers can be installed in the mentioned cars* at the original speaker positions.
After the removal of the door and tweeter panels at the mirror triangle or the a-pillar, the speakers can be
mounted accordingly. Please note, that the midwoofers are riveted to the car´s body in most cases
instead of being fastened using screws. These rivets have to be removed using a suitable drill tool.
Installation Advice:
We would Recommend Adding the Silent Coat 3 Way Sound Deadening Kit to reduce vibrations and improve the sound acoustics and the bass produced from these speakers. ebay item Code #263836597391
Car Specific:
- Seat leon Mk2 2005 - 2012 (Front Door)
Kit Contains:
- Pair of Component Speakers
- Pair Of Wiring Harness Adaptors
- Pair Of Speaker Brackets
- Pair Of Waterproof Rings
Key Specifications
- Car specific 2-way component system
- Klippel®-optimized midwoofer with aluminum cone
- Nomex spider
- Copper cap for impedance linearizing
- Resonance free steel basket
- 1" titanium dome tweeter with variable connection including installation
- frame and 3 dB level adjustment
Speaker Specifications
- Impedance - 3 Ohm
- Frequency Response - 35 Hz - 26 kHz
- Cut-off frequency - 3500 Hz
- SPL 1W/1M - 90dB
- RMS Power Per Speaker - 120 Watts
- Max Power Per Speaker - 190 Watts
- Max Power Per Pair - 380 Watts
- Midwoofer - 3 Ohm
- Tweeter - 3 Ohm
- Midwoofer SPL - 89 dB
- Tweeter SPL - 92 dB
- Midwoofer FS - 60.1 Hz
- Tweeter FS - 1500 Hz
- Midwoofer QMS - 4.24
- Midwoofer QES - 0.76
- Midwoofer QTS - 0.65
- Midwoofer VAS - 11.5 L / 0.41 cu.ft
- Midwoofer MMS - 15.2 Gr
- Midwoofer BL - 4.7 N/A
- Midwoofer RMS - 1.3 kg/s
- Midwoofer CMS - 0.46 mm/N
- Midwoofer LE - 0.21 mH
- Midwoofer Outer Diameter - 165mm / 6.5"
- Tweeter Outer Diameter - 49.5mm / 1.95"
- Midwoofer Mounting Diameter - 142.5mm / 5.61"
- Tweeter Mounting Diameter - 44mm / 1.73"
- Midwoofer Mounting Depth - 68mm / 2.68"
- Tweeter Mounting Depth - 10mm / 0.39"
