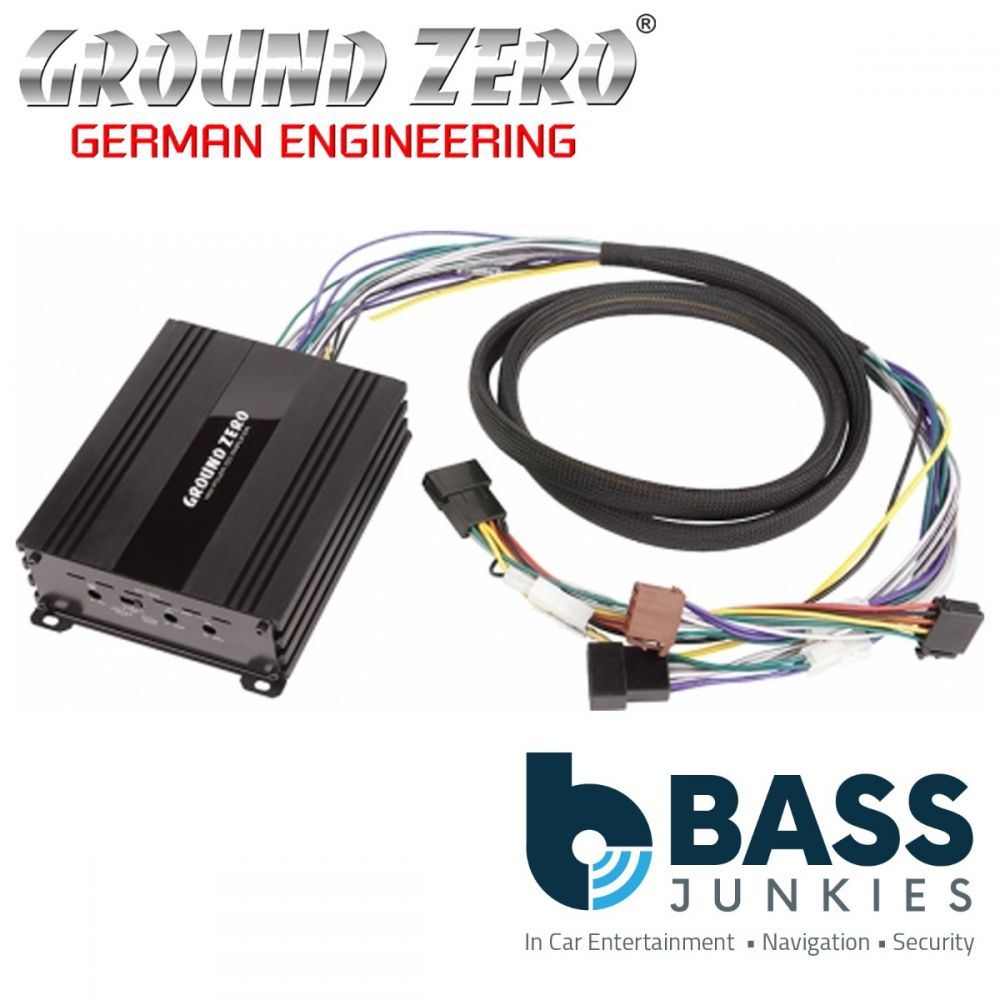

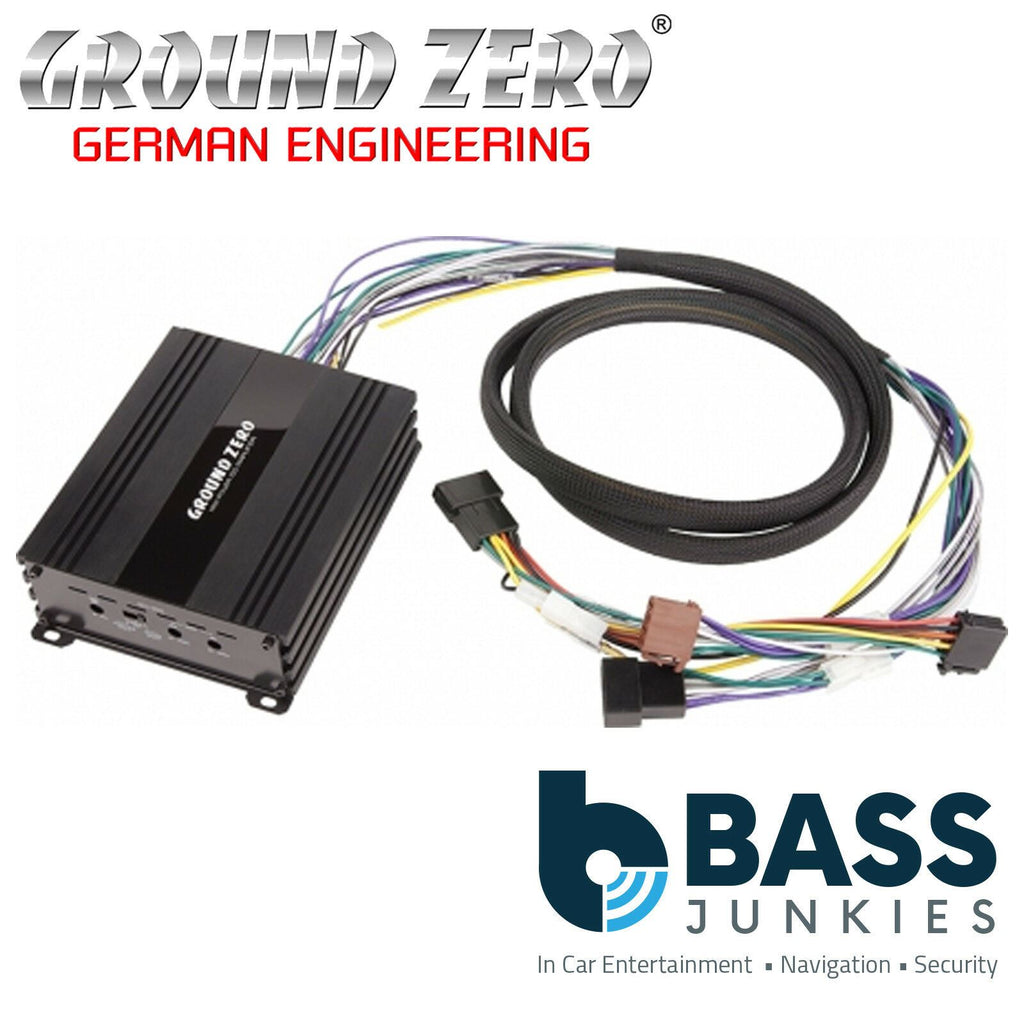

Ground Zero GZCS 4.60ISO - High Efficient Plug 'n' Play Analogue Amplifier - 4 x 30 W RMS @ 4 Ohm
Key Features:
- High efficient plug´n´play analog amplifier
- For any vehicle with passive sound system and iso-connection
- Variable highpass (@ 4Ch + Sub mode)
- Variable lowpass (@ Front + Sub mode)
- Including 2m (6.56 ft) cable harness with ISO adaption
Specification
- Type: 4 Channel ISO amplifier
- Output Power @ 4 Ohm: 4 x 70 W
- RMS Power @ 4 Ohm: 4 x 30 W (1% THD+N) / 4 x 60 W (10% THD+N)
- Output Power @ 2 Ohm: 4 x 90 W
- RMS Power @ 2 Ohm: 4 x 45 W (1% THD+N) / 4 x 80 W (10 THD+N)
- Output Power @ 4 Ohm (3 Channel mode): 2 x 70 W & 1 x 180 W
- RMS Power @ 4 Ohm (3 Channel mode): 2 x 30 W & 1 x 90 W (1% THD+N) / 2 x 60 W & 1 x 160 W (10% THD+N)
- Lowpass filter (Rear): 50 Hz - 250 Hz
- Highpass filter: 50 Hz - 250 Hz
- Frequency response: 5 Hz - 30000 Hz (+- 1dB)
- Fuse: 20 A
- Dimensions (W x H x L): 165 x 52 x 135 mm / 6.5" x 2.05" x 5.31"
- H.-Artnr.: 113165
