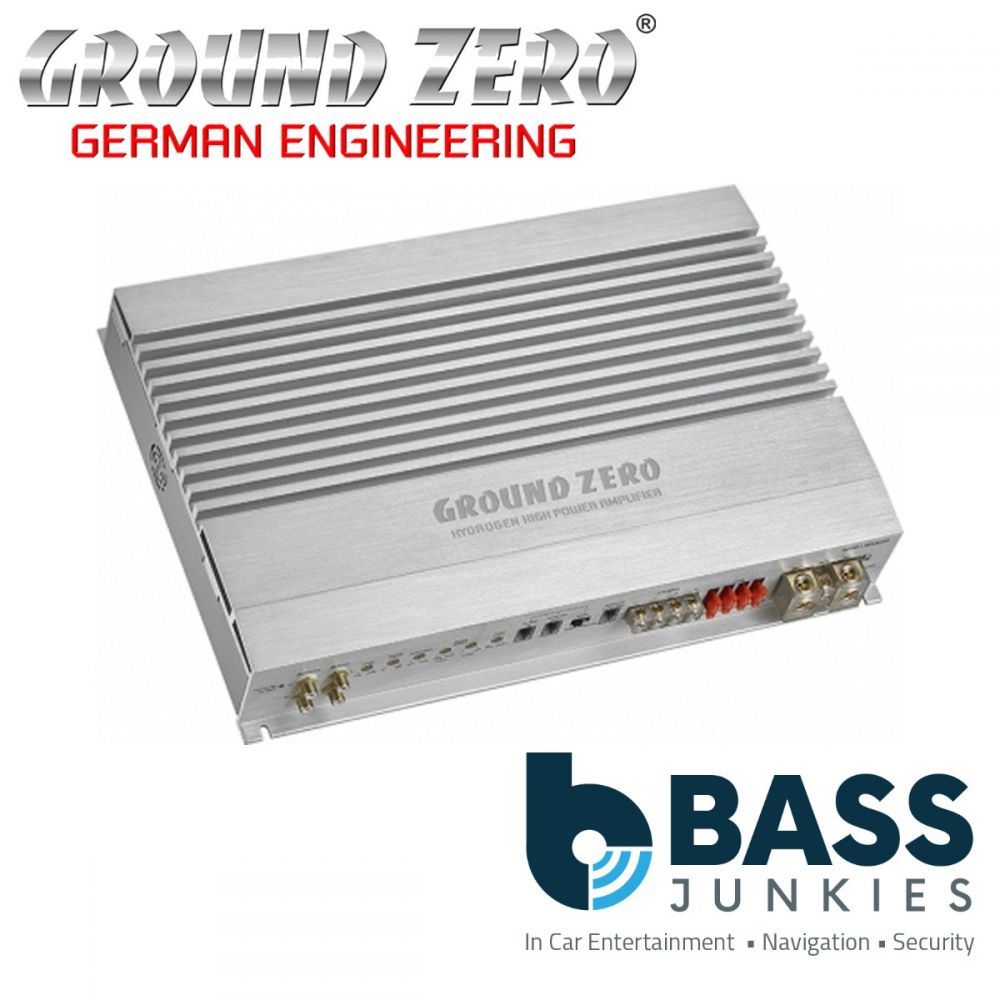

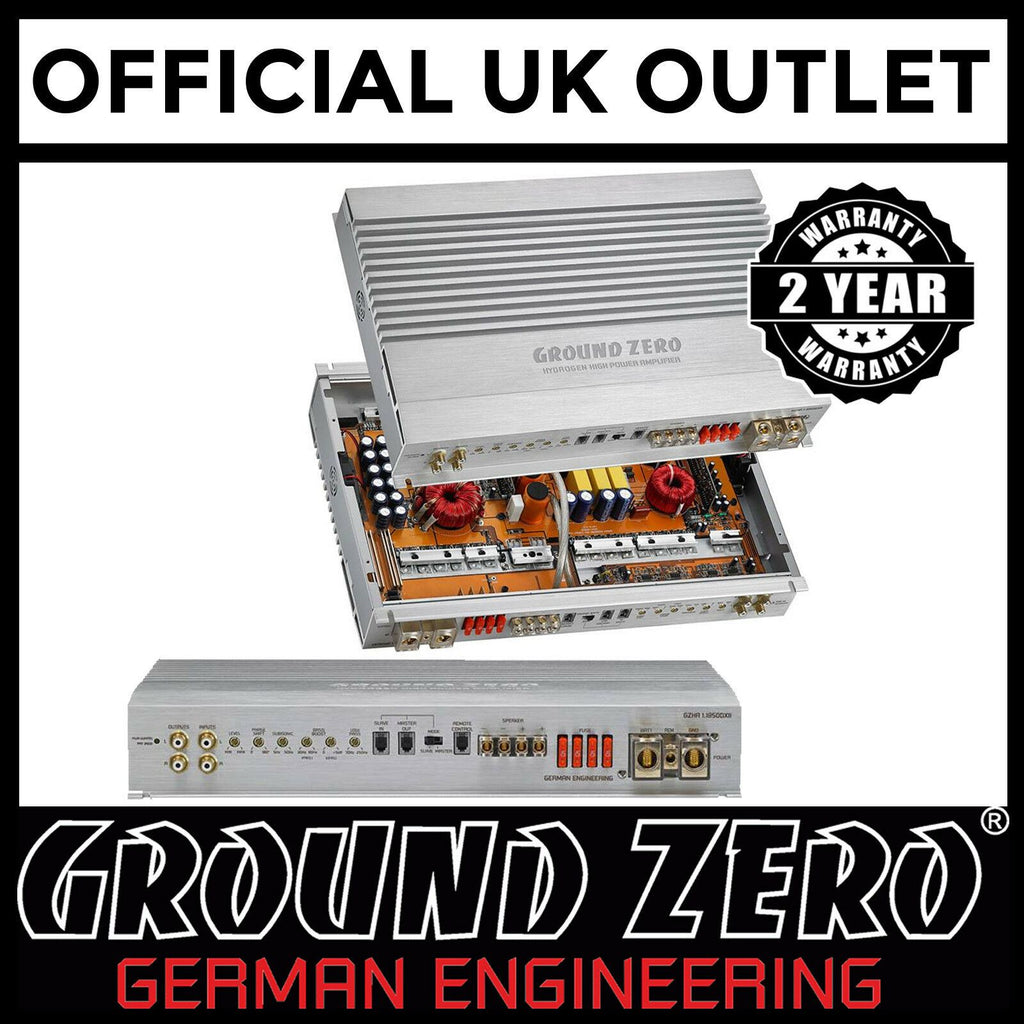

Ground Zero Hydrogen GZHA 1.1850DXII 1850 Watts Mono Block Class D Car Amplifier
Hydrogen Amplifiers
The HYDROGEN Line satisfies all demands of highly sophisticated customers. Amazing performance, Great sound quality and much higher SPL then imagined.
The subwoofers have been developed to handle a huge amount of input power reaching extremely high bass levels to be used successfully under competition conditions.
Especially for limited installation space, Three extremely small amplifiers have been added to the line of well known existing high power models.
Main Features:
- Class-D Design for high efficiency
- 1 Ohm stable
- Linkable 2 Ohm
- Mosfet power supply
- Power and protection indicator
- Variable 9 dB Bass boost (30 – 80 Hz)
- Phaseshift 0 - 180° (variable)
- Variable Subsonic
- Variable Lowpass
- Adjustable input sensitivity
- Soft delayed remote turn on
- Stereo RCA output
- Bass remote control
- Thermal / Short / Overload protection
Technical data
- Model - GZHA 1.1850DXII
- Type - Mono Block Class D
- Output Power @ 4 Ohm (CEA*) - 1 x 700 W
- Output Power @ 2 Ohm (CEA*) - 1 x 1200 W
- Output Power @ 1 Ohm (CEA*) - 1 x 1850 W
- Output power linkmode 2 Ohm - 1 x 4800 W
- Lowpass - 30 - 250 Hz (24 dB)
- Subsonic - 5 – 50 Hz (24 dB)
- Bassboost - 0 - +9 dB
- Phaseshift - 0 - 180°
- Bass remote - Inclusive
- Dimensions cm / Inch - 29,3 x 6,7 x 40 cm / 11.54" x 2.64" x 15.75"
Installation Tips:
- Use 4 Awg Power Wire.
- Use 4 Awg Ground Wire.
- Please make sure you have a good earth, earth shoud be no longer then 0.8m and should be screwed down the vehicles Chasis, make sure you Sand the paint away so you have a clean ground connection. if you are unsure please email for more advice.
- Use 14 Awg Speaker Wire.
