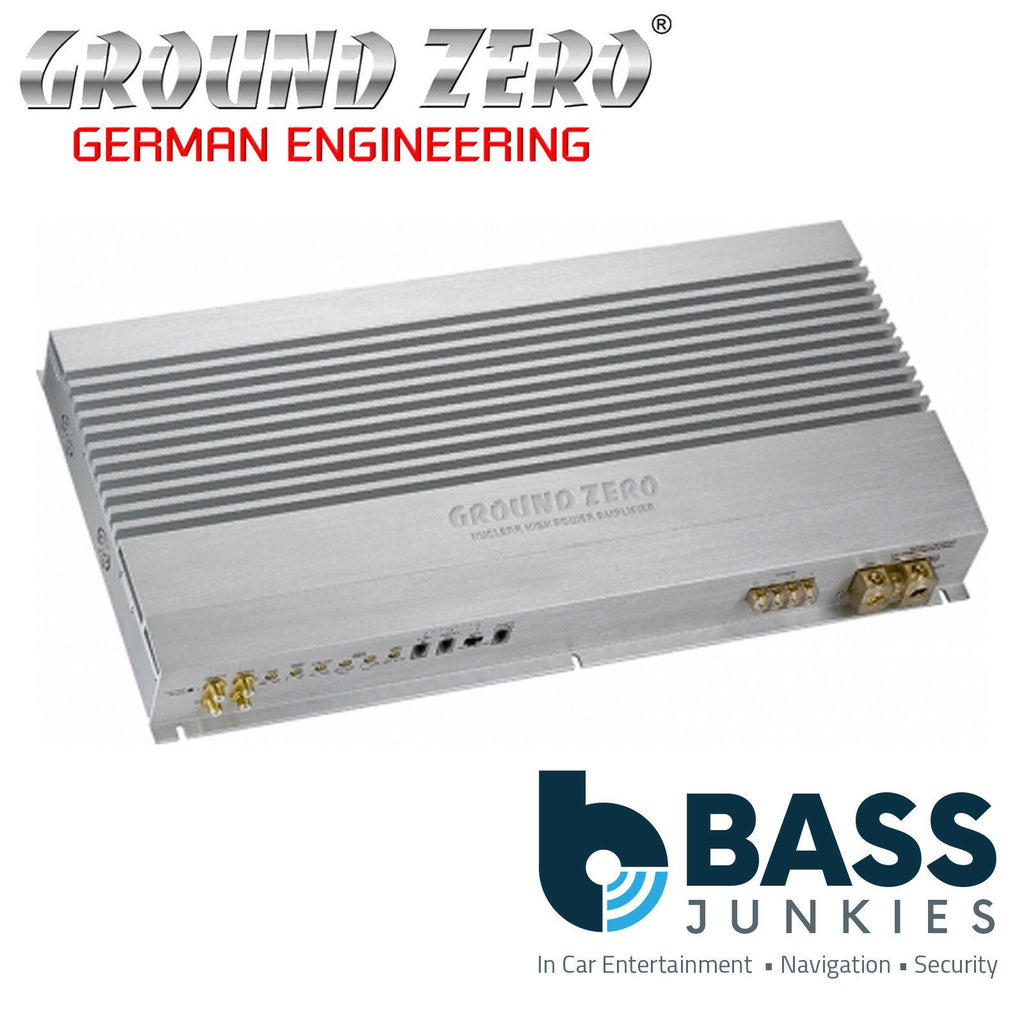

Ground Zero Nuclear GZNA 1.2550DXII Mono Block Class D Amplifier 3100 Watts Max
Nuclear Amplifiers
The NUCLEAR line of massive multi-channel and impressively powerful mono amplifiers deliver ultimate performance providing a variety of important features for sound adjustment.
Main Features:
- Class-D Design for high efficiency
- Stabilized dual power supply
- Linkable with 1 amplifier
- 1 Ohm stable (Linkmode 2 Ohm )
- Full Power MOS-FET amplifier
- Power and Protection indicator
- Variable lowpass 30 – 250 Hz
- Variable subsonic 5 – 50 Hz
- 180° variable Phase Shift
- Massive aluminum heat sink
- Adjustable input sensitivity 200mV ~ 9 Volt
- RCA Inputs & Outputs
- Bassremote Control
- 0 ~ +9dB Bassboost (30 – 80 Hz)
Technical data
Model - GZNA 1.2550DXII
- Type - Mono Block Class D
- Output Power @ 4 Ohm (CEA*) - 1 x 850 W
- Output Power @ 2 Ohm (CEA*) - 1 x 1500 W
- Output Power @ 1 Ohm (CEA*) - 1 x 2400 W
- Output power linkmode 2 Ohm - 1 x 6200 W
- Lowpass - 30 - 250 Hz (24 dB)
- Bandpass - 5 – 250 Hz (24 dB)
- Subsonic - 5 – 50 Hz (24 dB)
- Bassboost - 0 - +9 dB
- Phaseshift - 0 - 180°
- Bass remote - Inclusive
- Dimensions cm / Inch - 29,3 x 6,7 x 56 cm / 11.54 x 2.64 x 22.05“
