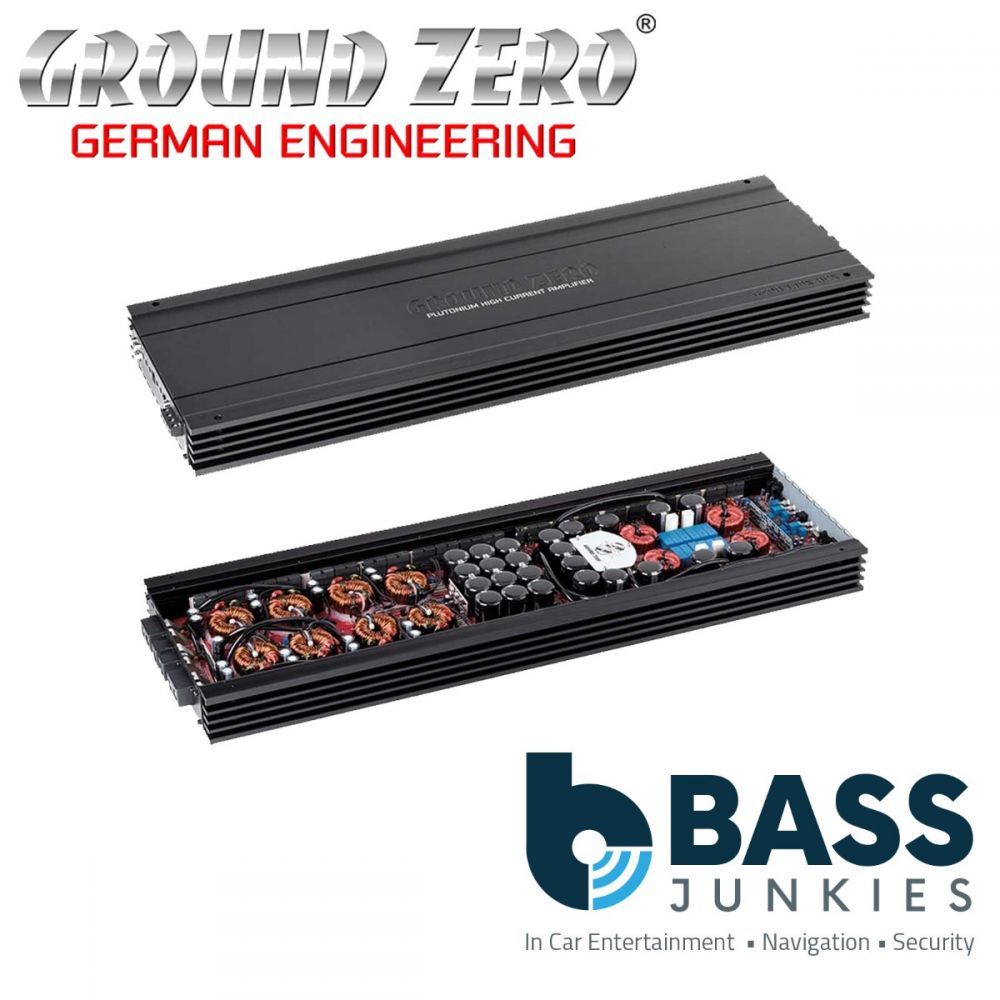

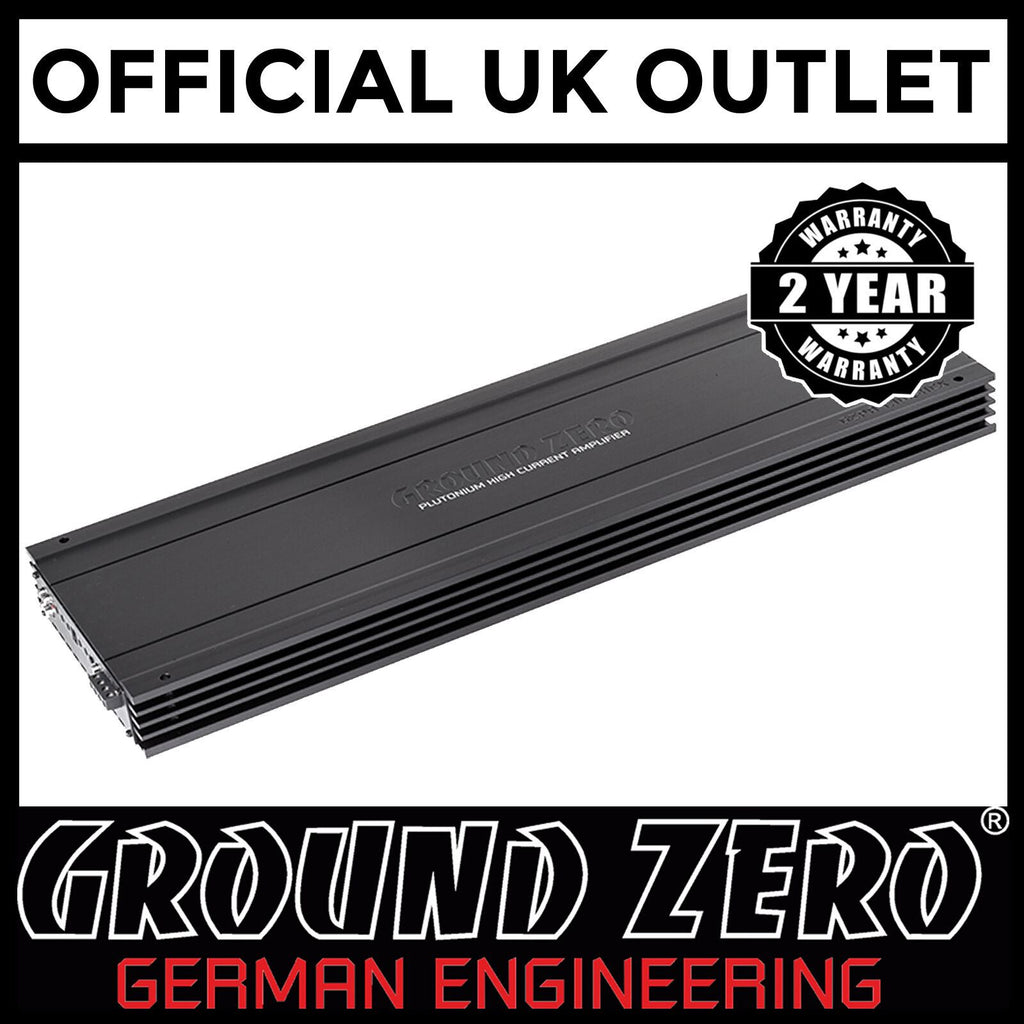

Ground Zero Plutonium GZPA 1.10K-HCX Mono Block Class D Amplifier 23000 Watts Max
Plutonium High End Experience
The products of the PLUTONIUM Line are suitable for either ultimate SPL Level or high-end sound quality.
To achieve one of these targets, Exceptional materials and technologies are applied during the development.
The technical, electrical and mechanical skills of the resulting products convince not only during worldwide SPL Competitions but also High End enthusiasts with outstanding audio reproduction ability.
Starting from the market release, the subwoofers have set benchmarks in all SPL competitions around the world and have been awarded for best performance by numerous test magazines.
Main Features:
- Class-D Design for high efficiency
- Efficiency ~84%
- Linkable with 1 amplifier
- 1 Ohm stable (Linkmode 2 Ohm)
- High-efficiency MOS-FET PWM power supply
- Power and Protection indicator
- Lowpass crossover
- +9dB Bassboost
- Subsonic filter variable
- 180° Phase Shift variable
- Aluminium heat sink
- RCA input / output

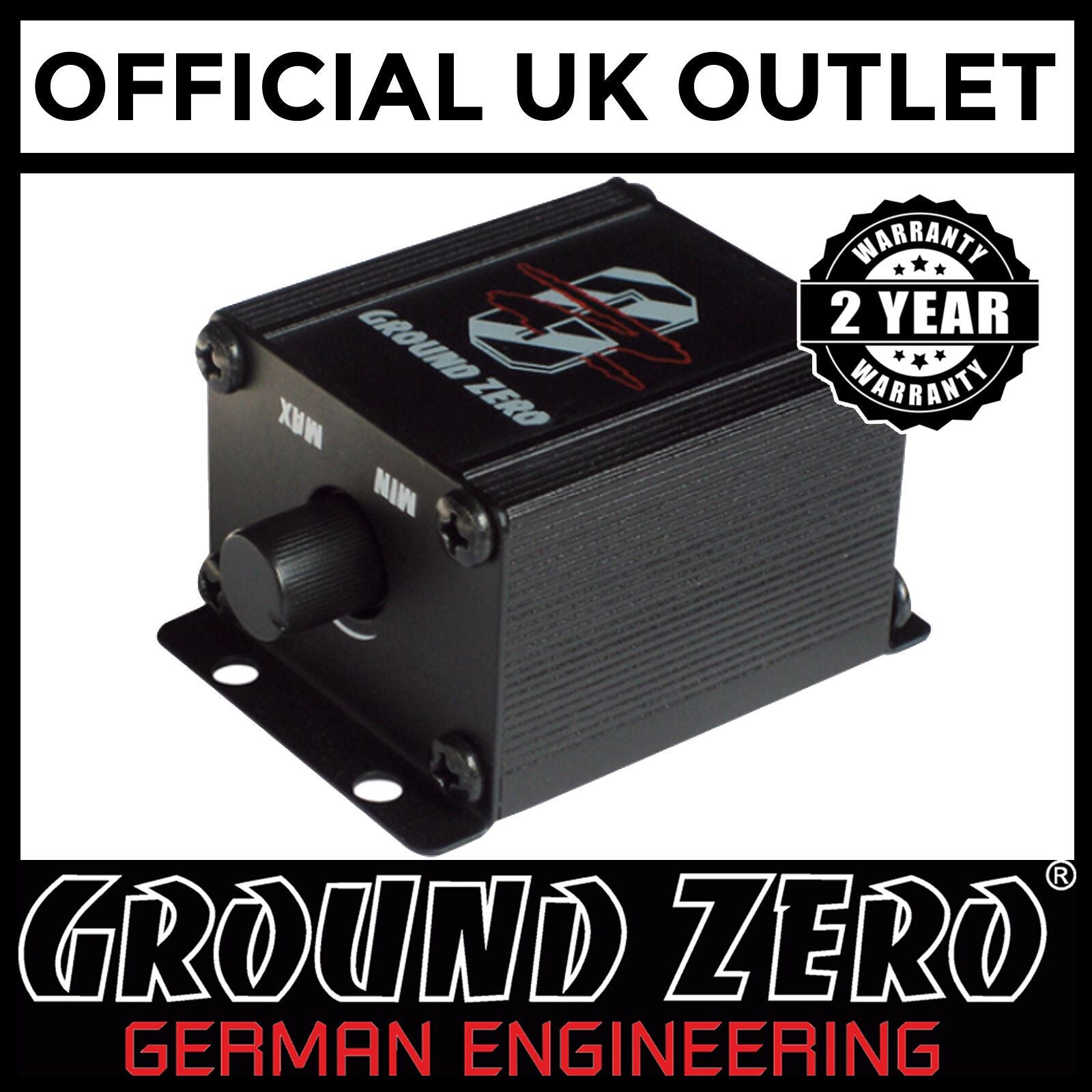

- Bassremote control
Technical data
Model - GZPA 1.10K-HCX
- Type - 1 Channel Class D
- Output Power @ 4 Ohm (CEA*) - 1 x 3200 W
- Output Power @ 2 Ohm (CEA*) - 1 x 5900 W
- Output Power @ 1 Ohm (CEA*) - 1 x 10500 W
- Output power linkmode 2 Ohm - 1 x 23000 W
- Lowpass - 35 - 250 Hz
- Subsonic - 10 - 50 Hz
- Bassboost - 0 - +9 dB (45 Hz)
- Phaseshift - 0 - 180°
- Bass remote - Inclusive
- Line Out - Yes
- Dimensions cm / Inch - 90 x 6,75 x 29 cm / 35.43" x 2.66" x 11.42"
