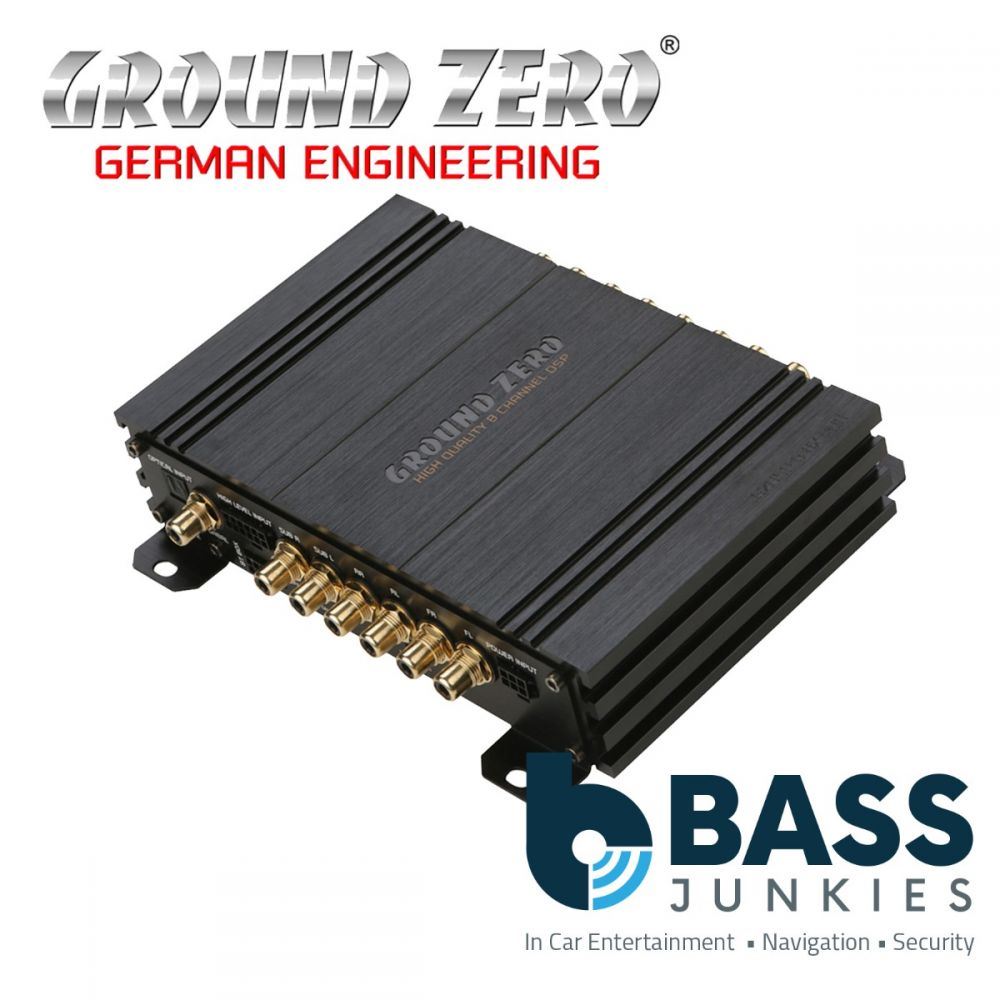

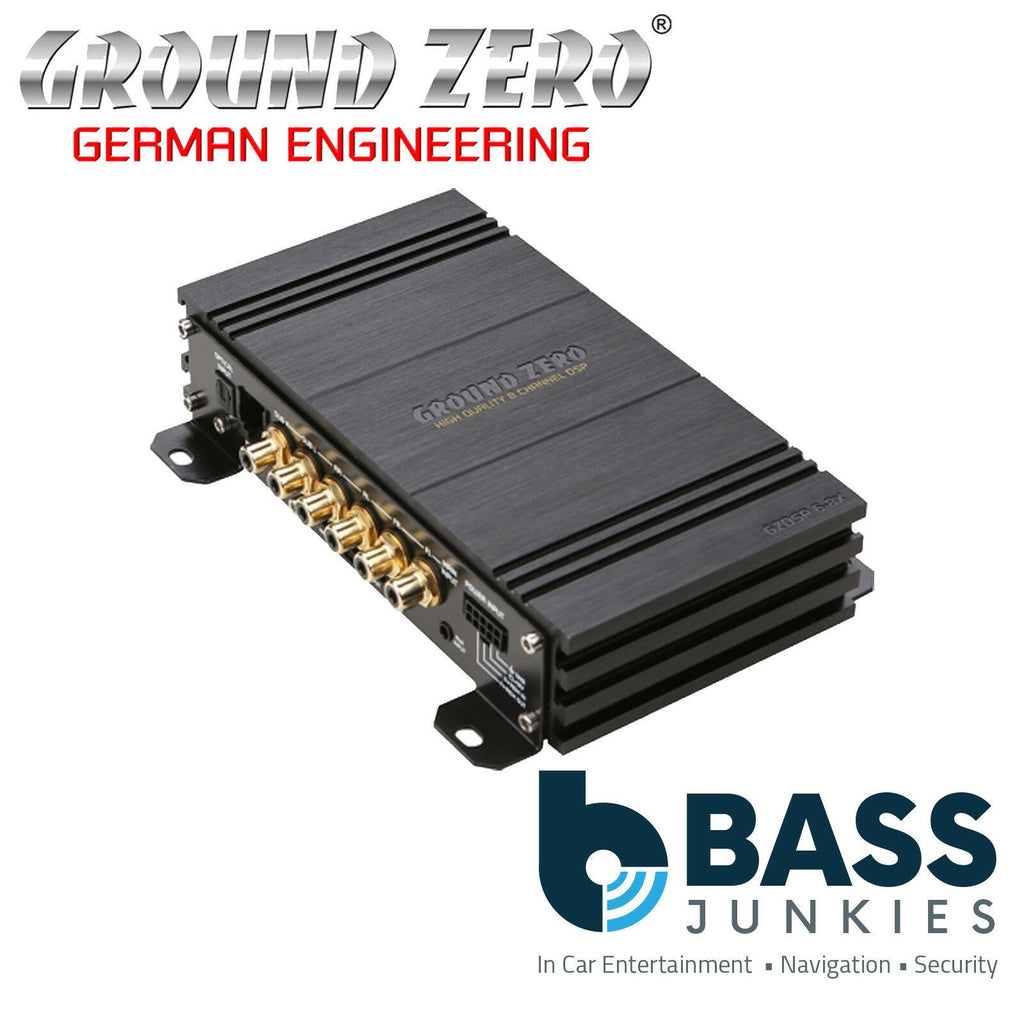

Ground Zero GZDSP6-8X PRO High Quality 6 Input to 8 Output Passive DSP Processor
- 8-channel digital signal processor (DSP) - Cirrus Logic 32-bit/192 kHz single core chipset
- 6-channel line input (RCA)
- 6-channel high-level input (with auto-on function and audio summing)
- AUX input (3.5 mm socket)
- Optical and coaxial digital input (sampling rate up to 24-bit/192 kHz)
- 8-channel line output (RCA)
- Simple handling user interface (Windows ® compatible)
- Realtime setup of all functions (via PC)
- Channel separated parametric equalizer (6x 31 band / 2x 11band)
- Channel separated time alignment (0-15 ms / 0-510 cm)
- Adjustable crossover (HPF / LPF / BPF) in the range of 20 Hz to 20 kHz
- Selectable crossover slope (6 to 48 dB/Oct)
- Selectable phase shift for each channel (0˚ or 180°)
- Adjustable filters (Butterworth) HPF / LPF / BPF with a slope of 6 – 48 dB/Oct.
- Selectable phase shift on each channel (0˚ or 180°)
- Memory for 10 user presets (selectable with optional remote control)
Package contents
- 1 x GZDSP 6-8X PRO unit
- 1 x USB cable (A to B connector / 5.0 m)
- 1 x 6-channel high-level input harness
- 1 x Power supply harness
- 1 x CD-ROM incl. PC software and driver package compatible to Microsoft Windows® XP SP3, Vista, 7, 8, 8.1 und 10
- 1 x Owner´s manual (German/English)
- 1 x Fastening kit
