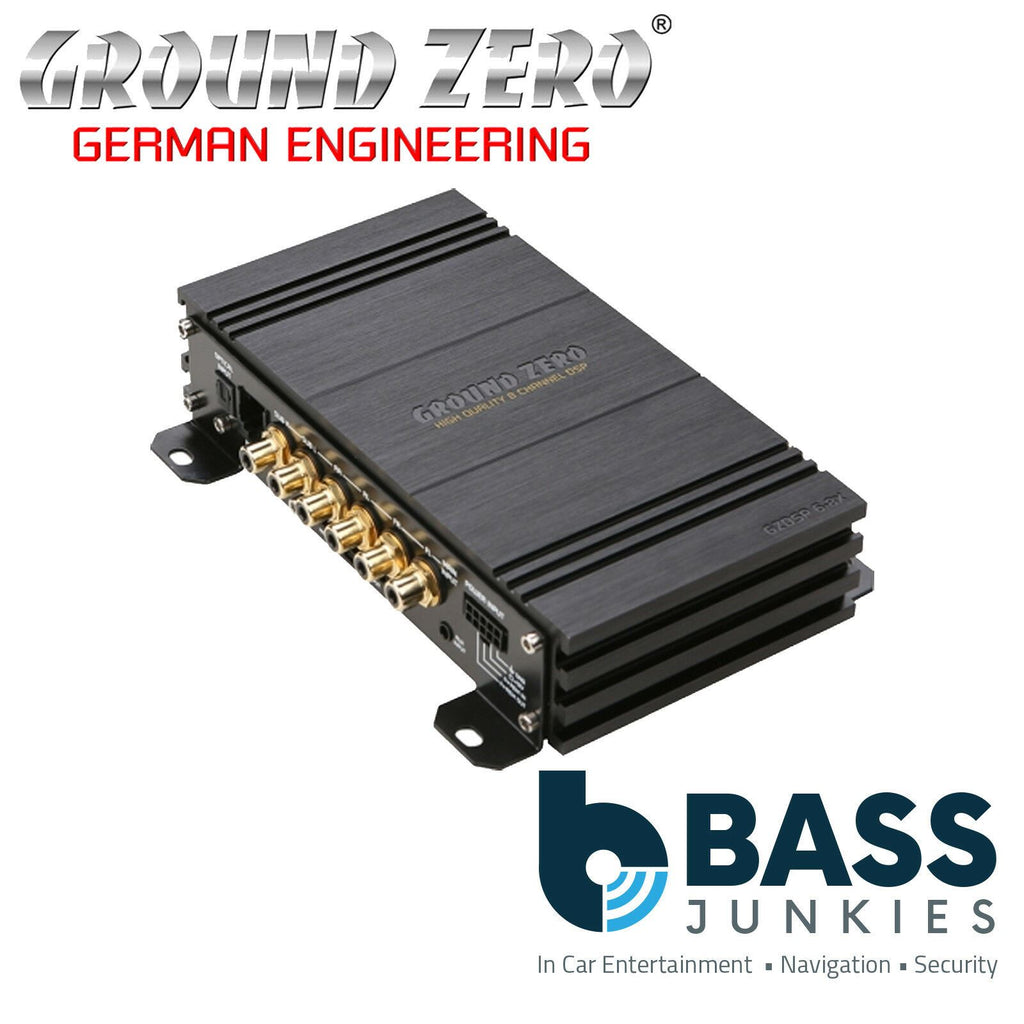

Ground Zero GZDSP 6-8X - Digital Signal Processor 6 Input to 8 Output Car DSP
- Digital sound processor
- Simple handling via 1-page user interface
- Realtime setup (all functions)
- Cirrus Logic single core 32 Bit, 8-channel, 192 kHz
- 6 channel input / 8 channel output
- High-level and low-level input
- DC Auto-On (using the high-level input)
- TOSLINK input (optical @12 ~ 96 kHz )
- 3.5mm stereo jack AUX – input connector
- 6 x 31 band equalizer ( -18 to + 12 dB / Q: 0.5 - 9 ) 20 - 20000 Hz (on output A - F)
- 2 x 11 band equalizer ( -18 to + 12 dB / Q: 0.5 - 9 ) 20 - 200 Hz (on output G/H)
- Time alignment – adjustable range 0 - 15 ms / 0 - 510 cm
- Adjustable filters (Butterworth) HPF / LPF / BPF with a slope of 6 – 48 dB/Oct.
- selectable phase shift for each channel (0˚ or 180°)
- Memory for up to 10 user presets
- Optional remote control unit with LED display to adjust the main volume and switch between the presets and input mode
Package contents
- 1 x GZDSP 6-8X processor
- 1 x USB cable ( A- to Mini-B connector) 5 m
- 1 x high-level input harness
- 1 x power supply harness
- 1 x PC software und drivers on CD-ROM
- 1 x manual (German/English)
optional:
