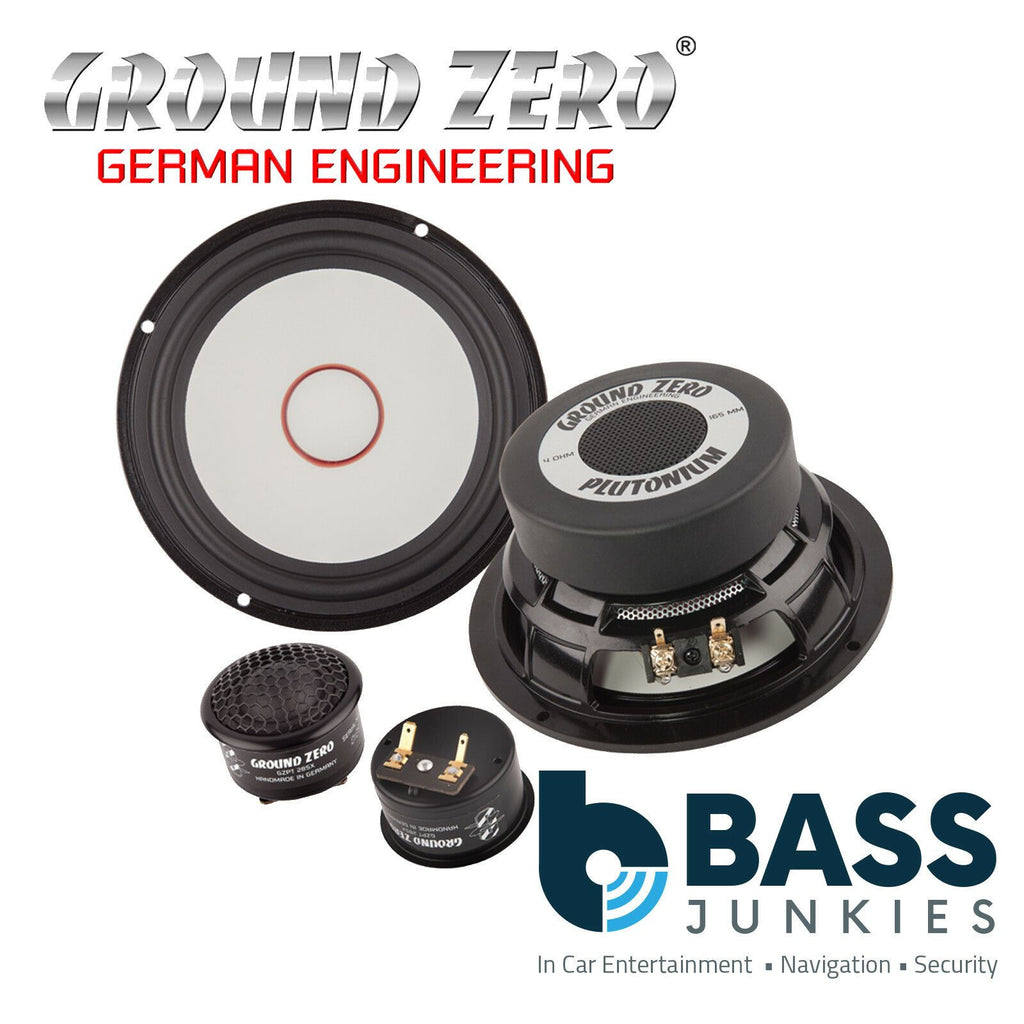

Ground Zero GZPC 165SQ-ACT - 16.5 cm 6.5" Active 2 Way Component System - 130 250 W
Key Features:
- 6.5” Woofer with alu-ceramic cone and linearised ferrit motor (GZPK 16SQ)
- Resonance free cast basket
- Rubber surrounds and connex spiders
- 1.1” Silkdome tweeter with coupled chamber (GZPT 28SX)
- Speakers optimized with the Ground Zero owned Klippel® system
Diameter of midwoofer or midrange - 165 mm / 6.5"
Mounting diameter of midwoofer or midrange - 143,5 mm / 5.65"
Mounting depth of midwoofer or midrange - 68 mm / 2.68”
Voice coil of midwoofer or midrange - 36 mm / 1.42"
Cone of midwoofer or midrange - Alu-ceramic
Dustcap / Phaseplug of midwoofer or midrange - Alu-ceramic
Basket of midwoofer or midrange - Aluminum cast
Magnet of midwoofer or midrange - Ferrit
Diameter of tweeter - 54 mm / 2.1”
Mounting diameter of tweeter - 48 mm / 1.89"
Mounting depth of tweeter - 48 mm / 1.89”
Voice coil of tweeter - 28 mm / 1.1"
Cone of tweeter - Seide / Silk
Housing of tweeter - Schwarz eloxiertes Alu / Black anodized alu
Magnet of tweeter - Dual Neodym
Power handling WRMS - 130 (MW) / 100 (TW)
Power handling W peak - 250 (MW) / 150 (TW)
Frequency response - 30 - 30000 Hz
