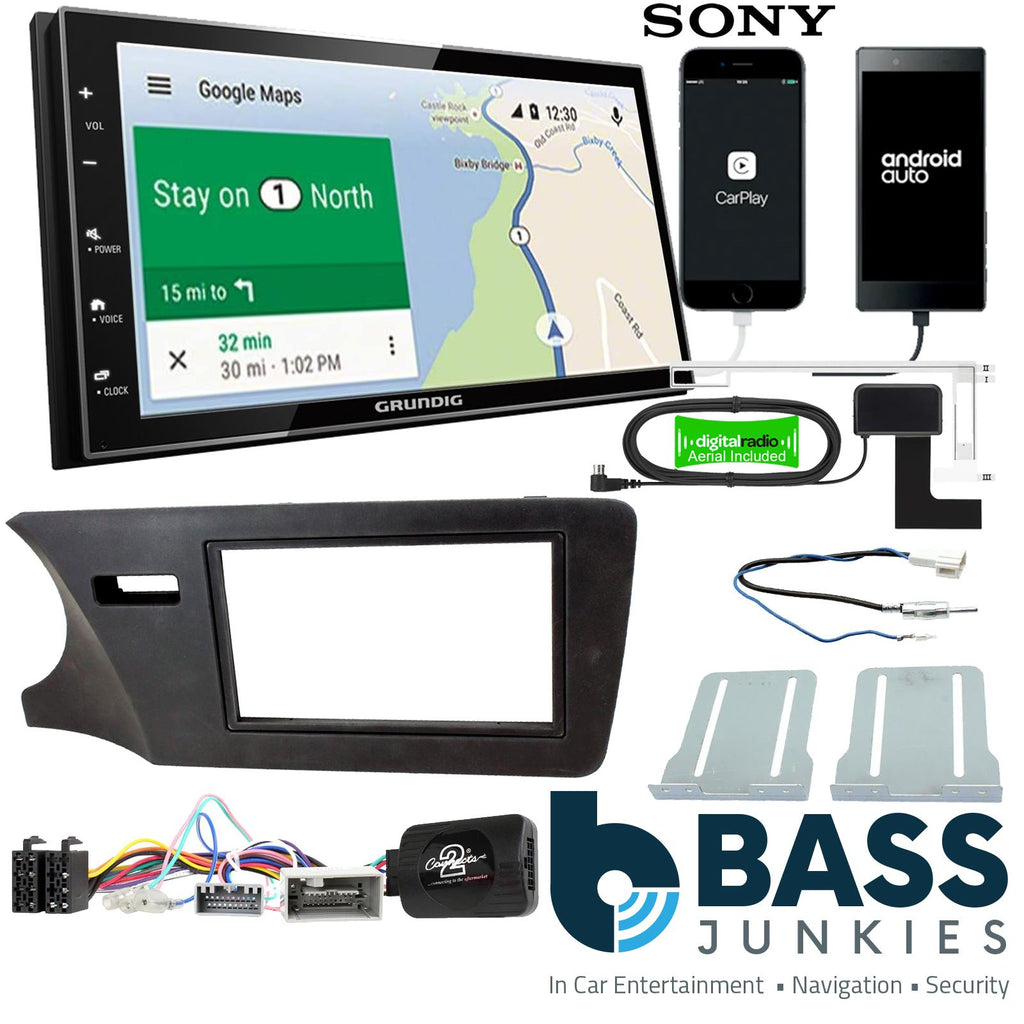

Grundig GX-3800 Car Stereo DAB/DAB+|USB|Bluetooth|Apple CarPlay|Android Auto|Screen Mirroring|Screen Touch through USB/Bluetooth|Music Streaming|HD 1080P Video Format|Reverse Camera Ready + DAB Aerial
Stereo Information:The Grundig GX-3800 double din head unit with a 6.8" capacitive touch screen. Featuring both Apple Carplay and Android Auto, the product has a 32bit True Colour touch control monitor providing crystal clear visuals for viewing your entertainment on the go. The unit also features smartphone mirroring with direct control using the touchscreen and full HD 1080p media playback. Additionally, the GX-3800 uses built-in hands-free calling and music streaming, USB phone charging, and a 24-bit digital audio processor with 13 band true EQ and dynamic bass booster to provide fantastic audio quality and adjustability that any audiophile can enjoy.
Universal window mount DAB aerial included
Features:
- Touch Screen
- FM,AM,MW Radio
- DAB/DAB+
- Window
- USB Playback
Video
Music
Phone Charge
Smart Phone Connectivity
- Android Auto
- Apple CarPlay
- Android Mirror
- iPhone Mirror
- 24Bit DSP Audio
Specifications:
-
TFT Monitor section
Screen Size: 6.8inches
Display Resolution: 1024x600 dots
Contrast Ratio: 500
- USB interface section
USB Standard: USB 2.0 Full Speed
Sile System: FAT 16/32
Maximum Current: DC 5V⚎1.5A
S/A Converter: 24Bit
- Bluetooth Section
Communication: Bluetooth Ver 4.1
System Output: Bluetooth Standard Power Class 2
Maximum Communication Range: Approx. 10meters
Frequency Band: 2.4 GHz
Compatible Bluetooth Porfiles: HFP/SPP/A2DP/AVRCP/PBAP
Supported Codecs: SBC (Sub Band Codec)
- Radio section
Frequency (FM) range: 87.5-108.0MHz
Frequency (AM)(MW) range: 522-1620 KHz
Usable sensitivity13.2 uV (FM)
44.7 uV (AM)(MW)
- DAB section
Frequency Range BANDIII: 174.928-239.200MHz
Sensitivity: -98dBm
S/N Ratio(dB): 82dB
- Video section
Color System of External Video Input: NTSC/PAL
External Video Input (RCA/3.5m Jack): 1 Vp-p /75Ω
- Audio Section
Maximum Power: 50W x4
Continuous Power Output (RMS): 22W x4
Preout Level (V): 4V/10k Ω
Preout Impedance: ≤1.3k Ω 4-8 Ω
Output Frequency Band: 20-20000Hz
- General
Operating Voltage: 14.4V [10.5-16V]
Operational Temperature Range: -20℃ −+ 80℃
Maximum Current Consumption: 15A
- Supported Formats
Support Audio FormatsMP3/WMA Bit rate:16-320 Kbps,VBR
WMA Version V9 or earlier
ID3 Tag Version 1.0/1.1/2.2/2.3/2.4
Support Video FormatsMPEG 1 (.mpg,mpeg), 720x480(30fps)
MPEG 2 (.mpg,mpeg), 720x480(30fps)
MPEG 4 (.mp4,avi), 720x480(30fps)
Support File / Folder FormatsDirectory nesting up to a maximum of 8 Levels
Number of tracks/titles: maximum 999
Number of albums/folders:m aximum 99

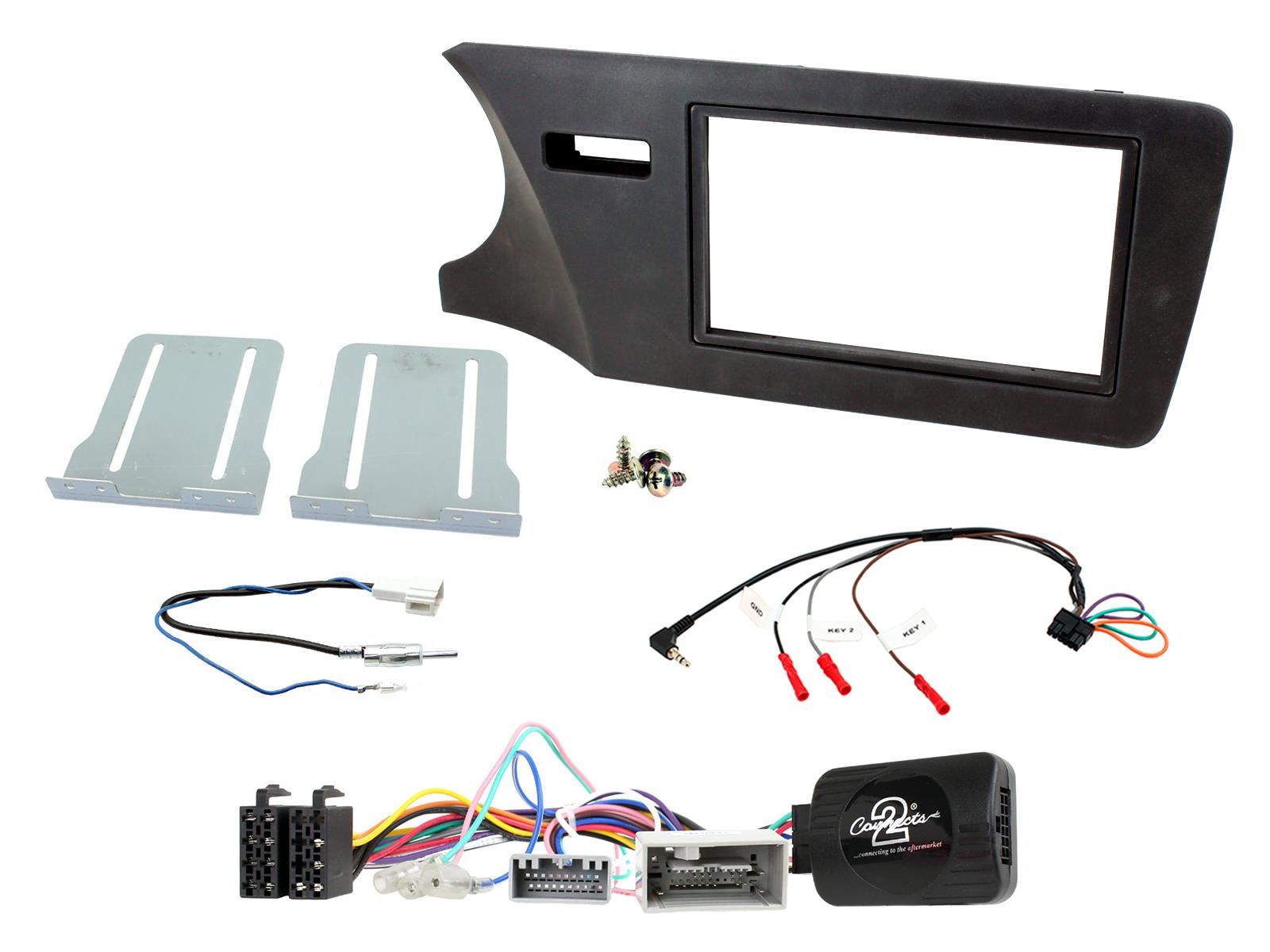

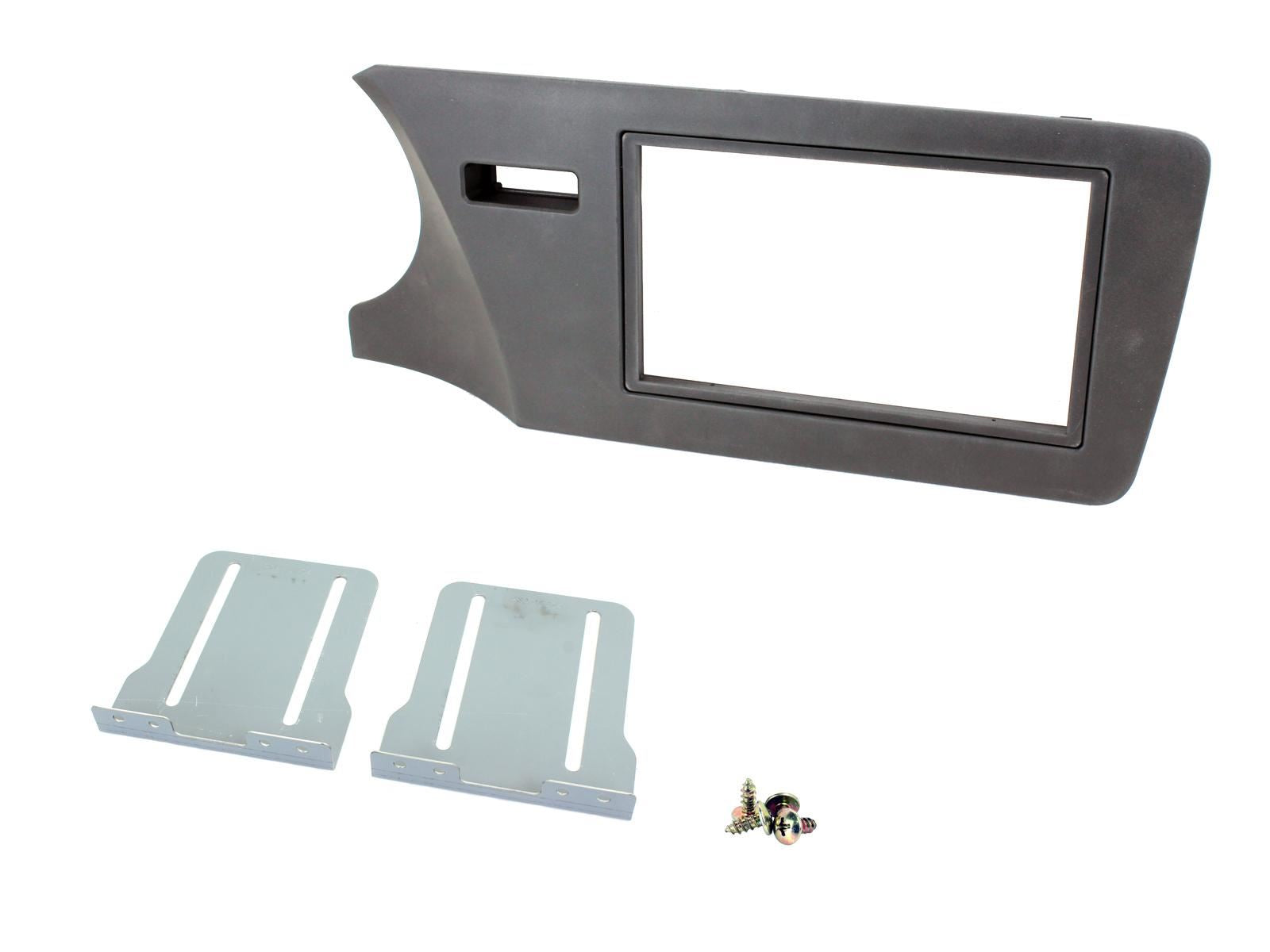

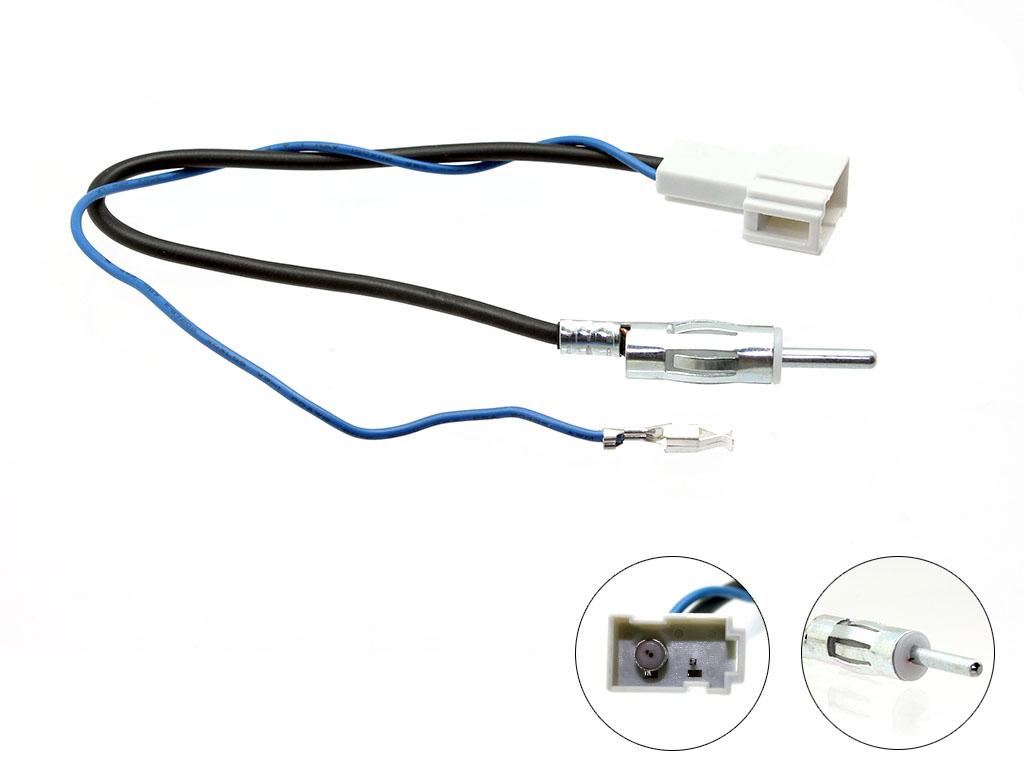

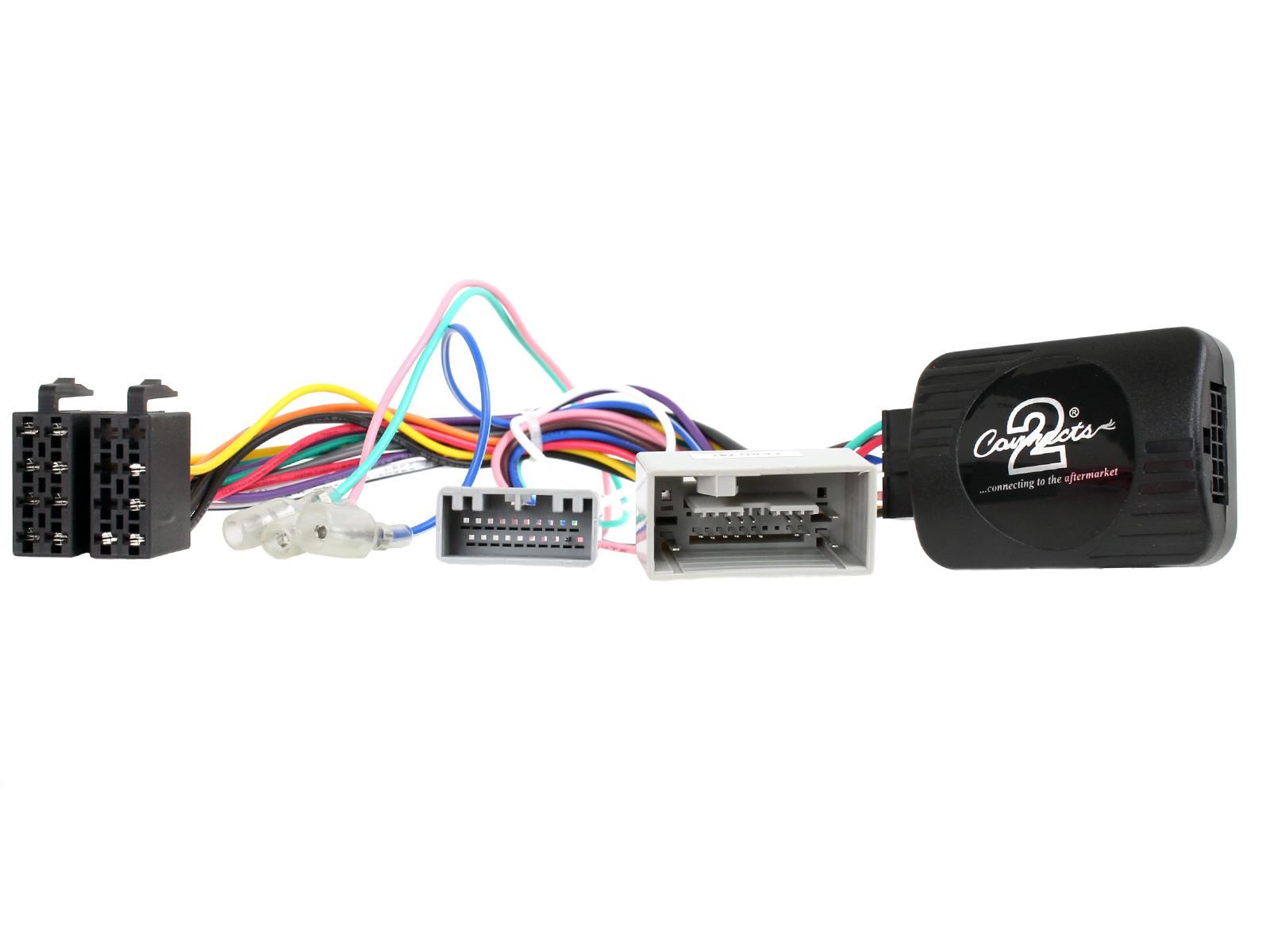

Fitting Kit Information:Installation Kit for the Honda City. This kit is supplied with a LHD matt black double DIN fascia panel, a steering wheel control interface, an antenna adapter & a universal patchlead. Note: does not support clock adjust or lane assist functions. For left hand drive vehicles.
Features & Benefits
- Retains steering wheel control functionality
- Retains phone button functionality
- Kit includes universal patch lead and antenna adapter
- Includes mounting brackets and fitting accessories
- Updateable via USB
- This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
This kit is designed to fit the following vehicles:- Honda City (Note: 6th Gen. LHD) 2014- Connection:OEM Specific
What you will receive when you purchase this listing:Grundig GX-3800Fitting Frame
ISO connector
Warranty Card
Instruction Manual
Universal DAB Aerial
Vehicle specific fitting kit which fits vehicles listed above.
DISCLAIMER:
Please check the plugs and connections in our picture matches the plugs and connections in your vehicle before you make your purchase. If unsure please message us with pictures of the plugs and connections so we can advise further.
