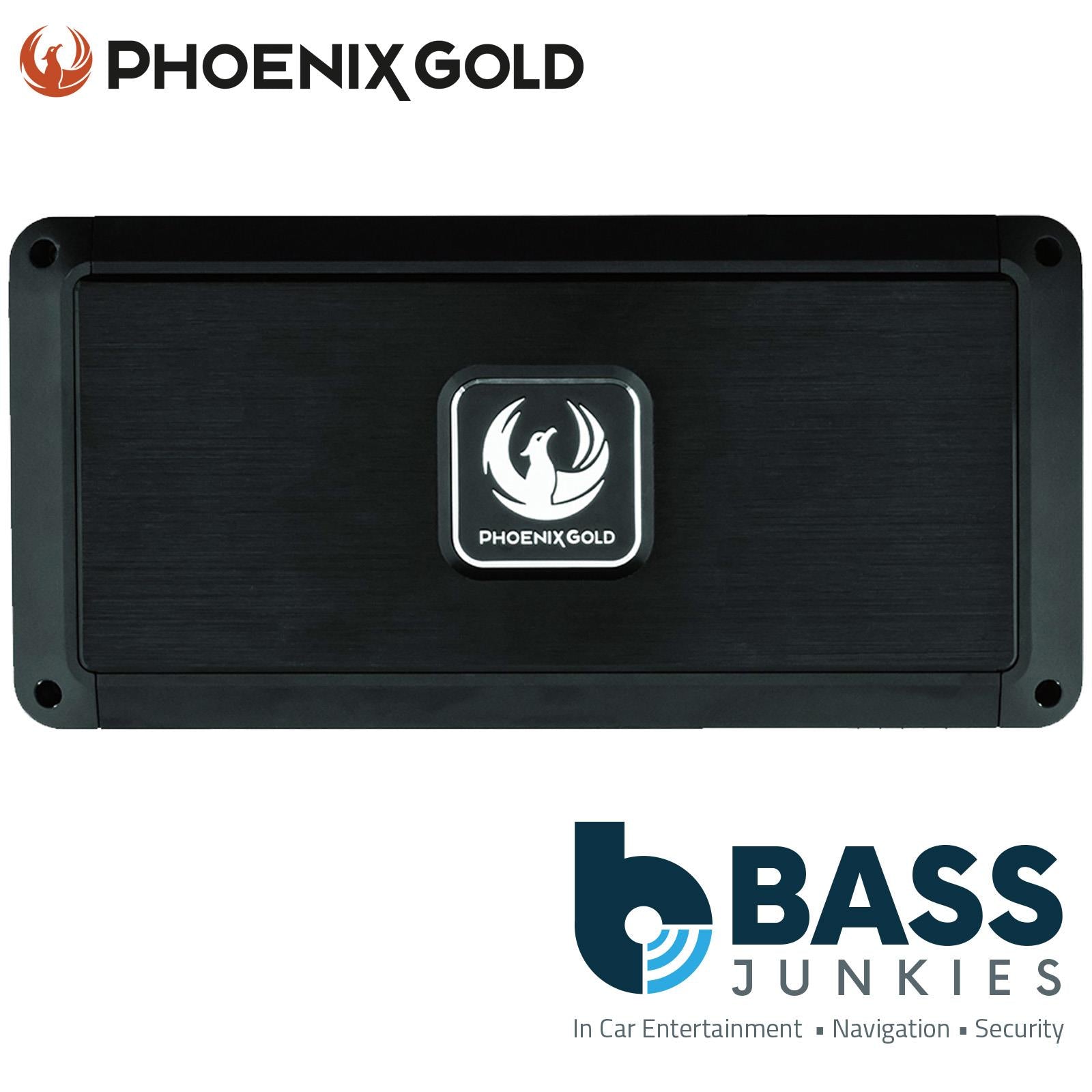

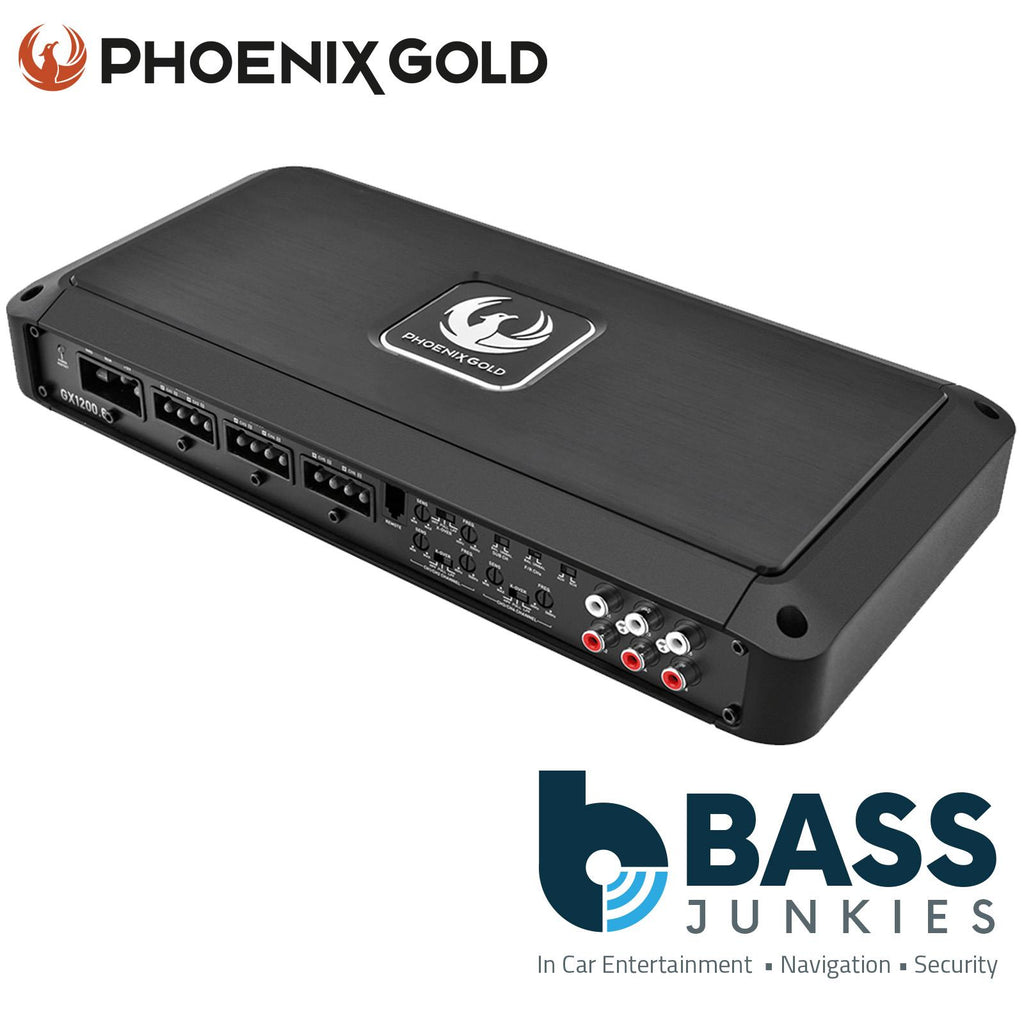

Phoenix Gold GX1200.6 - 1200 Watts 6 Channel Full Range Class D Car Amplifier
The GX1200.6 is a 6 Channel Full Range Class D Amplifier designed to cover a multitude of installation needs. The GX is packed with the features and power you can expect from the Phoenix Gold brand.
Included in the line are our proprietary PG quick connects for high current capability and reliability while delivering super clean and quick installations. The chassis has been optimized by utilizing BFD (Balanced Flow Dissipation) to keep the amplifier running cool when the music is hot.
Phoenix Gold GX1200.6 Product Features:
- Audiophile Grade Full Range Class D – Precision Components and Op Amps used to increase sound quality and lower distortion
- High Pass and Low Pass Crossovers – Reduces the need for external processing which could lead to noise intrusion
- High-Level Input Capable – for Easy OEM Integration – Can accept input sources from most OEM radios(requires X2LINE)
- Selectable Balanced / Unbalanced Inputs – Matching input typesallow for the best possible signal transfer and the lowest noise

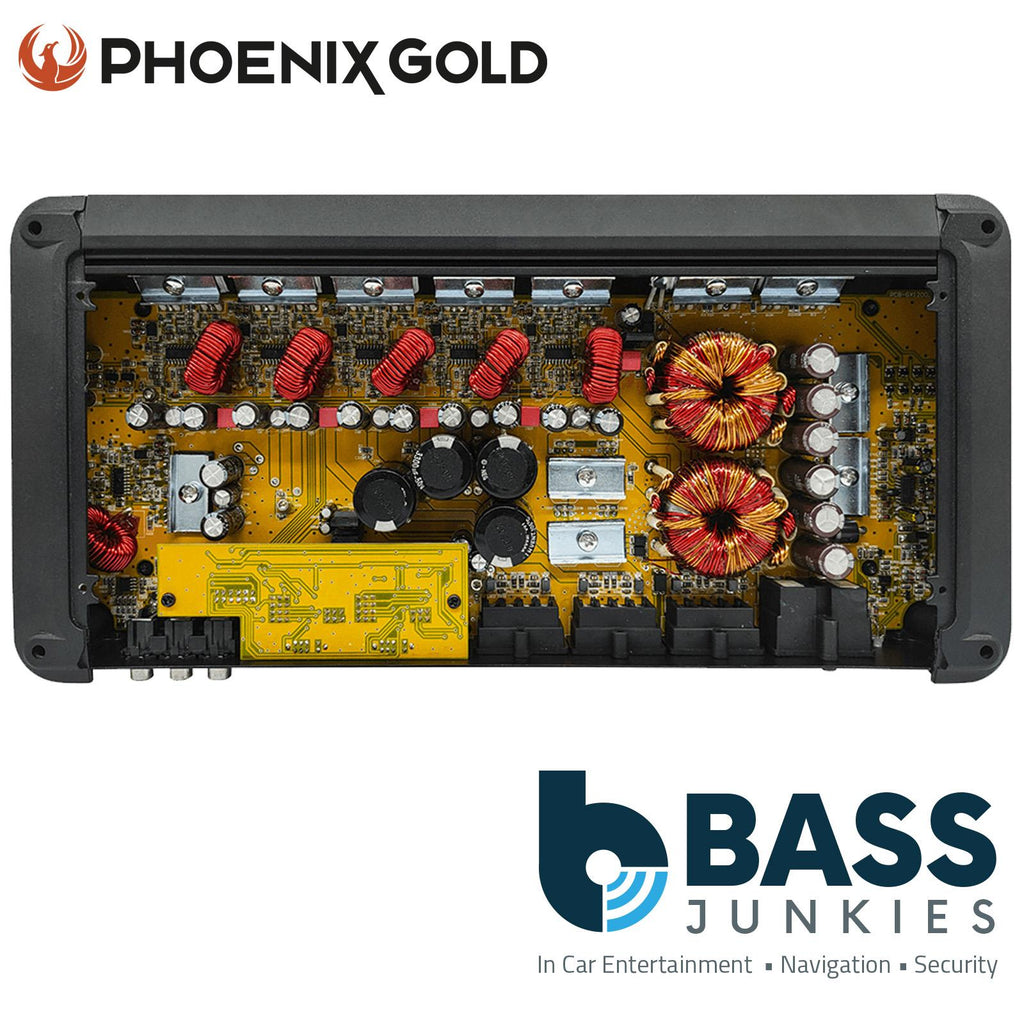

- Surface-Mount Component Technology – Precision manufacturing process provides reliability and strict quality control
- Multi-Input Selector – Allows amplifier to use signal from a pair of channels to drive multiple channels without adapters
- Proprietary PG Quick Connects – Enables high current transfer while increasing installation ease and serviceability
- Flush Mountable Bass Knob – Remote bass control for easy level adjustment paired with custom installation options for ergonomic placement

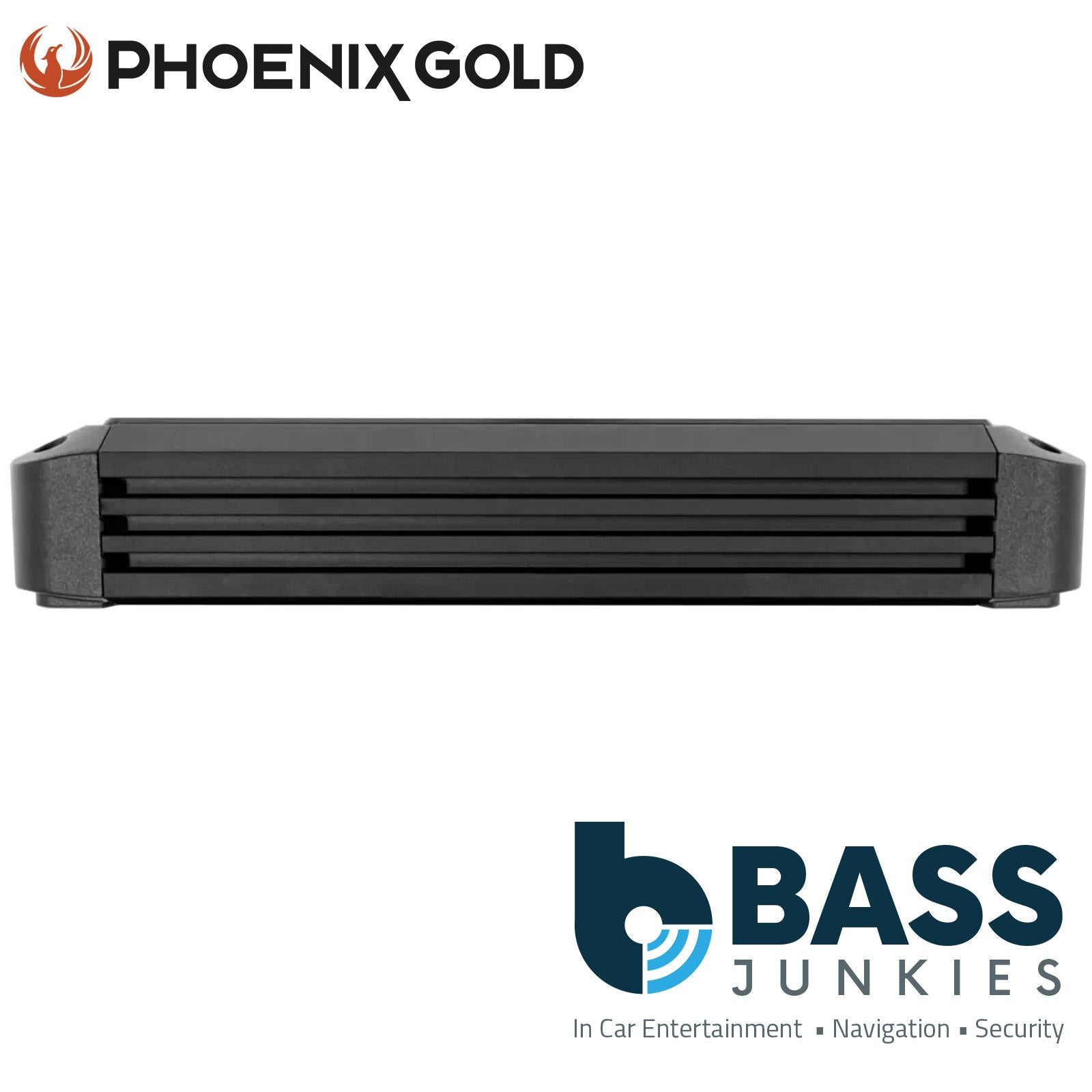

- Full Radiation Heat Sink – Computer aided design heat sink was created to utilize entire chassis for head dissipation while reducing amplifier size and lowering operating temperatures
- Rotatable Badge – Badge can be rotated to allow for increased custom installation mounting optionswhile retaining proper aesthetics

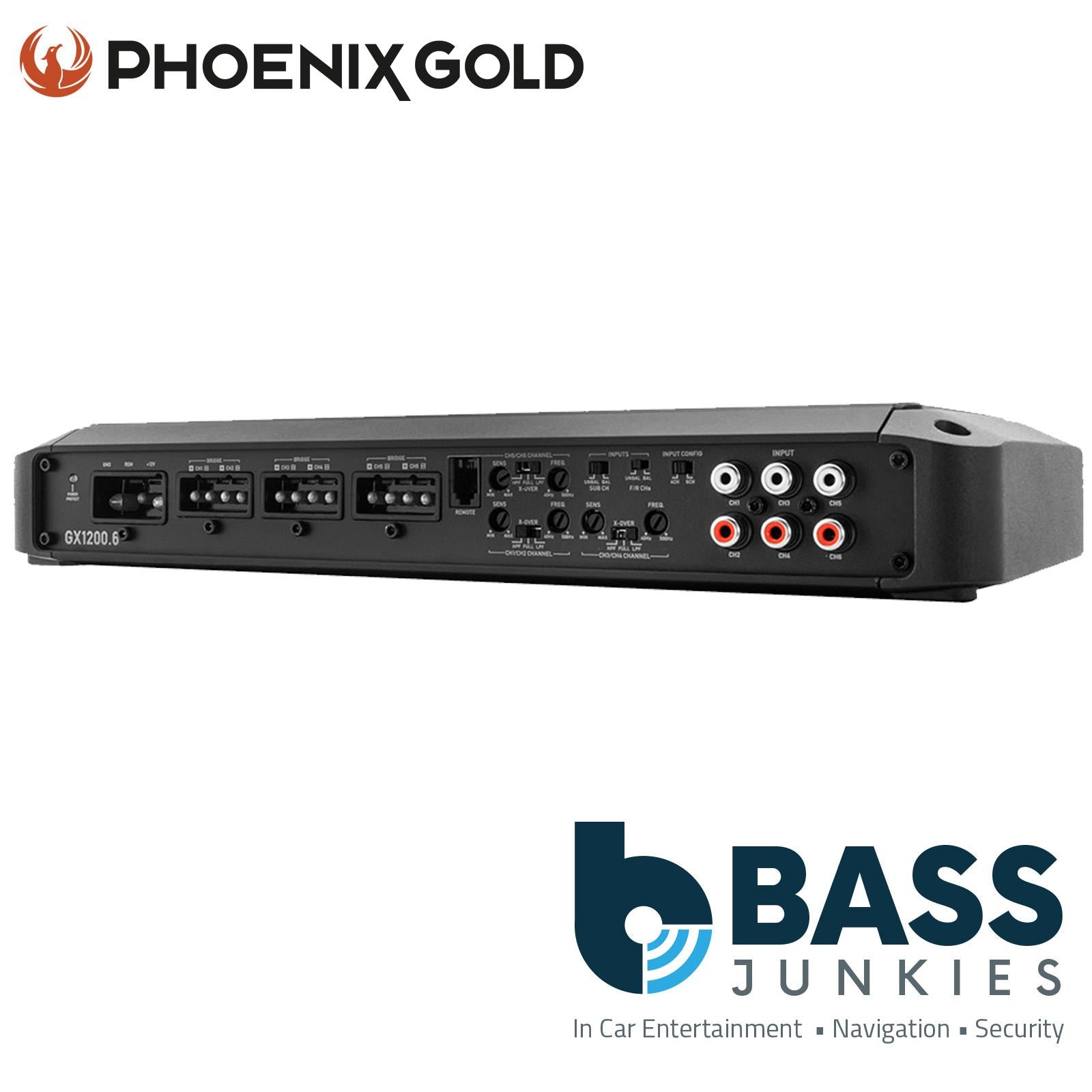

- Single Sided Control Panel – Increased installation speed, system adjustments, and mounting options with the use of single side amplifier controls and connections
- Onboard Short/Thermal/Impedance Protection – Designed for system reliability and fault protection from thermal overload, short circuits, and low impedance situations
Phoenix Gold GX1200.6 Product Specifications:
- Number of Channels: 6
- 4Ω: CH 1-6 125W x 6 2Ω: CH 1-6 200W x 6
- 4Ω Bridged: 400W x 3 Total RMS Power (Sum of rated power): 1200W
- Bridgeable: Yes
- Crossover Control, Linkwitz-Riley: FULL/HP/LP 40Hz - 500Hz @ 12dB/Oct
- Input Selection: 0.4-10V
- Signal to Noise (@ CEA Standard): >100dB
- Frequency Response: Full Range 10-40k
- Topology Class D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V Switchable
- Auto-Turn On: No
- Power Supply Type: Unregulated Power
- Terminal: 4 Gauge Quick Connect Speaker Terminal: 8 Gauge Quick Connect
- Recommended Fusing: 80A
Dimensions
- (L x W x H): 13.54” x 6.5” x 2.03” 344mm x 165mm x 51.5mm
