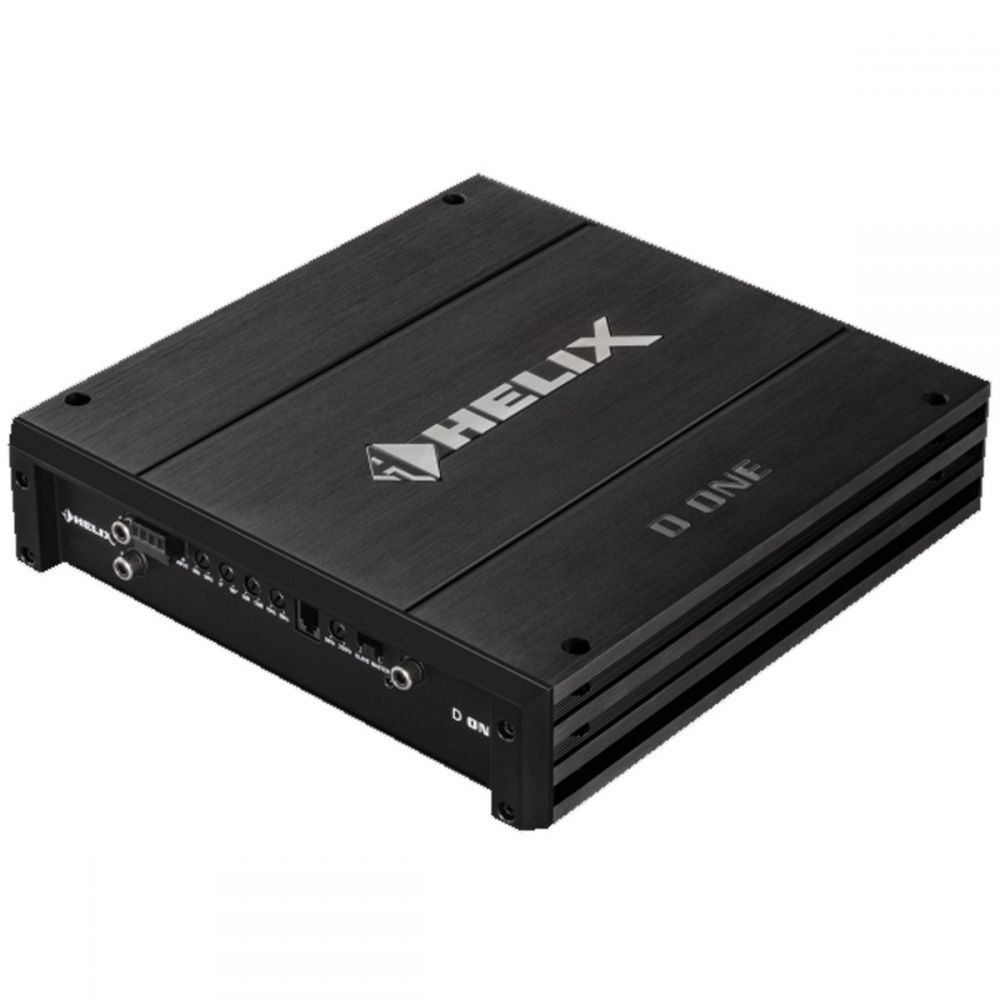

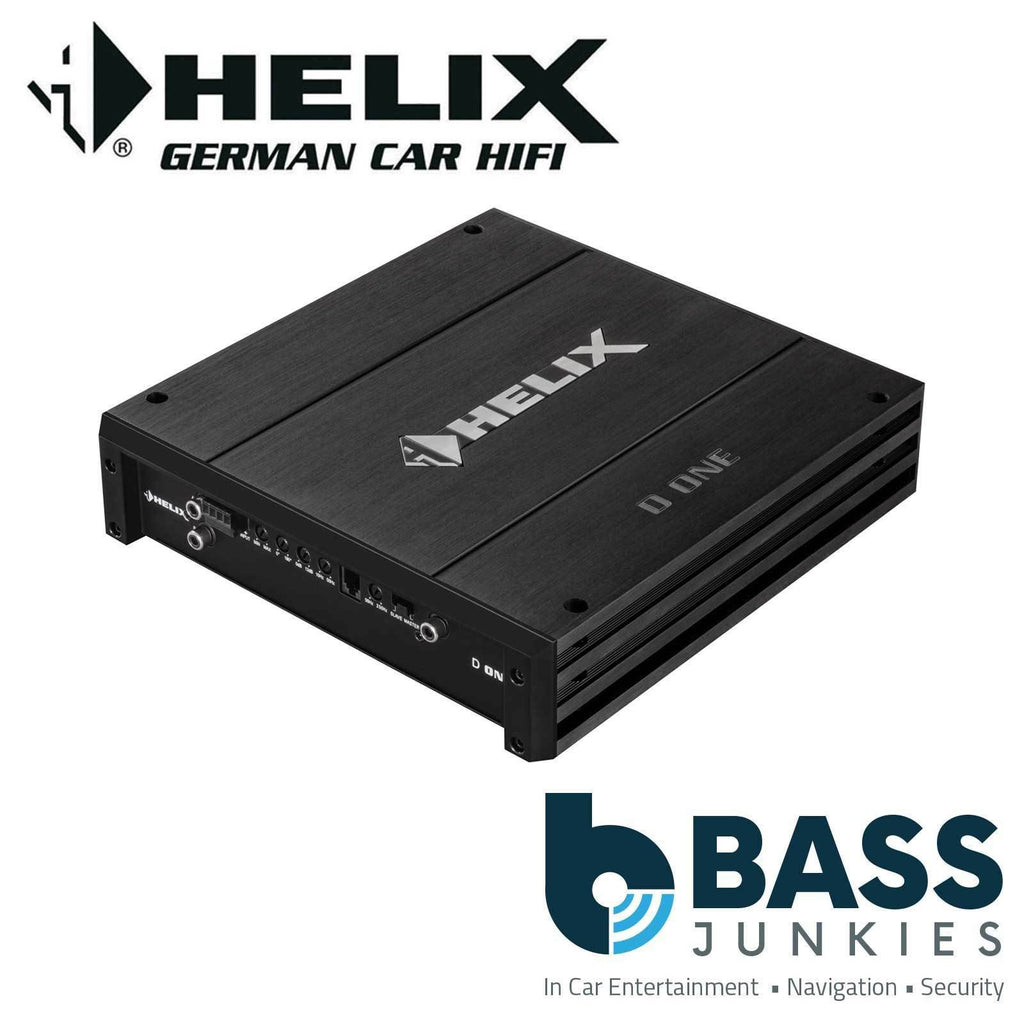

HELIX D ONE - Monoblock 1000 Watts Peak Power Car Amp Amplifier With Integrated Active Crossover
The new entry into the HELIX world! The amplifiers of the D series are solely modest with respect to pricing. Everything else is thoroughly pure HELIX quality without any compromises. Loads of power, excellent measurement data and a whole bunch of features ensure a pristine and crispy sound experience!
Absolutely nothing has been missed for powerful bass reproduction - the active crossover with subsonic filter, the lowpass filter, phase control and bass boost are equally as self-evident as the intelligent highlevel input that incorporates Audiotec Fischer´s proprietary ADEP circuit. Not to mention the cable remote control for volume that is included in delivery.
Thanks to its 1-Ohm stability the D ONE is every else but choosy when selecting an appropriate subwoofer. If you still think that the power output isn't sufficient, then simply combine two devices to one single powerhouse - the master/slave option makes it possible.
The elegant design not only states right from the beginning the amp's heritage but also allows an easy integration into your car thanks to its compact dimensions. Get your car "bass-tuned" and simply have fun!
Features:
- 2-channel high- and lowlevel input
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Fully active crossover with subsonic, lowpass, bass boost and phase
- Master / Slave Mode for connecting two amplifiers in bridged mode
- Extremely stable MOSFET power supply
- Cable remote control for volume adjustment
- Highlevel input sensitivity up to 14 Volts max.
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Massive aluminum heatsink for best cooling conditions
Special features:
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appears - but not with the D ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Specifications:
| Output power RMS / max. |
Normal operation
(One amplifier)
|
Master / Slave Mode
(Two amplifiers)
|
| - @ 4 Ohms |
1 x 200 / 400 Watts |
1 x 645 / 1,290 Watts |
| - @ 2 Ohms |
1 x 340 / 680 Watts |
1 x 910 / 1,820 Watts |
| - @ 1 Ohm |
1 x 530 / 1,060 Watts |
- |
| - bridged @ 4 Ohms |
- |
| - bridged @ 2 Ohms |
- |
| Amplifier technology |
Class D |
| Inputs |
2 x RCA / Cinch
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
|
| Input sensitivity |
RCA / Cinch 0.5 - 6 Volts
Highlevel 1 - 14 Volts
|
| Input impedance RCA / Cinch |
30 kOhms |
| Input impedance highlevel |
12 Ohms |
| Outputs |
1 x Speaker output |
| Output voltage RCA / Cinch |
- |
| Signal converter for digital input |
- |
| Frequency response |
10 Hz - 250 Hz |
| Bass boost |
0 - 12 dB / 45 Hz |
| Highpass |
- |
| Lowpass |
50 Hz - 250 Hz adjustable |
| Bandpass |
10 Hz - 250 Hz adjustable |
| Subsonic |
10 Hz - 50 Hz adjustable |
| Phase |
0 - 180° adjustable |
| Slope high- / lowpass |
- |
| Slope subsonic / lowpass |
12 dB/Oct. |
| Signal-to-noise ratio digital input |
- |
| Signal-to-noise ratio analog input |
95 dB (A-weighted) |
| Distortion (THD) |
0.25 % |
| Damping factor |
100 |
| Operating voltage |
9.6 - 16 Volts |
| Idle current |
1000 mA |
| Fuse |
2 x 30 A Maxi-fuse (APX) |
| Additional features |
Active, adjustable crossover, bass boost, phase shift, Master / Slave Mode switch, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control |
| Dimensions (H x W x D) |
53 x 250 x 230 mm /
2.09 x 9.84 x 9.06”
|
