Special features:
96 kHz sampling rate

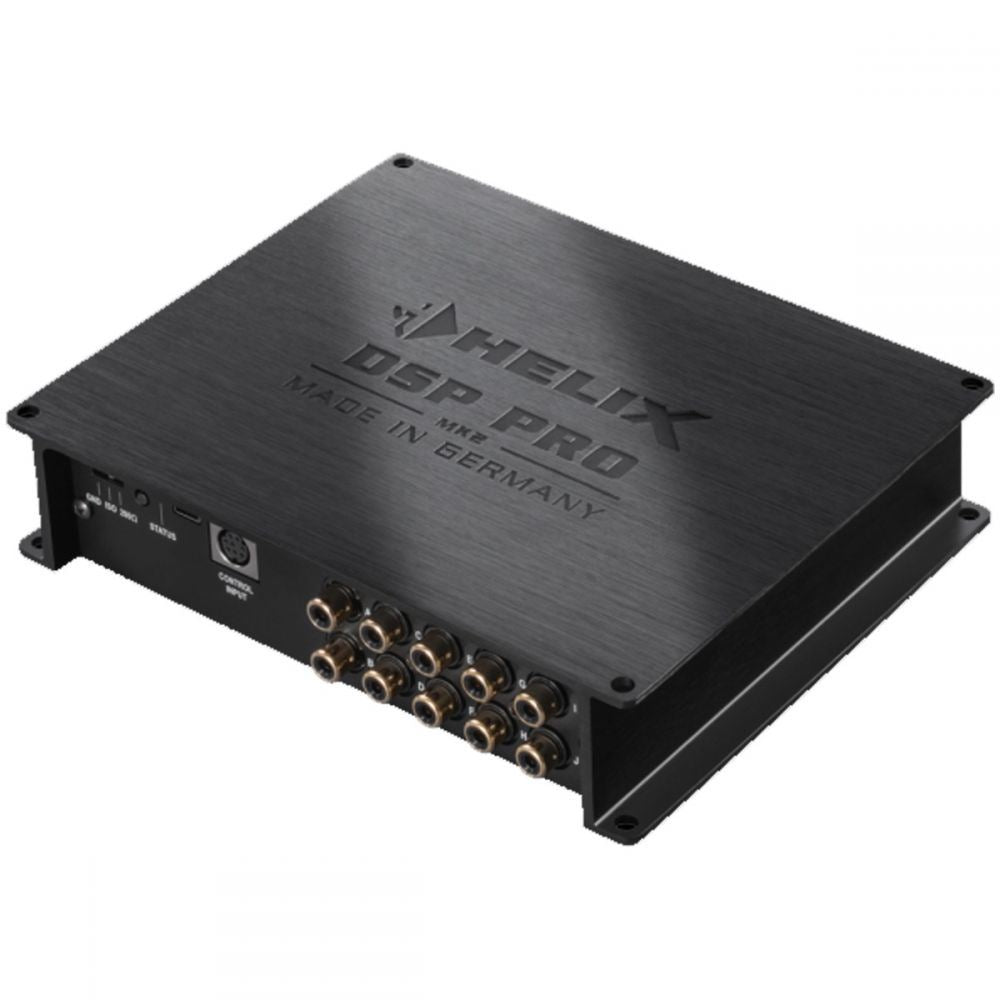

The HELIX DSP PRO MK2 allows to handle all signals with the doubled sampling rate of 96 kHz. Thus the audio bandwidth is no longer limited to usual values like 22 kHz but allows an extended frequency response to more than 40 kHz. Doubling the sampling rate requires significantly higher DSP power as the number of possible arithmetic operations is halved. Only the implementation of the latest DSP chip generation allows raising the sampling rate to 96 kHz and adding new features plus additional channels at the same time.
Signal converters with a native resolution of 32 Bit
The HELIX DSP PRO MK2 uses high-class AD and DA converters of the latest generation with a native resolution of 32 Bit instead of the common 24 Bit. The result is an unprecedented precision in signal conversion that especially optimizes the sound quality at lower signal levels.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common signal processor will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appears - but not with the DSP PRO MK2. The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX DSP PRO MK2 assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts during engine crank.
Power Save Mode
The Power Save Mode is incorporated in the basic setup. It allows to significantly reduce the power consumption of the amplifiers that are connected to the HELIX DSP PRO MK2 once there’s no input signal present for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the radio remains “invisibly” turned on for up to 45 min. even after locking and leaving the car! Once the “Power Save Mode“ is active the remote output and therefore the connected amplifiers will be turned off. The HELIX DSP PRO MK2 will reactivate the remote output within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save Mode” via the DSP PC-Tool software.
Automatic Digital Signal Detection
Switching from analog input to one of the digital inputs is done automatically as soon as a signal is detected
on the Optical Input or Coax Input. This feature can be deactivated in the DSP PC-Tool software. Alternatively you can use an optional remote control for manual switching between analog and digital inputs.
Specifications:
| Inputs |
8 x RCA / Cinch 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In |
| Input sensitivity |
RCA / Cinch 2 - 4 Volts Highlevel 5 - 10 or 10 - 20 Volts |
| Outputs |
10 x RCA / Cinch 1 x Remote Out |
| Output voltage | 8 Volts |
| Frequency response | 10 Hz - 44,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 96 kHz |
| DSP type | Audio signal processor |
| Signal converters |
A/D: Asahi Kasei 32 Bit D/A: Asahi Kasei 32 Bit |
| Signal-to-noise ratio digital input | 116 dB (A-weighted) |
| Signal-to-noise ratio analog input | 110 dB (A-weighted) |
| Total harmonic distortion (THD+N) digital input | < 0.0005 % |
| Total harmonic distortion (THD+N) analog input | < 0.001 % |
| IM distortion (IMD) digital input | < 0.002 % |
| IM distortion (IMD) analog input | < 0.004 % |
| Crosstalk | > 90 dB |
| Operating voltage | 9.6 - 18 Volts (max. 5 sec. down to 6 Volts) |
| Current draw | 510 mA |
| Max. remote output current | 500 mA |
| Additional features |
HEC slot, Ground lift switch, Control Input, ADEP circuit, Auto Remote switch |
| Dimensions (H x W x D) |
40 x 177 x 150 mm / 1.58 x 6.97 x 5.91“ |
