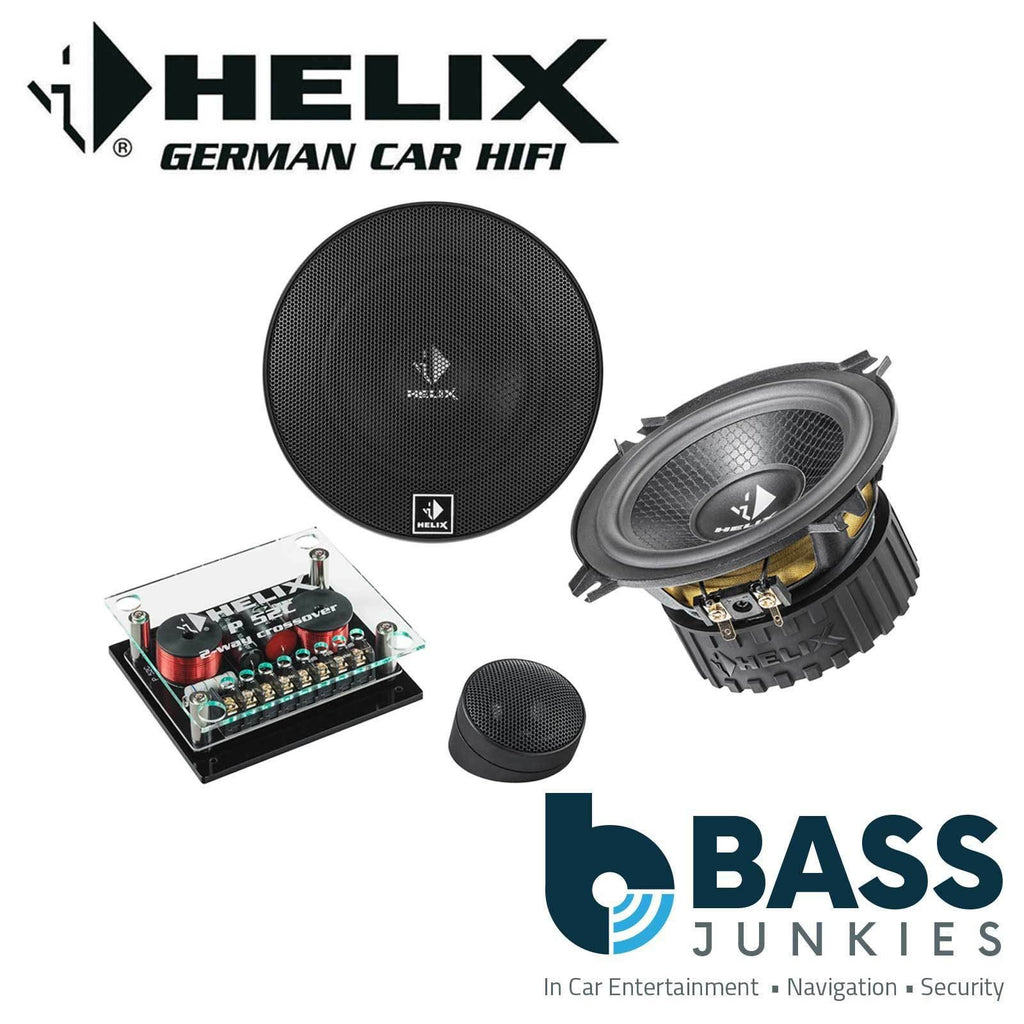

HELIX P 52C - 5.25" 130mm 360 Watts 2 Way Component System car van Speakers
Puristically bred for maximum sound quality - the P Series component systems do not even need to attract attention with their optical gimmicks. In the construction, the acoustic result was in the foreground. And that can really be heard due to the technical finesse. Starting with the unique fiberglass-paper-compound membrane of the woofer, over the hand-coated silk dome of the tweeter to the elaborate, equipped with noble components crossover. The P 52C is certainly not only in its class sound standards and enthusiastic with very neutral reproduction, excellent impulse response and the very finest high-resolution.
Features:
- 130 mm woofer with novel fiberglass-paper compound membrane for maximum rigidity at minimum weight and optimum internal damping
- 25 mm tweeter with hand-coated silk dome for a balanced, natural reproduction and minimal compression effects
-
Elaborate crossover with impedance correction and three-level treble level adjustment; exclusively equipped with particularly high-quality components:
- Distortion-free air coils with lowest internal resistance
-
Low- induction metal film resistors - Low-loss Audiotec film capacitors in the high-frequency branch
- Gold plated connection terminals
- Grid included
Specifications:
Power RMS / Max. |
80/160 watts |
frequency range |
60 Hz - 25,000 Hz |
impedance |
4 Ω |
Efficiency 1 W / 1 m |
89 dB |
membrane material |
HT: silk coated MT: - TT: fiberglass-paper-compound
|
crossover |
6/12 dB with impedance compensation and treble level adjustment |
outer diameter |
HT: 58 mm MT: - mm TT: 128.5 mm
|
Installation diameter |
HT: 49.3 mm MT: - mm TT: 111 mm
|
depth |
HT: 15 mm MT: - mm TT: 62.5 mm
|
