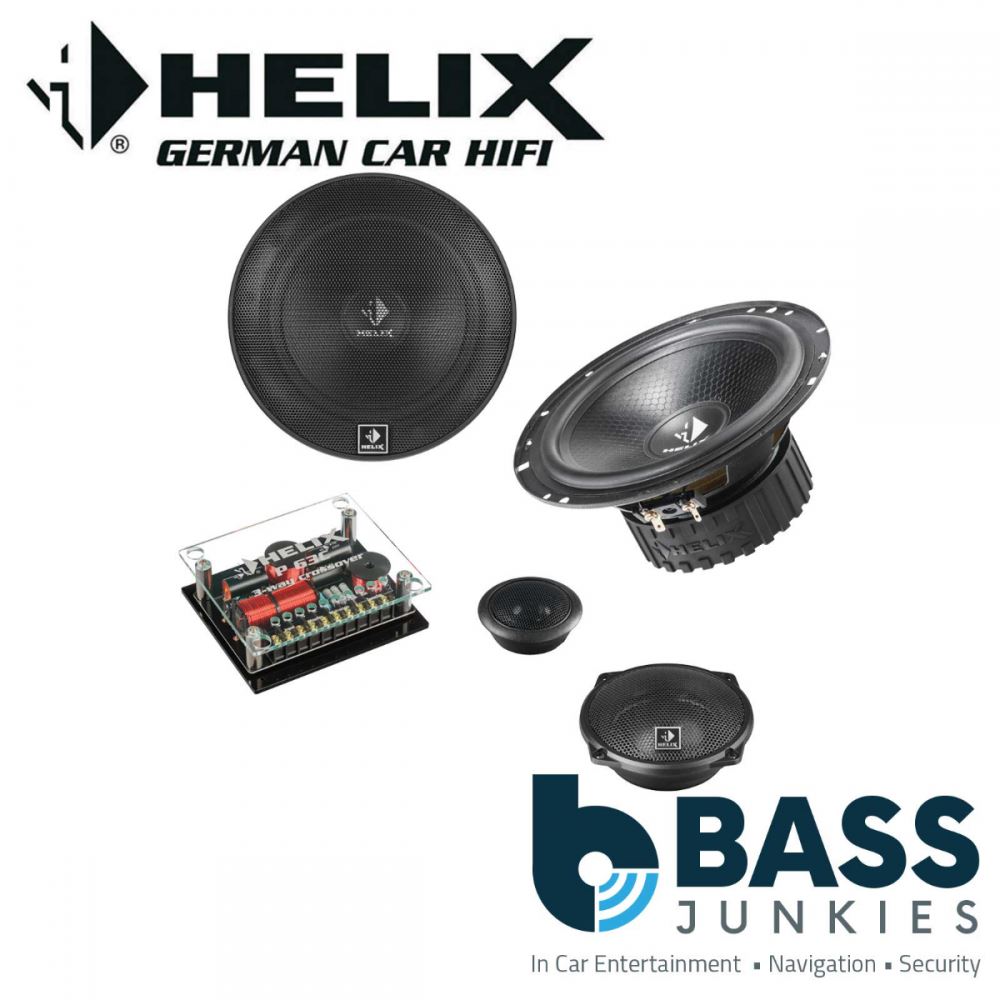

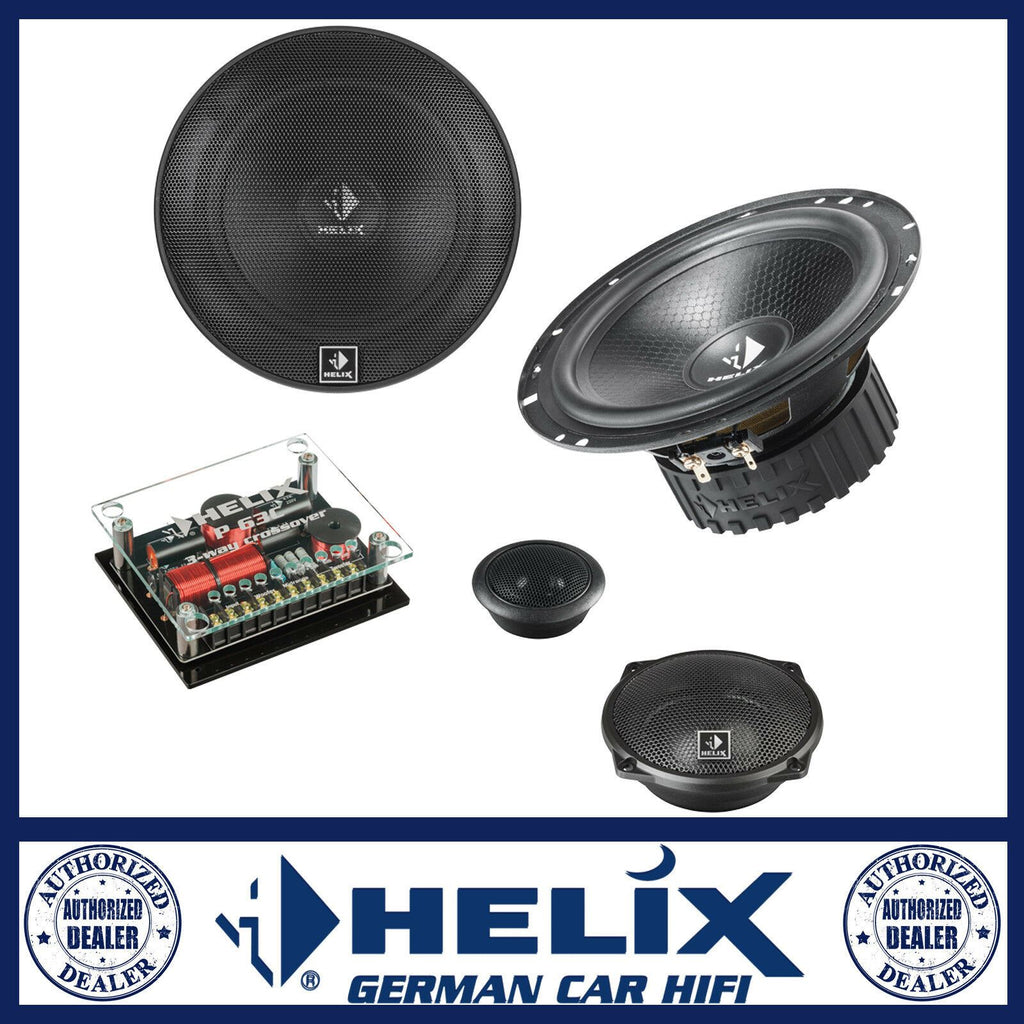

HELIX P 63C - 6.5" 165mm 500 Watts 3 Way Component System Car Van Speakers
Puristically bred for maximum sound quality - the P Series component systems do not even need to attract attention with their optical gimmicks. In the construction, the acoustic result was in the foreground. And that can really be heard due to the technical finesse. Starting with the unique fiberglass-paper-compound membrane of the woofer, the large, easy-to-install 50 mm midtone dome, the hand-coated silk dome tweeter up to the elaborately wired crossover with high-tone level adjustment, the P 63C sets to sonic highs. Who does not shy away from the slightly higher installation costs of the 3-way system, will be rewarded with incredible resolution and pinpoint spatial imaging.
Features:
- 165 mm woofer with novel fiberglass-paper compound membrane for maximum rigidity at minimum weight and optimum internal damping
- 50 mm midrange with lightweight, hand-coated silk dome for optimal pulse behavior
- 25 mm tweeter with hand-coated silk dome for a balanced, natural reproduction and minimal compression effects
-
Elaborate 12 dB crossover with three-level treble level adjustment; exclusively equipped with particularly high-quality components:
- low- distortion inductors with lowest internal resistance
-
low- induction metal film resistors - low-loss film capacitors in the midrange and high frequency branch
- Gold plated connection terminals
- Grid included
Specifications:
Power RMS / Max. |
125/250 watts |
frequency range |
40 Hz - 25,000 Hz |
impedance |
4 Ω |
Efficiency 1 W / 1 m |
90 dB |
membrane material |
HT: silk coated MT: silk coated TT: fiberglass-paper-compound
|
crossover |
12 dB with high tone level adjustment |
outer diameter |
HT: 58 mm MT: 93 mm TT: 165.5 mm
|
Installation diameter |
HT: 49.3 mm MT: 82 mm TT: 142 mm
|
depth |
HT: 15 mm MT: 30 mm TT: 67 mm
|
