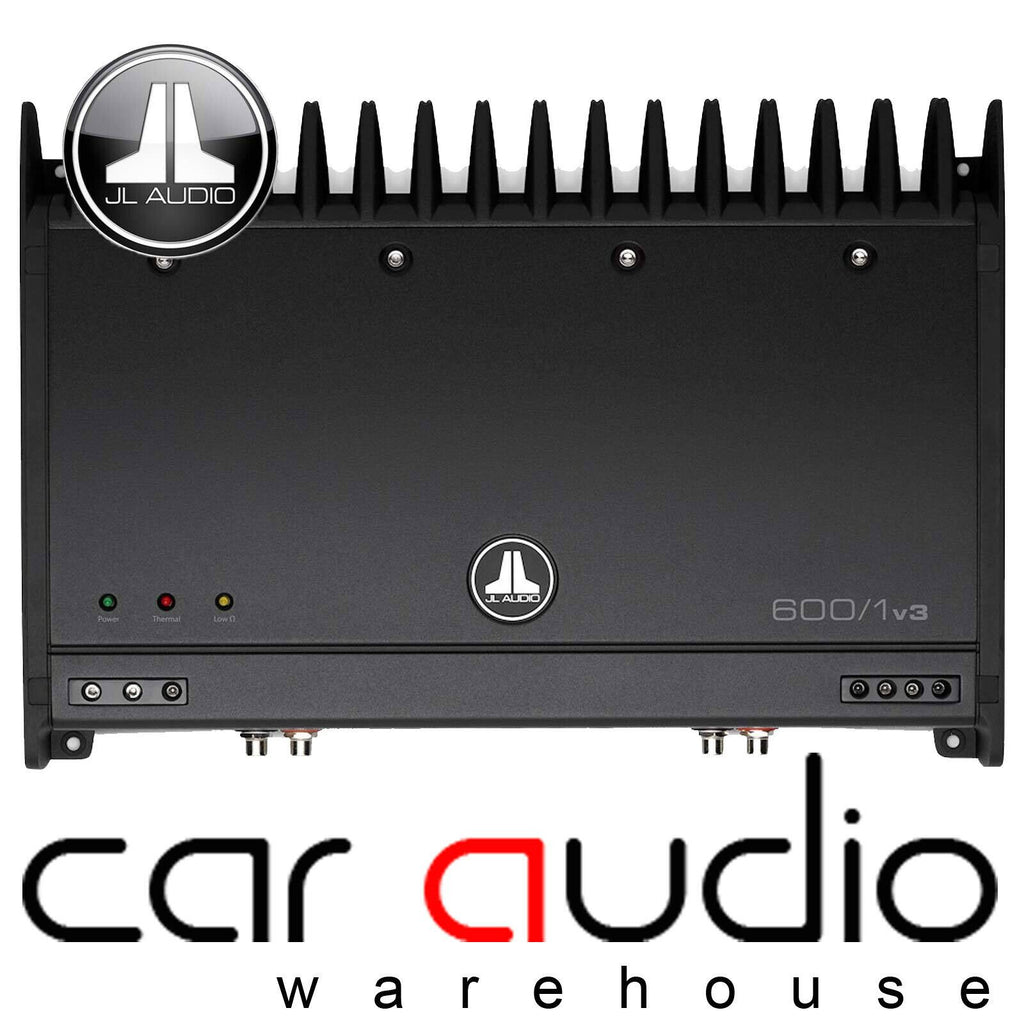

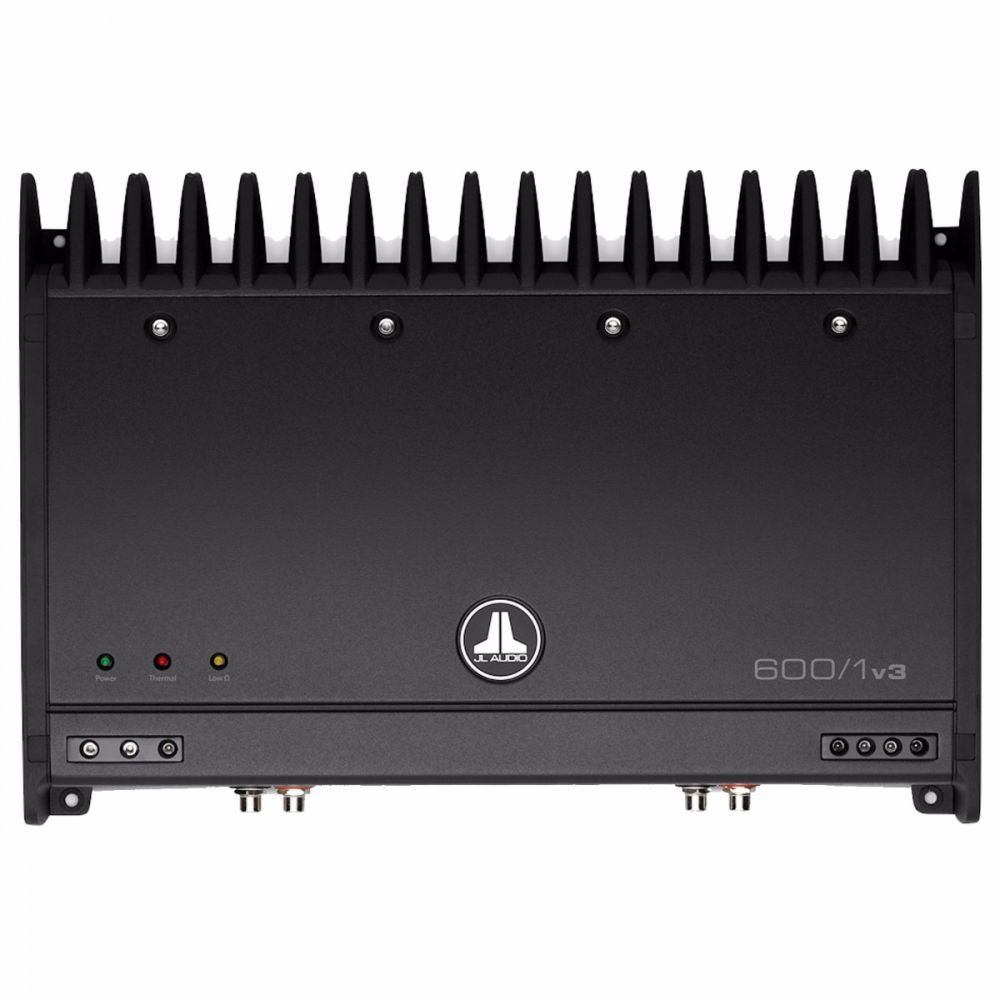

JL Audio 600/1v3 600 Watt Class D Mono Amp Car Bass Amplifier JL 600.1v3
Consistent power for performance you can count on
JL Audios Slash v2 amplifiers arent just powerful theyre smart. As your battery voltage fluctuates while you drive the Regulated Intelligent Power Supply system maintains steady consistent power at any impedance between 1.5 and 4 ohms and at any voltage between 11 and 14.4 volts. Youll get all the power all the time even with a wide range of speaker combinations.
Rock solid power for your sub

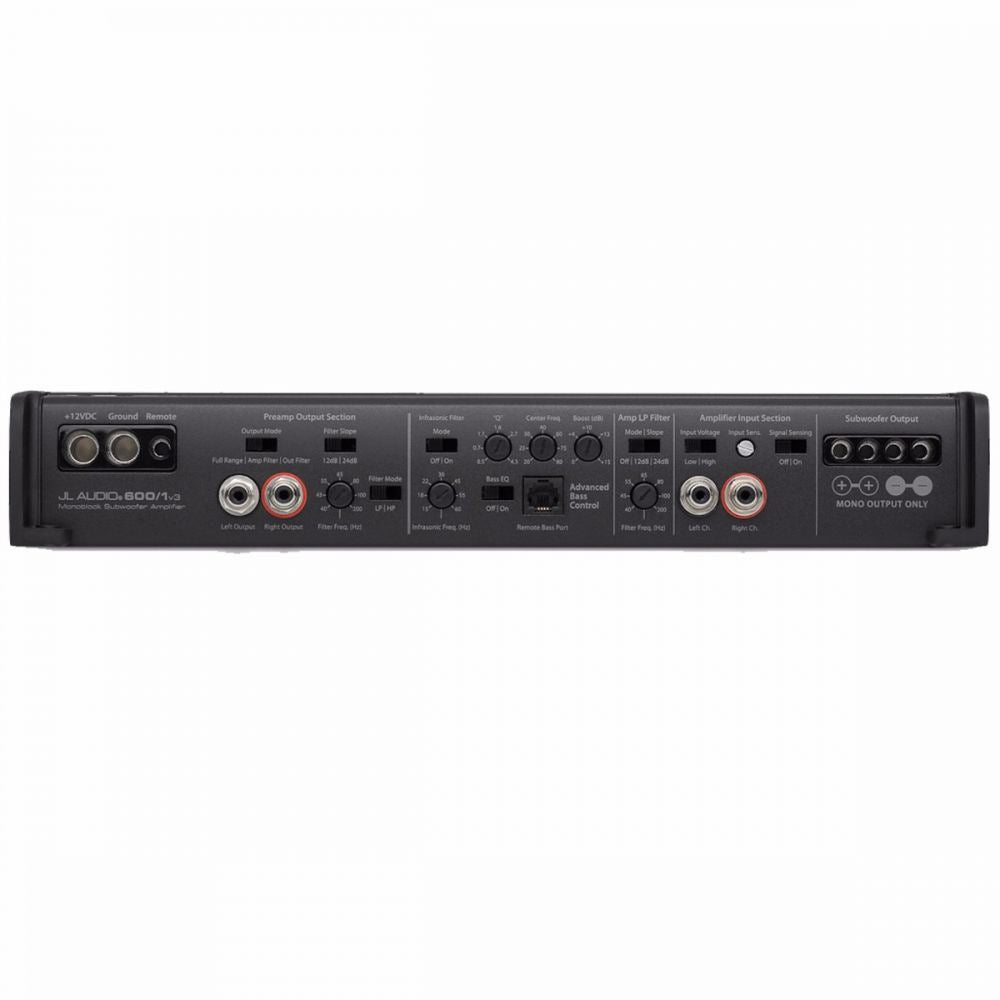

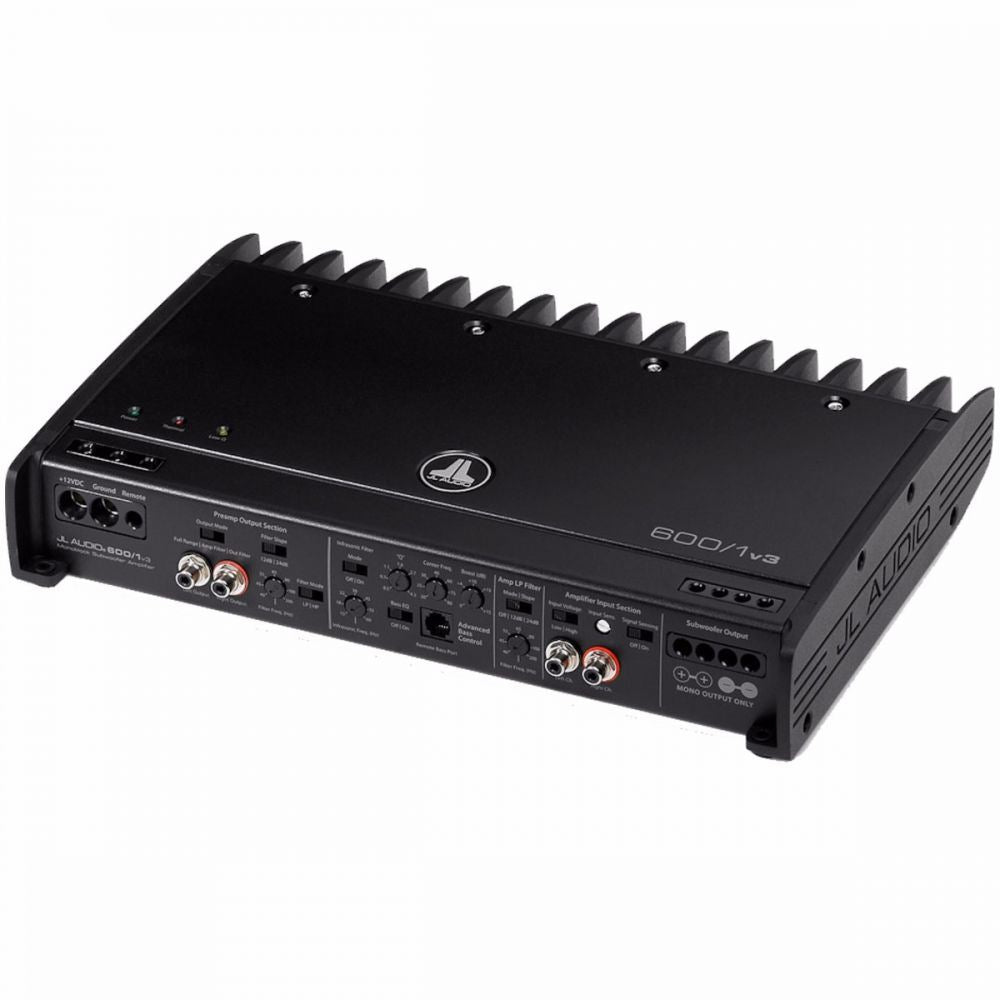

The 600/1v3 mono amplifier puts out 600 watts RMS of clean power to your subwoofer system and JL Audios patented Class-D amp circuitry keeps a tight rein on cone movement. The cast aluminum heatsinks dissipate heat quickly giving these amps long lifespans and reliable operation. Youll find all controls inputs and outputs on the front panel for easy access and a neat installation.
Minimize external noise
JL Audio amps use ""differential-balanced inputs"" to isolate the signals ground from the chassis ground reducing noise and making Slash v3 amplifiers compatible with almost any system including most factory radios.
Fingertip control
Tunable frequency filters and a parametric EQ bass boost give you precise control over your bass sound and the optional RBC-1 wired remote lets you dial in the right amount of thump from the front seat.
Key Specifics
- Mono subwoofer amplifier
- 600 watts RMS x 1 at 1.5 to 4 ohms
- Regulated Intelligent Power Supply system
- Differential-balanced inputs
- Variable low-pass filter (40-200 Hz 12 or 24 dB/octave)
- Parametric EQ bass boost (0-15 dB at 20-80 Hz)
- Variable infrasonic filter (-24 dB/octave at 15-60 Hz)
- Optional wired remote bass boost
- Class-D amplifier design
- MOSFET power and output stages
- Speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
- Preamp outputs
- 4-gauge power and ground leads and a 50-amp fuse recommended wiring and hardware not included with amplifier
- No onboard fuses when installing multiple amps in a system an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
- 13-7/16""W x 2-5/16""H x 10-1/16""D
"
