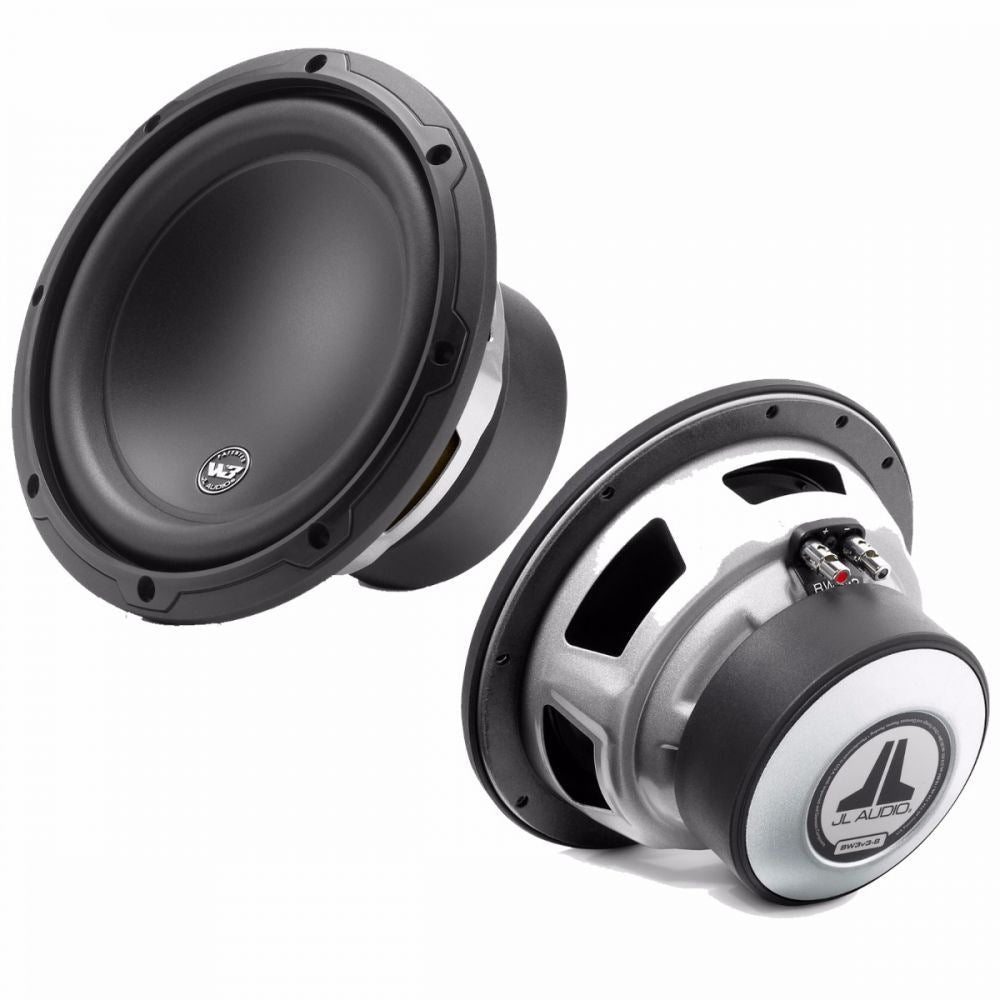

JL Audio 8w3v3-4 8" Inch 20cm 250 Watts 4 Ohms Single Car Sub Subwoofer
The 8W3V3-4 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The W3v3s incorporate a new terminal and a lead-wire system woven into the spider along with a new metallic silver frame finish that looks great in any installation.
When the going gets loud the W3v3s are built to perform like no other woofers in their price class making them ideal for those seeking high performance from an affordable subwoofer system.
It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled one-way linear excursion.The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure or a 0.35 cu. ft. (9.9 l) ported enclosure.
The 8W3v3-4 subwoofer boasts an 8" mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion. A patented design eases the stress felt by the rubber surround during cone movement for increased reliability and consistent bass output. The removable customizable trim ring accepts optional JL Audio grilles and can be painted to enhance your installation.
Key Specifics
- 8" 4-ohm subwoofer
- Mineral-filled polypropylene cone with nitrile-butylene rubber surround
- Power range: 50-250 watts RMS
- Peak power handling: 500 watts
- Frequency response: 28-250 Hz
- sensitivity: 83.24 dB
- Top-mount depth: 4-9/16"
- Sealed box volume: 0.3 cubic feet
- Sorted box volume: 0.35 cubic feet
