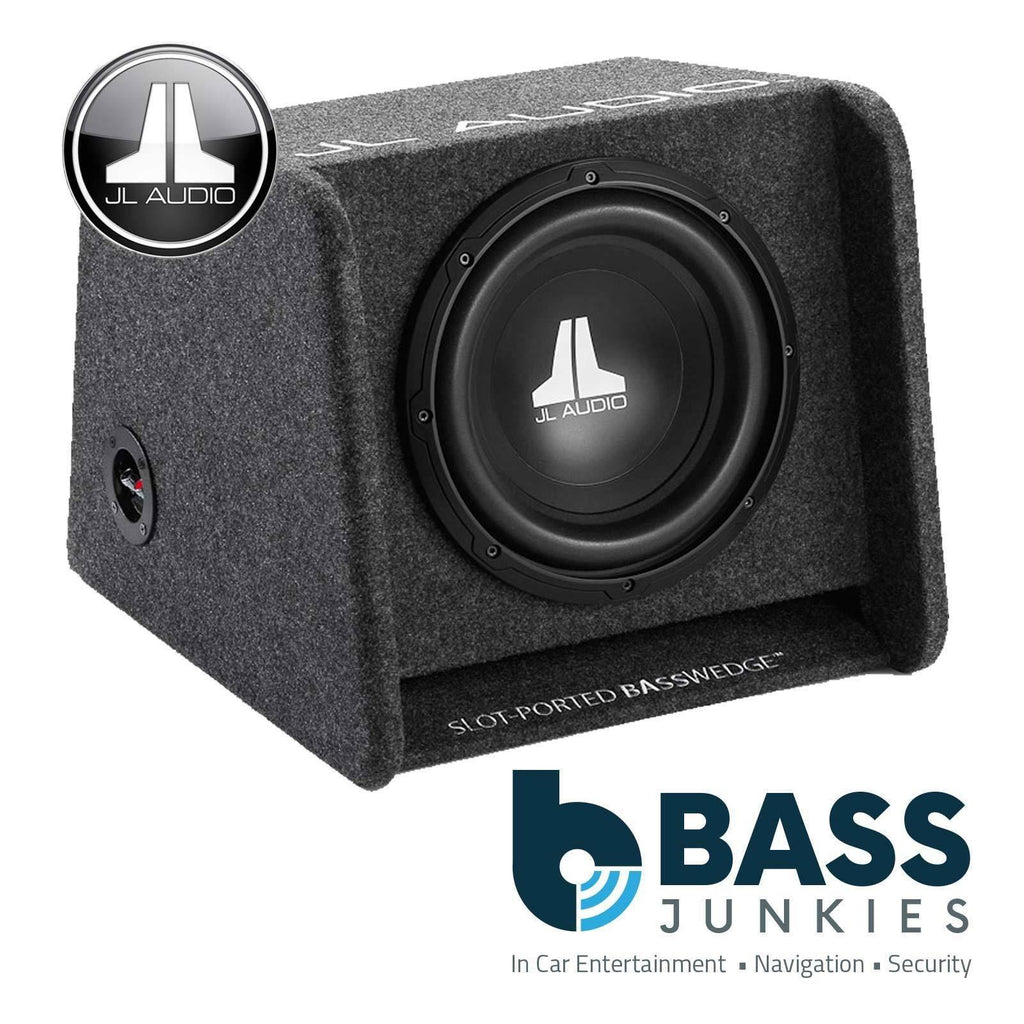

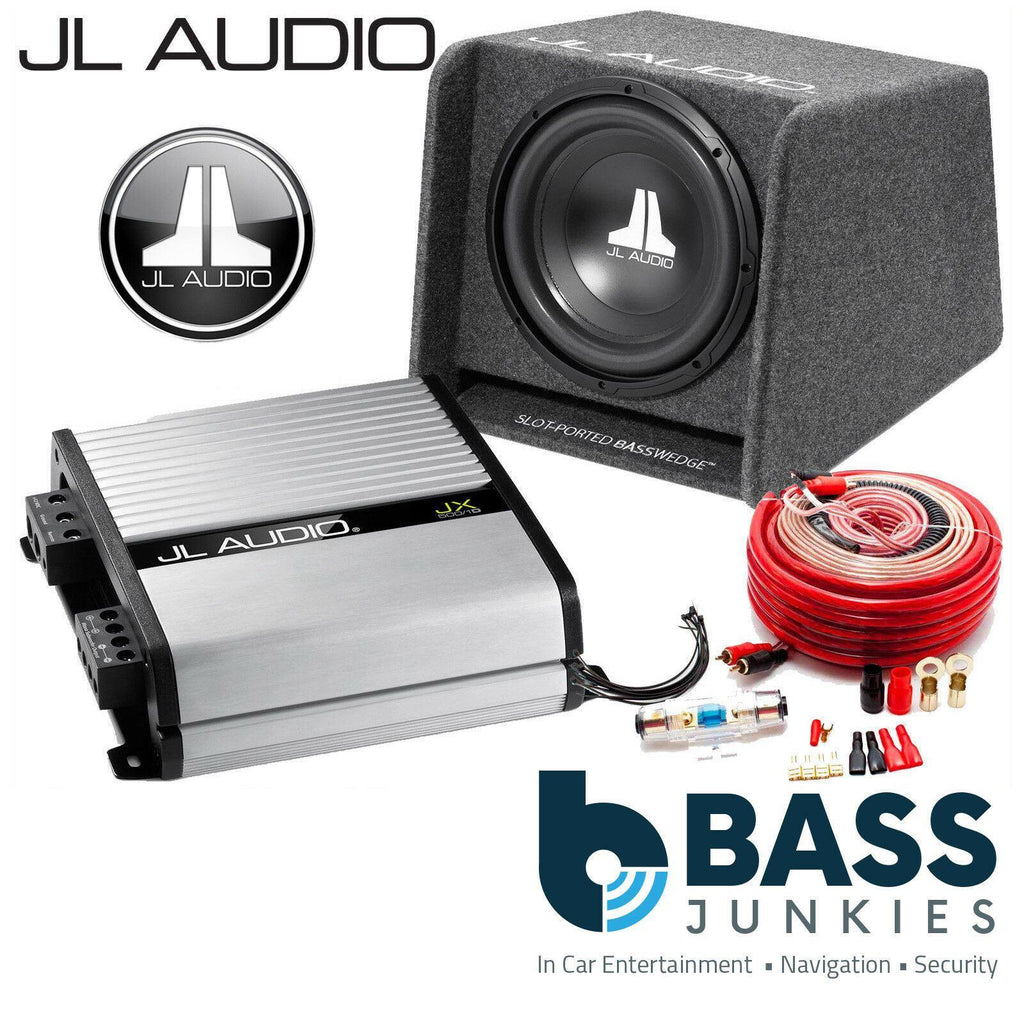

JL Audio CP112-W0V3 - 12 inch 300 Watts Ported Enclosure Subwoofer Bass Box & JL Audio JX500.1 Amplifier with Complete Wiring KitThis powerful slot-ported BassWedge subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge shape has extended sides so that it can be placed with the woofer firing out or straight down off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired loaded and ready to connect via a push-button terminal.
JL Audio CP112-W0v3 Specifications:
- 300 watt 4 ohm 12” Subwoofer Enclosure
- Finish: Dark gray high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and
- Slot-Ported BassWedge embroidered on the port mouth.
- Construction: MDF
- Recommended amplifier power: 75 − 300W
- Nominal Impedance: 4 Ohms
- 16-1/2"W x 15-3/8"H x 20-3/4"D1 x 16-5/8"D2
JL JX500.1 Specifications:
- Rated Continuous (RMS) Power @ 14.4 V
- Rated Continuous (RMS) Power @ 12.5 V
- General Specifications
Frequency Response: 10 Hz − 150 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power: >90 dB below rated power (A-weighted, 20 Hz − 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >62 dB (A-weighted, 20 Hz − 20 kHz noise bandwidth)
Damping Factor @ 4Ω: >1000 / 50 Hz
THD+N @ Rated Power: <1% @ 2Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV − 4 V RMS
Input Voltage Range @ High-Level Inputs: 2 V − 10 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 60 A (AFS, AGU or MaxiFuse)
- Physical Specifications:
Height (H): 2.09 in / 53 mm
Width (W): 7.83 in / 199 mm
Depth (D): 7.68 in / 195 mm
Net Weight: 4.8 lb / 2.18 kg
