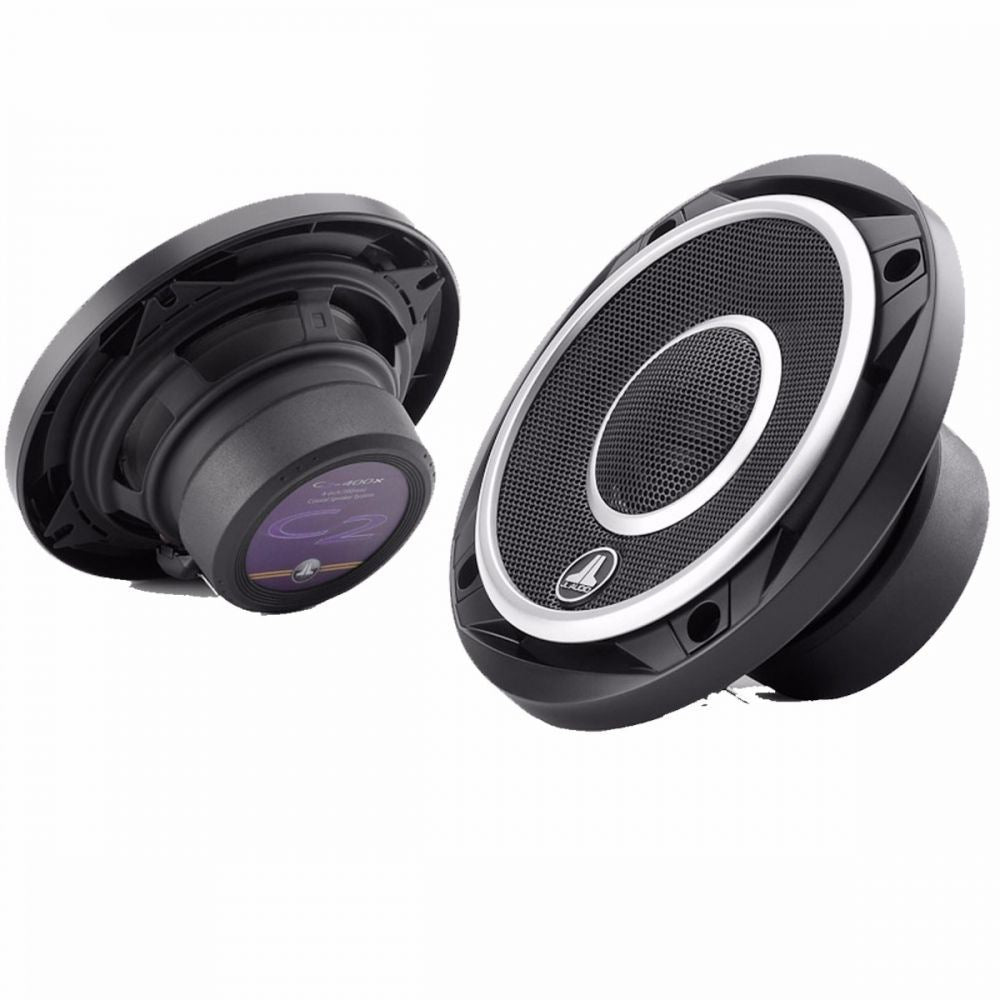

C2-600X 6-inch (150 mm) Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Key Specifications:
- Continuous Power Handling (RMS) 60 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
- System Efficiency 90.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 59 Hz - 22 KHz ± 3 dB
- Frame Outer Diameter* (A) 6.21 in / 158 mm
- Grille Tray Outer Diameter (B) 6.51 in / 163 mm
- Motor Outer Diameter (C) 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion** (D) N/A
- Frontal Grille Protrusion*** (E) 0.91 in / 23 mm
- Mounting Hole Diameter (F) 5.00 in / 127 mm
- Mounting Depth (G) 2.38 in / 64 mm
