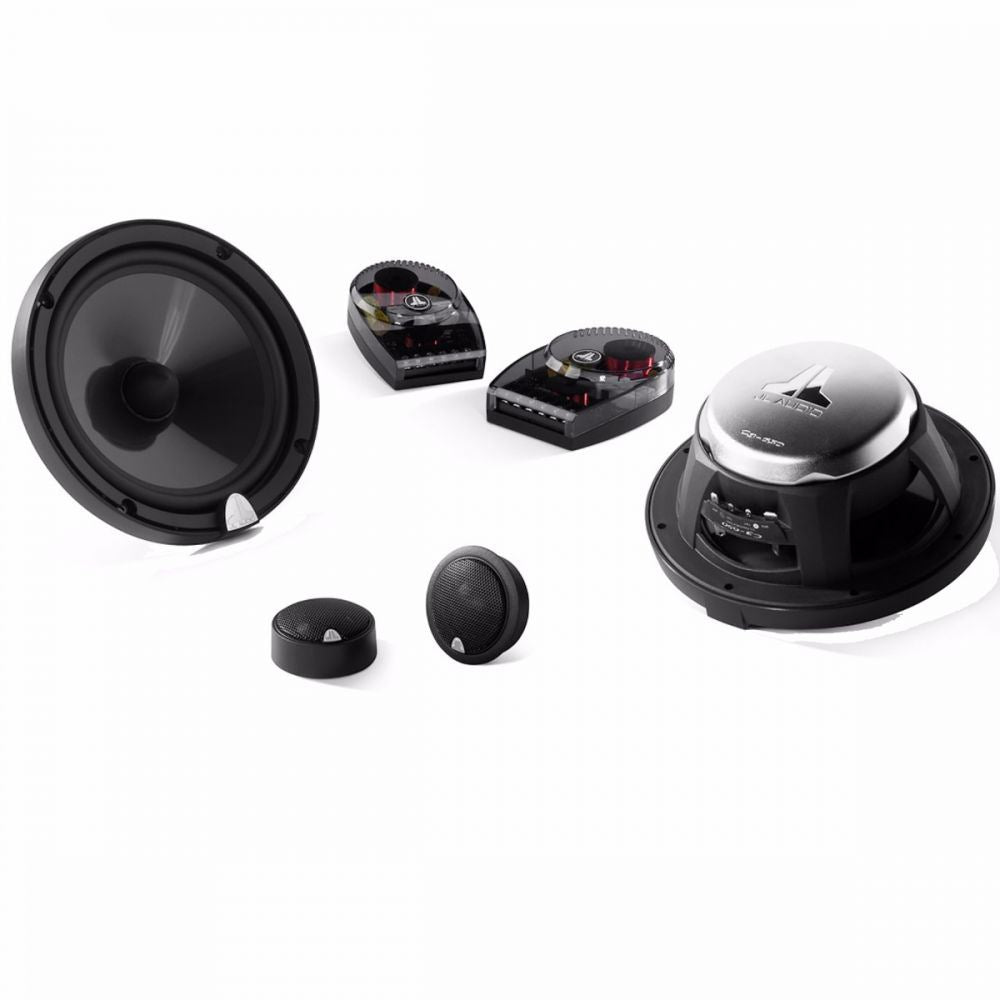

JL Audio C3-525 - 5.25" Inch 130mm 225 Watts Pair Convertible Component/Coaxial Door Car Speakers
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-525 system features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Key Features:
- Continuous Power Handling (RMS) 75 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
- System Efficiency 90.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 48 Hz - 25 KHz ± 3 dB
Woofer Dimensions:
- Frame Outer Diameter* (A) 5.80 in / 147 mm
- Grille Tray Outer Diameter (B) 6.00 in / 152 mm
- Motor Outer Diameter** (C) 3.38 in / 86 mm
- Frontal Coaxial Tweeter Protrusion*** (D) 0.69 in / 18 mm
- Frontal Grille Protrusion**** (E) 1.00 in / 25 mm
- Mounting Hole Diameter (F) 4.56 in / 116 mm
- Mounting Depth (G) 2.27 in / 58 mm
Tweeter Dimensions:
- Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
- Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
- Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
- Flush Mount Fixture Mounting Depth (C) 0.71 in / 18 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm
