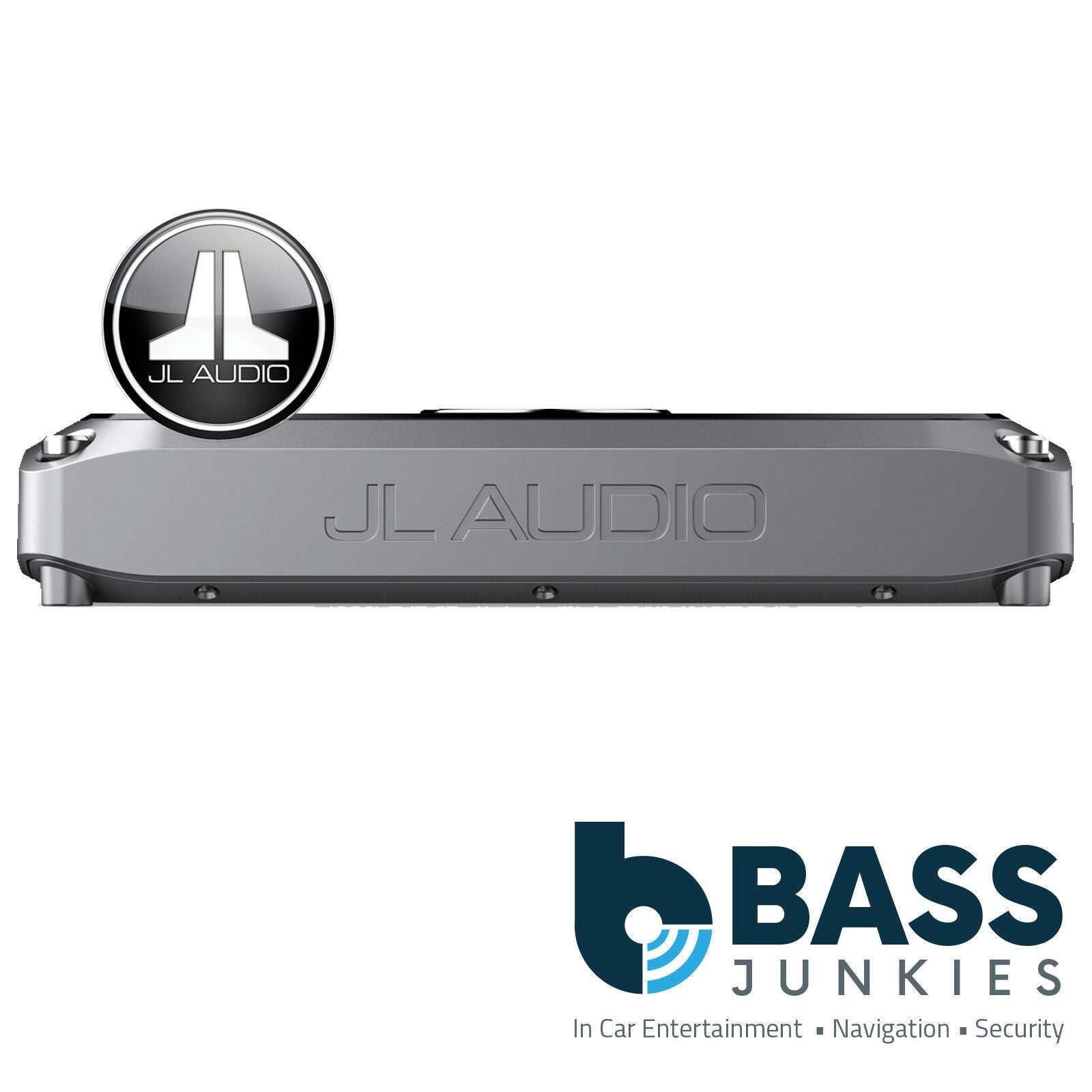

JL Audio VX1000/5I 1000 Watts 5-Channel Class D Car Amplifier with Integrated DSP
5-Channel Class D System Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
Employing our second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

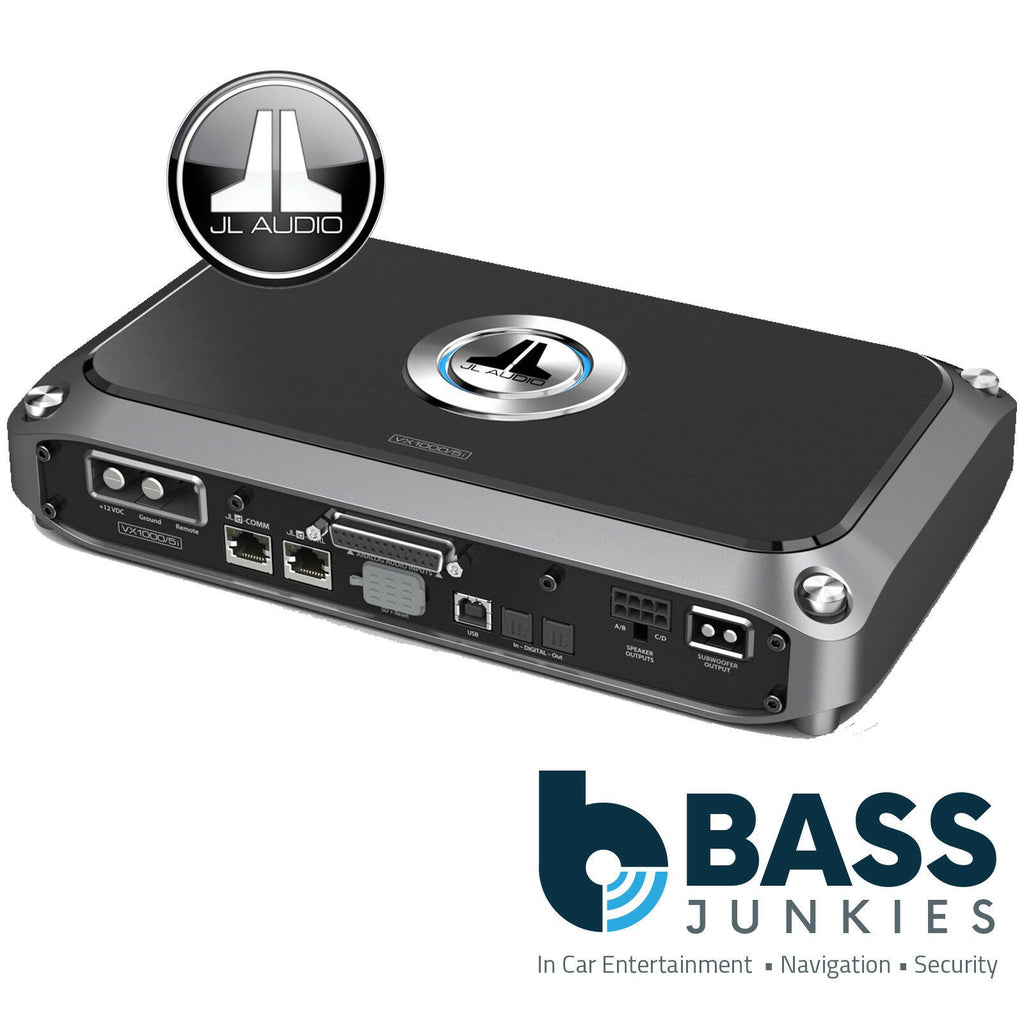

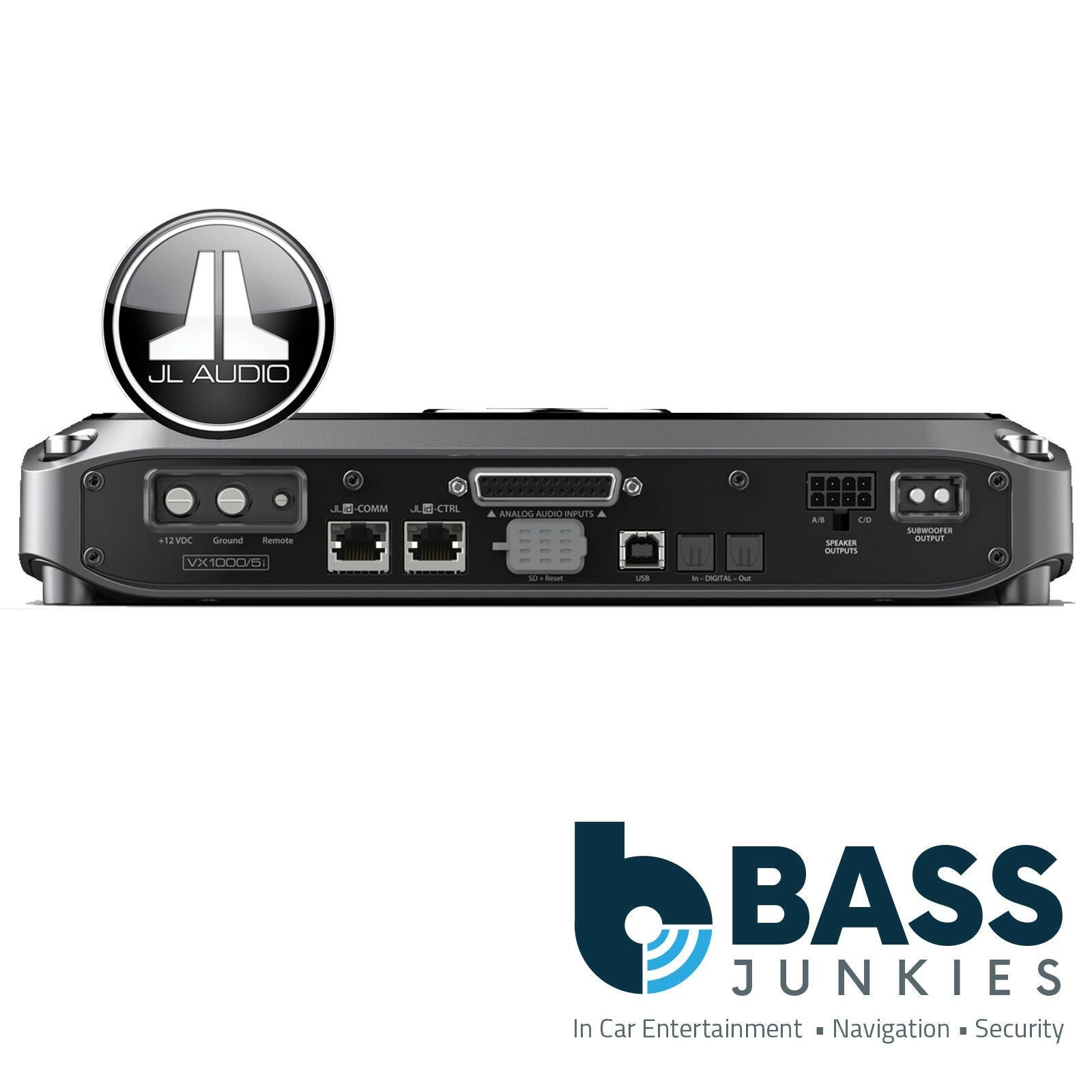

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

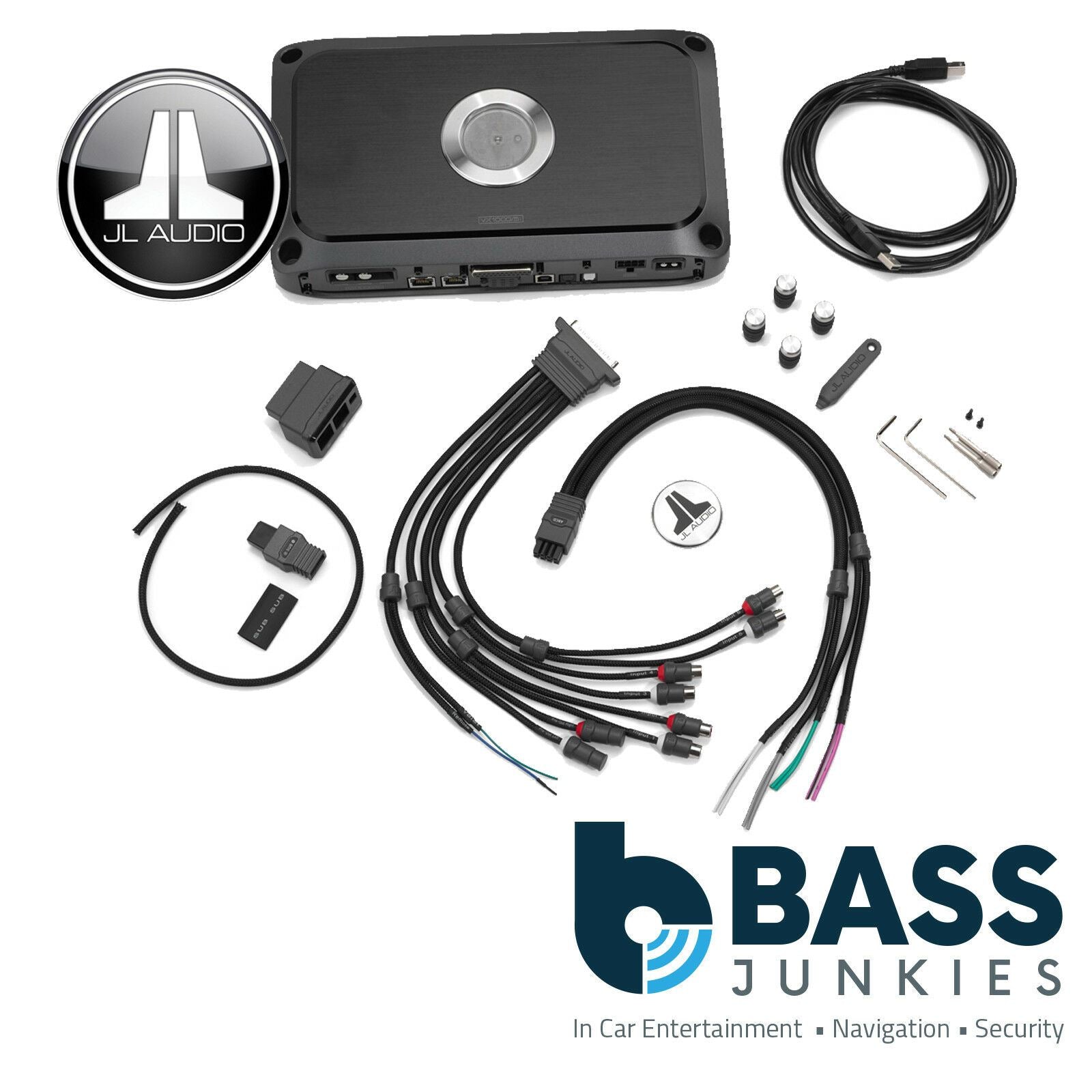

What's Included:
- Power Connector (for 2 AWG wire)
- Analog Input/Pre-Out Harness
- Subwoofer Output Connector
- Speaker Output Harness
- 6 ft A/B USB Cable
Specifications:
Rated Continuous (RMS) Power @ 14.4 V
| Subwoofer Channel @ 4 Ω |
400 W RMS x 1 |
| Subwoofer Channel @ 2 Ω |
600 W RMS x 1 |
| Main Channels @ 4 Ω |
75 W RMS x 4 |
| Subwoofer Channel @ 1.5 Ω |
N/A |
| Main Channels @ 2 Ω |
100 W RMS x 4 |
| Subwoofer Channel @ 3 Ω |
500 W RMS x 1 |
| Main Channels - Bridged @ 4Ω |
200 W RMS x 2 |
Rated Continuous (RMS) Power @ 12.5 V
| Subwoofer Channel @ 1.5 Ω |
N/A |
| Main Channels - Bridged @ 4Ω |
180 W RMS x 2 |
| Main Channels @ 2 Ω |
90 W RMS x 4 |
| Subwoofer Channel @ 3 Ω |
480 W RMS x 1 |
| Subwoofer Channel @ 2 Ω |
600 W RMS x 1 |
| Subwoofer Channel @ 4 Ω |
360 W RMS x 1 |
| Main Channels @ 4 Ω |
60 W RMS x 4 |
General Specifications:
| THD+N @ Rated Power (Main Channels) |
<1% @ 2 Ω per Ch. |
| Frequency Response (Main Channels) |
12 Hz - 24 kHz (+0, -1dB) |
| Damping Factor @ 4 Ω |
>150 / 50 Hz |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) |
100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) |
73 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) |
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) |
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) |
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) |
81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) |
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) |
72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Input Voltage Range @ RCA Inputs |
200 mV - 16 V RMS |
| Frequency Response (Subwoofer Channel) |
12 Hz - 1 kHz (+0, -1dB) |
| THD+N @ Rated Power (Subwoofer Channels) |
<1% @ 2 Ω per Ch. |
| Damping Factor @ 2 Ω |
>50 / 50 Hz |
| Fuse Rating |
80 A (AFS, AGU or MaxiFuse™) |
"
