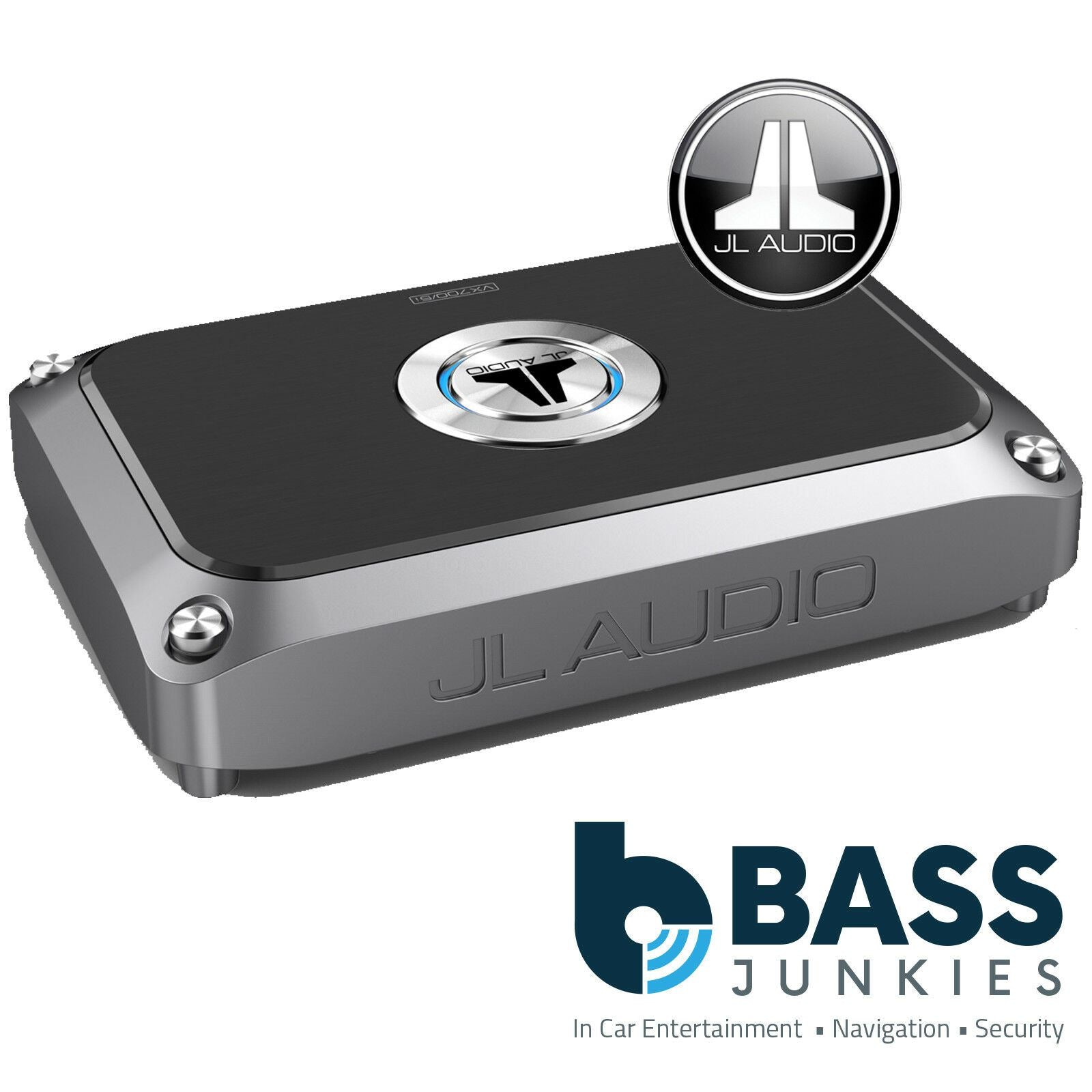

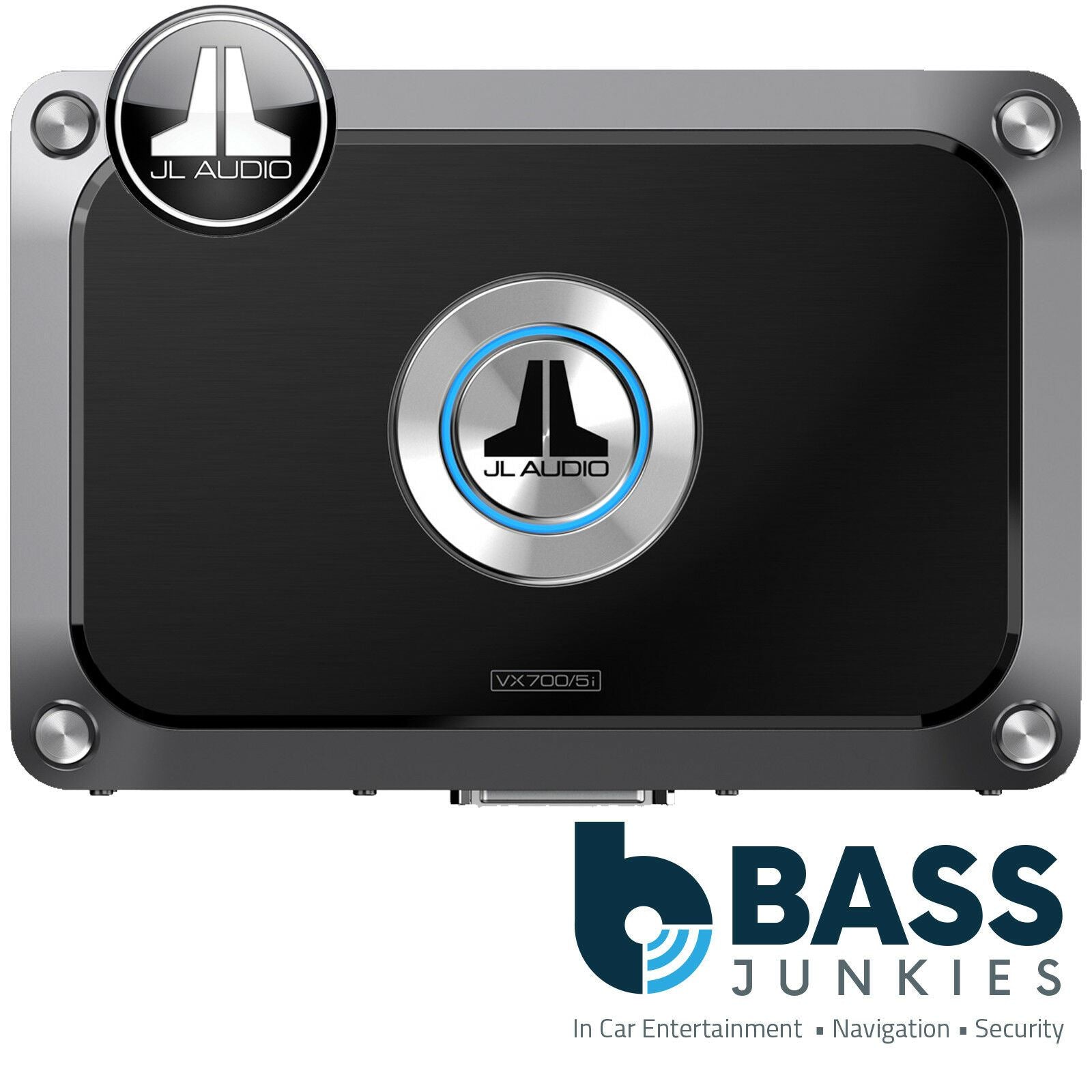

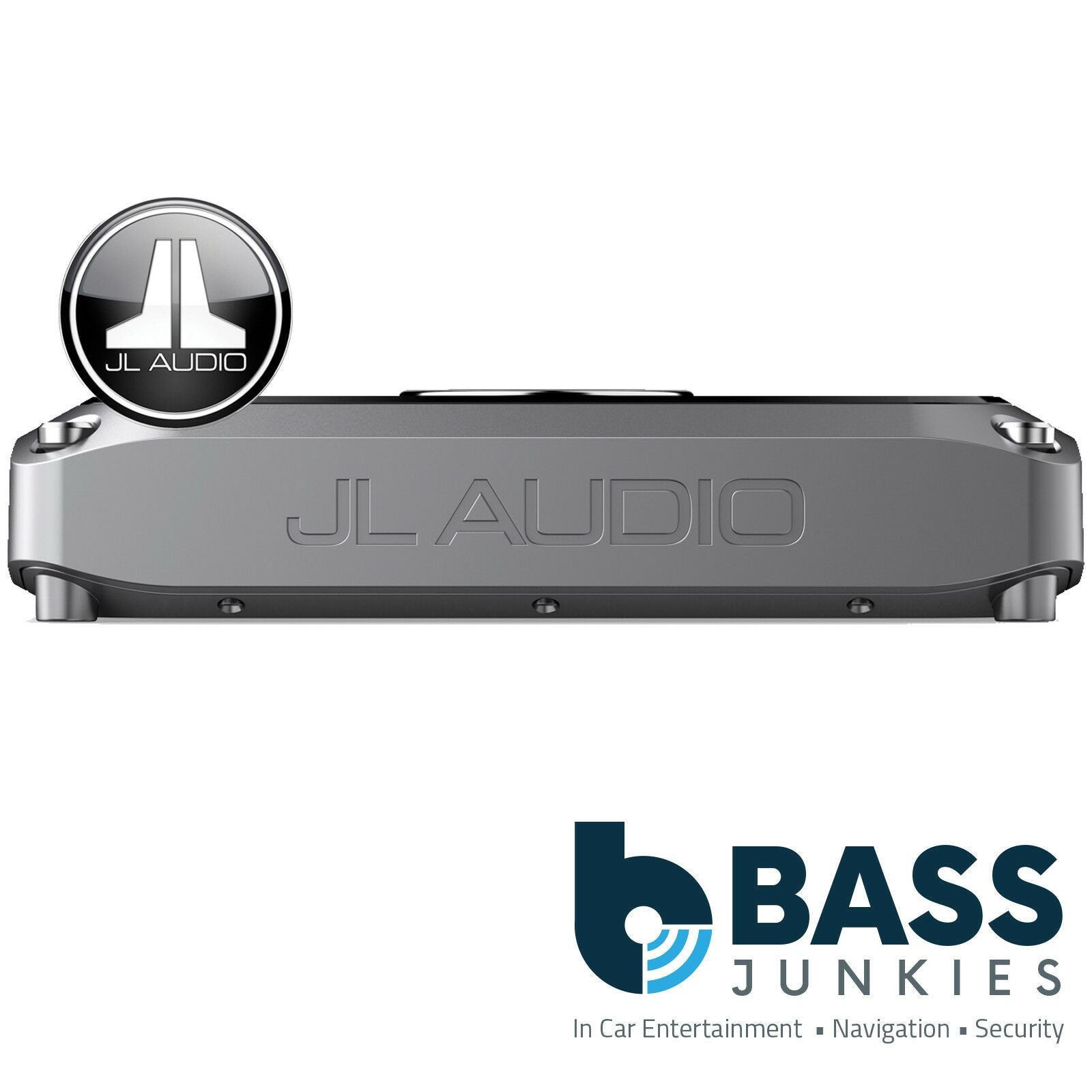

JL Audio VX700/5I 700 Watts 5-Channel Class D Car Amplifier with Integrated DSP
5-Channel Class D System Amplifier with Integrated DSP, 100 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
Employing our second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

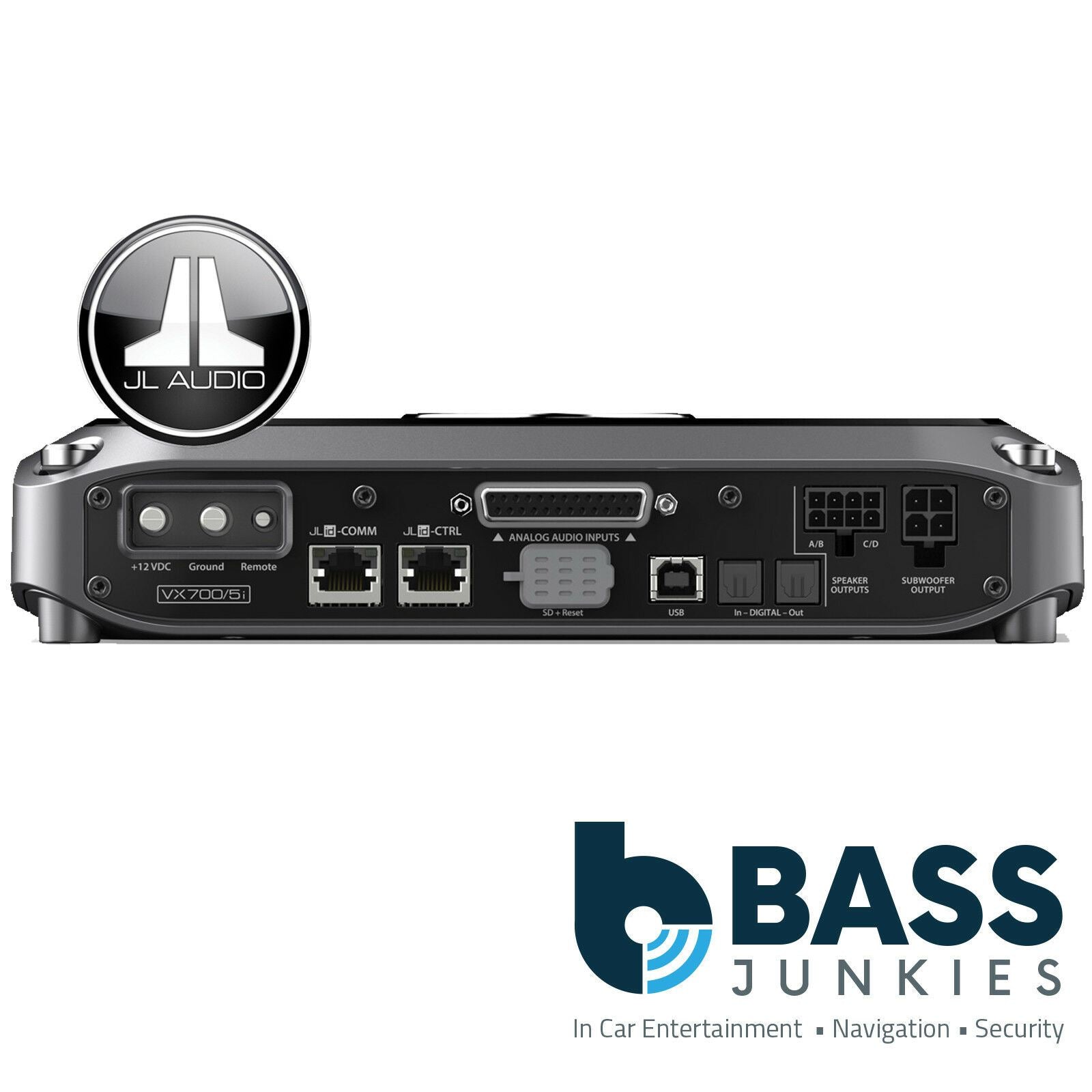

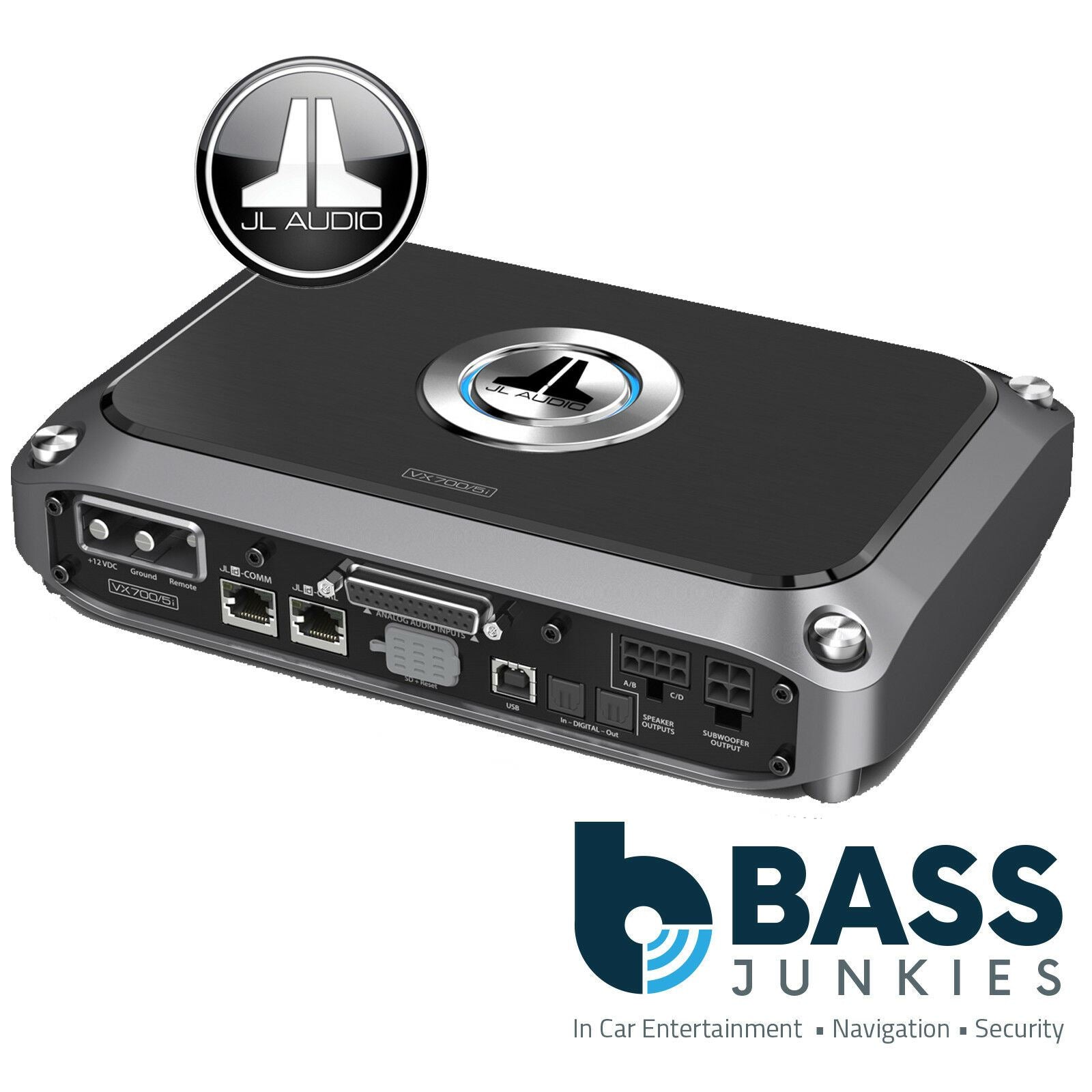

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

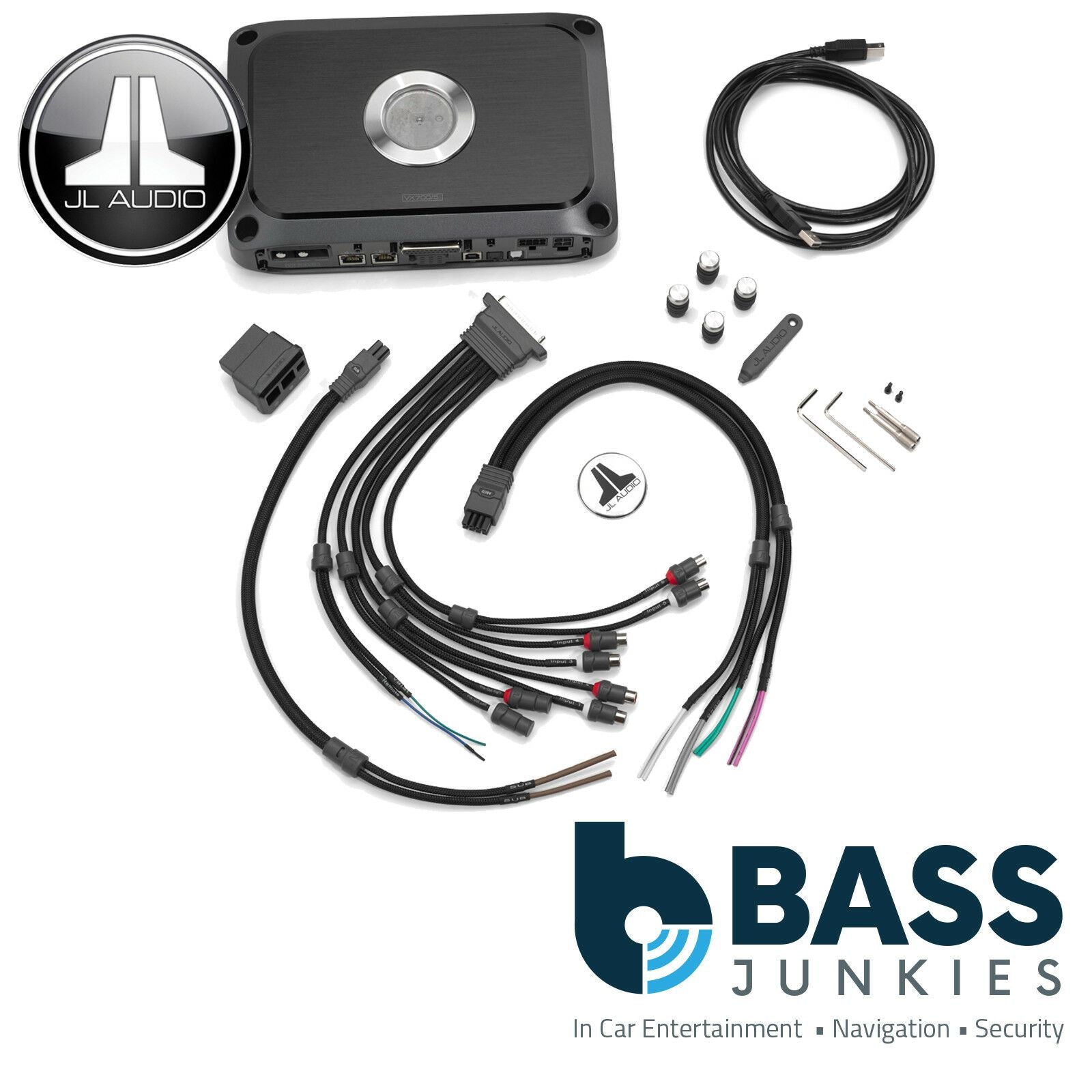

What's Included:
- Power Connector (for 4 AWG wire)

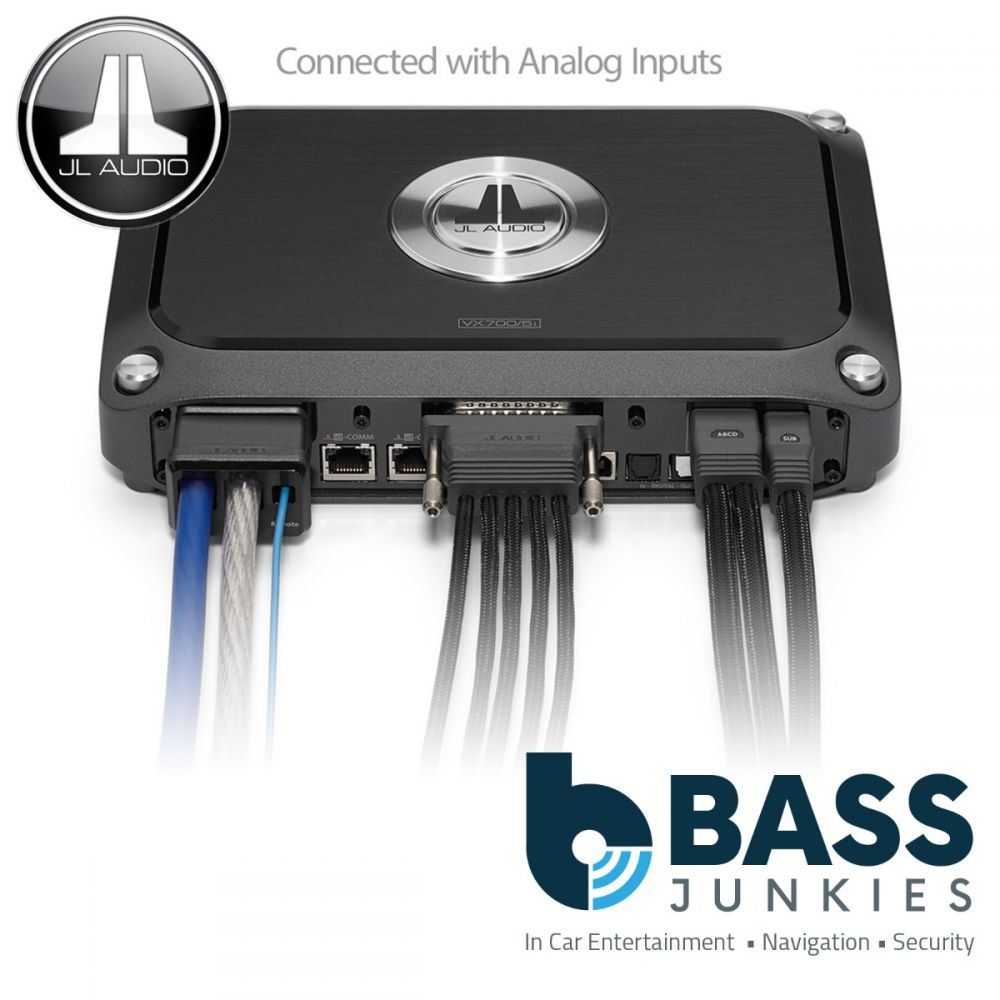

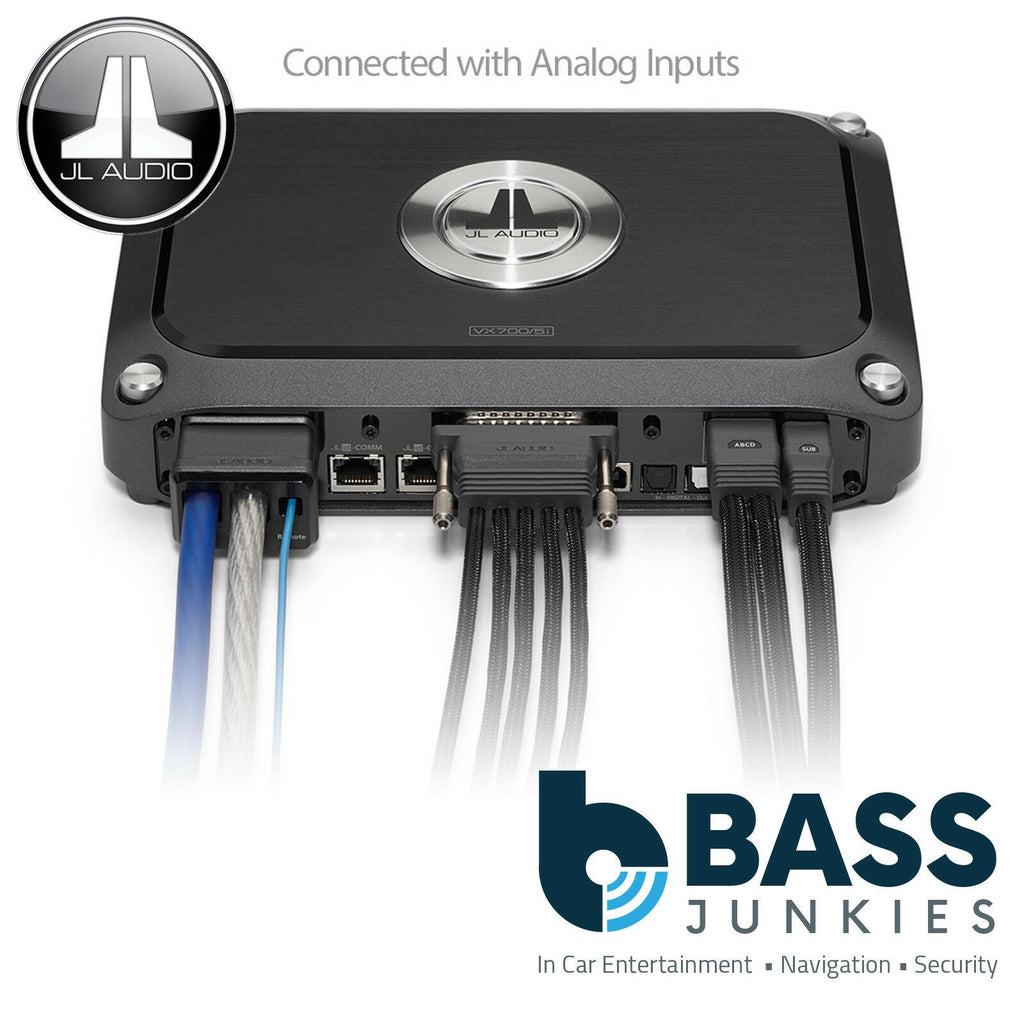

- Analog Input/Pre-Out Harness
- Speaker Output Harness
- Subwoofer Output Harness
- 6 ft A/B USB Cable
Specifications:
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω |
75 W RMS x 4 |
| Subwoofer Channel @ 4 Ω |
180 W RMS x 1 |
| Main Channels @ 2 Ω |
100 W RMS x 4 |
| Subwoofer Channel @ 1.5 Ω |
N/A |
| Subwoofer Channel @ 2 Ω |
300 W RMS x 1 |
| Main Channels - Bridged @ 4Ω |
200 W RMS x 2 |
| Subwoofer Channel @ 3 Ω |
240 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels - Bridged @ 4Ω |
180 W RMS x 2 |
| Subwoofer Channel @ 4 Ω |
180 W RMS x 1 |
| Main Channels @ 2 Ω |
90 W RMS x 4 |
| Subwoofer Channel @ 1.5 Ω |
N/A |
| Main Channels @ 4 Ω |
60 W RMS x 4 |
| Subwoofer Channel @ 2 Ω |
300 W RMS x 1 |
| Subwoofer Channel @ 3 Ω |
240 W RMS x 1 |
General Specifications:
| Input Voltage Range @ RCA Inputs |
200 mV - 16 V RMS |
| S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) |
82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>150 / 50 Hz |
| Fuse Rating |
60 A (AFS, AGU or MaxiFuse™) |
| S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) |
72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) |
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) |
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| THD+N @ Rated Power (Subwoofer Channels) |
<1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Main Channels) |
<1% @ 2 Ω per Ch. |
| Damping Factor @ 2 Ω |
>50 / 50 Hz |
| S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) |
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Frequency Response (Subwoofer Channel) |
12 Hz - 1 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) |
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Frequency Response (Main Channels) |
12 Hz - 24 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) |
101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) |
102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
"
