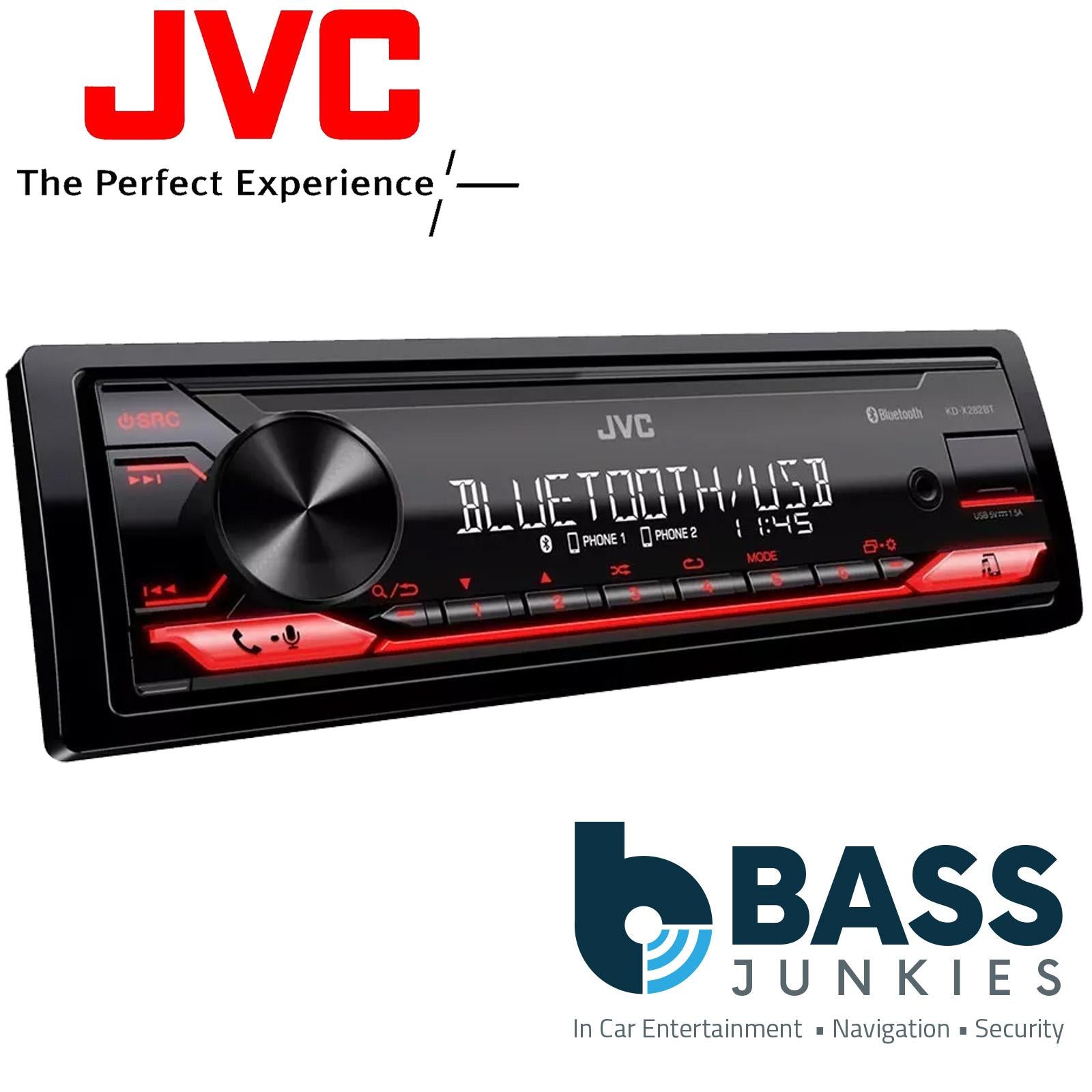

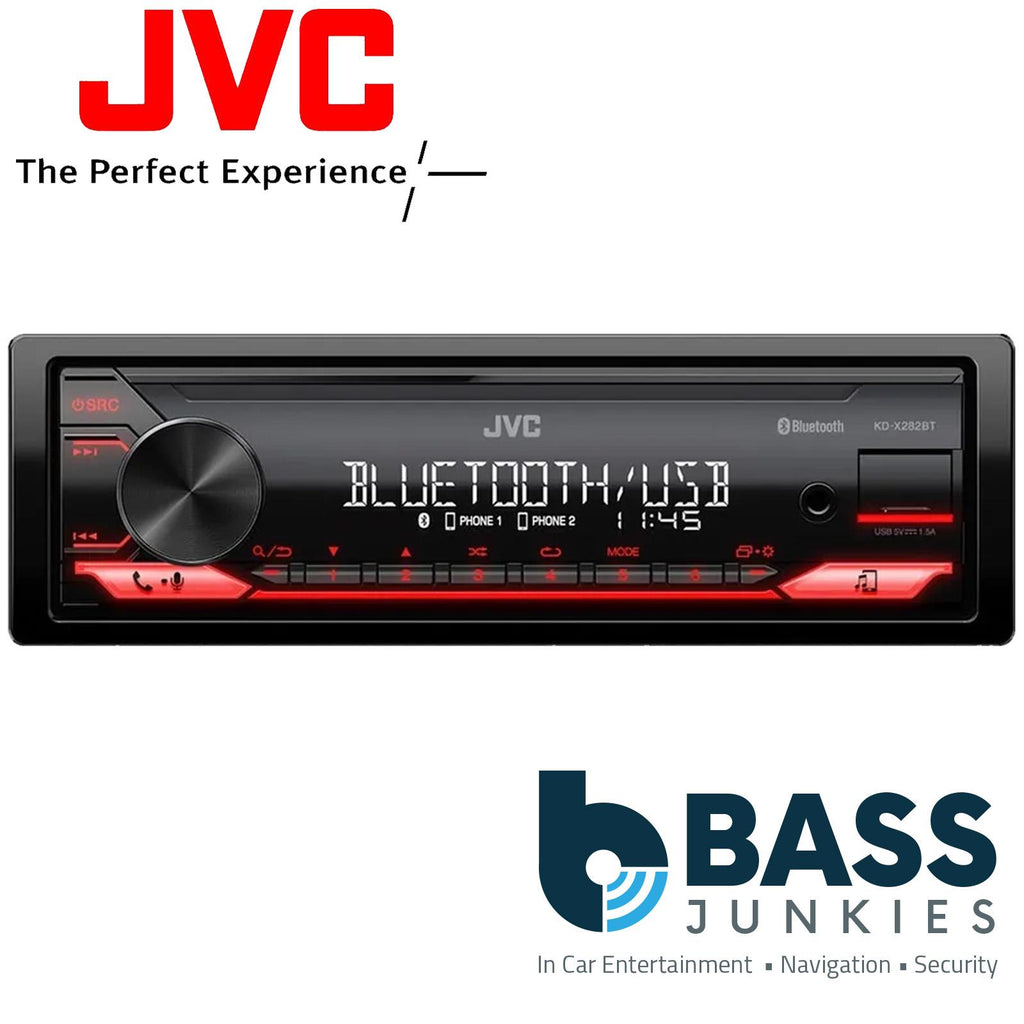

JVC KD-X272BT Mechless Digital Media Receiver with Bluetooth Front USB/AUX Input

JVC KD-X272BT Mechless Digital Media Receiver with Bluetooth Front USB/AUX Input

KD-X282BT Digital Media Receiver featuring Bluetooth® / USB / 13-Band EQ / JVC Remote App Compatibility

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

JVC Streaming DJ

Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ.
Move to the groove and get the party pumping to the max.

2 Phones Full-Time Connection

You can connect two phones full time via Bluetooth, with secure and simple pairing.
Calls to either phone can be received by a push of a key on the receiver.

Bluetooth Hands-Free Profile 1.7

HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

Low Battery Information

When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.

Music Sync. Effect

Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.

K2 Technology for Enhanced Digital Sound Quality

K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range.
For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Space Enhancement

Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively.

Sound Response

This function boosts the low frequencies which can be lost during compression to MP3 or AAC.

Sound Lift

Virtually manipulate the height of the speakers by adjusting the sound frequencies.

Volume Link EQ

Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Remote Control App (Android)

Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.

JVC Remote App

JVC Remote App

For more information, visit www.jvc.net/car/app/jvc_remote/

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Display

• Detachable Face Panel
• Carrying Case
• Display Type VA LCD Display
• LCD Color White
• Key Color Red
• Music Sync. Effect
• Auto Dimmer
• Brightness Control
• Spanish Text Compatible

Radio Tuner

• Preset Stations 18FM + 6AM + 12SW
• Tuner Preset Memory (for power disconnection)
• Radio Data System (RDS)
• FM Frequency Range 87.5 - 108.0MHz
• AM Frequency Range (MW) 531 - 1,602kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• FLAC Compatible with Tag USB

USB

• Position Front
• Drive Change Mode for Mass Storage Class
• 1.5A Max. Power Supply Current

Bluetooth®

• Built-In Bluetooth® (Ver 4.2, Wired-Mic included) *Available functions depend on mobile phone.
• Audio Codec SBC
• 2 Phones Full-Time Connection
• Remote Control Application
• Hands Free Call (HFP) (HFP 1.7.1)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP) (AVRCP 1.6.1)
• Phone Book Access Profile (PBAP)
• 5 BT-Audio Connection [JVC Streaming DJ]
• Voice Dialing * Voice recognition compatible mobile phone required
• Low Battery Information

Android Control

• Android Music Playback (via Bluetooth(R))

Audio

• Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• K2 Technology
• 13-Band Graphic EQ
• Preset EQ (11-Preset)
• Volume Link EQ
• High-Pass Filter/Low-Pass Filter
• Time Alignment
• Space Enhancement
• Sound Response
• Sound Lift
• Loudness Control
• Bass Boost (Hyper Bass System)

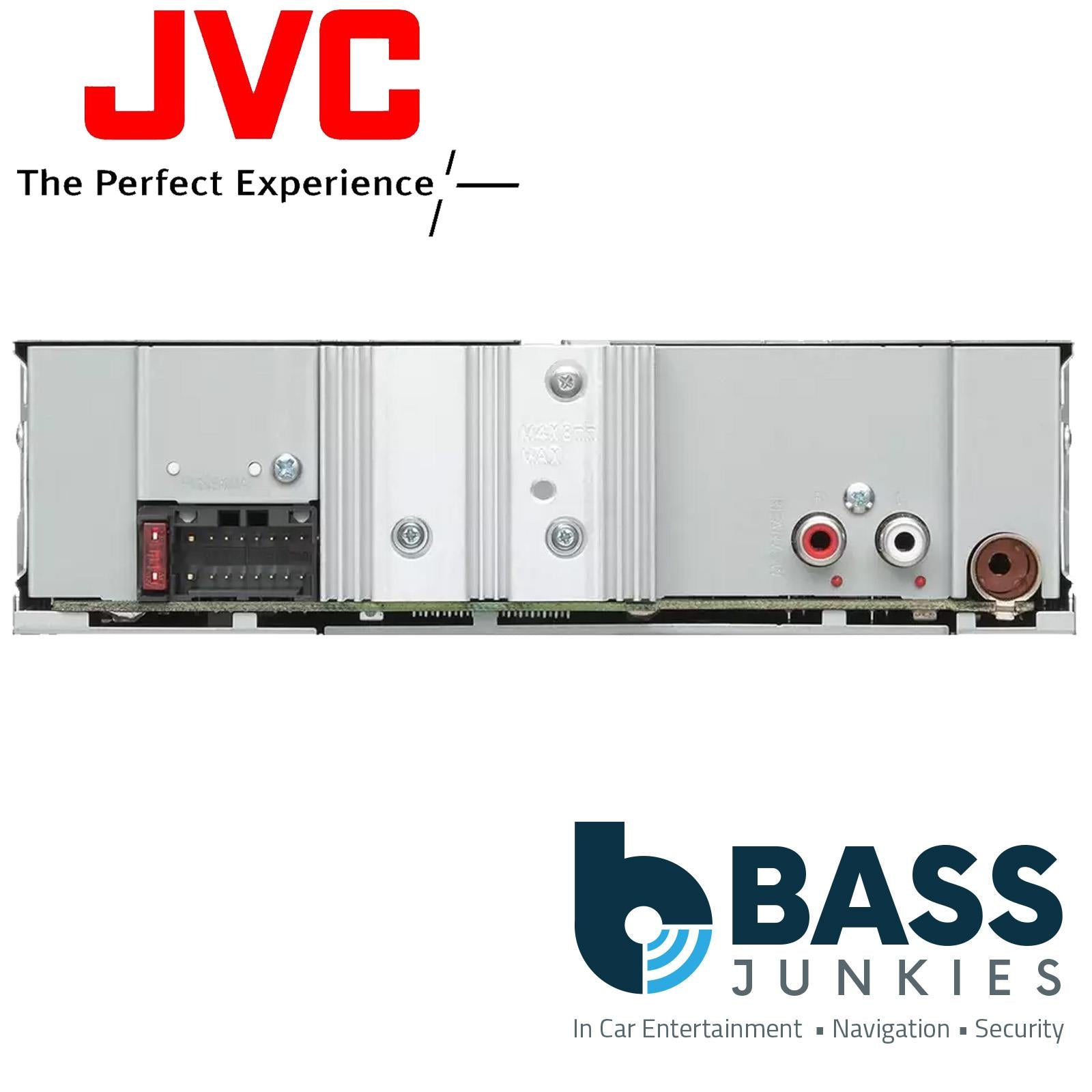

Inputs and Outputs

• Auxiliary (AUX) Input 1 (Front)
• Pre-Out Terminals 1 Pair (Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Subwoofer Output with Level/Frequency Control (Level -50 - +10)
• Subwoofer Output Level 2.5V
• Subwoofer Direct Connection (Mono Lch)

General

• Back Up Memory
• Wireless Remote Control Optional
• Wired Steering Remote Control Ready
• Short Chassis
• Installation Size (W x H x D) 182 x 53 x 100mm
• Weight 0.6kg
• Unit weight in individual package 0.8kg
