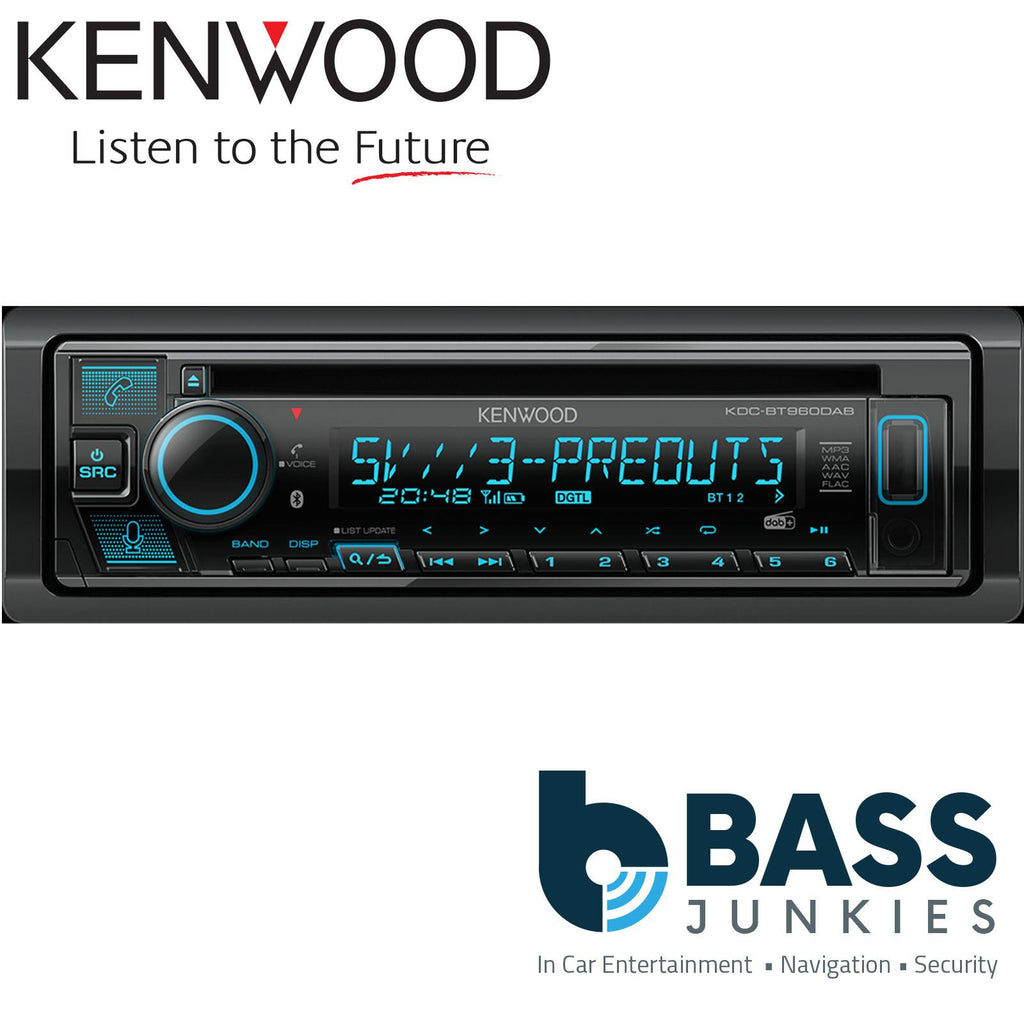

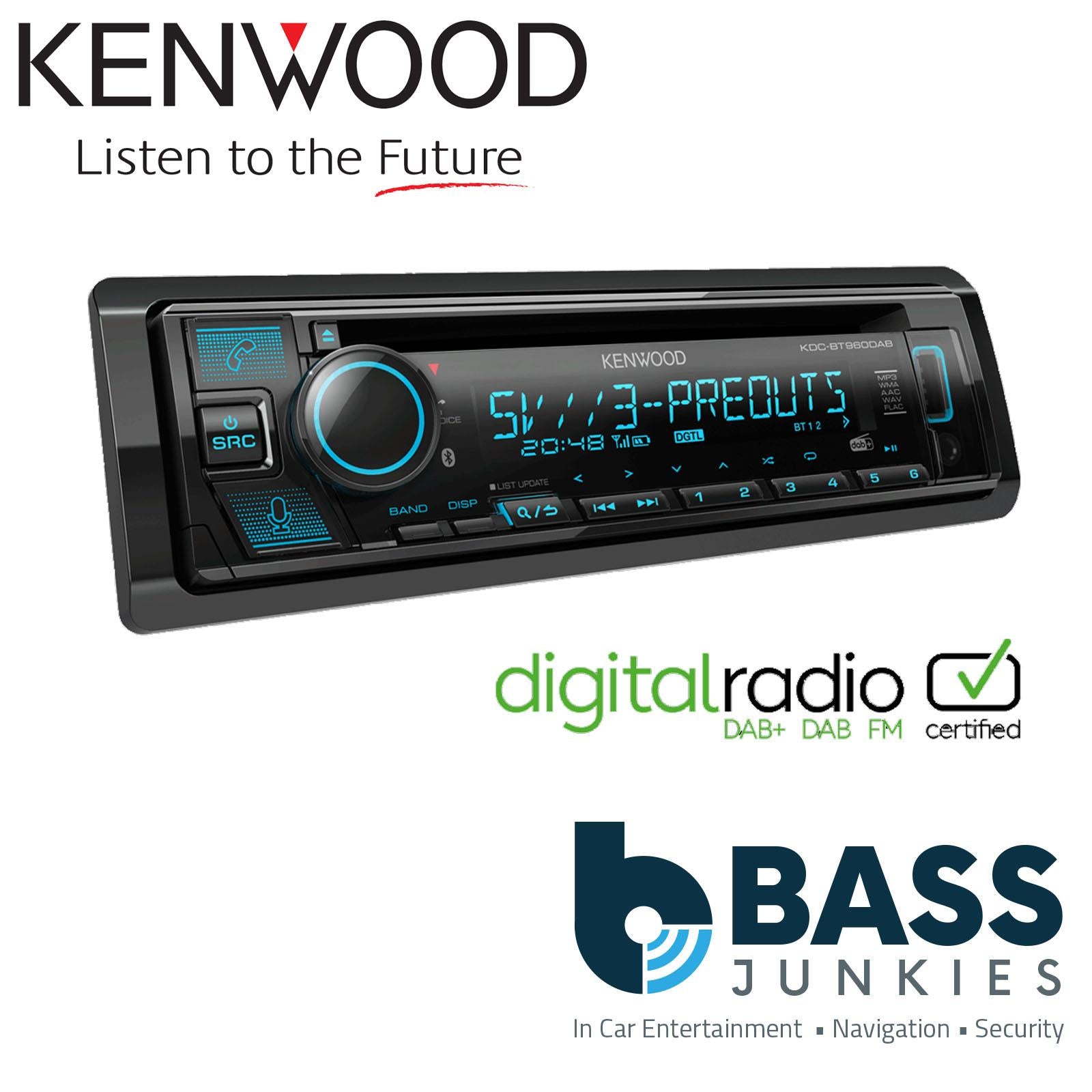

Kenwood KDC-BT960DAB CD/MP3/BT DAB+ Android USB Car Audio 3x Pre Out Stereo

Kenwood KDC-BT960DAB CD/MP3/BT DAB+ Android USB Car Audio 3x Pre Out Stereo

DAB Aerial IS NOT INCLUDED

Main Features

• DAB+ Digital radio, analogue FM radio with RDS functionality and AM radio reception
• Bluetooth technology for hands-free calls and music streaming
• Use your smartphone like a wireless remote control with the KENWOOD Remote app
• Up to 5 simultaneously paired BT audio devices, each can take turns sharing their music choice with the Music Mix function.
• Amazon Alexa cloud-based voice service ready
• MP3 / WMA / AAC / WAV / FLAC music playback
• Ultimate sound image can be set by means of the built-in DSP and its DTA, 13-band EQ, X over
• 3 high power (5.0V) RCA preouts to connect multiple power amplifiers.
• Wide 1.5 line LCD display with high contrast, wide viewing angle & variable-colour backlight.
• Menu language in English (default), Russian, Spanish, French or German.

General characteristics

• DIN size 1 DIN
• Detachable front panel
• Lighting colour control keys Selectable colour
• Rotary and control knob
• Dual direct access keys Hands-free calling & Voice assistant
• Backup memory Channel preferences and menu settings
• Noise attenuation (-20dB) with smooth volume return
• Confirmation tone for each key operation
• Digital clock (24h)
• Time display in standby mode default on
• Auto switch off (after 20/40/60 minutes)
• Built-in connector type 16 pin Mitsumi
• ISO connector Mitsumi to ISO connection cable
• Integrated Bluetooth connectivity
• Single USB Front
• Firmware can be updated

Display Features

• Readout type Liquid Crystal Display (LCD)
• Display structure/layout 1.5-line, 14 segments x 13 + 4 characters
• Vertically aligned LCD
• Screen backlight Adjustable RGB LED backlight
• Dimmer Control Screen Manually or time switch controlled
• Brightness Control 0 - 31 steps
• Demonstration mode
• User interface language selection English (default), Spanish, French, German or Russian

Cosmetic Properties

• Front panel / faceplate Black piano lacquer
• Finishing control keys Black piano lacquer
• Trim/Finish Edge Black piano lacquer
• Volume and control (rotary) knob Chrome rim with transparent illuminated ring.
• Lighting colour KENWOOD triangle Red LED
• Anti-dust cover in the front
• Lighting colour control keys Adjustable RGB LED backlight
• Lighting color Front USB port Adjustable RGB LED backlight
• Brightness control (buttons) 0 - 31 steps
• Dimmer control (buttons) Manually or time switch controlled
• Adjustable RBG LED Backlight
• Adjustable RBG LED backlighting in zones 2 zones
• Brightness control in zones Brightness control in 2 zones
• Chrome Finished Accents Volume knob and faceplate

Tuner Features

• Select radio station Manual / preset channels
• FM receiver
• AM (MW/LW) receiver
• Number of preset stations (FM/AM) 24 preset stations (18FM / 6AM)
• Storing presets in the event of a complete power failure
• Mixed Station Memory (Mix of FM & AM) 6 presets
• Forward/backward search & scan function
• Automatic preset station input (AME)
• FM Stereo/mono reception selection.
• Radio Data System (RDS)
• Radio text plus
• Traffic Information (TI)
• Local Search (LS)
• Alternative Regional Frequencies (AF) Selectable: AF/AF Reg/Off
• Auto search traffic station (TP)
• Enhanced Other Networks function (EON)
• Program type function (PTY)

DAB Tuner Features

• Digital radio DAB+ receiver
• Digital Radio quality mark
• Intelligent search
• Search radio station ensemble
• Tuning Mode / Search Mode Auto1/Auto2/Manual
• Station/service preset memory 3 memory banks with 6 channels each.
• Automatic Station/Service Memory Entry (AME)
• Service list in alphabetical order
• Preset channel list
• Related channels/service
• Audio interrupt/pause by PTY
• Audio interruption/pause on an announcement
• DAB-RDS Integrated Traffic Information (TI)
• Traffic Information (TI)
• DAB-AF (Alternative Frequencies)
• Switch on notifications (ASW)
• DMB Audio (Digital multimedia broadcasting)
• Soft link
• Antenna power on/off switch
• DAB antenna included

Playable audio files

• AAC format (m4a) + tag USB
• AAC format (aac) + tag CD/USB
• MP3 format + ID3 tag CD/USB
• WMA format + tag CD/USB
• WAV format + tag USB
• FLAC format + tag USB

CD Features

• Suitable for CD-R/RW
• MP3, WMA & AAC playback capability
• CD text with special characters support. English/Spanish/French/Russian/Greek
• Digital/analogue converter type 24bit
• 0 bit suppressor
• Random play function (track/CD) Track / CD
• Repeat function (track/CD) Track / CD.

USB Features

• USB port USB connection front right with dust cover
• USB Type 2.0 High speed
• MP3, WMA, AAC, WAV, FLAC playback
• Repeat / Scan / Random Search
• Repeat / Shuffle Play
• Direct search
• Resume Play
• Show time code
• 1.5A max charging current for smartphone (QC 1.2)

iPod Features

• Suitable for iPod & iPhone
• iPhone/iPod Direct music control via USB With optional cable KCA-iP103.
• Playing music files
• Alphabet search
• Quick search
• Related search
• Direct search
• iPod EQ mode
• Control iPod/iPhone manually
• App & iPod control mode
• Supports Spotify app
• iAP over Bluetooth
• Prepared for iTunes Radio App iAP1
• Reverse search
• Charging battery

Audio Features

• Maximum output power 50W x 4
• MOSFET power IC
• Type Auxiliary Input Mini jacket in the front
• Line Out(s) 3 RCA
• Line output signal level 5V
• Choice of rear or subwoofer line output
• Adjust subwoofer signal level
• 2-Way X over Network
• 3-Way X over (bi-amp connection)
• Tone Control / Easy EQ 13 band with 8 predefined frequency band settings
• Balance/Fader/Loudness settings
• Bass Boost circuit Off / +1 / +2 / +3 / +4 / +5
• Noise attenuation (-20dB) with smooth volume return
• Simple 3-band EQ mode
• Graphic Equalizer + Predefined Settings 13-band graphic equalizer with 8 predefined settings
• Built-in Digital Sound Processor (DSP)
• Digital Time Alignment (DTA)
• Low and High Pass Filter
• Manage speaker type and size Front/Rear/Subwoofer Separately
• Kenwood Sound Reconstruction Effect
• Sound Reconstruction effect
• Space Enhancer effect
• Realizer effect
• Stage EQ effect
• Drive EQ effect

Bluetooth Features

• Max. number of HFP & A2DP phones to be paired 5 phones
• Hands-free profile with high sound quality HFP V1.7.1
• Maximum number of phones to register 5 phones
• Active connection with 2 mobile phones at the same time
• Advanced audio distribution profile (A2DP)
• Audio Streaming with High Sound Quality SBC/AAC
• Max. number of paired devices at A2DP 5 devices
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Automatically register iPhone & Android via USB
• Supports KENWOOD Remote App
• Supports KENWOOD Music Mix
• Prepared for Amazon Alexa application
• Place a call on hold
• Disable hands-free calling (Private mode)
• Alphabet search (phone book)
• noise reduction
• Echo suppression
• Phone status display
• Display status audio devices
• Visual indicator signal strength
• Visual battery status indicator
• Display Bluetooth pairing status
• High Quality Noise Cancelling Microphone Connection on the back
• Bluetooth firmware can be updated

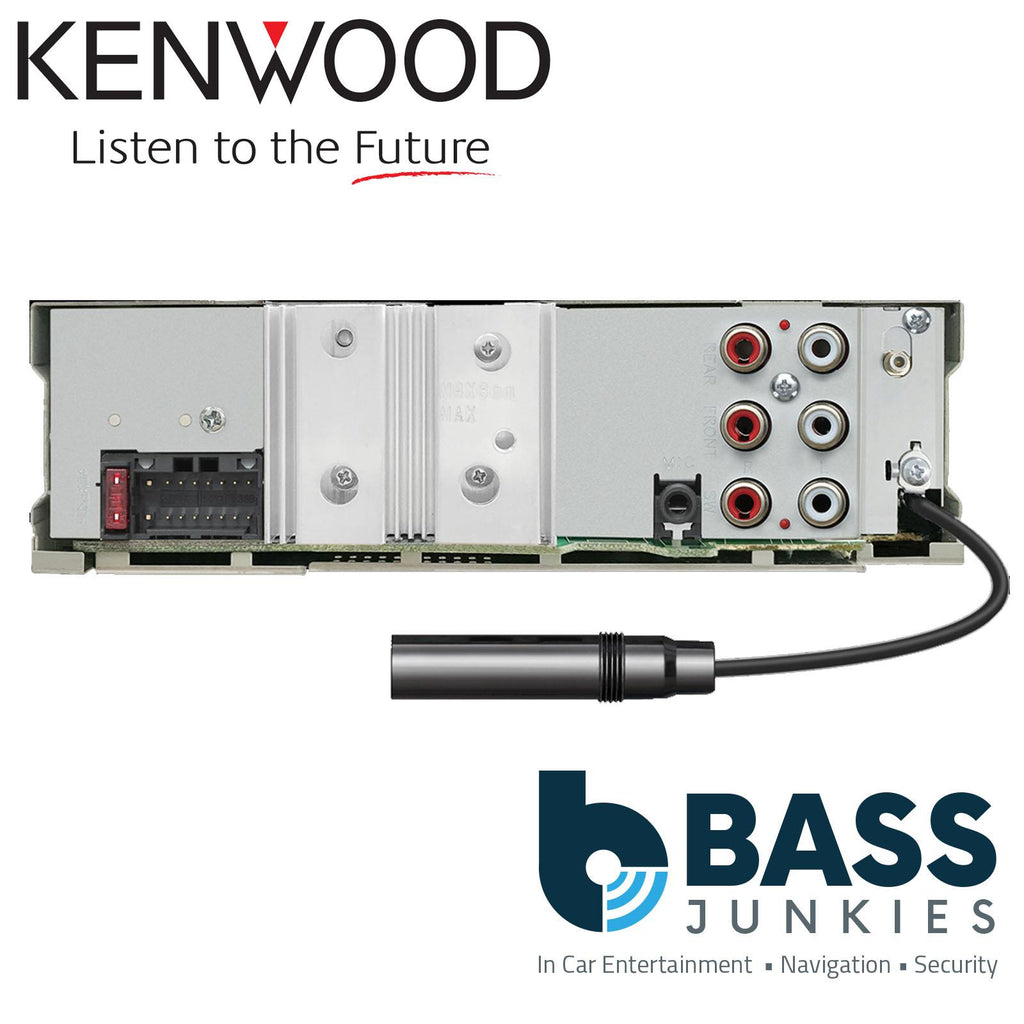

Connections

• USB and AUX input in the front panel
• Connection to keep the original steering wheel controls
• Connection cable (power supply + speakers) Mitsumi to ISO
• Control wire for automatic antenna or (optional) power amplifier
• Line Out 3 x RCA: Front/Rear/Subwoofer
• FM antenna connection JASO connector
• DAB antenna connection SMB connector
• External microphone connection 3.5mm mini jack (back)

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz steps)
• FM usable sensitivity 0.56yV/75ohm (S/N 30dB)
• FM Quieting Sensitivity 1.58yV/75ohms (S/R 46dB)
• FM frequency range 30Hz ~ 15kHz (+-3dB)
• FM signal-to-noise ratio (Mono) 68dB
• FM stereo channel separation (1kHz) 40dB
• MW range: 531kHz - 1611kHz (9kHz steps)
• MW usable sensitivity 28.5yV
• LW range: 153kHz - 279kHz (9kHz steps)
• LW usable sensitivity 45yV

DAB Tuner Specifications

• Band III Frequency Range 174.928MHz - 239.2MHz
• Sensitivity - 100dBm
• Signal to noise ratio 90dB
• DAB antenna connector type SMB
• Output Voltage 14.4V (10.5V to 16V allowed)
• Maximum consumption < 100mA

CODEC specifications

• MP3 codec MPEG 1/2 Audio Layer 3 Files
• WMA codec in accordance with Windows Media Audio
• AAC codec AAC-LC .aac(USB) and .m4a(USB) audio files.
• WAV codec RIFF waveform Audio Format (only for LinearPCM)
• FLAC codec FLAC audio files (up to 96kHz/24bit)

CD Specifications

• Laser diode GaAIAs
• Digital Filter(D/A) 8 x Oversampling
• Digital/Analog Converter 24 Bit
• Wow & Flutter Below measurable values
• Frequency range 20Hz ~ 20kHz (±1dB)
• Total Harmonic Distortion 0.01% (1kHz)
• Signal-to-noise ratio 97dB (1kHz)
• Dynamic Range 92dB
• Channel Separation 90dB
• MP3 decoder Complies with MPEG-1/2 Audio Layer-3
• WMA decoder Compliant with Windows Media Audio
• AAC decoder AAC-LC.aac audio files.

USB Specifications

• USB compatibility USB 1.1 / 2.0 full speed
• File system FAT 32 / 16 / 12
• Maximum output current 1500mA
• Digital/Analog Converter 24bit
• MP3 decoder Complies with MPEG-1/2 Audio Layer-3
• WMA decoder Compliant with Windows Media Audio
• AAC decoder .m4a File encoded by AAC-LC format
• WAV decoder Linear - PCM Files
• FLAC decoder FLAC files up to 96kHz/24bit

Audio Specifications

• Maximum output power 50W x 4
• Power output (DIN45324,+B=14.4v) 22W x 4
• Line Out Level 5000mV / 10kOhm,
• Line output impedance 600Ohm
• Impedance 4Ohm ~ 8Ohm
• AUX frequency range 20Hz ~ 20kHz (±1dB)
• AUX maximum input voltage 1000mV
• AUX Input Impedance 30kOhm

DSP Specifications

• Frequency Band - Front 62.5Hz ~ 16kHz
• Input Sensitivity - 9db ~ +9db
• Q Control 0.25/ 0.50/ 1.00/ 2.00
• High-pass filter frequency range By/50~220(Hz)
• High-pass filter slope factor-12/-18/-24dB/Oct
• Low-pass filter frequency range 50 ~ 120(Hz)/through
• Low-pass filter slope factor-12/-18/-24dB/Oct
• Time delay 0 - 610cm (2cm steps)
• Vehicle type > OFF > COMPACT > Full SIZE CAR > WAGON > MINIVAN > SUV > MINIVAN LONG
• Equalizer type graphic
• Number of equalizer frequency bands 13 bands

Bluetooth Specifications

• Technology Bluetooth V4.2
• Frequency band 2.402 - 2.48GHz
• Transmission power +4dBm (max),0dBm (AVE) power class 2
• Maximum range About 10 meters (may vary depending on the environment)
• Hands-free profile (HFP)
• Serial Port Profile (SPP)
• Advanced audio distribution profile (A2DP)
• Bluetooth audio codec SBC/AAC
• Audio/Video Remote Control Profile (AVRCP)
• Phone Book Access Profile (PBAP)

Included

• Unlocking keys 2 pieces
• Finishing edge
• Installation slide
• Connection cable (Mitsumi to ISO) 15 cm
• DAB antenna with 3 m connection cable
• Bluetooth hands-free microphone with 3 m connection cable

General Specifications

• Operating voltage 14.4V (10.5~16V allowed)
• Maximum power consumption 10A
• Power consumption in sleep mode Lower than 1mA
• Dimensions (W x H x D) 182 x 53 x 155.5mm
• Weight 1200 grams
• Operating temperature range - 10-C ~ 60-C
• Instructions Multilingual Quick Guide
