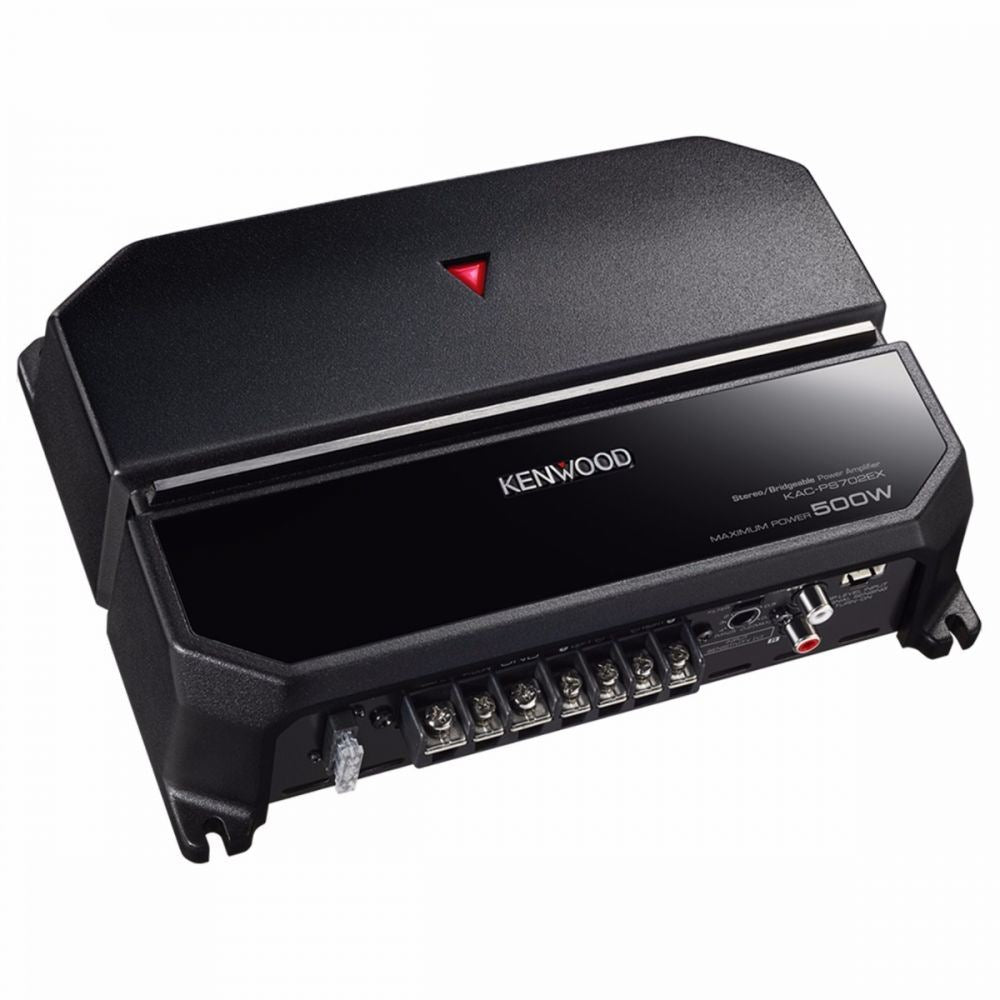

Kenwood KAC-PS702EX - 500 Watts 2 Channel Bridgeable Car Stereo Amplifier Amp
Performance Standard series amplifiers are designed to be our best sounding amplifiers. They provide outstanding sound, holding the musical reproduction to the highest standard whether delivering impactful bass or the most detailed notes.
Key Features
- Performance Standard Serie
- Stereo or mono setup
- 500W Maximum output power
- Built-in Low-pass filter
- Signal Sensing Turn-on
- Speaker level input
- Power MOS-FET switching power supply
- Die cast aluminium heat sink
Amplifier Features
- Load Capability 2? Stable
- Maximum power output 500W
- Rated power output (4?) 70W x 2 (4?)
- Rated power output 60W x 4 (4?)
- Bridged power output (4?) 170W x 1
- CEA-2006 Compliant
- Low-pass Filter
- Switched Mode Power supply MOS-FET
- Signal Sensing Turn-on
- Line in 2 RCA's
- Speaker level Input
- Single Side Terminals
- Die-Cast Aluminium Heat Sink
Amplifier Specifications
- Rated power output (4?, 14,4V) 70W x 2 (20Hz ~ 20000Hz, 1%THD)
- Rated power output (2?, 14,4V) 85W x 2 (1000Hz, 1%THD)
- Rated power output (CEA-2006) 70Watts RMS x 2 at 4 ohms and 1% THD
- Low-pass Filter 80Hz (-18dB/oct)
- RCA Input Sensitivity 0.2 ~ 5V
- Speaker Level Input Sensitivity 4 ~ 12V
- Input Impedance 10k?
- Signal to Noise Ratio 100dB
- Signal to noise ratio (CEA-2006) 80dBa (Reference: 1 Watt into 4 Ohms)
- Frequency response (+0dB, -3dB) 20Hz ~ 50Hz
- Operating voltage 14.4V (11V ? 16V allowable)
- Maximum current consumption 15A
-
Dimensions (WxHxD) 230 x 56 x 167(mm),
- Weight 1.4kg
