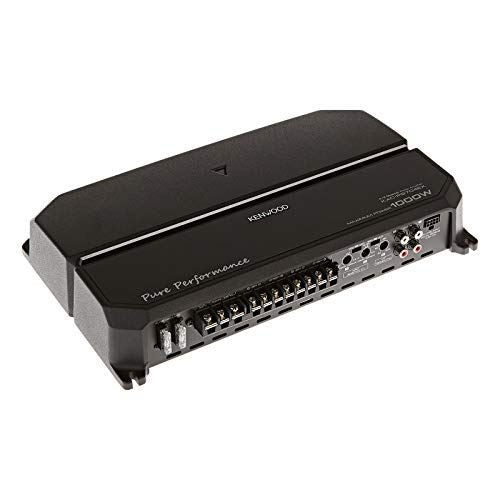

Kenwood KAC-PS704EX - 1000 Watts 4/3/2 Channel Bridgeable Car Stereo 4 channel Amplifier Amp
Performance Standard series amplifiers are designed to be our best sounding amplifiers. They provide outstanding sound, holding the musical reproduction to the highest standard whether delivering impactful bass or the most detailed notes.
Key Features
- Performance Standard Series
- 4 channel, 3 channel or 2 channel setup
- 1000W Maximum output power
- Built-in Variable Low-pass filter
- Built-in High-pass filter (80Hz: ON/OFF)
- Signal Sensing Turn-on
- Speaker level input
- Power MOS-FET switching power supply
- Die cast aluminium heat sink
- Cooling fan
Amplifier Features
- Load Capability 2Ω Stable
- Maximum power output 1000 Watts
- Rated power output 70W x 4 (4Ω)
- Rated power output 100W x 4 (4Ω)
- Bridged power output 200W x 2 (4Ω)
- CEA-2006 Compliant
- Low-pass Filter Yes
- High-pass Filter
- Switched Mode Power supply MOS-FET
- Cooling Fan
- Signal Sensing Turn-on
- Line in 4 RCA / Speaker level
- Speaker level Input
- Single Side Terminals
- Die-Cast Aluminium Heat Sink
Amplifier Specifications
- Rated power output (4Ω, 14,4V)
- 70W x 4 (20Hz ~ 20000Hz, 1%THD)
- Rated power output (2Ω, 14,4V)
- 100W x 4 (1000Hz, 1%THD)
- Rated power output (CEA-2006)
- 70Watts RMS x 4 at 4 ohms and 1% THD
- Low-pass Filter 50~200Hz (24dB/oct)(B-Channel)
- High-pass Fliter 80Hz (-12dB/oct)A-channel only
- RCA Input Sensitivity 0.2 ~ 5V
- Speaker Level Input Sensitivity 4 ~ 12V
- Input Impedance 10kΩ
- Signal to Noise Ratio 100dB
- Signal to noise ratio 80dBa (Reference: 1 Watt into 4 Ohms)
- Frequency response (+0dB, -3dB) 20Hz ~ 50Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 32A
- Dimensions (WxHxD) 335 x 56 x 204(mm),
- Weight 2.6kg
