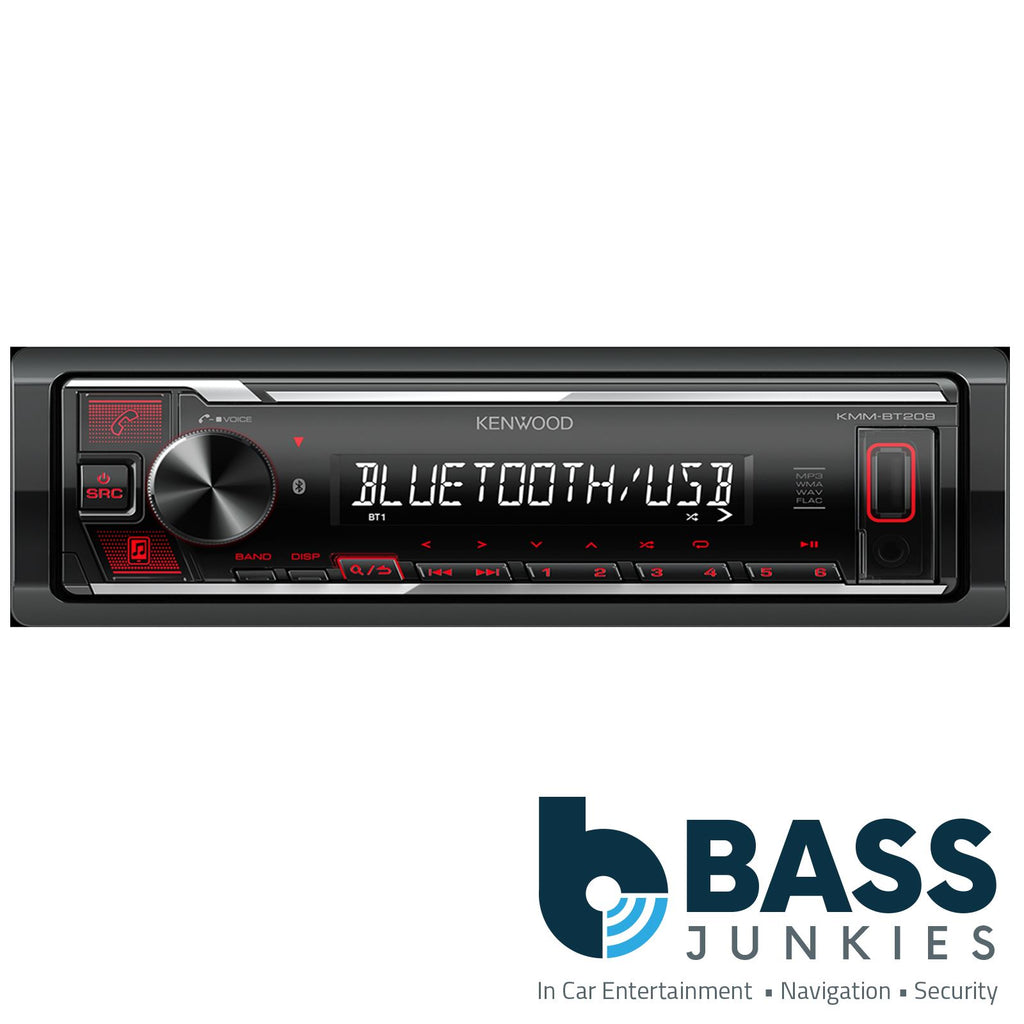

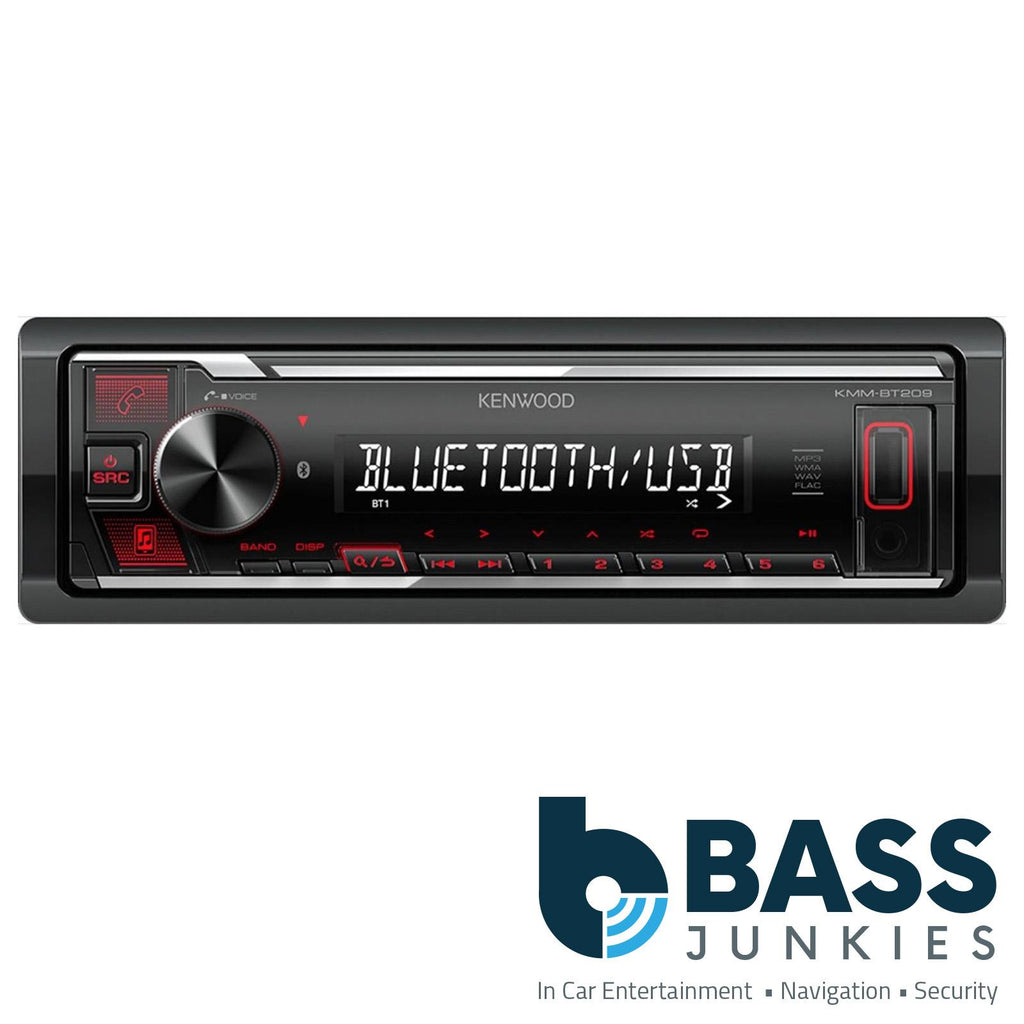

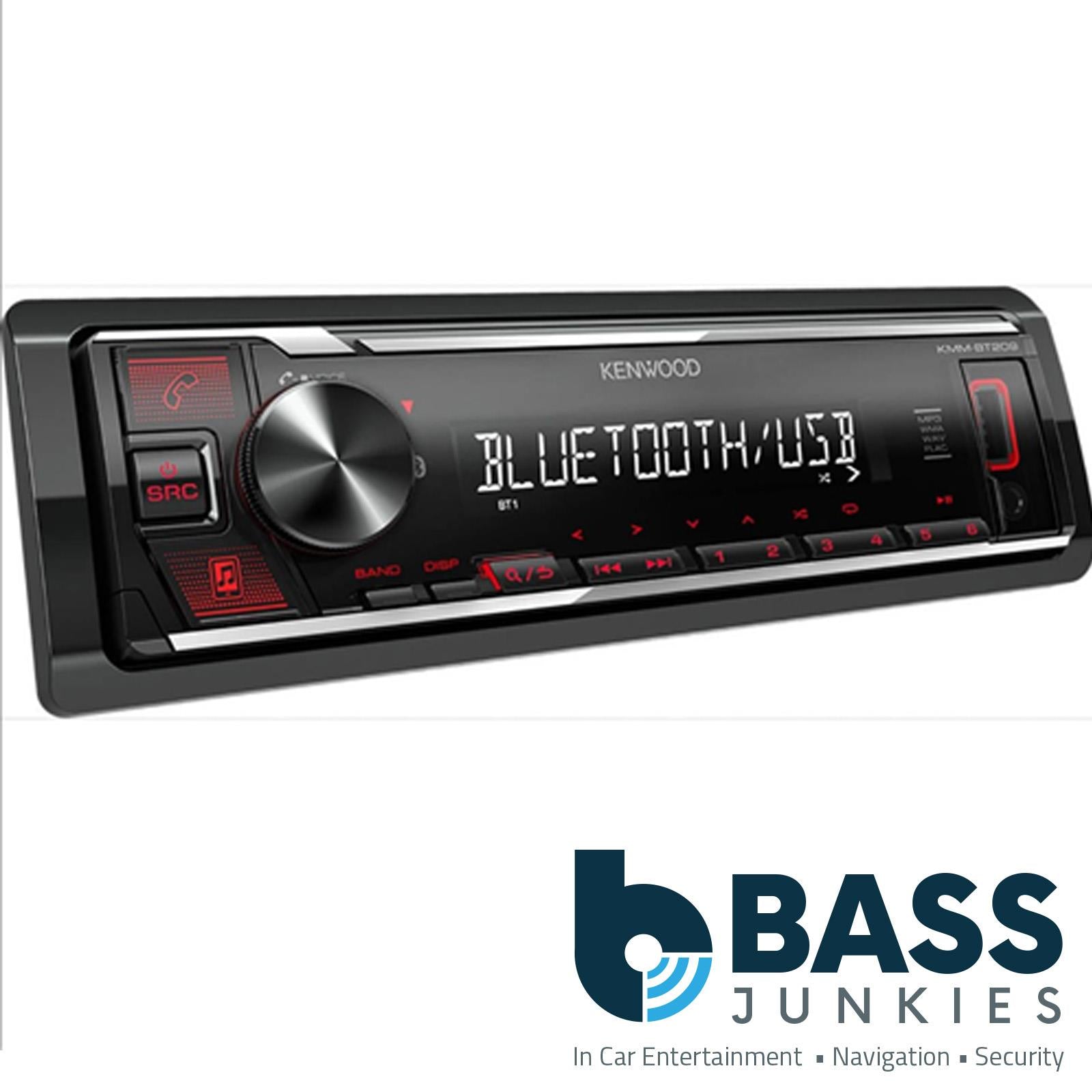

KMM-BT209
Enjoy convenient control. Built-in Bluetooth technology for hands-free calls and music streaming and the ability to use your smartphone like a wireless remote control. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.
Key Features
- Bluetooth technology for hands-free calls and music streaming.
- Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
- Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix
- Use your smartphone like a wireless remote control with the KENWOOD Remote app.
- MP3 / WMA / AAC / WAV / FLAC music file playback.
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- Rear or subwoofer (Switchable) RCA preout to connect a power amplifier.
- Wide 1 line LCD display with high contrast, wide viewing angle & white LED backlight.
- Menu language in English(default), Russian, Spanish or French.
- Short body (100mm) for easy installation
General Features
- DIN Size 1 DIN
- Detachable Faceplate
- Key Illumination Red LED
- Rotary Encoder & Control Knob
- Dual Accent Key Handsfree & Audio Streaming
- Back-up Memory Tuner presets & menu settings
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Digital Clock (24H)
- Clock display when power-off default off
- All-off Select (20/40/60 minutes)
- Built-in Connector Mitsumi, 16 pin
- ISO connector Mitsumi to ISO cable
- Bluetooth unit built-in
- USB interface x 1 (Front)
- Firmware upgreadable
- Mechless receiver
- Short body
Display Features
- Display Type Liquid Crystal Display (LCD)
- Display Layout 1 line 13 Segments x 13 Digit
- Vertical Aligment Liquid Crystal Display
- Display Illumination White (LED)
- Dimmer Control Manual / Set by Timer
- Brightness control 0 - 31 steps
- Demo Mode
- Menu text in selectable language English(default) / Spanish / French / German / Russian
Cosmetics Features
- Dress plate Black Injection
- Preset key finish Black Injection
- Escutcheon finish Piano Black
- Volume & operation knob or wheel Transparant Lighting
- Triangle Illumination Red LED
- Front terminals dust cover
- Key illumination Red LED
- Illuminated front USB port Red LED
- Brightness Control (Key) 0 - 31 step
- Dimmer Control (Key) Manual / Set by Timer
- Chrome-finished accents Volume knod & faceplate
Tuner Features
- Station Select Manual / Preset
- FM Reception
- AM (MW/LW) Reception
- Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
- Preset memory w/o back-up power
- Mixed preset memory (FM & AM) 6 presets
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selector
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- AF Regional Selectable: AF/AF Reg/OFF
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
Playable Audio File
- AAC (*.m4a) files are playable USB
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
USB Features
- USB terminal Front with dust cover
- USB Type 2.0 High speed
- MP3, WMA, AAC, WAV, FLAC playback
- Repeat/Scan/Random search
- Repeat / Random Play
- Direct search
- Resume play
- Time code display
- 1,5A Smartphone Quick Charge
iPod Features
- Made for iPod & iPhone
- USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
- Music playback Yes
- Alphabet search Yes
- Skip search Yes
- Related search Yes
- Direct Search Yes
- iPod EQ Mode Yes
- Control by hand Yes
- App & iPod control mode Yes
- Spotify App Link Yes
- iAP over Bluetooth Yes
- iTunes Radio App yes iAP2
- Reverse browsing Yes
- Battery charge + power control Yes
- * Always update to latest Apple firmware
Audio Features
- Maximum Output Power 50W x 4
- MOSFET Power IC
- Auxiliary Type Mini-jack, front panel
- Pre-out 1 RCA
- Pre-out Output Level 2.5V
- Preout Rear / Subwoofer Switchable
- Subwoofer Reference Level Adj
- 2-Way X'over network
- 3-Way x'over (bi-amp connection)
- Tone Control / Easy EQ 13 band, 8 presets
- Balance/Fader/Loudness Control
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Att.(-20dB) with smooth Volume Return
- Easy 3-band EQ mode
- Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital Sound Processor (DSP) Built-in
- Digital Time Aligment (DTA)
- Low- & High-pass Filter
- Speaker Size Control Front/rear/subwoofer independently
- Kenwood Sound Reconstruction
- Sound Reconstruction
- Space Enhancer
- Realizer
- Stage EQ
- Drive EQ
Bluetooth General Features
- Max num. of regist. phones for HFP & A2DP 5 phones
- Hands Free Profile with High Sound Quality HFP V1.7.1
- Max num. of regist. phones for HFP 5 phones
- 2 phones fulltime connection
- Audio Streaming (A2DP)
- High Quality Audio Streaming SBC/AAC
- Max num. of regist. units for A2DP 5 units
- Serial Port Profile (SPP)
- Phonebook Access Profile (PBAP)
- iPhone & Android automatic pairing via USB
- KENWOOD Remote App Ready
- KENWOOD Music Mix Support
- Amazon Alexa ready
- Catchphone / Call Waiting
- Private mode
- Alphabet Search (Phonebook)
- Noise Canceller
- Echo Canceller
- Phone device status display
- Audio device status display
- Signal strength display
- Remaining battery display
- Bluetooth Paring Indicator
- High-quality noise canceling microphone Rear Wired
- Bluetooth firmware upgradeable
- * depends on phone model/make & Kenwood unit

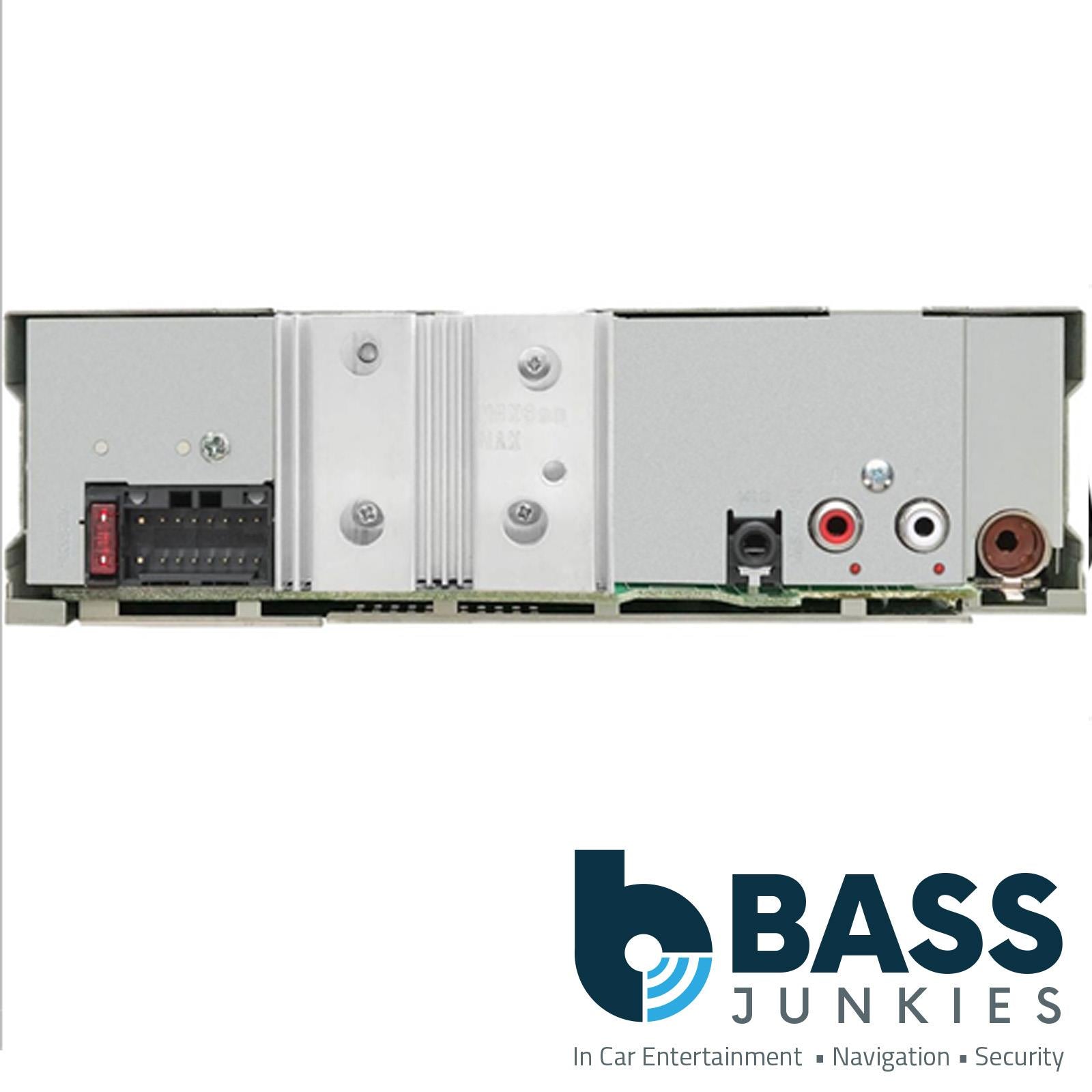

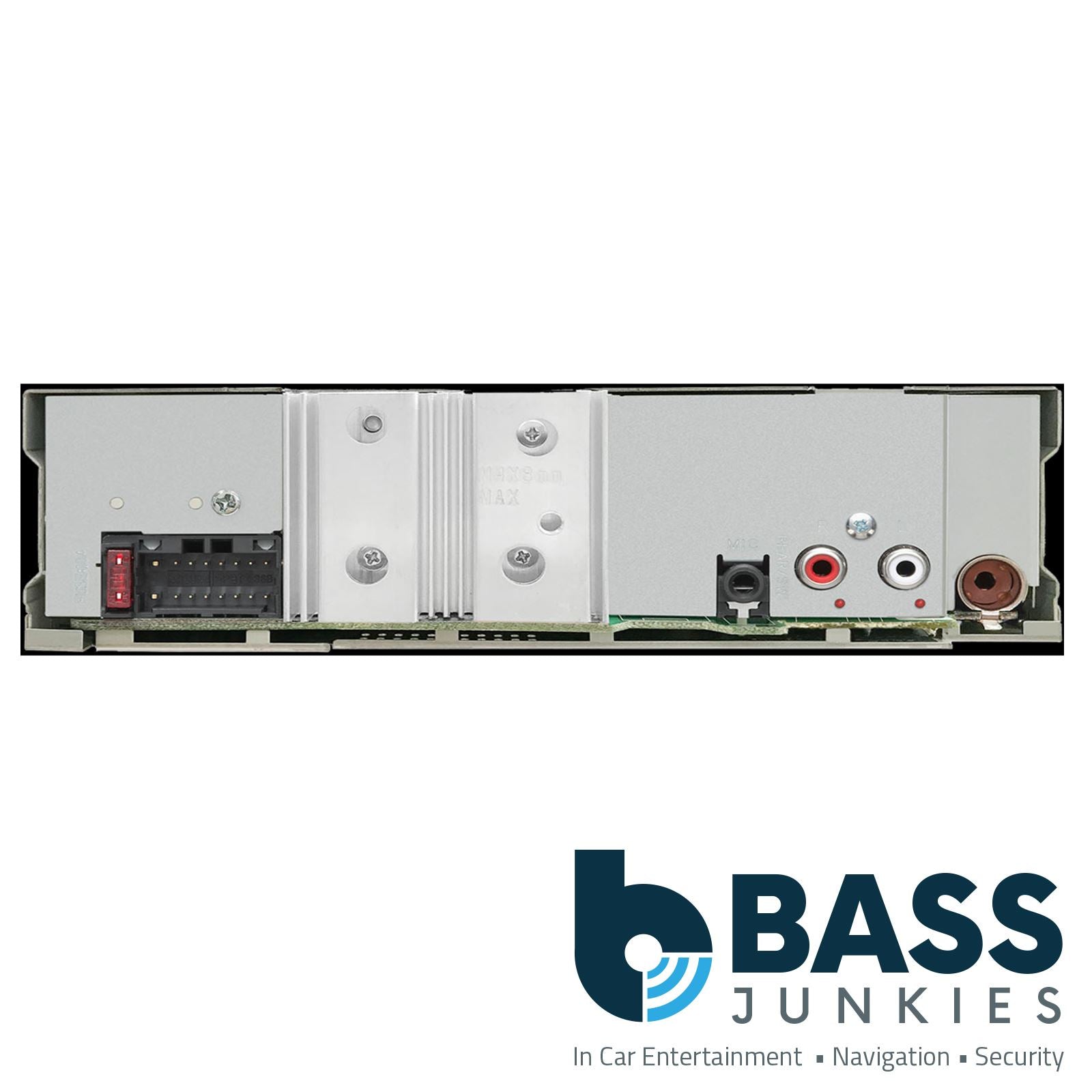

Connectivity
- Front USB & AUX Input
- OEM Wired Remote Control ready
DC-Cord Mitsumi to ISO - Power Control (P.CON) wire
- Amplifier pre-out 1 RCA: Rear/Subwoofer (selectable)
- FM Antenna Input JASO connector
- External microphone input 3,5mm mini-jack
