JVC KW-M565DBT 6.8" Multimedia Receiver USB Bluetooth Apple CarPlay Android Auto DAB+
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Shallow Chassis / DAB+
The system does not feature a CD/ DVD Player built-in. Media can be played via the USB input or a mobile telephone via Bluetooth.
JVC's KW-M565DBT Short Body Digital Media Receiver comes with integrated DAB+ tuner for crystal clear radio listening and Bluetooth technology for hands-free calling and wireless music streaming. Featuring Android screen mirroring via USB apps such as Waze Navigation and Google Maps as AndroidAuto or Apple CarPlay can be displayed and controlled via the 6.8" touch screen. An optional rear view camera can be connected for reverse parking. This unit also includes iPhone/iPod music playback. Please note there is no CD mechanism included in this model. However, this does allow us to reduce the depth of the product to 75mm which will fit into vehicles having less dashboard audio space than traditional products.
Features
- DAB+ Tuner built-in
- Apple Car Play (via USB)
- Android Auto (via USB)
- Bluetooth Hands Free Call (HFP)
- Bluetooth Audio Streaming & Control (A2DP, AVRCP)
- Bluetooth Voice Dialling (voice recognition compatible mobile phone required)
- Bluetooth Phone Book Access Profile (PBAP)
- Auto Pairing for iPhone/Android
- USB 1.5A High Current Charging
- 13-Band Graphic EQ
- Bluetooth(R) Wireless Technology (*Available functions depend on cell phone.)
Monitor
- Screen Size 6.8"W VGA Screen
- Touch Panel Capacitive
- Monitor Touch Control
- Customisable GUI
- Key Illumination Colour Blue
- Dimmer
- Multilingual Display
Media Playback
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB
- H.264 Compatible USB
- WMV Compatible USB
- MPEG 1/2 Compatible USB
- MPEG 4 Compatible USB
- AVI/MKV Compatible USB
Bluetooth Control
- Built-In Bluetooth (Wired-Mic included)
- Hands Free Call Yes (HFP1.6 Wideband Speech)
- Supported Audio Formats AAC / SBC
- Audio Streaming & Control (A2DP, AVRCP)
- Voice Dialling (voice recognition compatible mobile phone required)
- Phone Book Access Profile (PBAP)
- Alphabetical Search for Phone Book
- Auto Pairing for iPhone/Android (Android only)
Android Control
- Android Auto (via USB)
- Android Music Playback (via Bluetooth(R))
- Mirroring for Android via USB) *Need mirroring App
iPod/iPhone Control
USB
- USB Port x 1 (High Speed)
- Position Rear
- USB Power Supply (1.5A High Current Charging)
Radio Tuner
- Radio Data System
- Preset Stations 20 (FM:15ch, AM:5ch)
- Automatic Pre-setting (Strong Station Sequential Memory)
- DAB Built-in
- Frequency Range Band lll: 174.928MHz to 239.200MHz
- FM Frequency Range 87.5-108.0MHz
- AM Frequency Range (MW)531-1,611kHz,(LW)153-279kHz
Audio
- Maximum Power Output (Front & Rear) 50Wx4
- Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ (13-Band Graphic EQ)
- Preset EQ (7Preset + 3user)
- High-Pass Filter/Low-Pass Filter
- Bass Boost
- Time Alignment

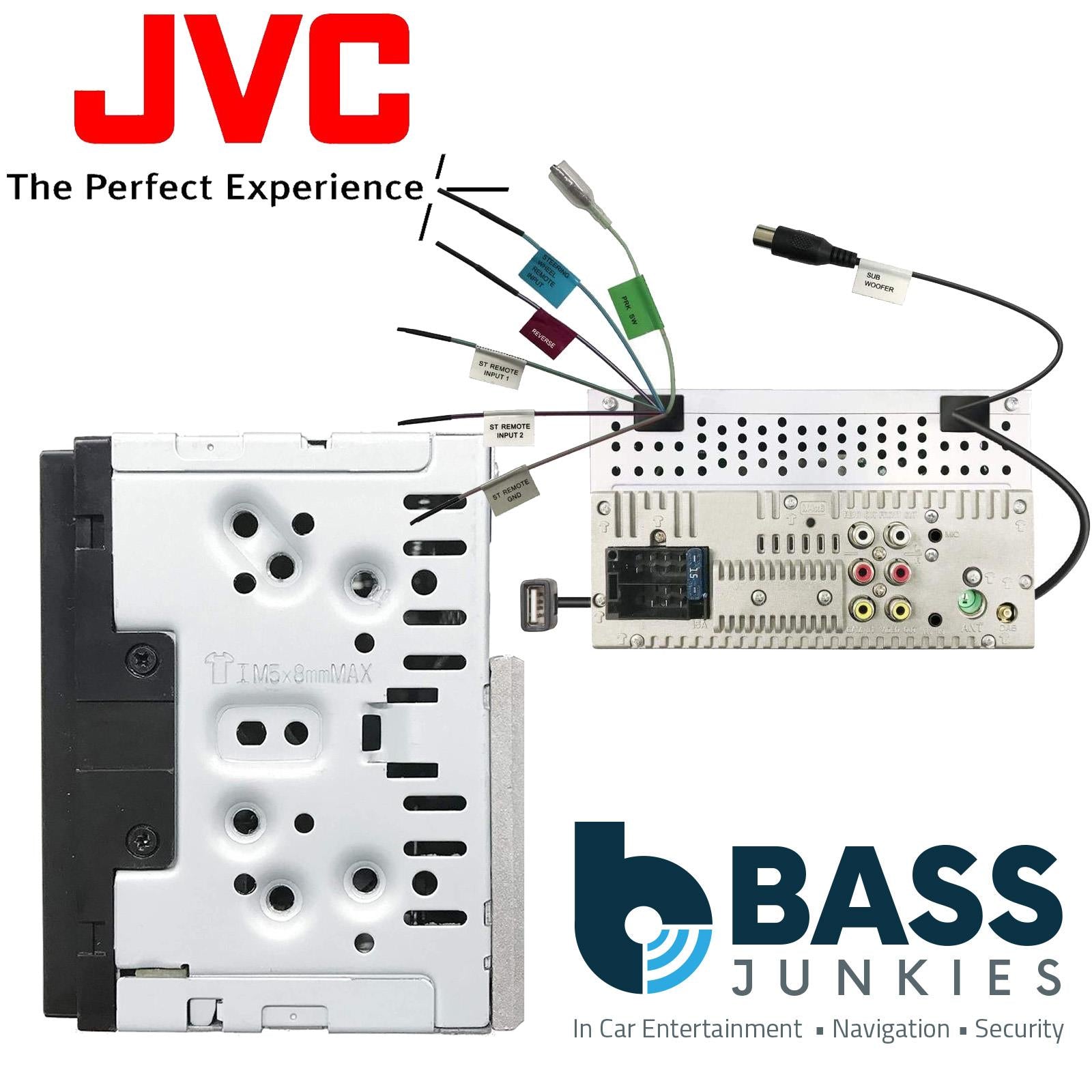

Inputs and Outputs
- AV Input mini jack (AV-IN or Camera switchable)
- Video Out RCA
- Pre-output Level/Impedance 2.0V / 10k ohms
- Rear view camera Input
- Line Output Terminals 2 Preouts (Terminal) + Sub WF (Cable)
- Subwoofer Output with Level/Frequency Control
General
- Back Up Memory
- Wireless Remote Control Ready (RM-RK258 required)
- Steering Remote Control Ready
- Learning Direct OEM Remote
- ISO Connector
- Dimensions (W x H x D)
- Installation Size 182 x 112 x 75 (mm)
- Weight 1.3kg : including sleeve and escutcheon
DAB aerial not included. Please purchase the following eBay item number 251280757991
