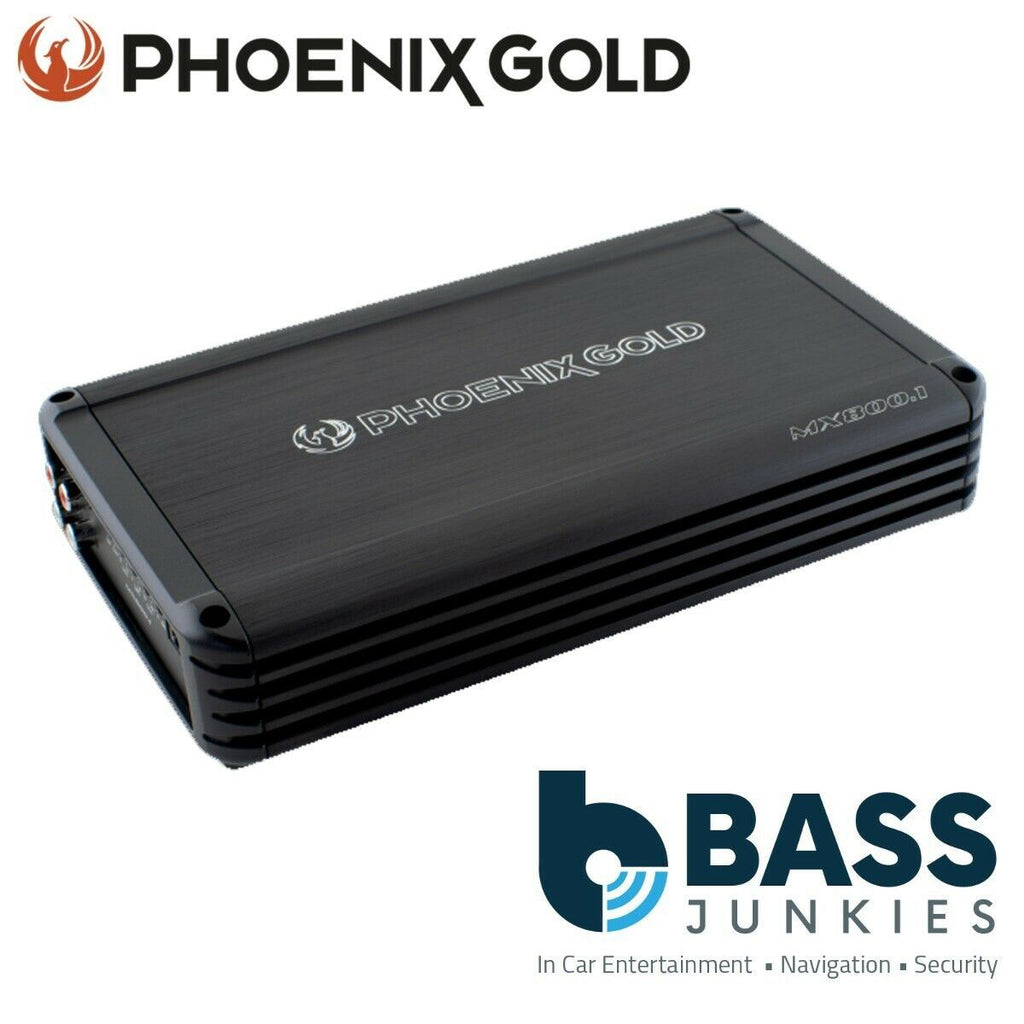

Phoenix Gold MX Series MX800.1 800 Watts Monoblock Class D Car Amplifier
Phoenix Gold is excited to introduce the series everyone has been asking for. A sub-compact series of amplifiers engineered for vehicles where space is at a premium, like trucks, jeeps and sports cars. The MX series of amplifiers proves that amazing things do come in small packages. Designed to fit, without compromising power and sound quality. These full-featured Class D amplifiers are available in 3 configurations (monoblock, 4-channel, and 5-channel) ranging from 600-800 watts each, to address any system requirements and power needs. Power is achieved with robust unregulated power supplies ensuring you have the ability to have dynamic power on demand while still giving you the sound quality you expect from Phoenix Gold.
Features
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies
- Remote Bass Controller Included (part number RBCF)
- Audio Precision® Quality Control Verification
- Balanced/Unbalanced Inputs
- Direct Insert Power and Speaker Terminals
Dimensions (L x W x H)
- 10.16” x 5.91” x 1.91”
- 258mm x 150mm x 48.5mm
SPECIFICATIONS
|
MX800.1
|
| Channels |
1 |
|
Power Rating
|
RMS @1Ω 14.4V, <1% THD |
800w |
| RMS @2Ω 14.4V, <1% THD |
520w |
| RMS @4Ω 14.4V, <1% THD |
350w |
| RMS @4Ω Brg 14.4V, <1% THD |
N/A |
| Total RMS Power @ 14.4v, <1% THD |
800w |

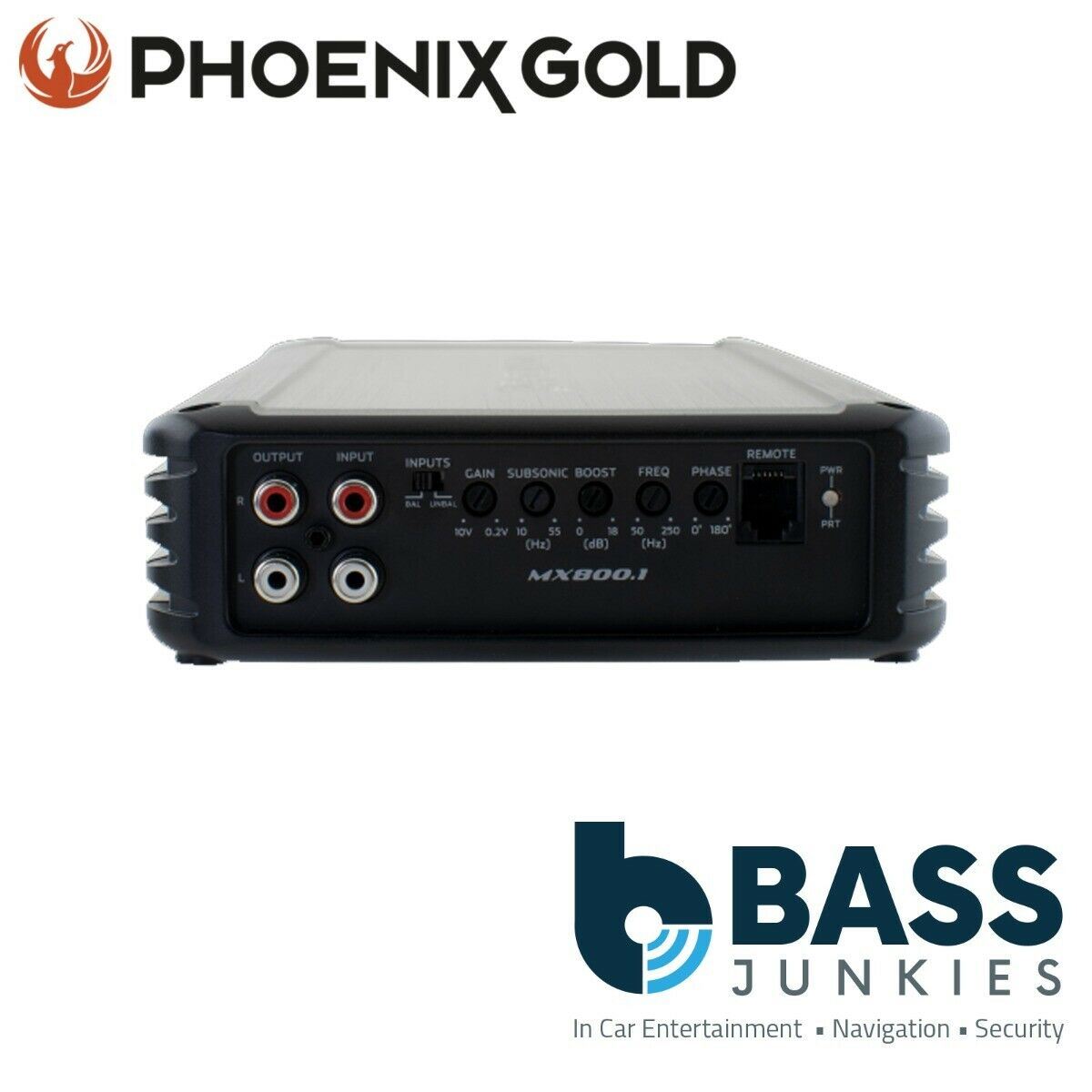

| Input End |
RCA Input |
1 Pair RCA |
| RCA Pass Through |
1 Pair RCA |
| Input Method |
Selectable Bal/UnBal |
| High Level Input |
N/A |
| Aux In |
N/A |
| Aux Out |
N/A |
| BTR Input |
N/A |

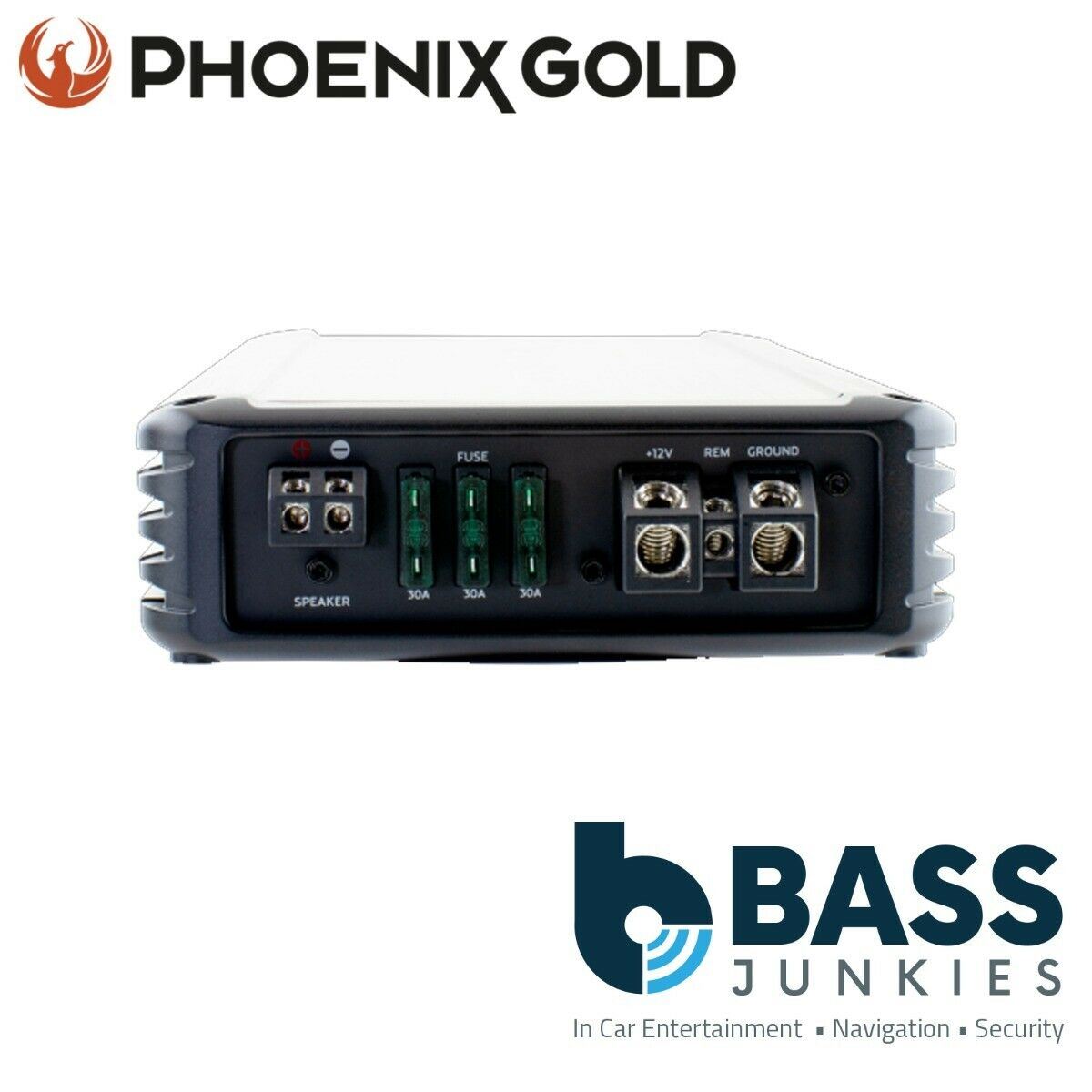

| Output Termination |
Power Supply |
4 AWG |
| Speaker Output |
8 AWG |
