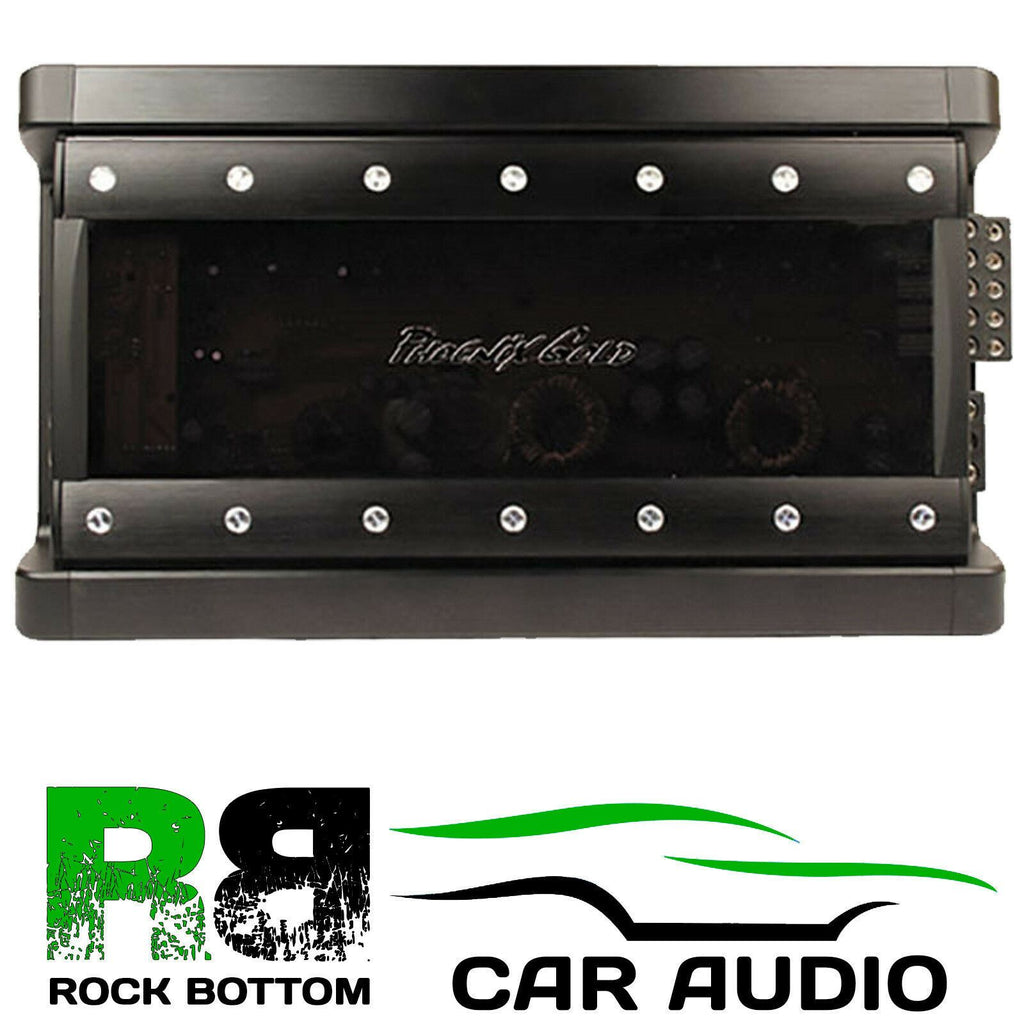

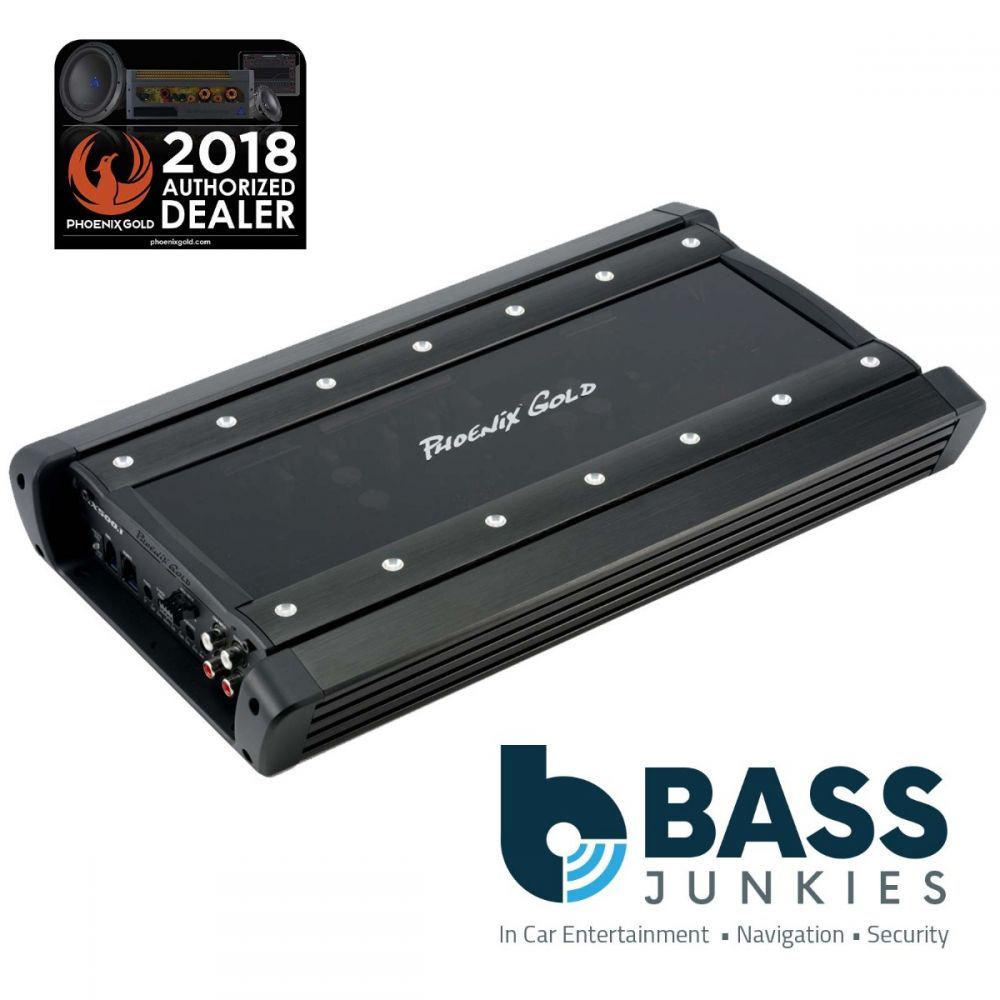

Phoenix Gold RX500.1 Amp RX Series 500W Mono-Block Amplifier
The RX Amplifier features high quality, doubled-sided circuit board with SMT parts. Each part is computer tested before being instantly inserted and soldered by machine onto the PCB. The result is the correct part secured in the correct place for the lifetime of the amplifier. These, quite frankly, provide the best bang for the buck available today. Built tough with a heavy duty heatsink, robust unregulated power supply, oversized direct input power and speaker terminals. They also sound sweet thanks to the audiophile bi-polar output transistors. Want to upgrade your stock system without changing the head unit? No problem, the high level input makes breathing new life into your stock system simple.
Features:
- High and Low Pass Crossovers
- Audiophile BiPolar Output Transistors
- High Level Inputs for easy OEM Integration
- Robust Unregulated Power Supply
- Surface Mount Component Technology
- Direct Insert Power and Speaker Terminals
- Audio Precision Quality Control Verification
- High Temperature Plexiglas cover
- RBC- Remote subwoofer level control included (RX250.1, RX500.1, RX1100.1, RX600.5)
- RMD - Remote Monitoring Display Port
- POWER RATING
500 Watts x 1 Channel / 2 Ohms
300 Watts x 1 Channel / 4 Ohms
LOW PASS RANGE: 30Hz to 300kHz
LOW PASS SLOPE: 12dB/Octave
SUBSONIC RANGE: 10Hz to 55Hz
SUBSONIC FILTER SLOPE: 12dB/Octave
BASS BOOST: 0 to +18dB
VARIABLE PHASE: 0 to 180 degrees
POWER TERMINAL: 4GA
FREQUENCY RESPONSE: 20Hz to 300Hz (+/- 1dB)
SIGNAL TO NOISE RATIO: Greater than 90dB
EFFICIENCY: 50%
DAMPING FACTOR: Greater than 200
HEATSINK THERMAL MASS: 7.0 grams per mm
DIMENSIONS: 14.5" L x 8.4" W x 2.0" H
