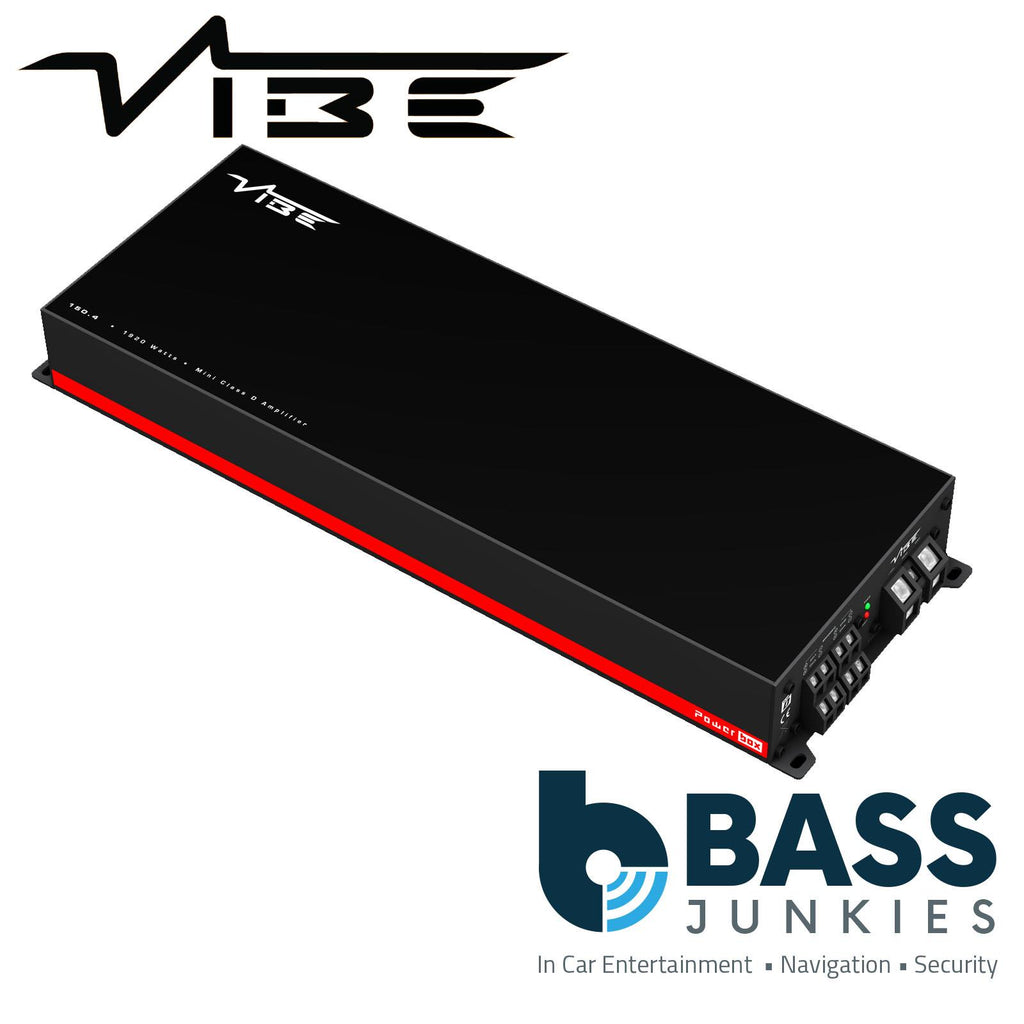

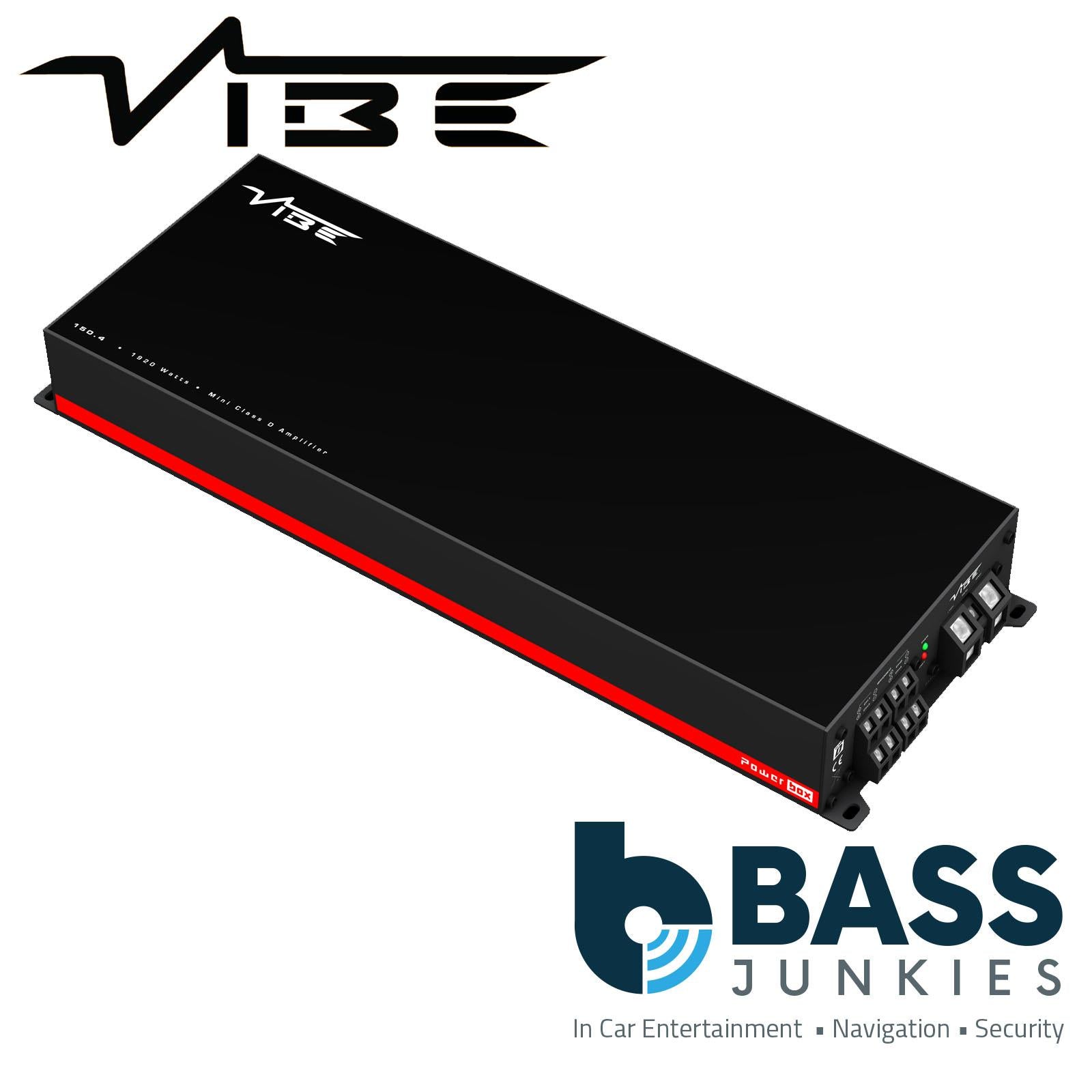

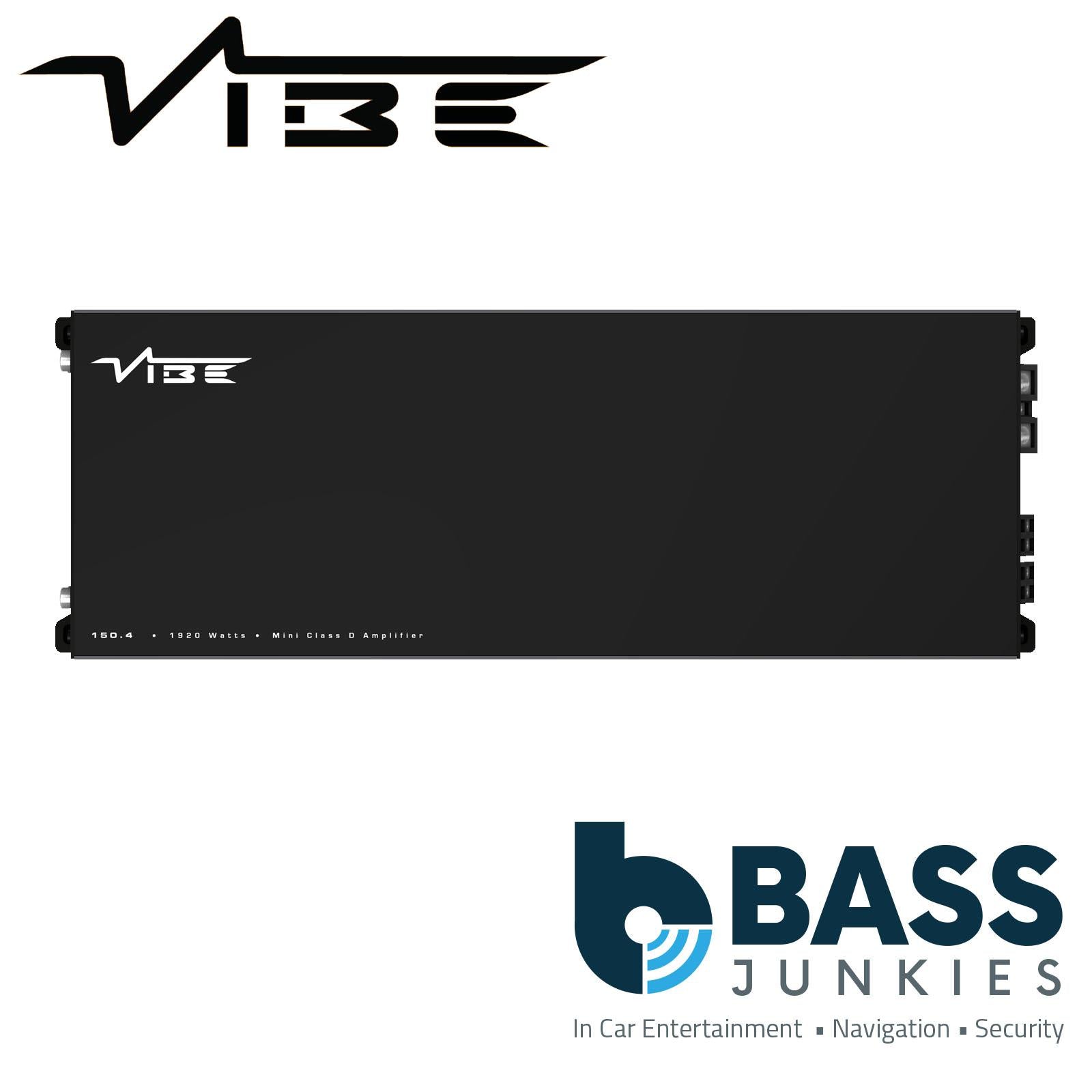

Vibe POWERBOX150.4M-V0 4 Channel Class D Car Amp Amplifier 1920 Watts Max Power
VIBE British Audio introduces the brand new the 2020 POWERBOX amplifier range!
Building on the success of our ground breaking Powerbox Micro amplifiers, we are proud to announce the more powerful and evolved Powerbox Mini range of four channel amplifiers.
Taking everything that was already great about the Micro amplifiers, our engineers pushed the small footprint platform to the next level.
Amplifier Topology
The range of Powerbox Mini class D multi-channel amplifiers feature a MOSFET output stage usually reserved for large platform amplifiers, the class D topology is much more efficient that the traditional class AB used in this style amplifier, this means the amp can be smaller and stay much cooler during operation. This delivers not only higher power output but also fantastic sound quality and the ability to bridge channels to drive a subwoofer making these a perfect one amplifier solution. The high efficiency design means less current draw and less strain on the factory charging system.

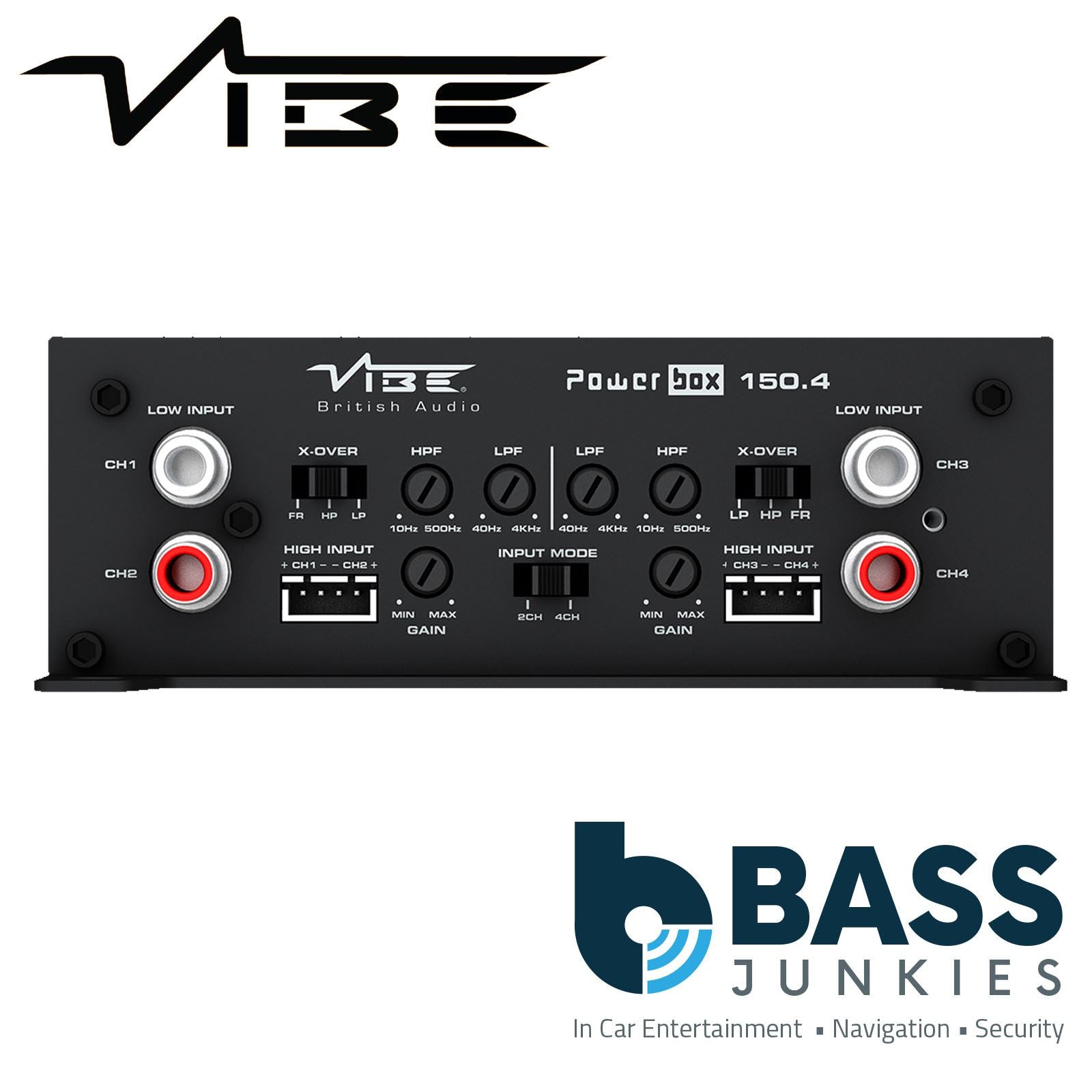

Deltabox Connectivity
Our Powerbox Mini amplifiers have inputs options to ensure that any system can be utilised to connect to these amps. Our high quality RCA inputs offer 0.5v � 6v input voltage alongside a new Deltabox High level input circuit which gives Autosense remote turn on for use with factory systems. This eliminates the requirement to use a separate line level convertor and accepts an input voltage of up to 35v! This offers a perfect range of connectivity. Deltabox High level input circuit paired with the High quality High Level inputs allows the amp to use a DC offset Auto sense turn on feature so no remote turn on is required when using this installation method, the DC offset method offers a much more stable and reliable turn on methodology compared to the traditional signal sensing.
VIBE Sound Studio Active crossovers
Utilising High and Low pass filters with a natural 12dB slope allows the 4 channels of amplification to be run passive and active systems safely. The amp also feature an incredible 10hz 30Khz bandwidth when being used in FULL RANGE mode allowing you to take full advantage of even the highest ranging tweeters! This delivers suitable amplification for high bit rate sound reproduction and makes the VIBE POWERBOX range a great choice for demanding Sound Quality systems. The VIBE Sound Studio active crossover networks are a simple and easy way to run speakers fully active without the need for complex crossovers.
Features:
- Class D Topology
- Deltabox Connectivity
- OPTISOUND Advanced OEM integration
- VIBE Sound Studio Active crossovers
- Auto Sense Turn on
Specifications
- 4x 150w 4 ohm
- 4x 240w 2 ohm
- 2x 480w 4ohm
- Maximum Power 1920 watts
- Dimensions (HxWxD) 47 x 390 x 134 mm
- Frequency Response 20Hz-20kHz
- Crossover Type LP/HP/Flat
- Crossover Range 40Hz-4kHz
- Crossover Range 10Hz-50kHz
- Class D
