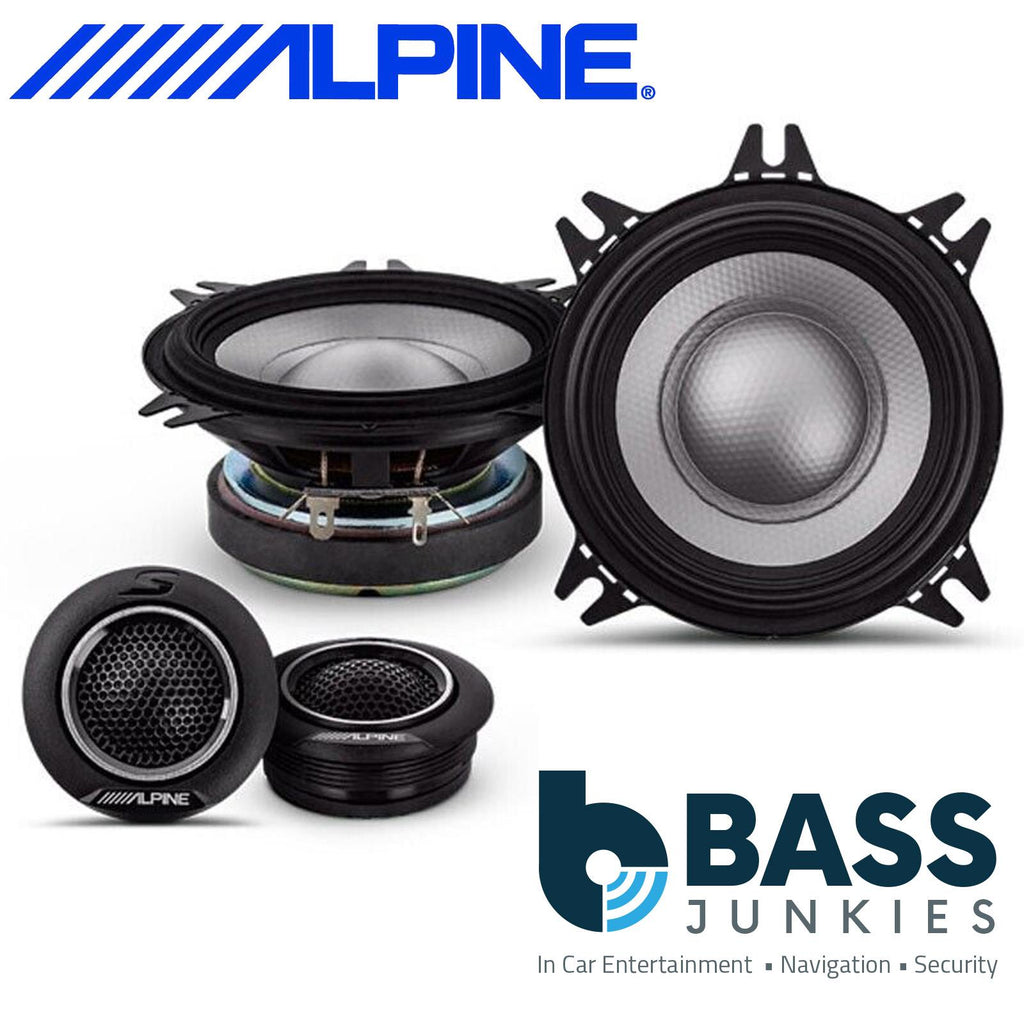

Alpine S-Series S2-S40C - 4” 10cm 280 Watt 2 Way Component Dash Door Speakers

Alpine S-Series S2-S40C - 4” 10cm 280 Watt 2 Way Component Dash Door Speakers

Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S40C 10cm (4”) Component Speakers offer a new standard in entry-level sound performance.

We packed supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from a combination of polypropylene, glass fiber, and mica materials, serves up the essential high output / low distortion sound required for High-Res Audio performance. Alpine S-Series speakers feature increased magnet sizes for more power handling and best mid-bass performance in their category.

The woofer's High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 2cm (3/4") dome tweeter serves up all the high-frequency detail you've been missing with your factory speakers.

All speakers in the S-Series line have a wide vehicle fitment range and include several adapters and spacers. Using in-line crossovers, these speakers can be installed quick and easy even at home.

Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of different sizes, such as 20cm, 16,5cm, 13cm, 10cm, 6x9 inches and 6x8 inches.

The New 2023 S-Series Speaker Line

The S-Series sound system line truly is the Music Lover’s Starter Pack, bringing amazing sound quality, exciting bass and even Hi-Res Audio playback into the customer’s vehicle at a very affordable price point. The S-Series speakers are available in 9 different configurations.

Hi-Res Audio Certified

Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.

Clean, Accurate Audio

Crafted with a unique combination of Poly Propylene, Glass-Fiber, and Mica Cone materials, the S2-S40C is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

HAMR Surround

Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.

Simplified Installation

Engineered for versatility, these speakers offer seamless OEM fitment and simplified installation. With in-line crossovers, you can achieve optimal sound separation and precise tuning. The adjustable tweeters feature a flush mount housing that is removable, allowing for installations in small OEM tweeter locations. You can even remove the tweeter housing to minimize the size for custom installation.

Made for S-Series Amps & Subs

The S-Series speakers are designed to perfectly match the Alpine S-Series amplifier and subwoofer line for perfect system building. S-Series components are designed to for customers that want to build a great sounding system without breaking the bank, for a fun and great sounding experience including Hi-Res Audio capabilities.

Features

General

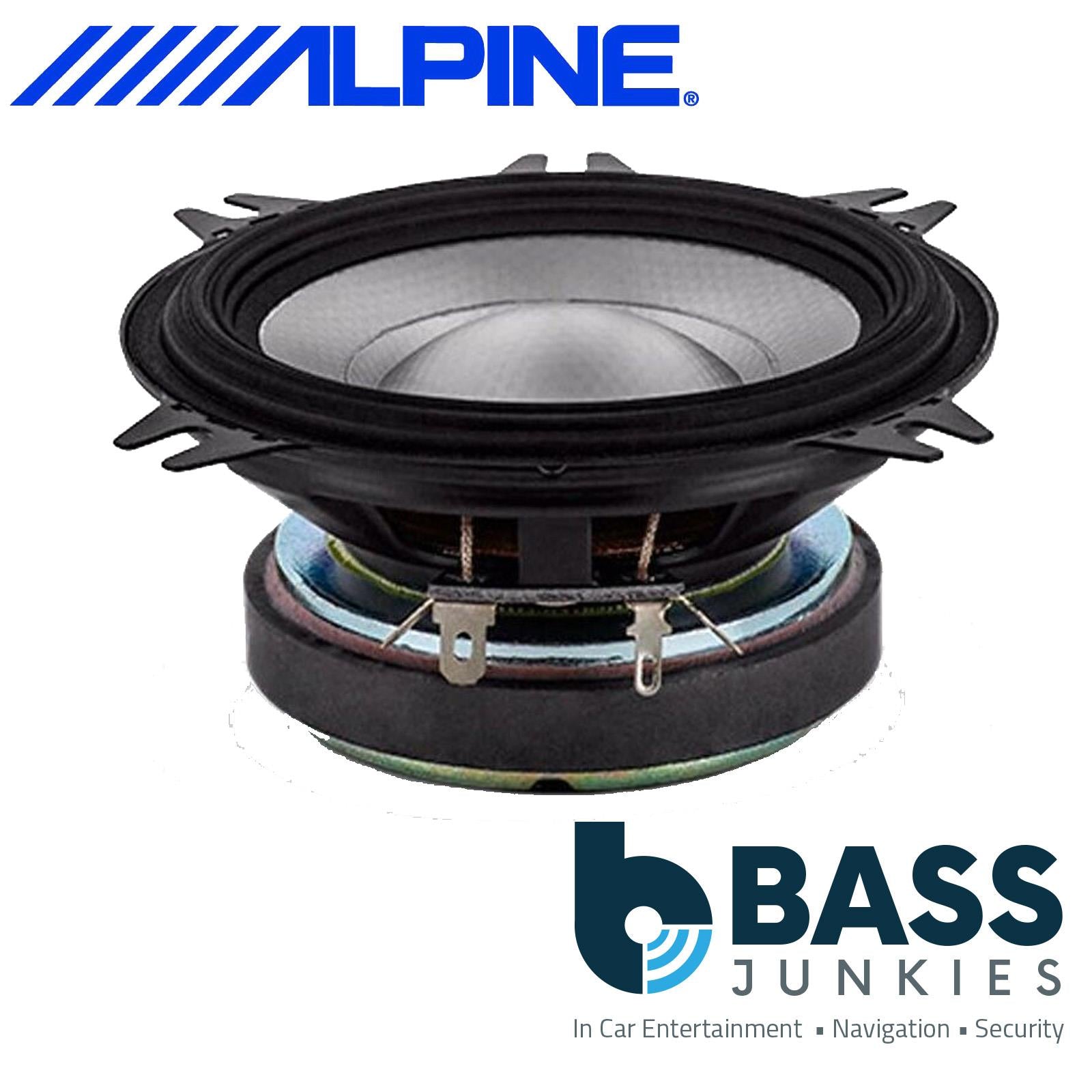

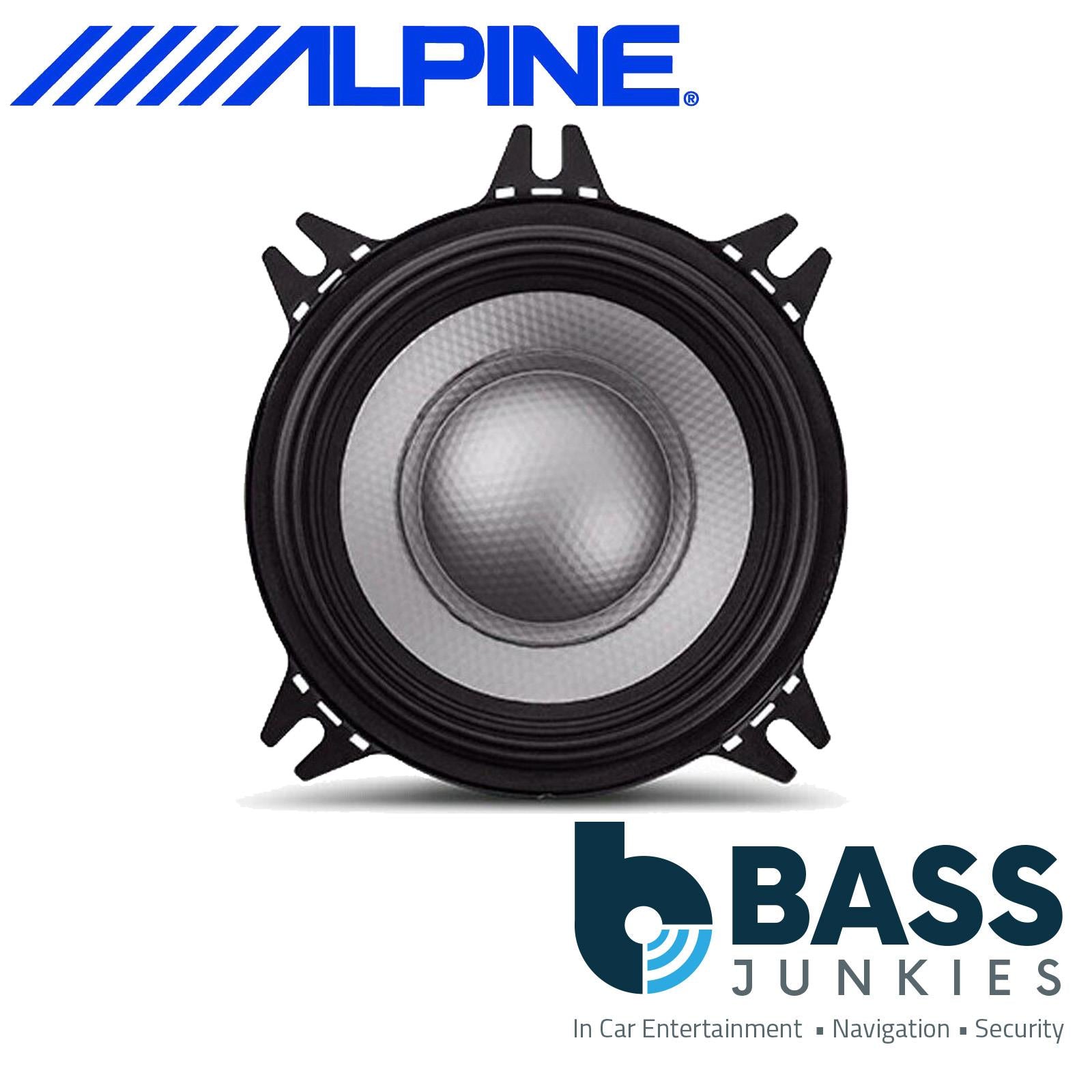

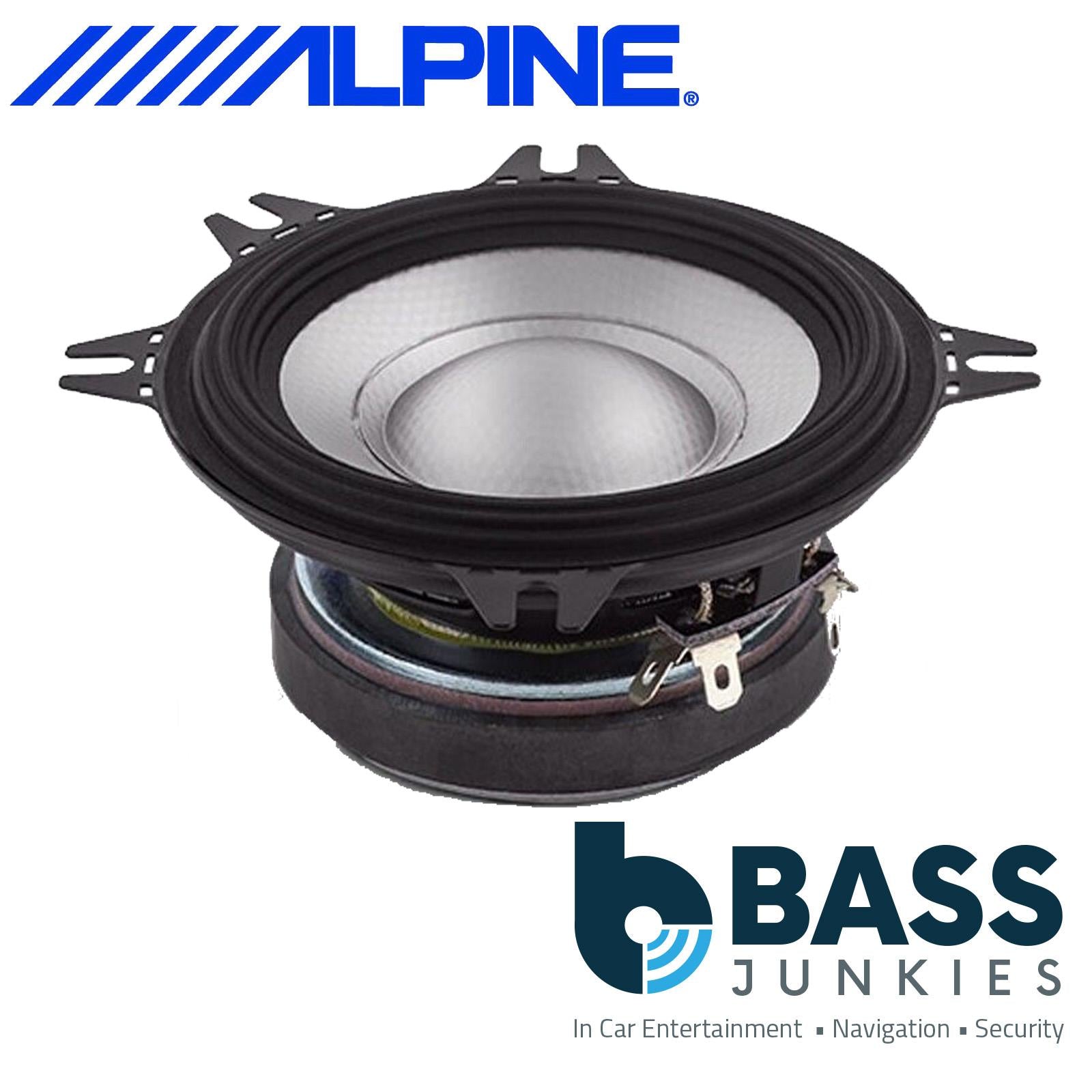

• Woofer Size: 10cm (4”)

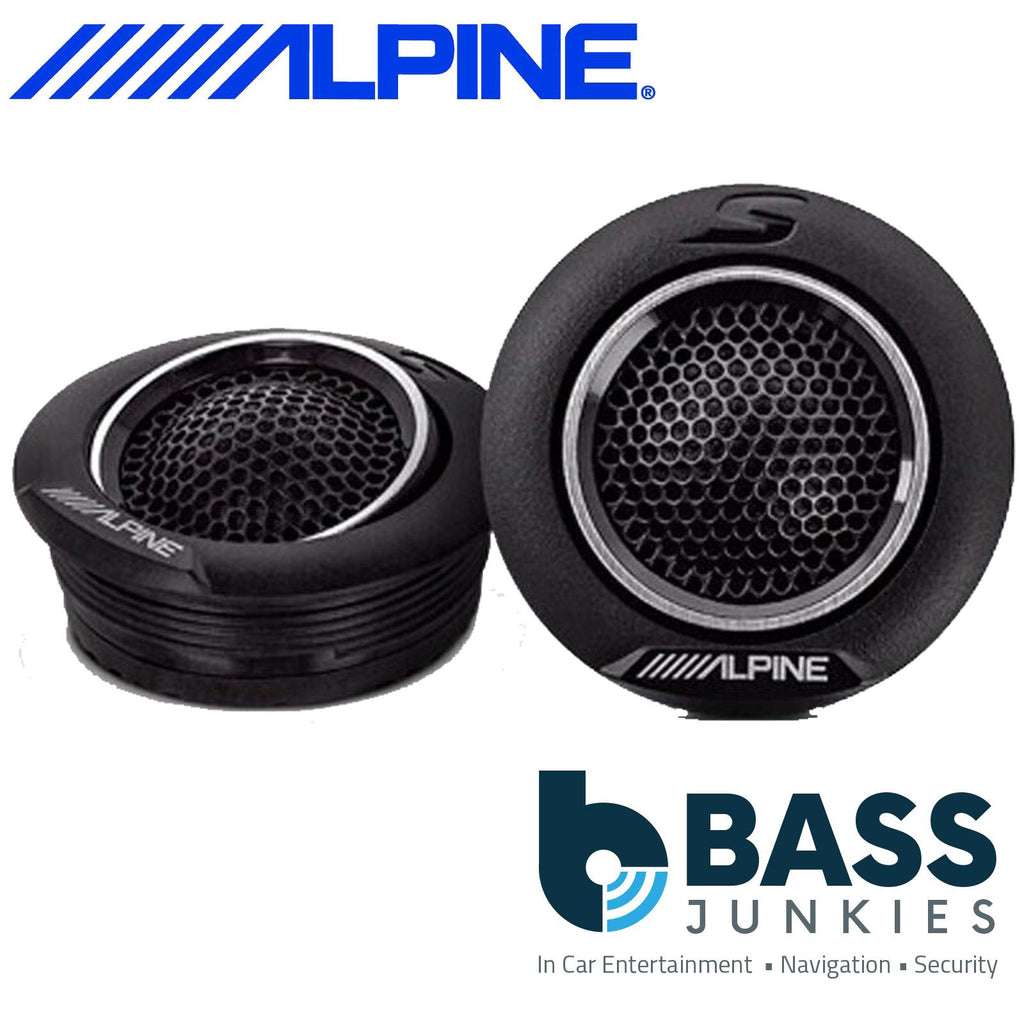

• 2cm (¾“) Component Tweeters with Swivel Housing
• Hi-Res Audio Certified (up to 40kHz)
• Poly Propylene, Glass Fiber, and Mica Cone Material
• Lightweight Design with High Output and Low Distortion
• High-Amplitude Multi-Roll (HAMR) Surround

Specifications

Power Handling

• Peak Power: 140 Watts each speaker
• 280 Watts a Pair
• RMS Power: 45 Watts each speaker

Dimensions Woofer

• Cutout Diameter (flush-mount): 93.6 mm
• Mounting Depth: 43.0 mm
• Mounting Height: 6.6 mm

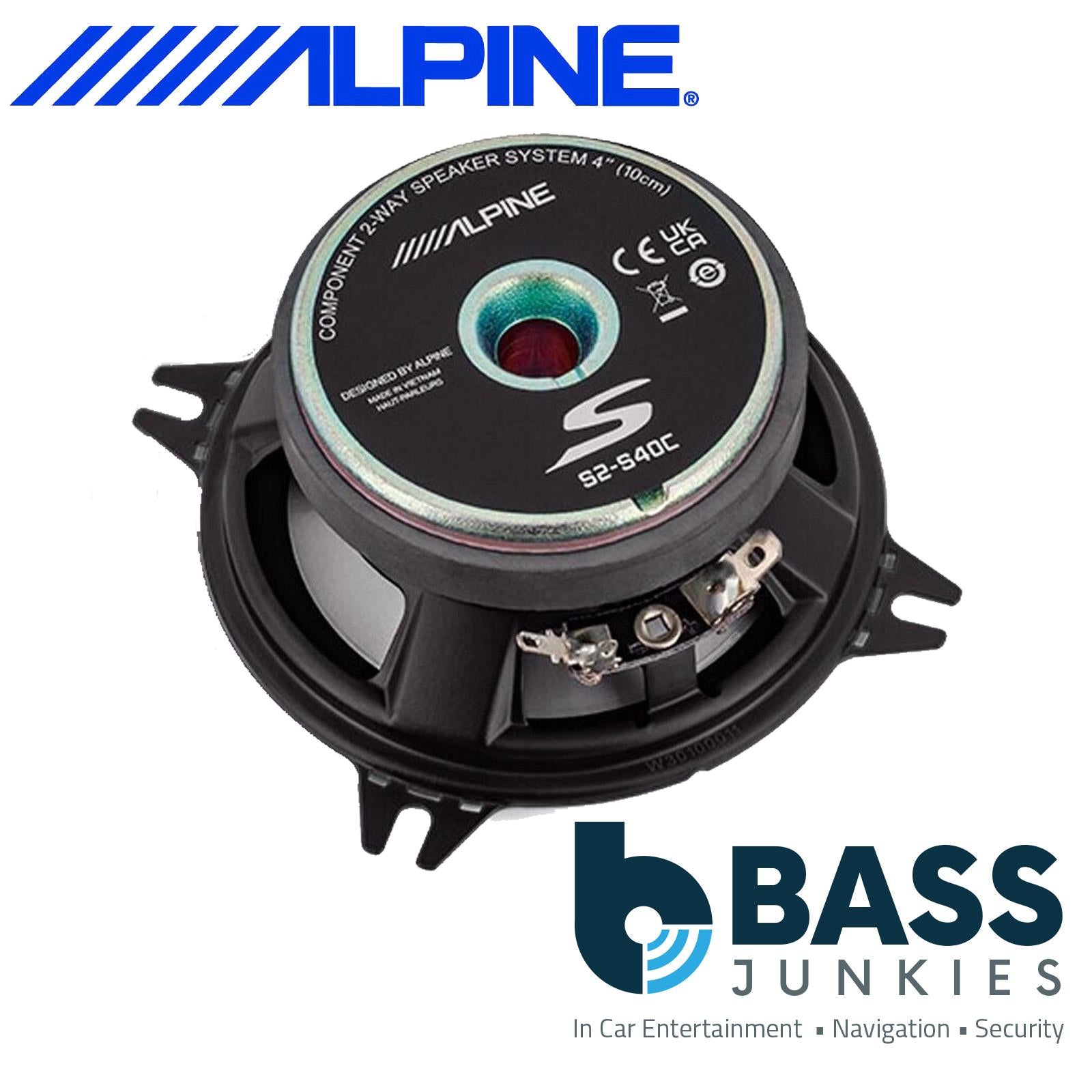

• Magnet: 75.0 mm

Dimensions Tweeter

• Cutout Diameter (flush-mount): 51 mm
• Mounting Depth: 17.6 mm
• Mounting Height: 7.6 mm
