Alpine S2-S69C - 6"x9" 520 Watts 2 Way Component Shelf Car Speakers & Tweeters
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S69C 16cm x 24cm (6" x 9”) Component Speakers offer a new standard in entry-level sound performance.
We packed supreme capability into these speakers by using highly effective materials and proprietary design elements. The lightweight woofer cone, crafted from a combination of polypropylene, glass fiber, and mica materials, serves up the essential high output / low distortion sound required for High-Res Audio performance. Alpine S-Series speakers feature increased magnet sizes for more power handling and best mid-bass performance in their category.
The woofer's High Amplitude Multi-Roll (HAMR) surround brings out the best in bass by allowing maximum cone movement. A 7.9cm (3") Mid-Range with 2.5cm (1") Tweeter in Swivel Housing serves up all the mid and high-frequency detail you've been missing with your factory speakers.
All speakers in the S-Series line have a wide vehicle fitment range and include several adapters and spacers. Using in-line crossovers, these speakers can be installed quick and easy even at home.
Alpine S-Series speakers are available in coaxial and component configurations and come in a variety of different sizes, such as 20cm, 16,5cm, 13cm, 10cm, 6x9 inches and 6x8 inches.
FEATURES
General
- Woofer Size: 16cm x 24cm (6" x 9”)
- 7.9cm (3“) Mid-Range with 2.5cm (1") Tweeter in Swivel Housing
- Hi-Res Audio Certified (up to 40kHz)
- Poly Propylene, Glass Fiber, and Mica Cone Material
- Lightweight Design with High Output and Low Distortion
- High-Amplitude Multi-Roll (HAMR) Surround
- Compatible with KTE-S69G Speaker Grills (sold separately)
SPECIFICATIONS
Power Handling
- Peak Power: 260 Watts
- RMS Power: 85 Watts

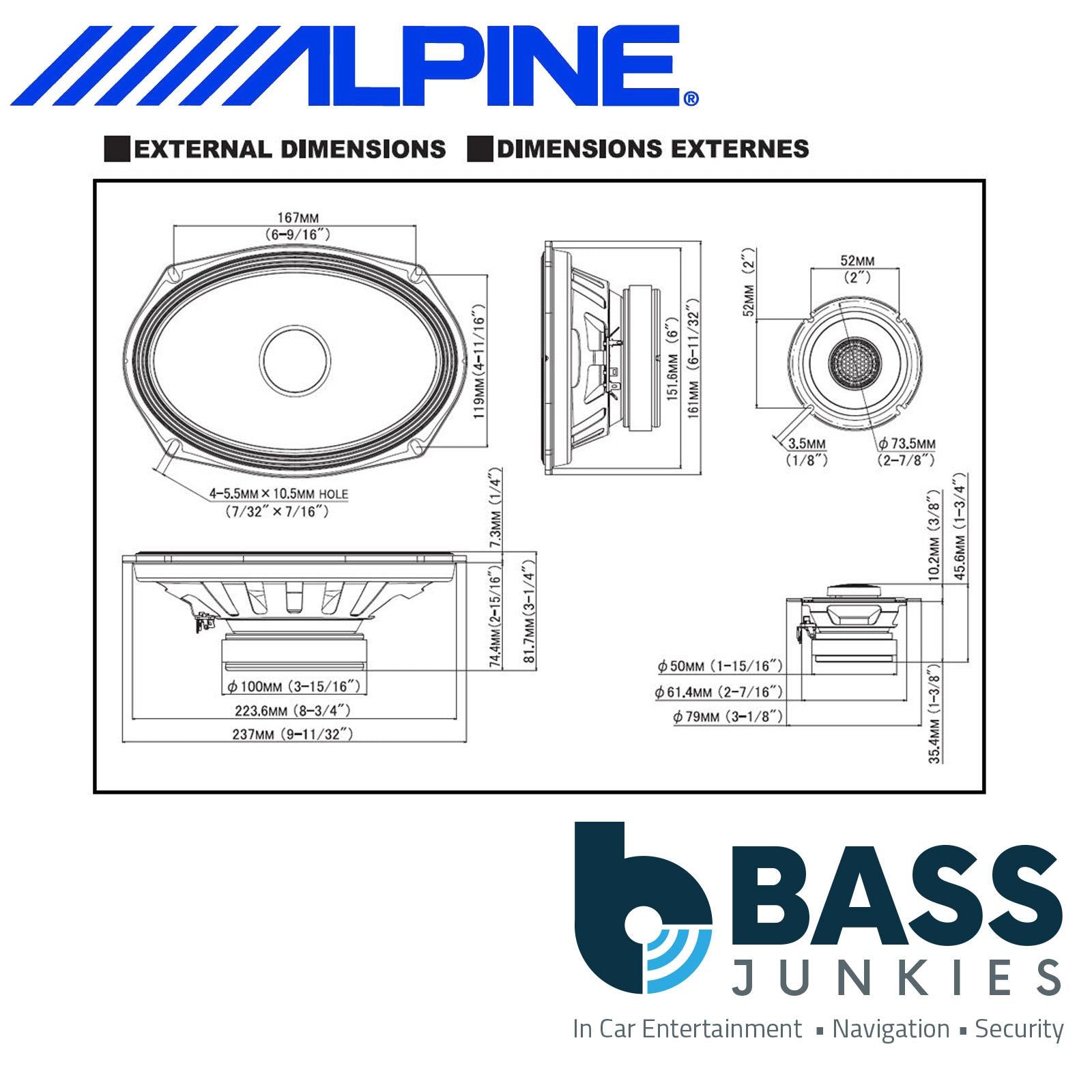

Dimensions Woofer
- Cutout Diameter: 15.2cm x 22.4cm oval
- Mounting Depth: 7.4cm
- Mounting Height: 7.3mm
- Magnet: 100.0mm
Dimensions Mid-Tweeter
- Cutout Diameter (flush-mount): 6.2cm circle
- Mounting Depth: 3,5cm
- Mounting Height: 10.2mm
General
- Frequency Range: 55 Hz - 40 kHz (Hi-Res Audio Certified)
- Impedance: 4 Ohms
- Sensitivity: 90 dB/W
