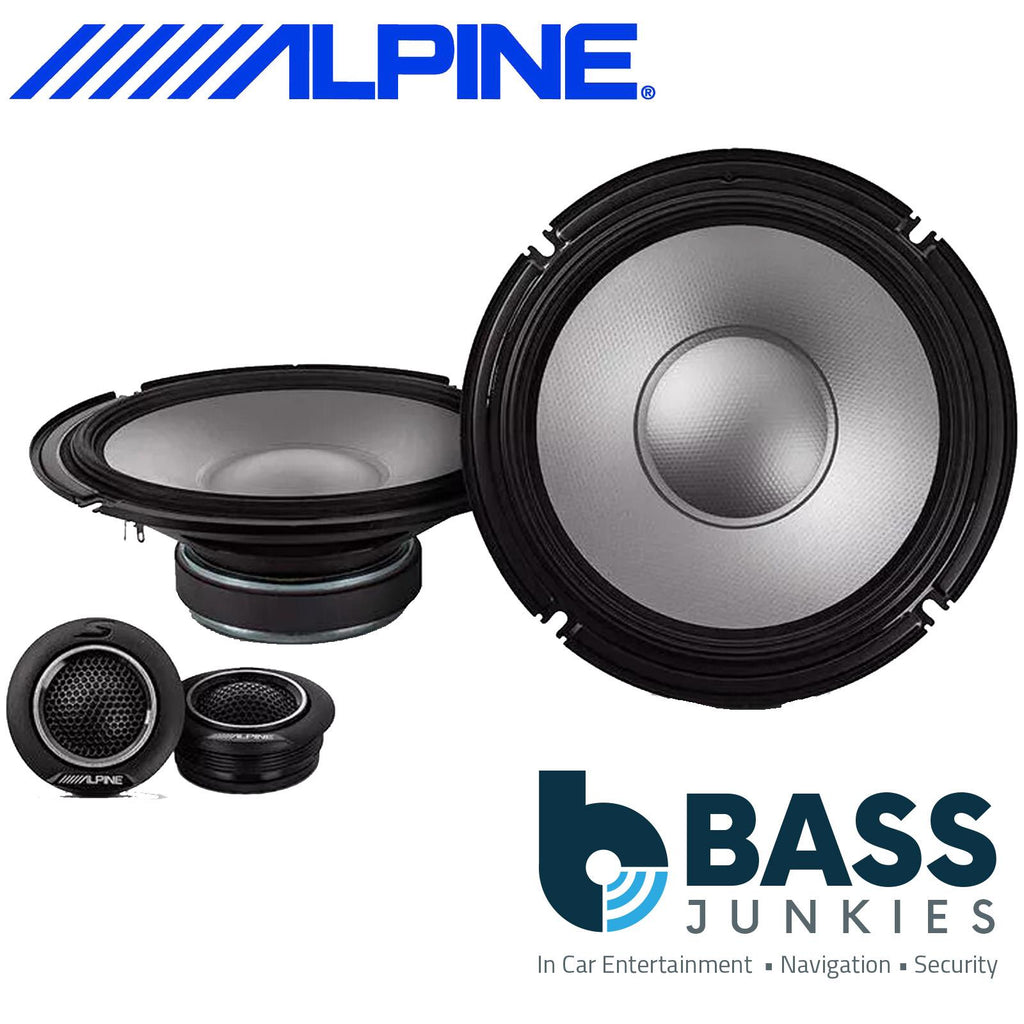

Alpine S-Series S2-S80C - 8” 520 Watt 2 Way Component Door Speakers & Tweeters
Alpine innovation continues with the adoption of all-new technology and engineering in the construction and materials used in the new S-Series. The lightweight, composite glass fiber cone unites with Alpine’s patented HAMR surround technology to achieve increased control and excursion of the woofer diaphragm, resulting in pure, punchy sound and powerful bass at high SPL. In addition, the 1” soft dome tweeters come alive in the upper harmonics, delivering smooth high frequency response extended right up to 40kHz, so you can hear the nuances in your music.
With an extensive range of component and coaxial speakers, the new S-Series is most impressive and versatile speaker line-up ever, providing greatly expanded, providing flexibility and installation compatibility into virtually any vehicle.
S-Series continues to establish the benchmark for feature-rich, impressively detailed loudspeakers that accurately represent true studio-level Hi-Resolution audio faithful across the entire frequency bandwidth.
Take your in-car sound to the next-level with new S-Series loudspeakers rivalling sound quality and performance far beyond their modest price-point.
AN ALL-NEW AUDIOPHILE EXPERIENCE FOR S-SERIES
What is Hi-Res Audio?
With Hi-Res Audio streaming services and music downloads available you can now appreciate a higher sampling rate than in CD’s for the playback of music, which brings your favourite music tracks to life with extreme clarity. Alpine’s Hi-Res Audio Certified Head Units, Amplifiers and Digital Signal Processors are painstaking engineered to deliver faithful audio reproduction from high resolution sources and recordings with sample rates up to 192kHz/24Bit. These components are optimised for high definition playback and breathtaking performance, true to the artists original recording.
Why Hi-Res Audio?
Listening to Hi-Resolution Audio allows you to feel every emotion and hear every nuance; every detail of your favourite artist’s original studio performance is reproduced to perfection. Hi-Res Audio provides absolutely no distortion for the ultimate listening experience.
Why Hi-Res Audio Certified Speakers?
Hi-Res Audio goes beyond the limits of ordinary speakers. To accurately render the sound of Hi-Resolution sound sources and recordings in true high definition the reproduction of an extended dynamic frequency range right up-to 40kHz is paramount.
Features

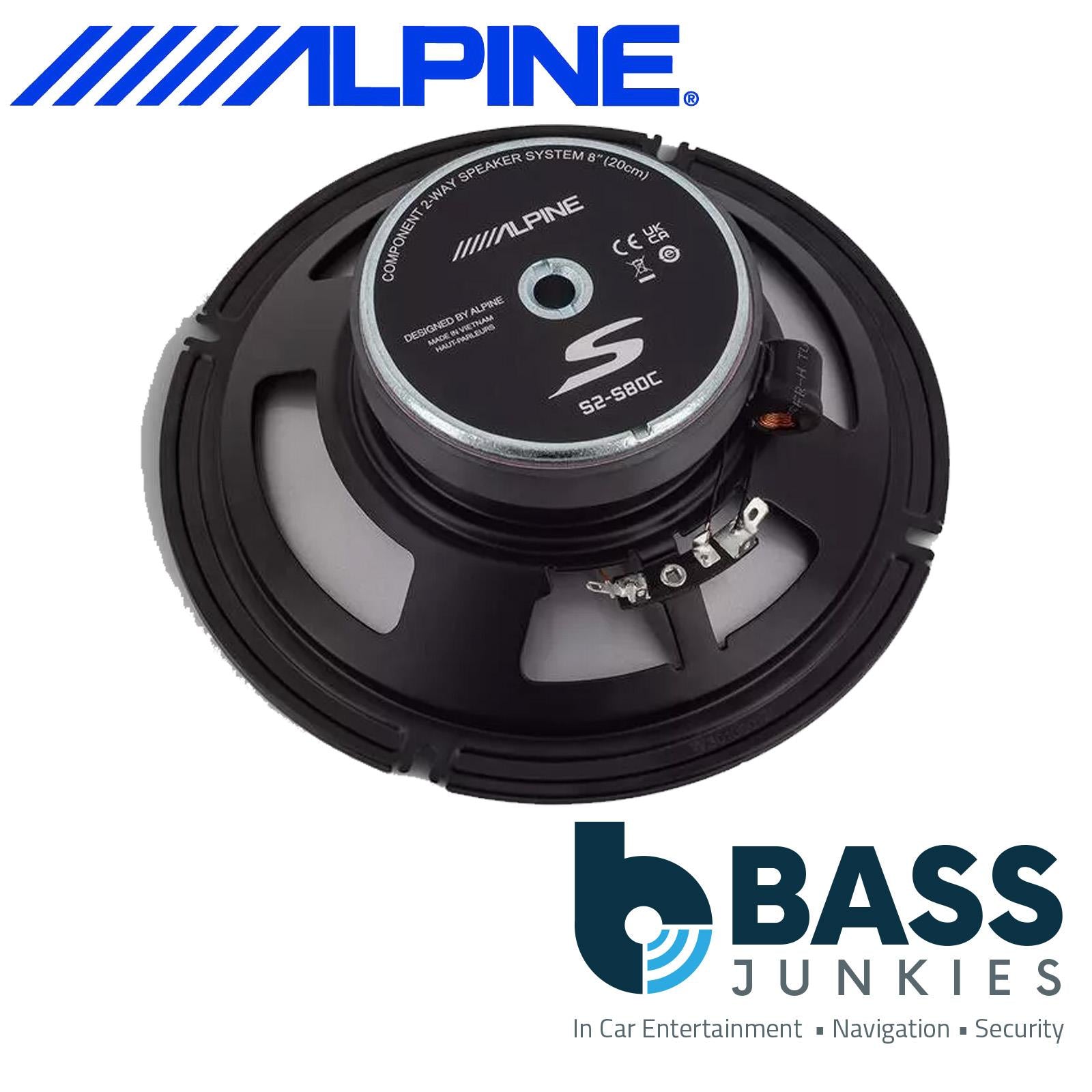

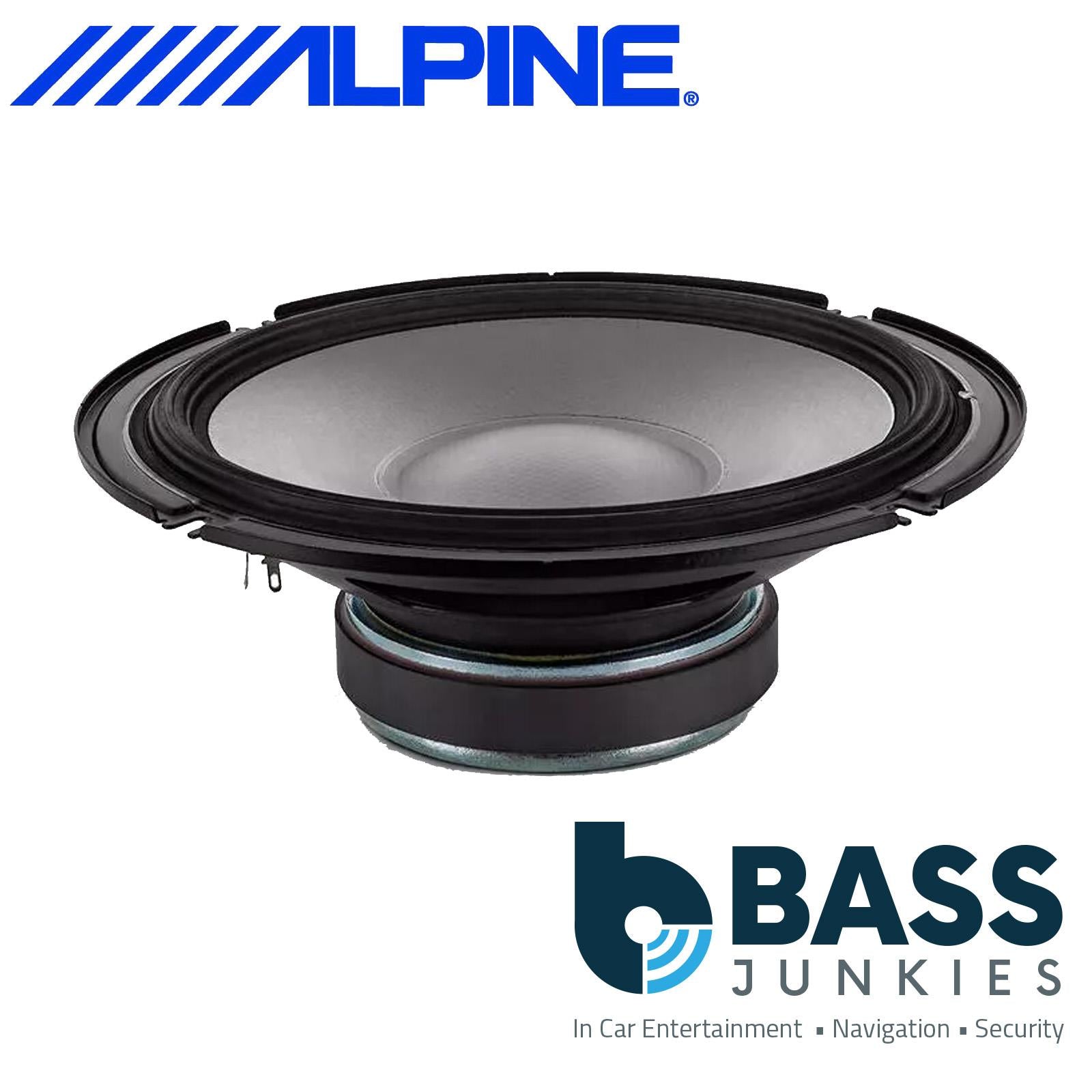

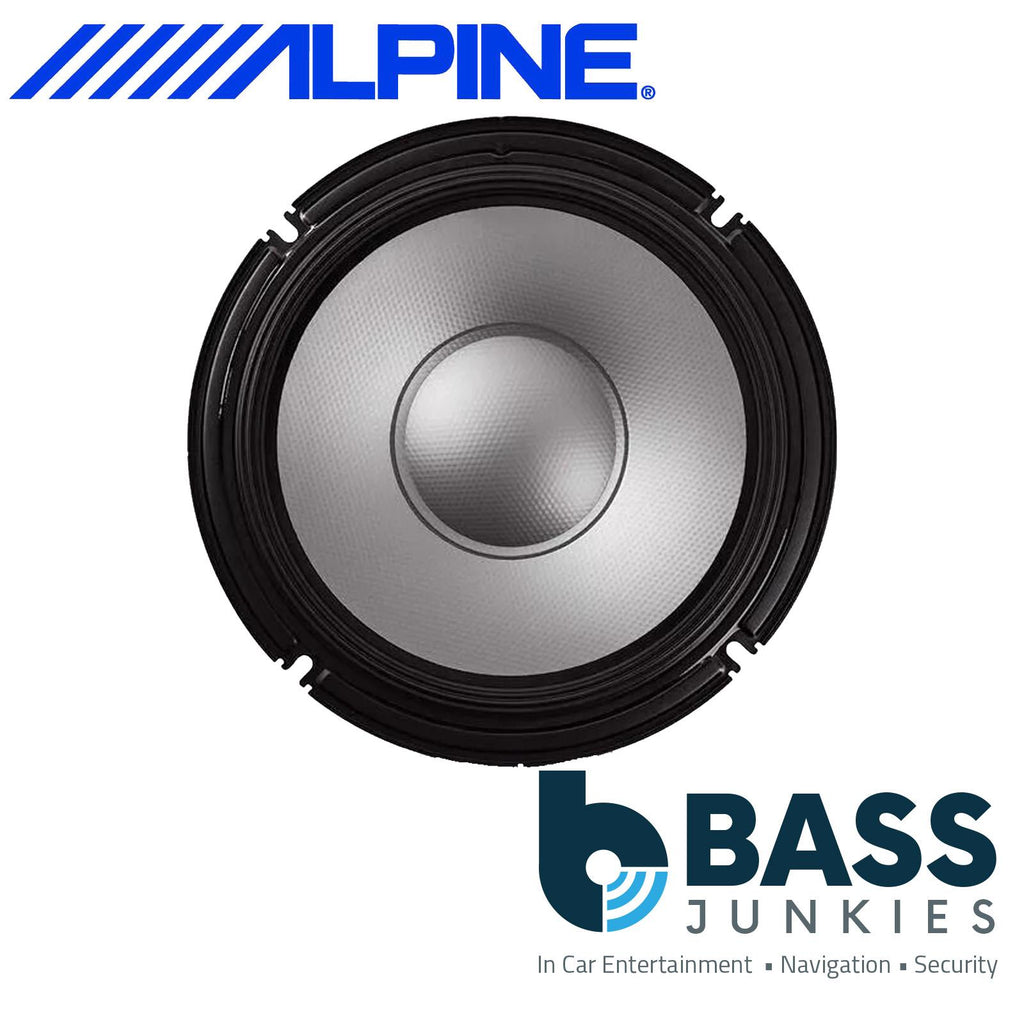

Woofer
- 8″ (200mm) Lightweight Glass Fiber Composite Component Speaker
- HAMR (High Amplitude Multi-Roll) Surround
- Large Voice Coil
- Magnet Material: Strontium Ferrite

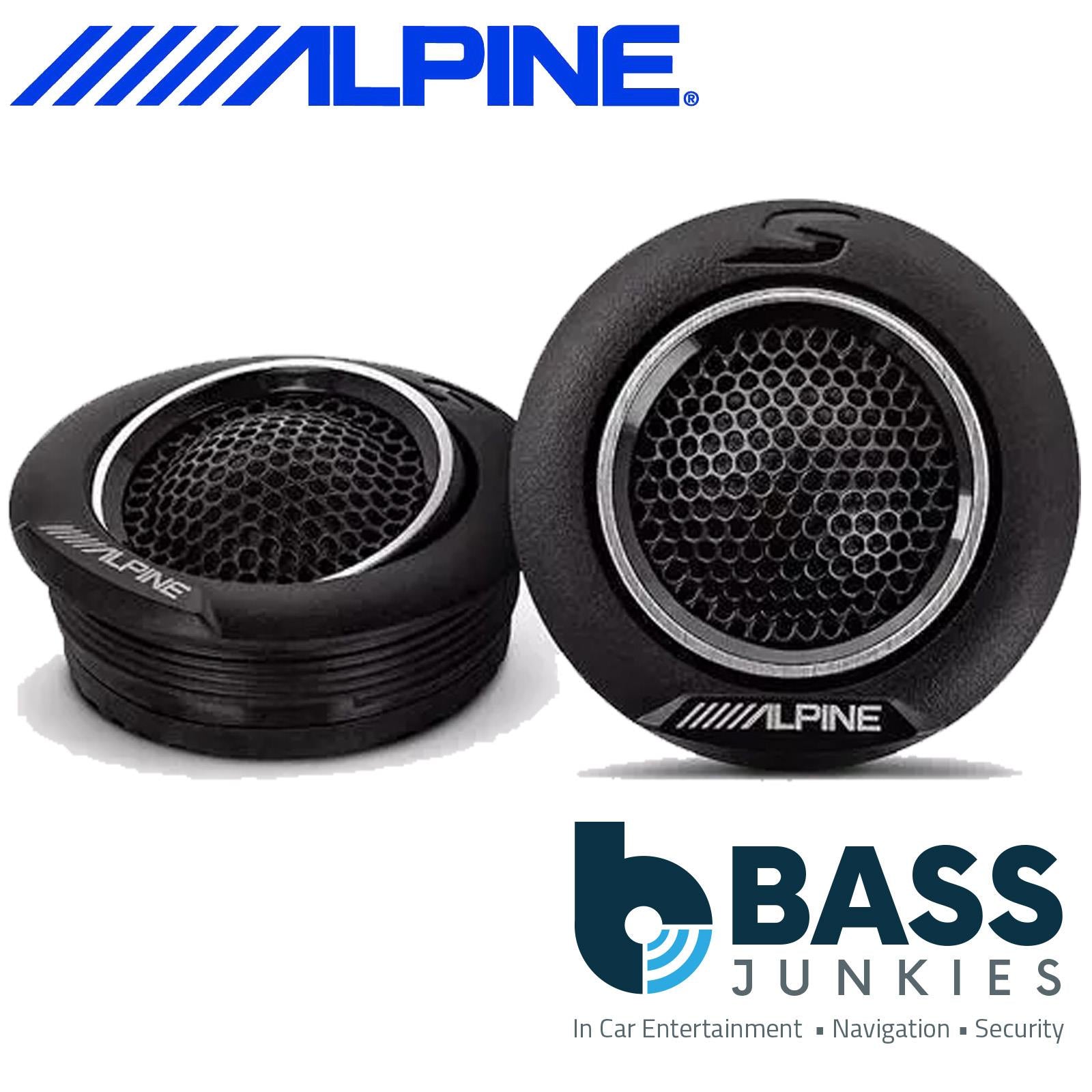

Tweeter
- 1″ Extended-Range Soft Dome
- Magnet Material: Ferrite
- Application Type: External/Swivel Tweeter Mounting Kit
- Flush mount and Collapsable for OEM fit.
- Grill: Perforated Net
Crossover Network
- Woofer: Copper Air-Coiled Wound Inductor
- Tweeter: High Grade Audio Poly-Capacitor
Specifications
Power Handling
- Peak Power: 260 Watts
- RMS Power: 85 Watts (CTA-2031 Compliant)
Dimensions Woofer
- Frame 210 mm
- Cutout Diameter: 179mm
- Mounting Depth: 66.5 mm
- Mounting Height: 7.4 mm
- Magnet: 100.0 mm
Dimensions Tweeter
- Frame: 58mm
- Mounting Diameter: 51mm
- Mounting Depth: 17.6mm
- Height: 25.6 mm
General
- Frequency Range: 55 Hz – 40 kHz
- Impedance: 4 Ohms (DCR 3.7 ohms)
- Sensitivity: 89 dB/W (1W @ 1m)
- Recommended Amplification: up to 85W RMS per channel
