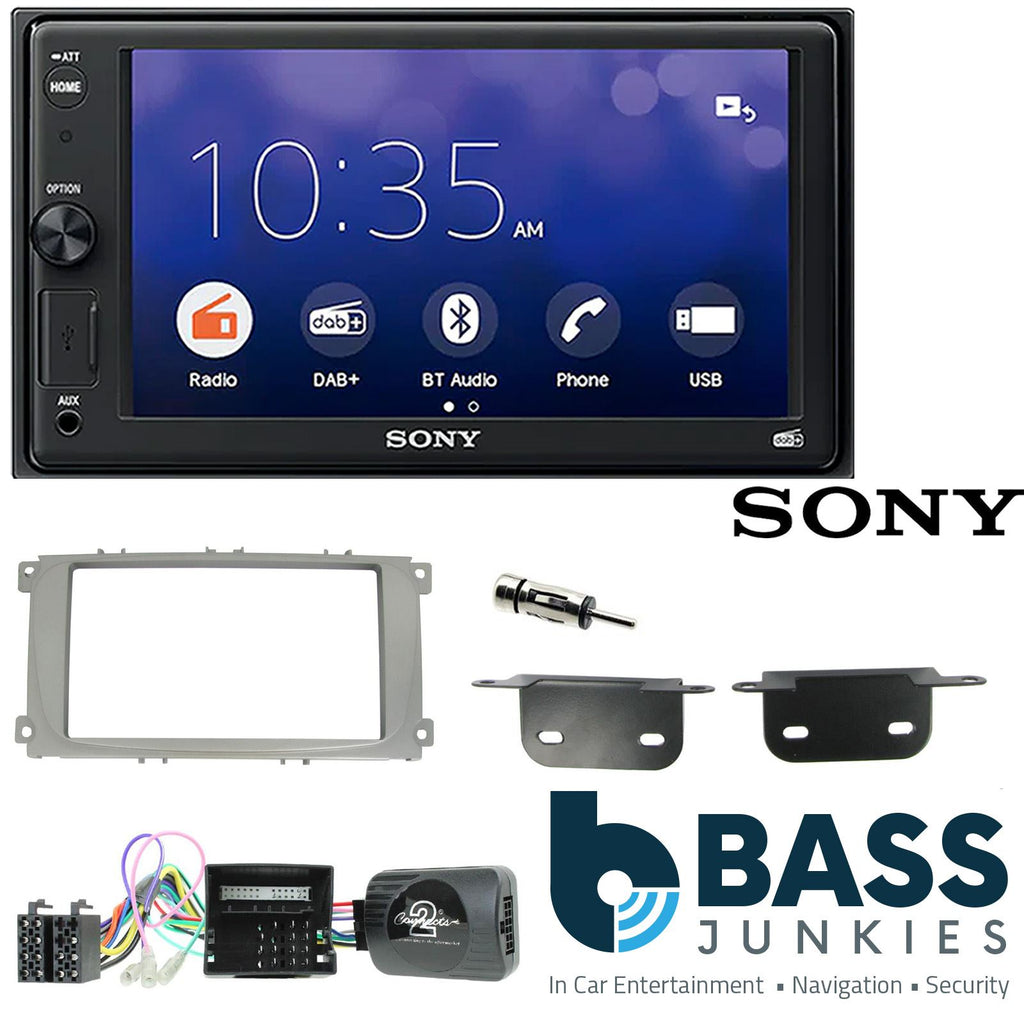

Sony XAV-1550D 6.2" Mechless Bluetooth DAB Media Receiver with WebLink 2.0 Cast + Vehicle specific double din stereo fitting kit (to retain stalk controls)
What you will receive when you purchase this listing:
Sony XAV-1550
Fitting Frame ISO connector Warranty Card Instruction Manual

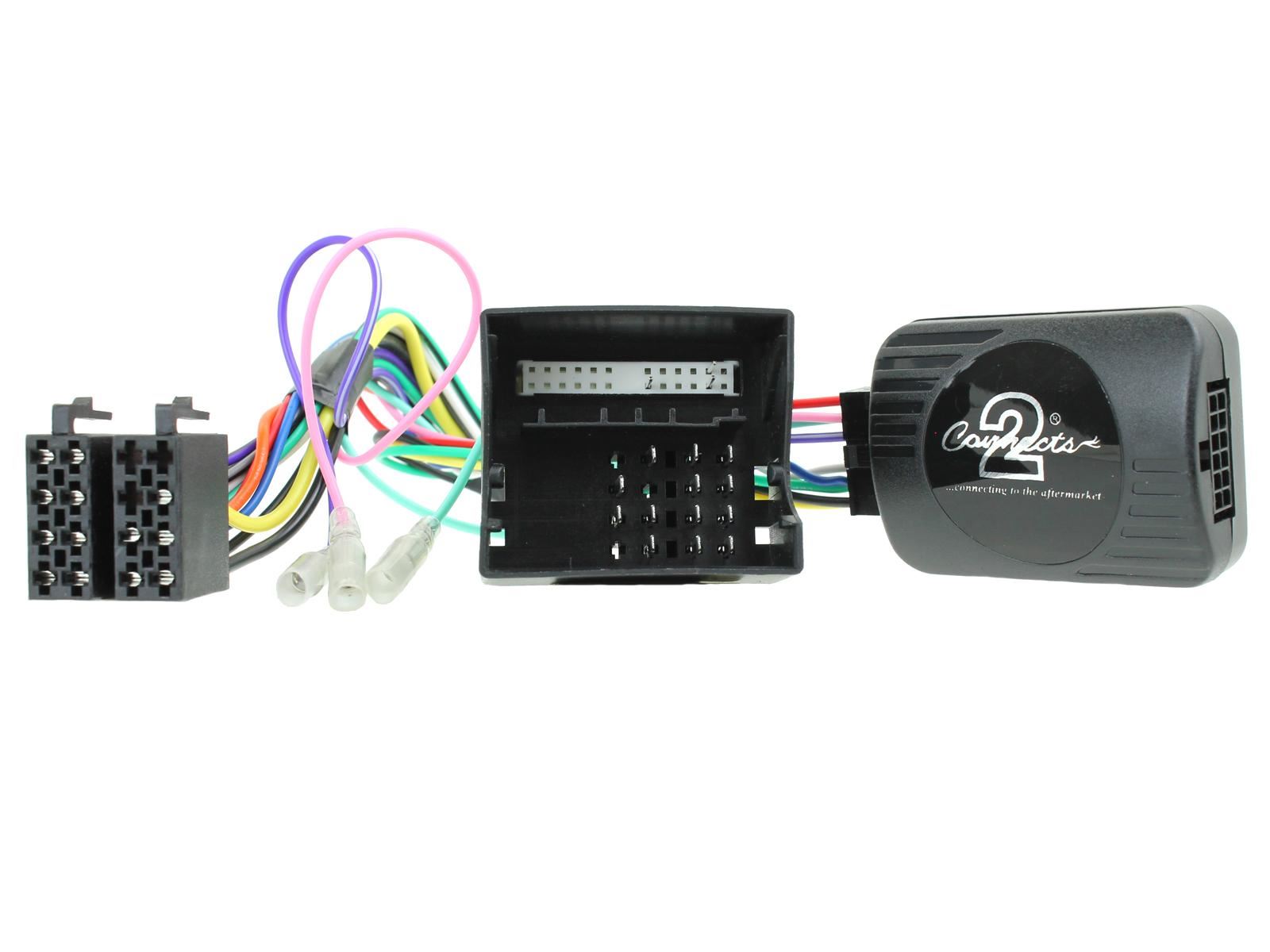

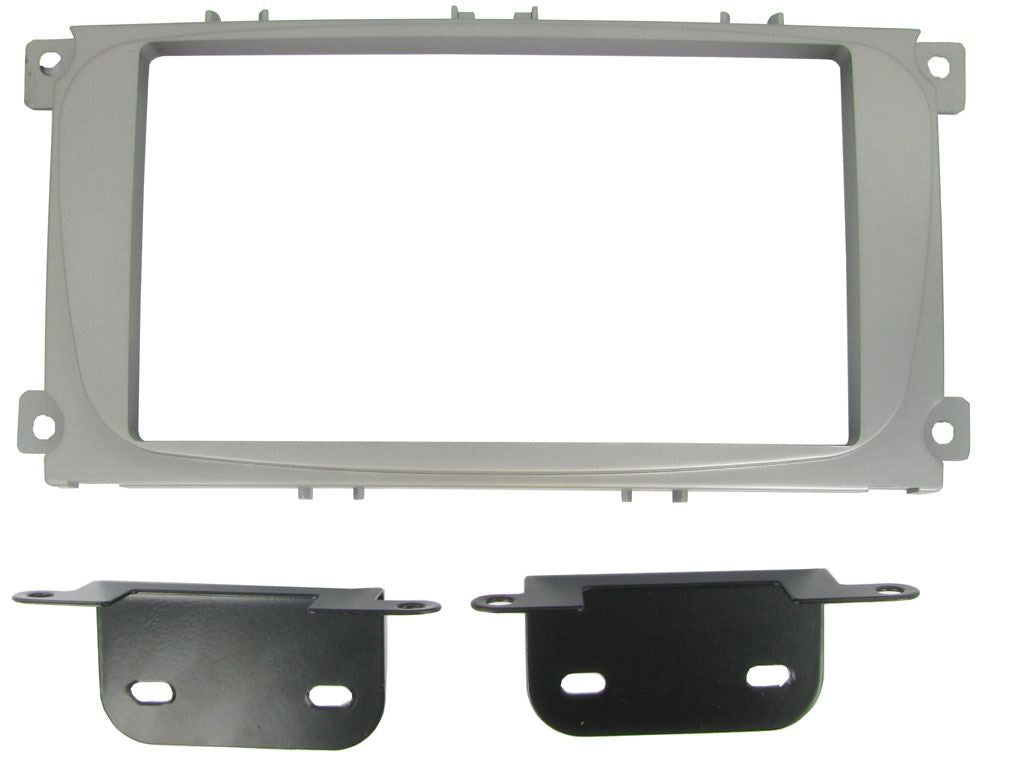

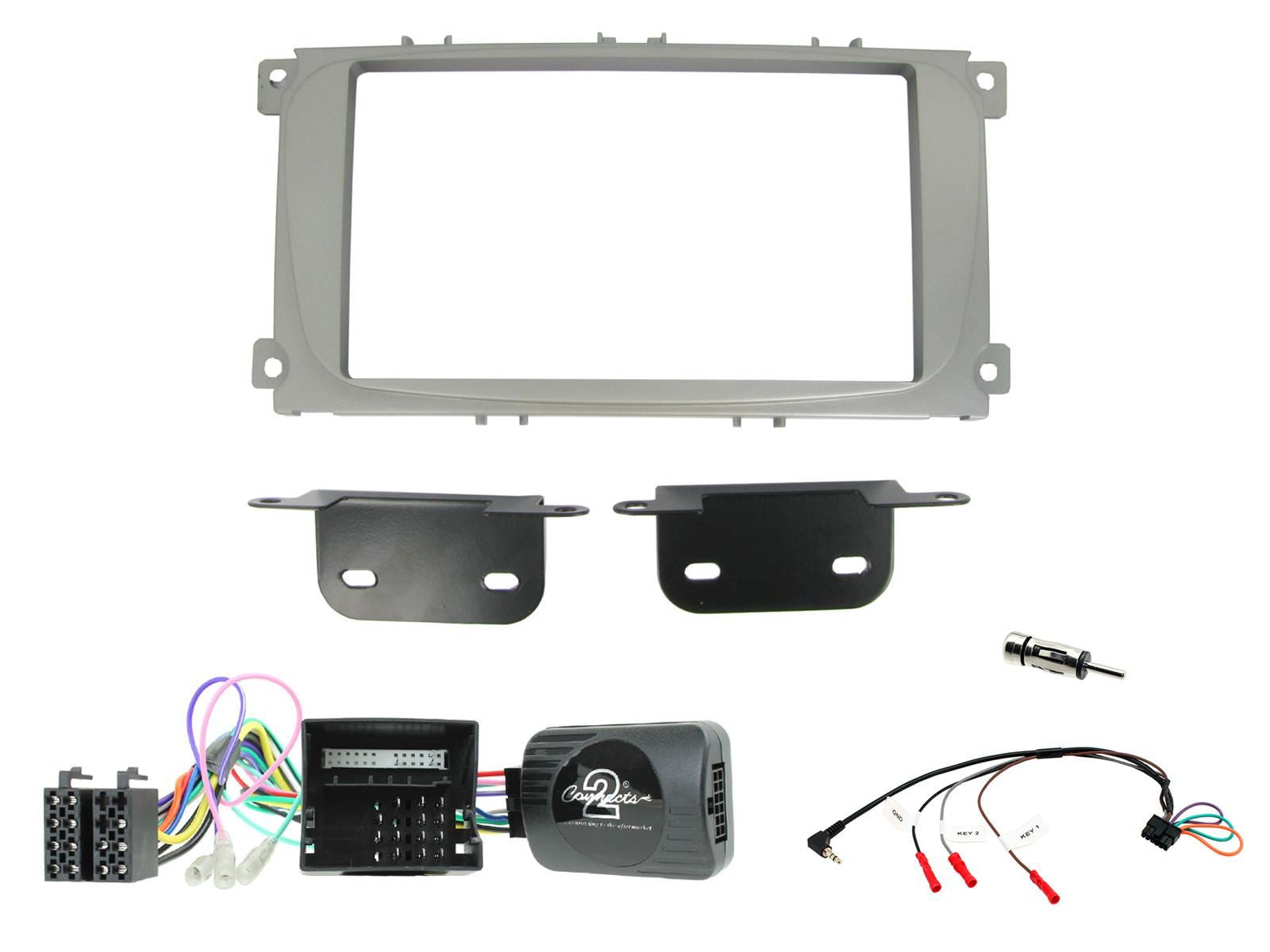

Vehicle specific Ford Installation Kit. Supplied With Silver Double DIN Fascia, CAN-Bus Steering Wheel Control Interface, Antenna Adapter & Universal Patchlead
Features & Benefits
Contains universal patchlead CTMULTILEAD.2
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
To fit the following vehicles:
Ford S-Max 2007 2014 Quadlock (Fakra)
Ford Focus 2007-2011 Quadlock (Fakra)
Ford Mondeo 2007-2014 Quadlock (Fakra)
PLEASE NOTE A DAB AERIAL IS NOT INCLUDED WITH THIS LISTING
Sony XAV-1550D Car Stereo features
Turn or push to control
The ergonomic rotary dial makes operation distraction free. Turn it to control volume, or push the integrated button to launch sound control menus. Alternatively, hold the button to use voice commands.
Hear music your way
Multiple customization options let you adapt the audio experience to your liking. And with the built-in powerful amplification, music sounds clear even at high volumes.
Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.
Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.
Listen to DAB+ radio
Tune into DAB+ radio for even more choice and better audio quality. The receiver picks up your DAB favorites too.
Technical Details
Output Power 55W x4
Pre Out 3 Pre (Front / Rear / Sub x 1)
Aux-In
Rear View Camera in
USB (Front x 1)
Firmware upgradability
DSO (Dynamic Stage Organizer)
Equalizer 10-band Graphic Equalizer
EXTRA BASS (Off / 1 / 2)
Connectivity
Bluetooth®
Tuner Features
Preset DAB18 / FM12 / AM6
Auto Memory BTM
RDS / EON (RDS)
Bluetooth Profile
HFP (1.6)
A2DP (1.3)
AVRCP (1.3)
PBAP (1.1)
Bluetooth Calling Features
Speed Dial (6 memories)
Recent Calls (# of)
Last Dialed Call (select from the dialed call history)
Phonebook Access via PBAP
Alphabetical Phonebook Sorting
Ring Volume Level Control
Call Volume Level Control
External Microphone Supplied
Battery Reminder
Signal Strength Indication
Bluetooth Audio Features
Audio Codec (Bluetooth Audio) SBC / AAC
Pause (Bluetooth Audio)
CUE / REV
TRACK +∕−
Group (Folder) +∕−
Audio Level Adjustment -6dB to +6dB
Repeat Control (Audio Device side)
Shuffle Control (Audio Device side)
Meta Data Indication
Panel Design
Panel Surface Finish Color Black
Key Illumination (White)
Monitor(AVC)
LCD Type TFT Active Matrix
Screen Aspect 16: 9
Screen Diagonal (inch / mm) 6.2 inch
Screen Size (W x H mm) 137.52 x 77.232 (mm)
Resolution (DOT) 800 x 480
Dimmer
Contrast Ratio 600
Brightness 400cd / m2
Display Panel
Key Illumination Initial (White)
Dimmer Adjust
User Interface
Touch Panel / Resistive + AG (Not Multi Touch Compatible)
