Connects2 CTKSZ01 -Suzu Steering Wheel Inteki Grand Vitara 2005 - 2011 Double Din Fascia & Interface Installation Kit
This installation kit is designed to provide everything you need when fitting a replacement stereo. This handy package takes the guesswork out of your cable selection and is carefully configured to work with the vehicle(s) listed.
The steering wheel interface included in this kit connects to a compatible car stereo which MUST have either a 3.5mm jack input connection or a 3 wire input on the back of the new stereos wiring harness labelled for steering wheel controls.
It is designed to work with branded and non branded stereos that have this option.
Please make sure your stereo has this feature on the rear before purchasing this part.
Steering Wheel Control (SWC) Features
Steering Wheel Control interfaces allow plug and play installation of an aftermarket head unit into a vehicle whilst maintaining use of the steering wheel controls.
Mobile Phone Buttons (MPB) Features
Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible aftermarket Bluetooth Head Unit you install.
Fits the following vehicles:
|
Manufacturer
|
Model
|
Note
|
Year From
|
Year To
|
Headunit
|
Connection
|
|
Suzuki
|
Grand-Vitara
|
|
2005
|
2011
|
|
OEM Specific
|

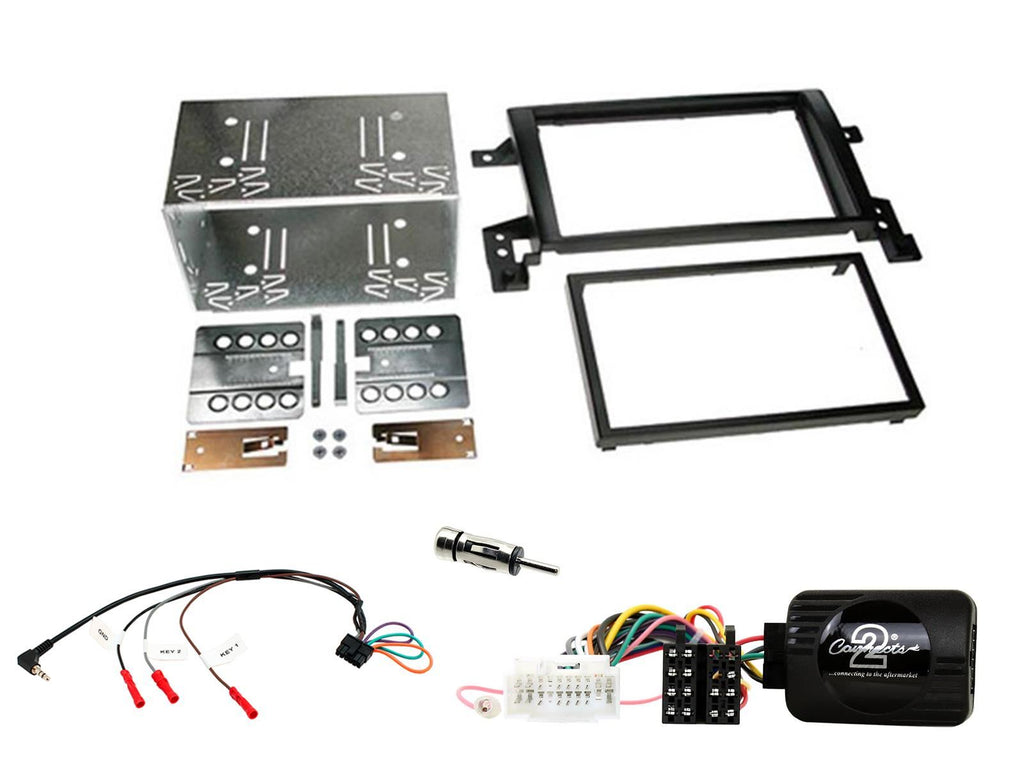

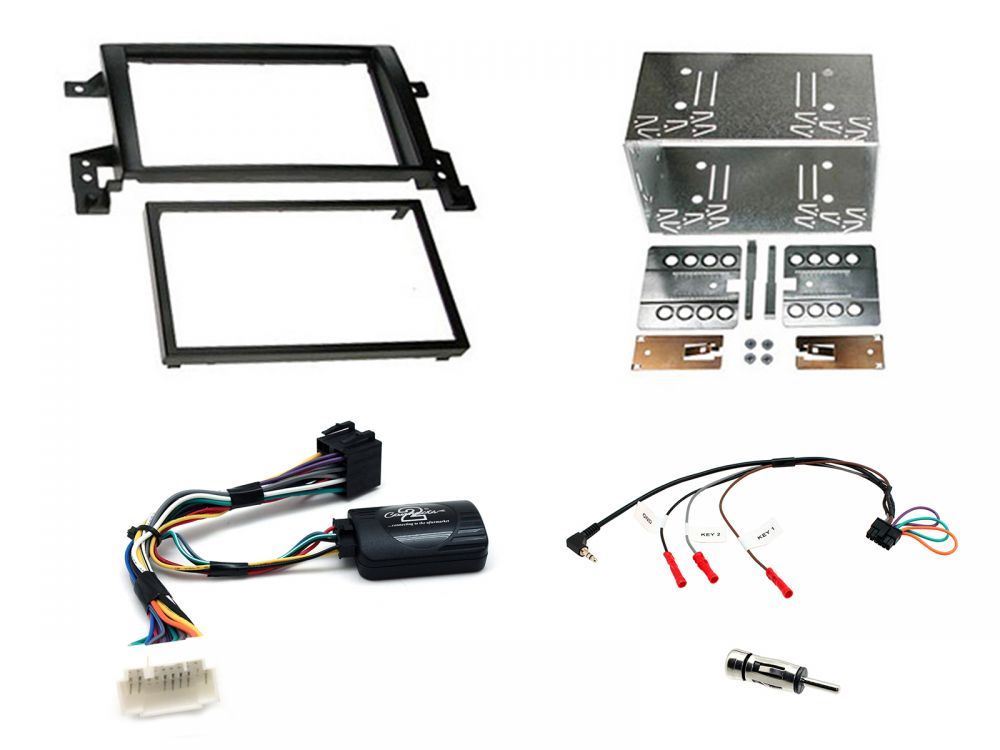

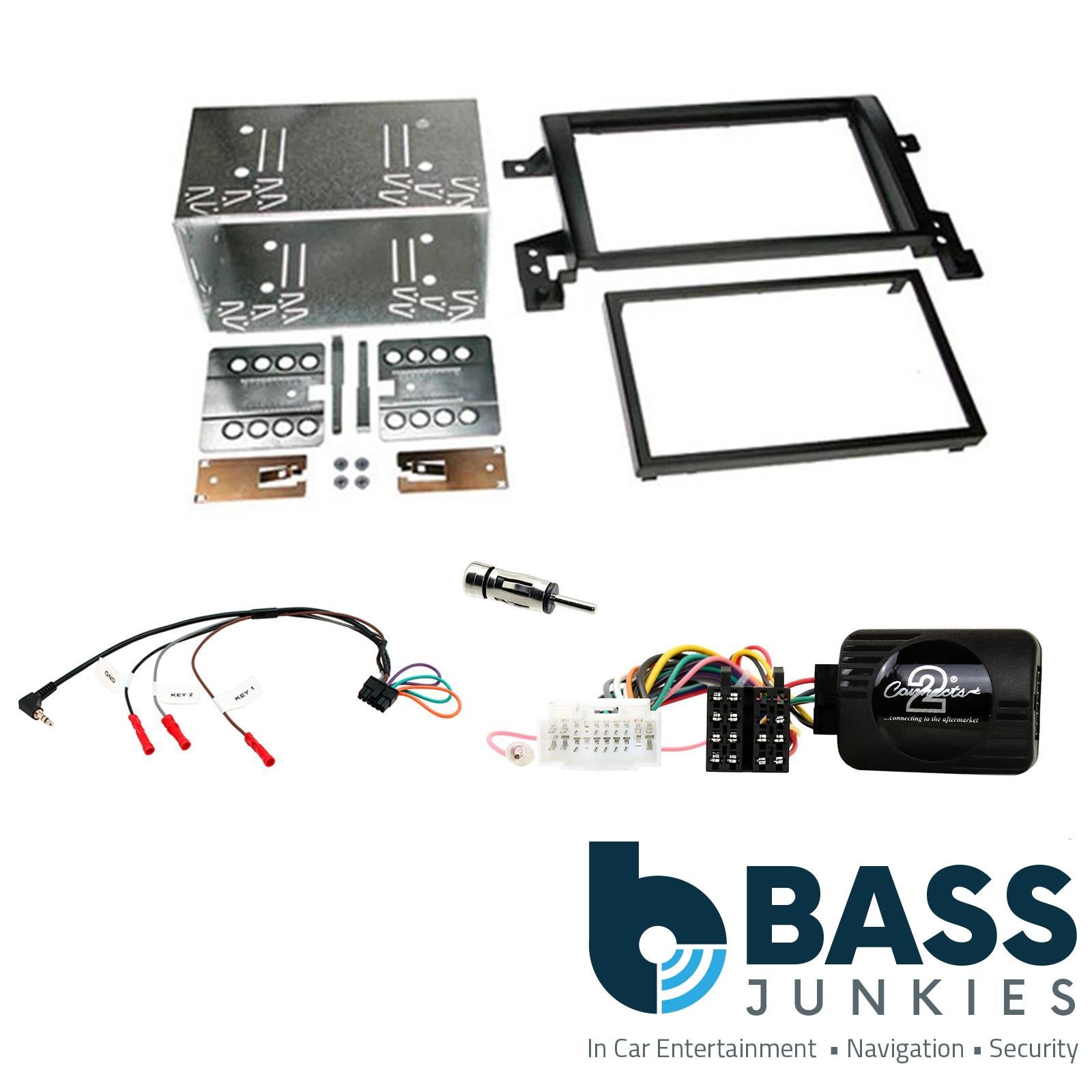

This fitting kit includes the following:

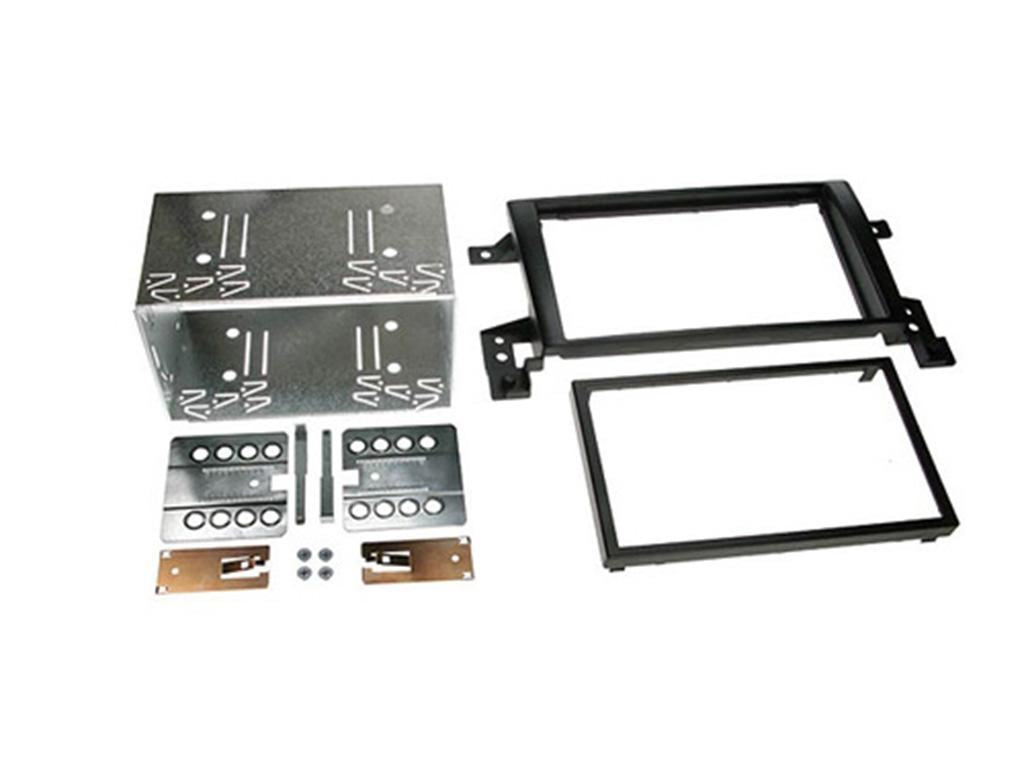

- Double Din fascia/trim

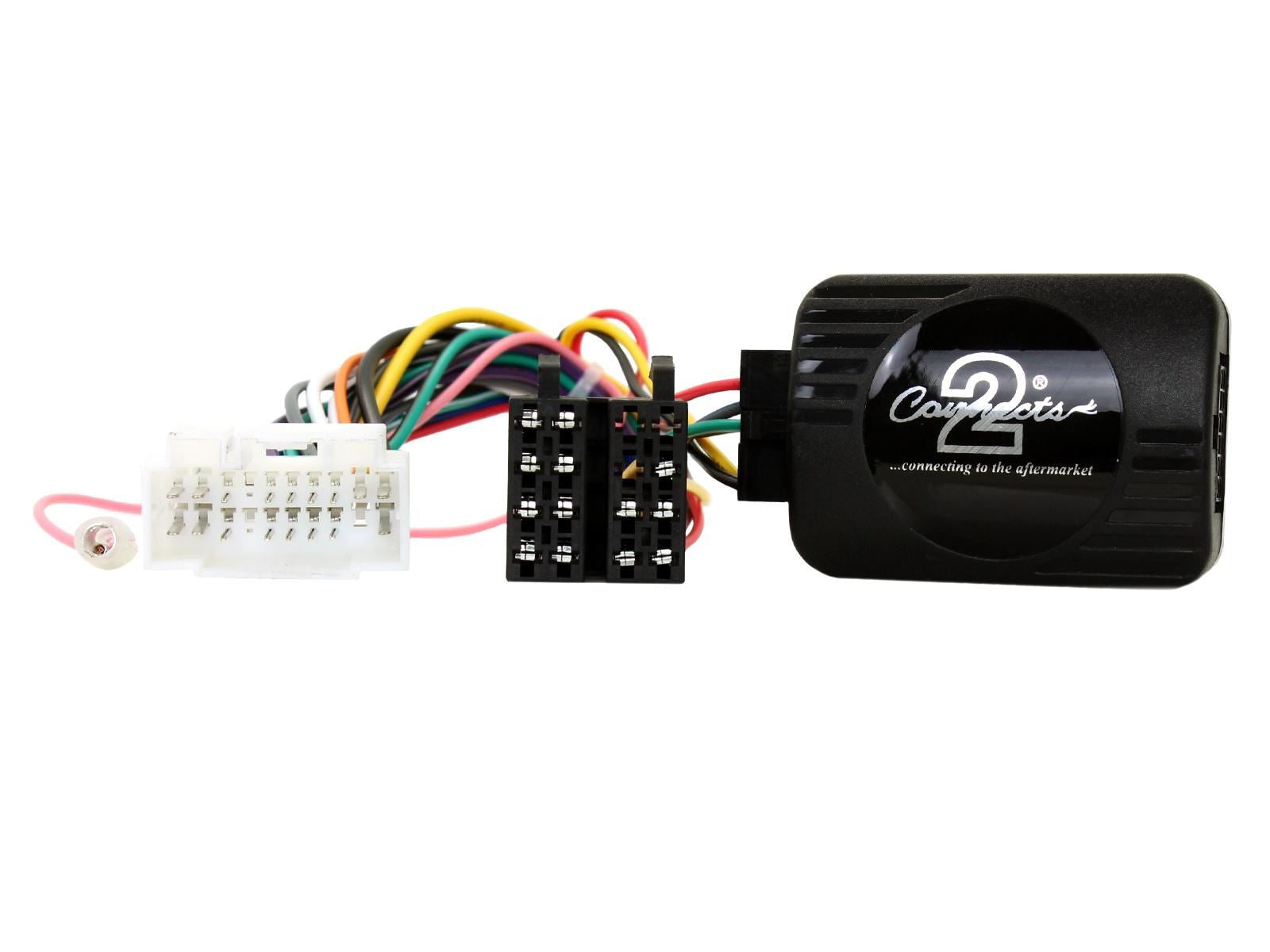

- Steering Wheel Interface
- Patch Lead

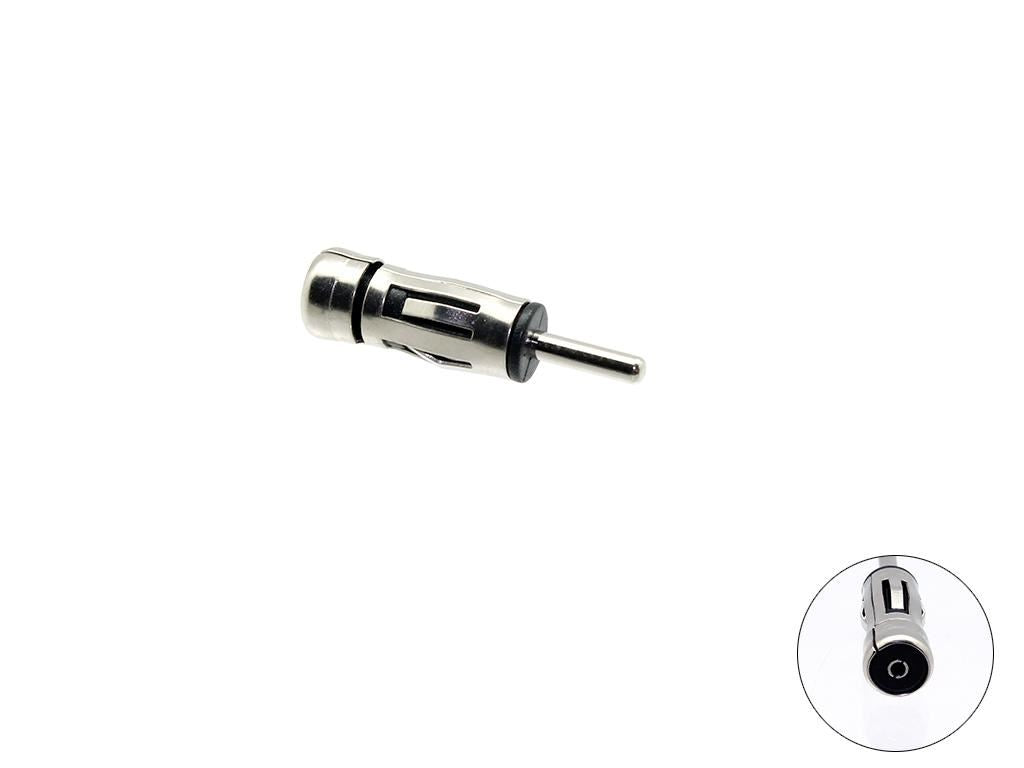

- Aerial Adaptor
Installation tip: If you have a branded EU spec double din radio it will fit our panel but you might not be able to use the metal cage that comes with the radio. If it does not fit you will have to buy a universal cage from us also.
If you are fitting a Chinese non branded unit then you will have to modify the panel slightly and you will more than probably need a universal cage as they are a different size.
