Pioneer 6.5" 600 Watts a Pair Component Kit Car Speakers Fitting Kit & T1-20ACT 900 Watts Underseat Car Subwoofer
THIS KIT IS DESIGNED TO WORK WITH ALL FACTORY AND AFTERMARKET STEREOS

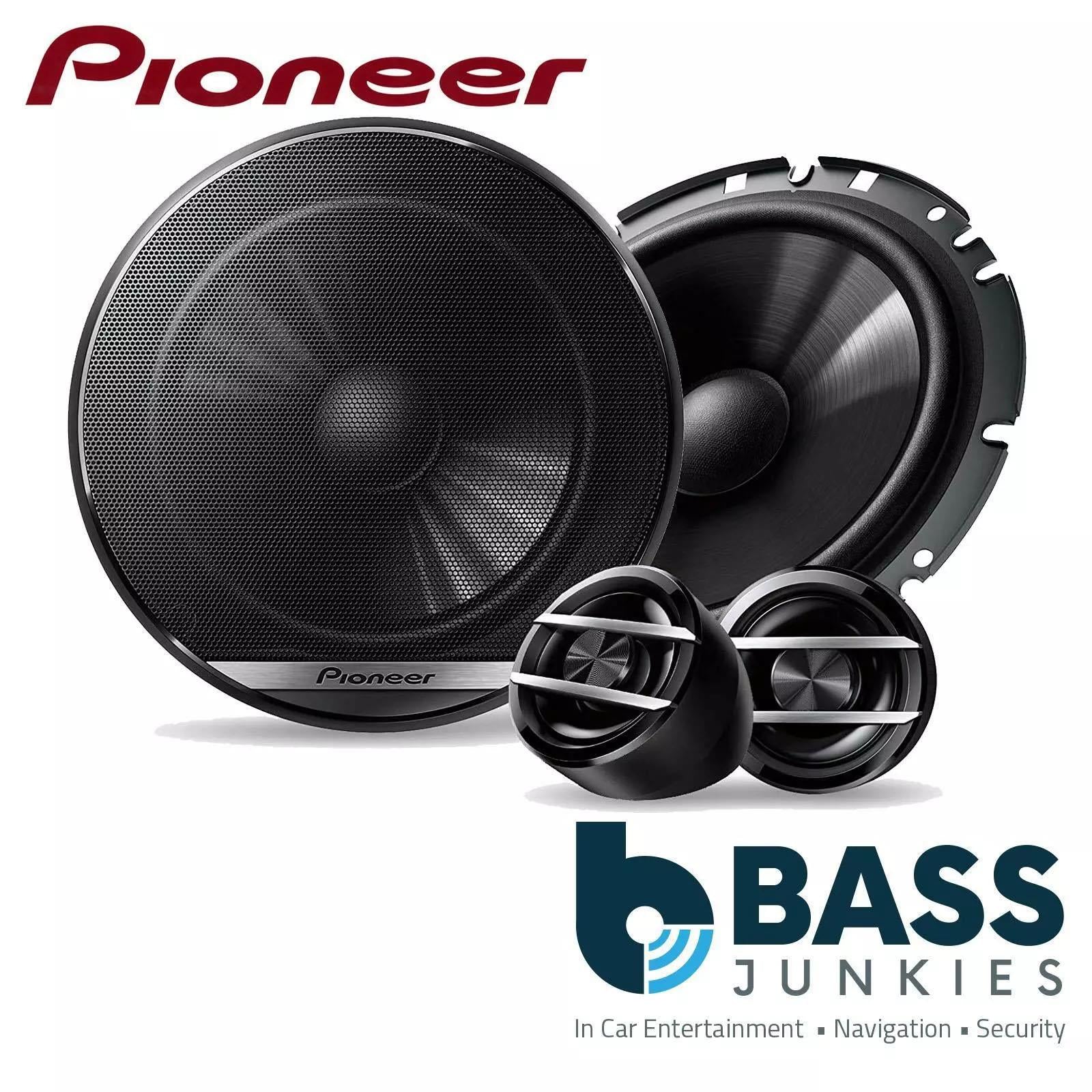

The improved G-series speaker range is specifically developed for premium and powerful audio, with excellent value for money. Their rigid design has been optimised with multi-bolt patterns, making it very easy to install any G-series speaker in your car. Thanks to their increased power handling and high sensitivity performance, these speakers reproduce deep, impactful bass and natural highs – even at high volumes.
Upgrade your in-car sound in a smart and affordable way with the Pioneer . This 17cm 2-way speaker system delivers up to 45 Watts of nominal power and has a maximum power output of 300 Watts each speaker.
It also features IMPP Cone enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.
Pioneer Speaker Features
-
Size 17 cm 6.5" 2 way component
-
300 Watts each speaker
-
600 Watts a Pair
-
Impedance 4 ohm
-
Frequency response 36 - 26,000 Hz
-
Sensitivity 91 dB
-
Lowest resonance frequency 72 Hz
-
Maximum power input 300 W
-
Nominal input power 45 W
-
Woofer material IMPP Composite Cone
-
Tweeter size 30 mm
-
Tweeter material PEI
-
Voice Coil type
-
Copper
-
Voice Coil bobbin type KAPTON
-
Magnets Woofer: Y35
-
Tweeter: Neodymium
-
Weight 0.62 kg
-
Cut-out Hole 144 mm
-
Mounting Depth 49.7 mm
T1-20ACT
Power up your cars with the latest T1 Audio Extra Slim Active Subwoofer. Suitable for those who long for excellent bass output, but require a subwoofer that takes up minimal space in their cars. The compact design makes it easy to install anywhere space is limited. The unit can be installed either under the seat or in the boot area or even behind or under a panel.
This compact active sub from T1 Audio is perfect when space is at a premium. Built from tough ABS plastic and packing an 900 watt 8” driver and a built in amp, everything you need for crisp powerful bass.
No need to worry about matching amps and drivers, just plug in and go. These are also perfect as extra reinforcement for a sub in your boot and fit perfectly under front seats filling your car with bass wherever you’re sitting. Another great deal from T1 Audio at a price you’ll find hard to resist.
Supplied with a subwoofer bass level controller
T1-20ACT Features
- 8" Under Seat Active Subwoofer
- 900 Watts Max Power
- Flat-design with a low-vibration metal body
- MOSFET power amplifier
- High and low level inputs
- Includes Bass Control Remote
- Wiring Kit
Specification
- Adjustable crossover: 50 to 160Hz
- Phase reversal: 0/180
- Adjustable gain
- THD: 0.1%
- SPL sensitivity: 85dB
- Impedance. 4 Ohm
What’s included T1-20ACT :
- T1 Audio Extra Slim Active 8” Subwoofer
- Remote Bass Controller
- Power leads
- Hi Level Input lead
- Instruction Manual
- Fixing brackets
Dimensions:
- W x H x D 230mm x 340mm x 70mm
- Weight: 5kg approx

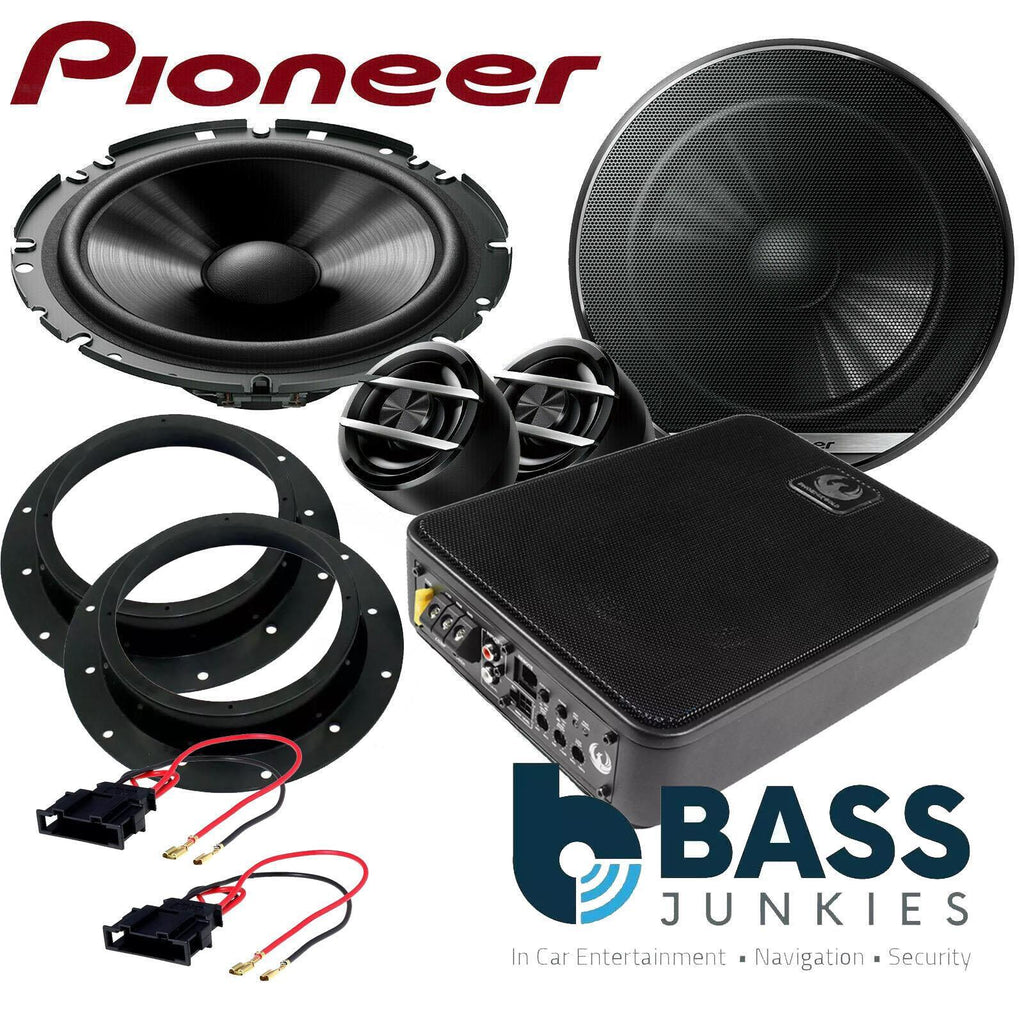

Whats Included In This Kit:
-
1 x Pioneer Speakers (pair)
-
1 x Pioneer Tweeters (pair)
-
1 x T1-20ACT Underseat Subwoofer
-

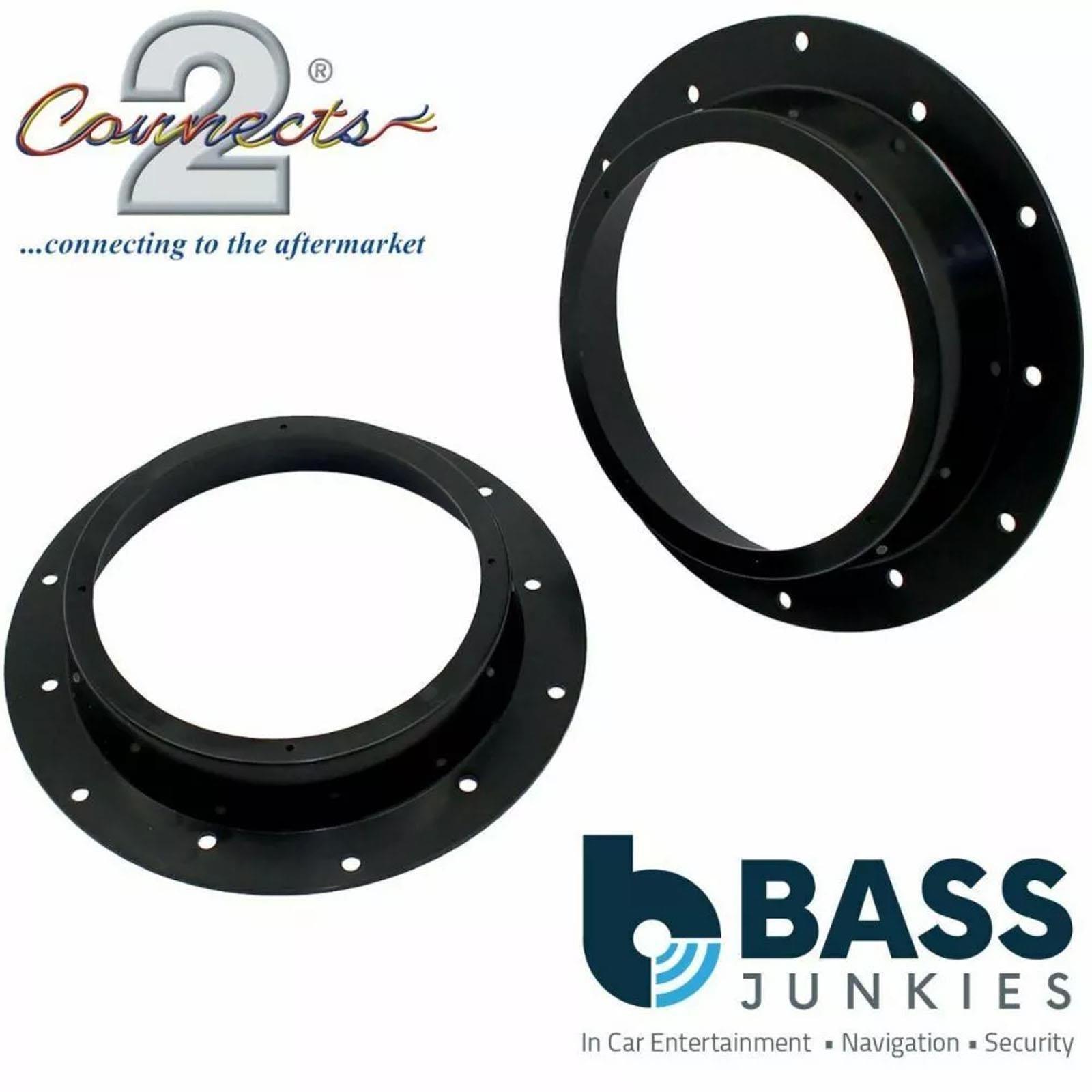

1 x Speaker Brackets (pair)
-

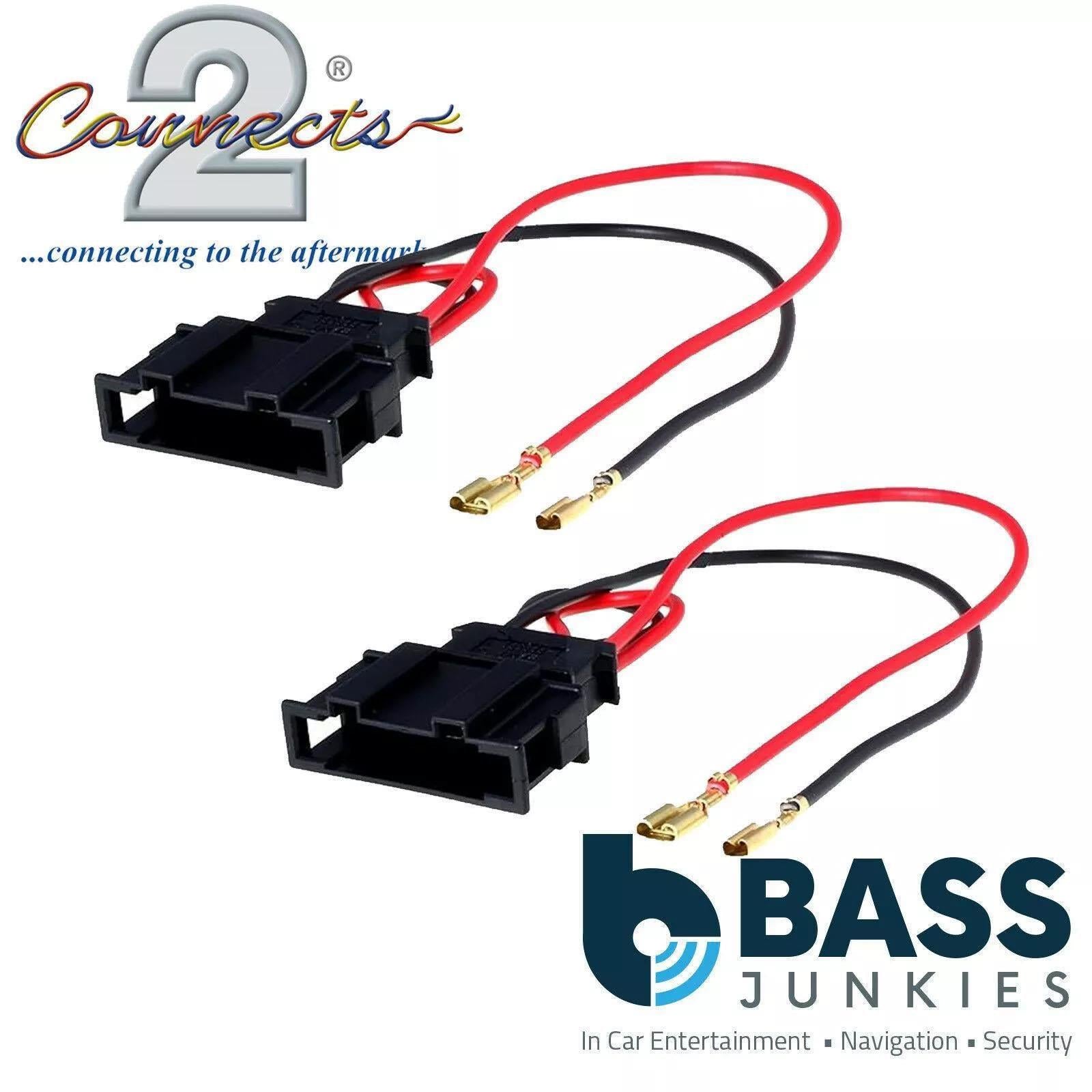

1 x Speaker Wiring (pair)
Installation Notes:
The door speakers will fit your car but for the tweeters you will have to modify the fitting kit supplied to make them fit to the factory tweeter location in your vehicle as they are not a direct fit. Does come with fitting guide to help.
To make your sound enjoyment even better we can supply sound deadening to keep road noise out and your music in. Please see this link to order from us.
You may need some additional wiring for the supplied underseat subwoofer if you want to use a RCA cable from an aftermarket stereo. Please see this link to order from us.
