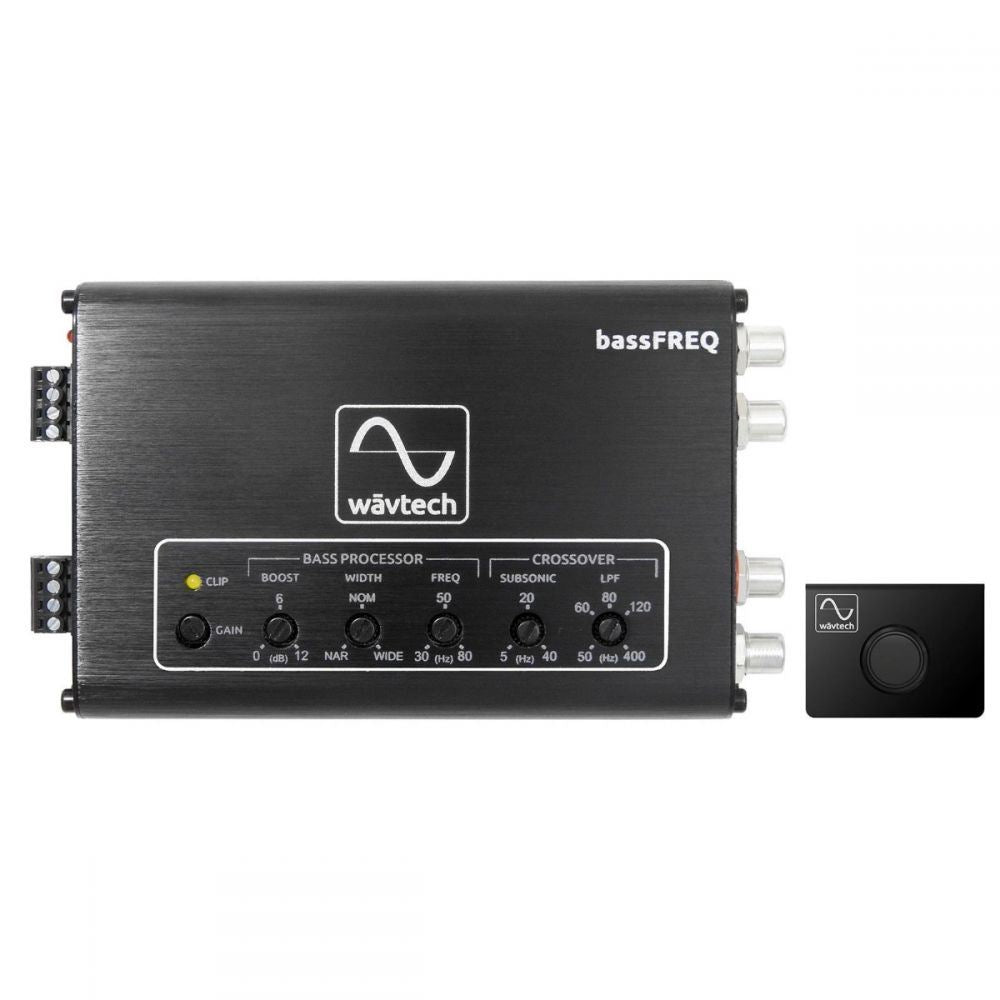

Wavtech bassFREQ Low Frequency RCA Input Bass Processor
You have just added a subwoofer to your system but something just isn’t quite right. Maybe what is needed is a little bit of equalization? It could be that the crossover built into your amplifier doesn’t have a steep enough slope. Maybe you are using a ported enclosure and could really use a subsonic filter? Whatever the issue is, the bassFREQ can help resolve it.
The bassFREQ has RCA inputs but also includes the same class leading LOC as our link series products, so integrating with an OEM system is a snap. There is Parametric Equalization and a 24dB/ octave low pass crossover. A Remote Level Control (RLC) is included.
bassFREQ Features
- 2-Channel Bass processor with Line Driver and Line Output Converter (LOC)
- 12dB/ Octave Parametric Equalizer
- Subsonic Filter
- Low-Pass 24dB/ Octave Crossover
- Auto Turn-On via DC-Offset or Audio Signal Detect
- OEM Load Sensing Capable
- Generated +12V Remote Output
- Low Output Impedance
- Professional Grade Panel Mount RCA’s
- Removable Power and Speaker Terminal Connectors
- Selectable Ground Isolation (Chassis, Isolated, 200 Ohms)
- Remote Level Control (RLC) Included
bassFREQ Specifications
- Output Voltage Max (RCA) >10V RMS
- Output Impedance <60 Ohms
- THD+N <0.01%
- Signal to Noise (S/N) >95dBA
- EQ Frequency 30Hz-80Hz
- Subsonic Filter 5Hz-40Hz
- Low Pass Filter 50Hz-400Hz
