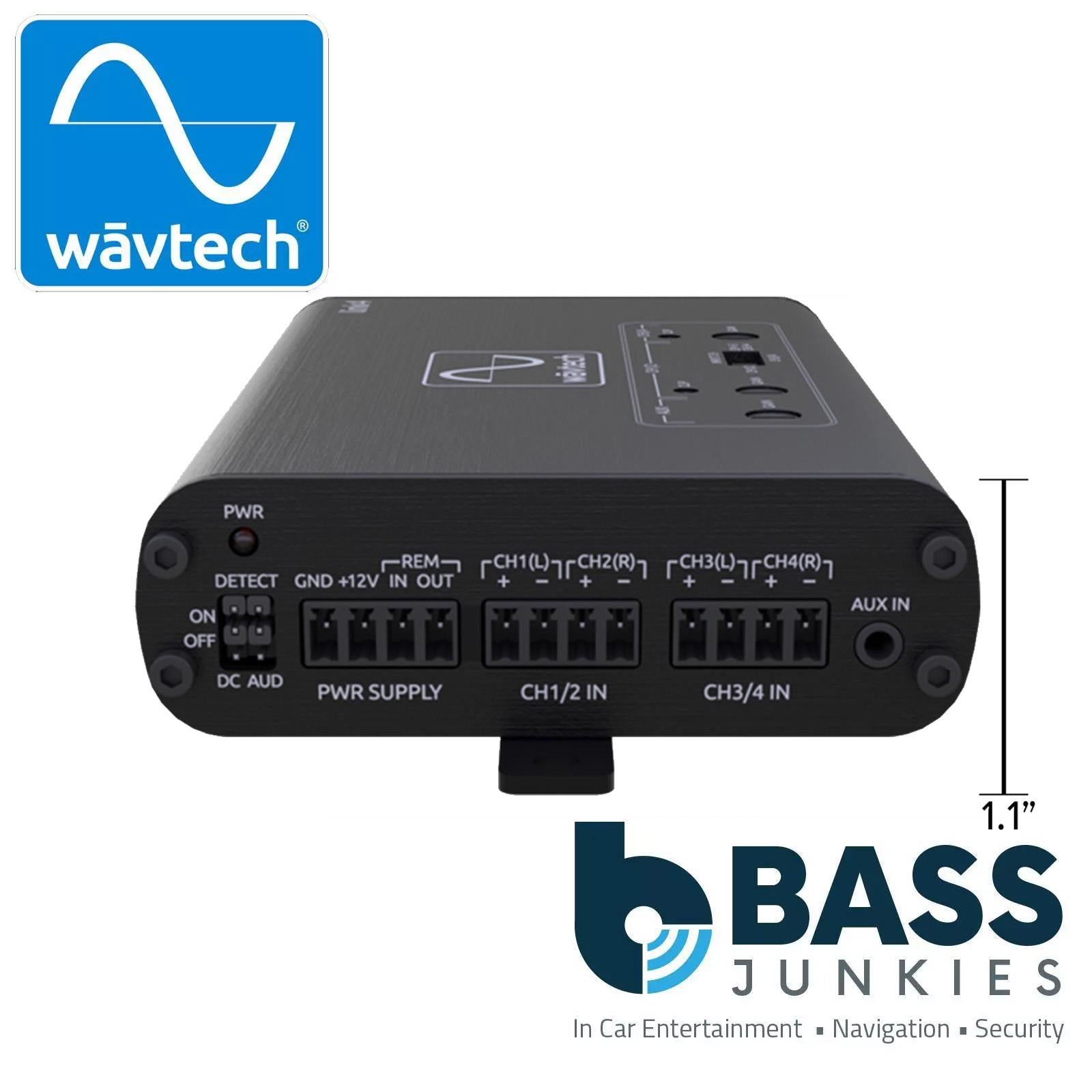

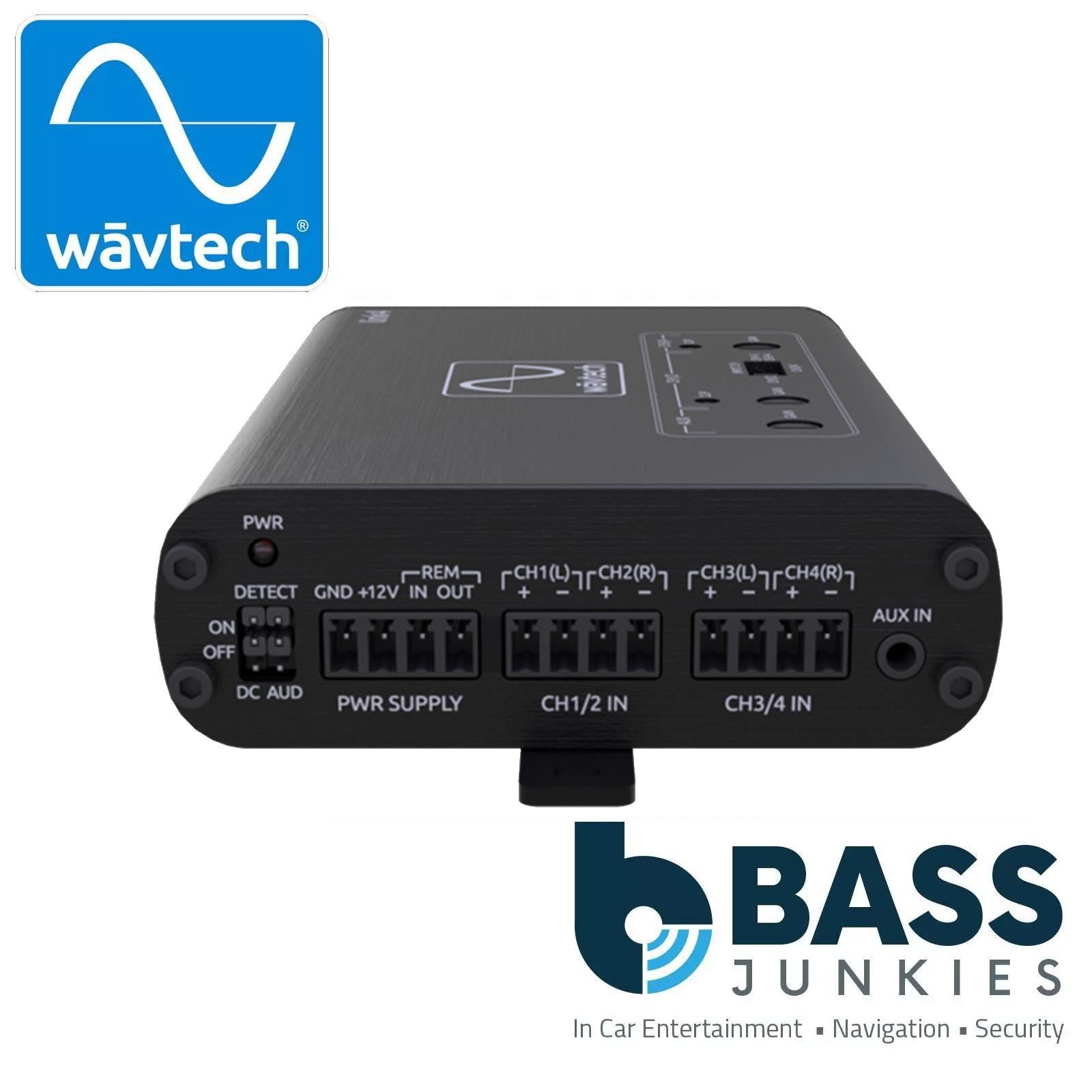

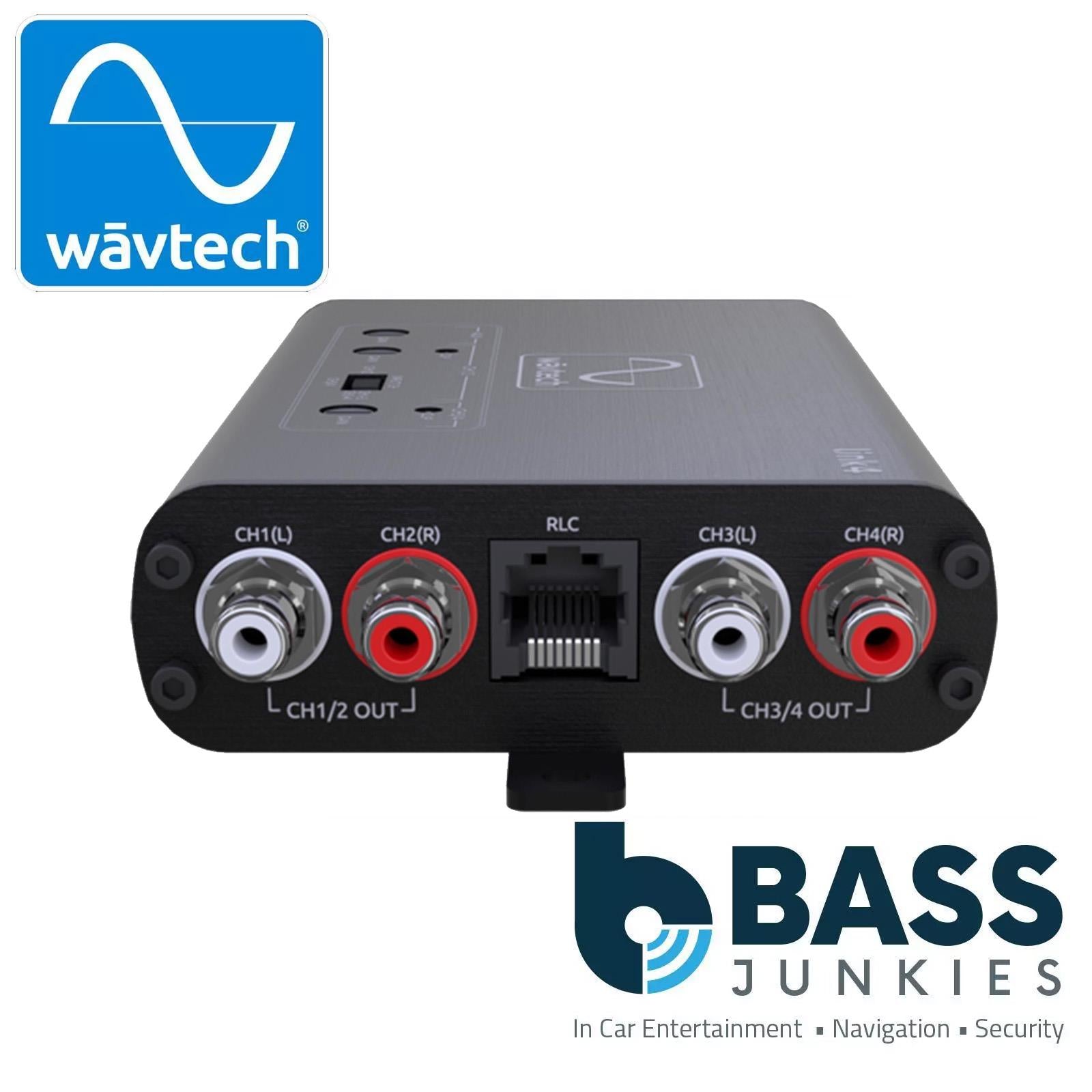

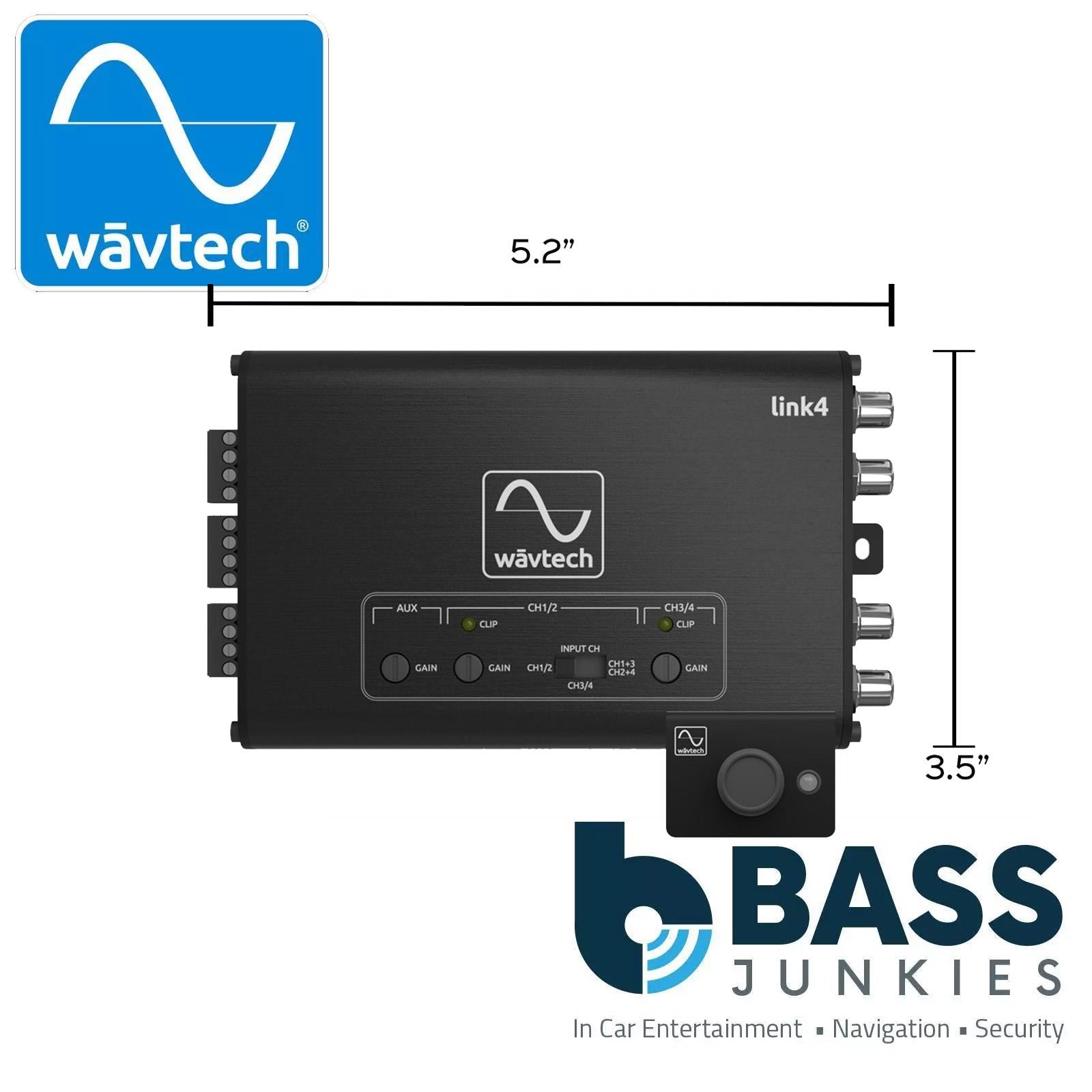

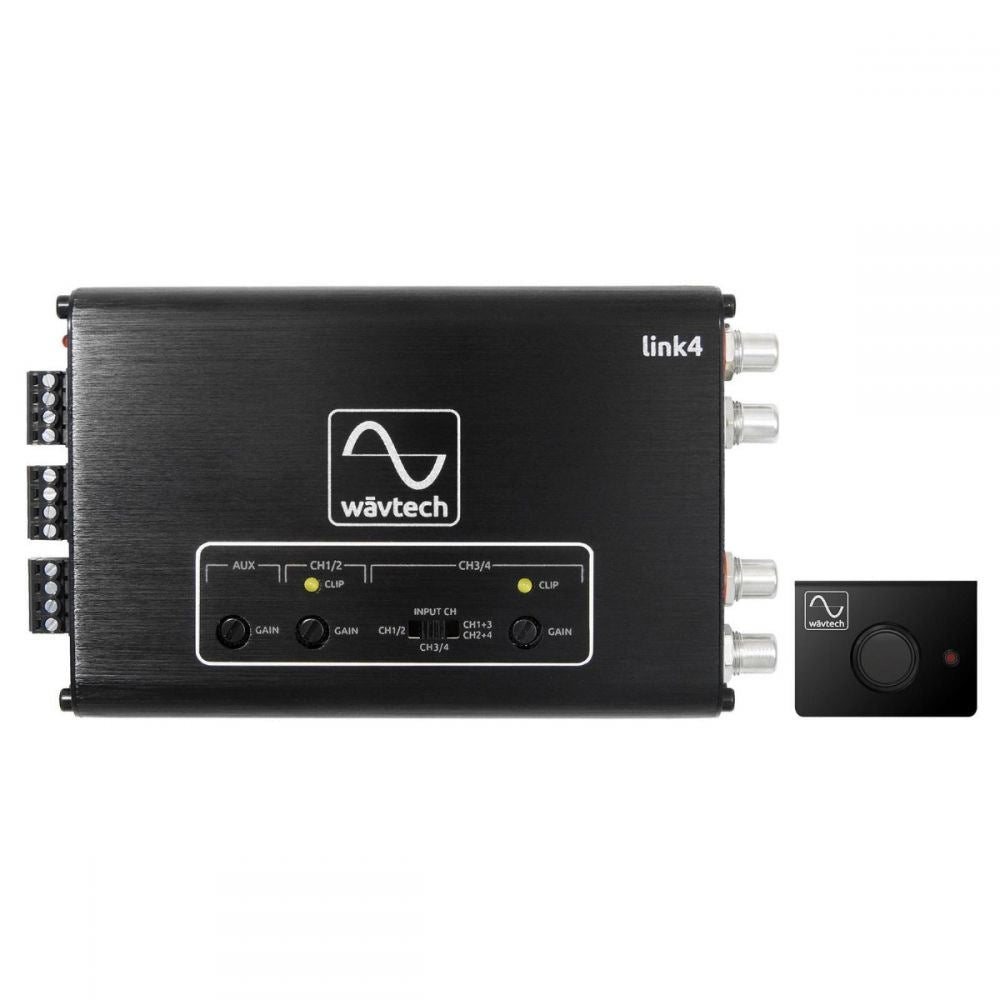

Wavtech LINK4 4 Channel Line Output Converter
When it comes to adding an amplifier or amplifiers to your factory audio system, the link4 does what models from competing brands just can’t. Simply put, it is the most flexible 4-channel LOC available today.
The link4 can directly accept 4-channels of input and give you 4-channels of output. It can accept 2-channels of input and give you 4-channels of output. If you input 4-channels, you can sum them down to 2-channels of output. It even has a 3.5mm Auxiliary Input so you can add your phone or other portable device to the system. No other 4-channel LOC can do all of that.
As an added bonus, it includes our "Patent Pending" Multi-Function Remote Level/ Source Control that can adjust your subwoofers output level, the volume of the auxiliary source or serve as a Master Volume Control for your entire system. This is especially useful in OEM systems where speed sensitive volume or equalization are present.
Link4 Features
- 4-Channel Line Output Converter w/ Summing Capability
- Auxiliary 3.5mm Input for 2nd Source

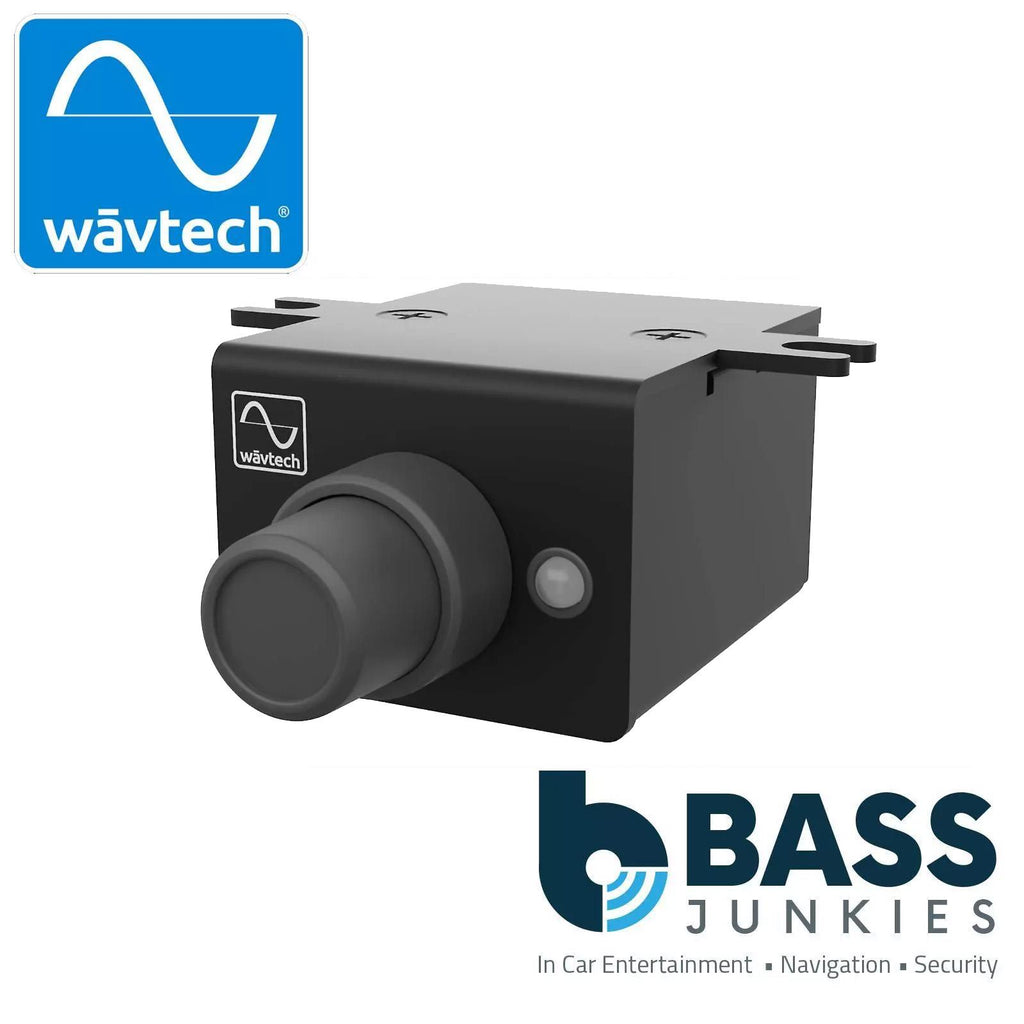

- Multi-Function Remote Level/Source Control
- Master Volume Control
- Ch3/4 Level
- AUX Level
- Function Select
- Auto Turn-On via DC-Offset or Audio Signal Detect
- OEM Load Sensing Capable
- Generated +12V Remote Output
- Low Output Impedance
- Professional Grade Panel Mount RCA’s
- Removable Power and Speaker Terminal Connectors
- Selectable Ground Isolation (Chassis, Isolated, 200 Ohms)
- Multi-Function Remote Level Control (RLC) Included
Link4 Specifications
- Output Voltage (RCA) >10V RMS
- Output Impedance <60 Ohms
- THD+N <0.01%
- Signal to Noise (S/N) >95dBA
