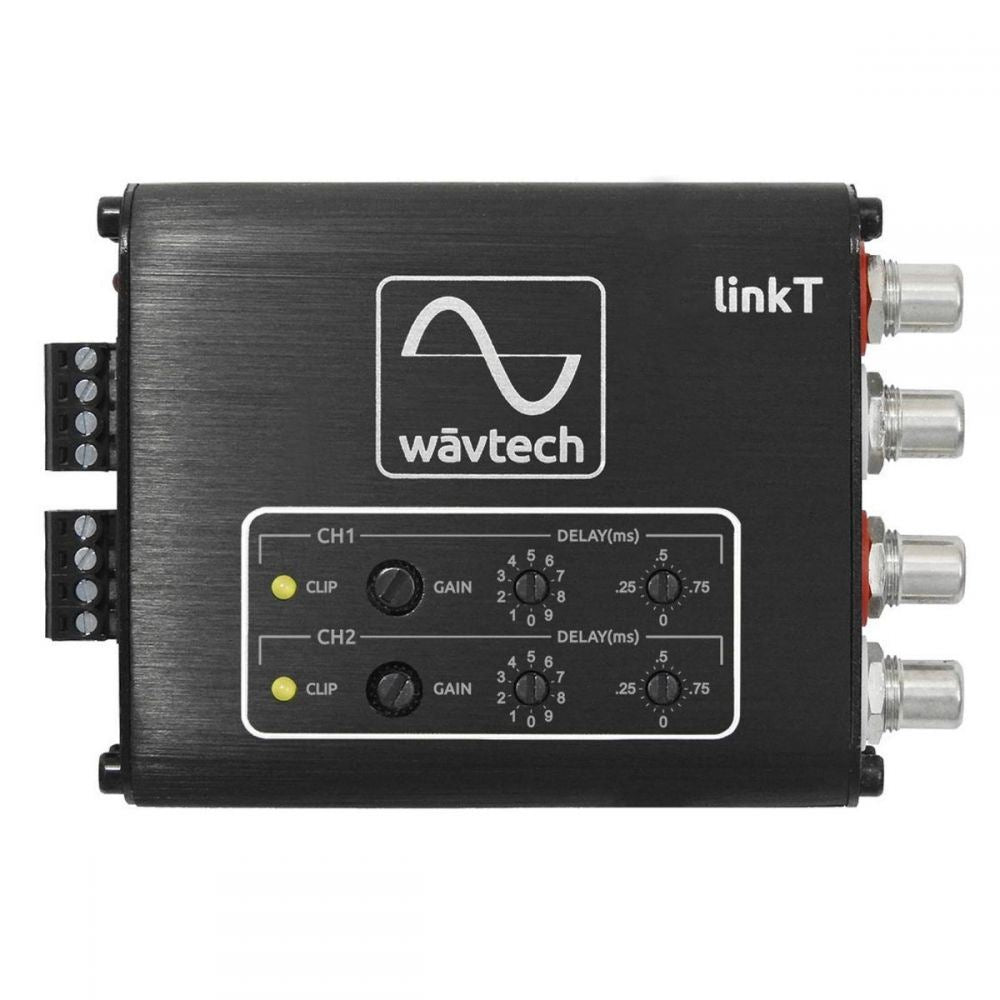

Wavtech LINKT 2 Channel Car Line Driver Output Converter
You've just installed a new audio system, but something isn't quite right. No matter how hard you try, you just can’t get the image positioned where you want it. Another common problem occurs in systems with multiple subwoofers, powered by multiple amplifiers. Issues with phasing can create a loss in bass output.
Our "Patent Pending" linkT provides a simple solution to these dilemmas. Using DSP Time Alignment technology, each dial represents a digit in the range of milliseconds (ms) of delay available. All dials in the maximum position equal 9.95ms of delay. The minimum increment of adjustment is .0625ms. 1 ms is equal to approximately 13.5in (0.34m). If all this sounds confusing, don't worry. It simply means you can control the time when the sound reaches your ears, so that any sound stage imaging or subwoofer phase problems are corrected.
LINKT Features:
- 2-Channel Digital Time Alignment Processor
- 2-Channel Line Driver or Line Output Converter (LOC)
- Differential Balanced Inputs
- Low Output Impedance
- Independent Variable Gains with Clip LEDs
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible
- Selectable Ground Isolation
- Professional Grade Panel Mount RCA’s
- Detachable Power and Speaker Terminals
- Aluminum Chassis w/Detachable Mounting Tabs
LINKT Specifications:
- Output Voltage >10V RMS
- Output Impedance <50Ω
- Input Sensitivity (SPK/RCA) 2-20Vrms /0.5-5Vrms
- Max Input Voltage (SPK) 40Vrms (<5s peak)
- Frequency Response <10Hz to >44KHz
- THD+N (SPK /RCA) <0.1% /<0.05%
- Signal to Noise (S/N) >95dBA />95dBA
- Time Delay Range 0 to 9.94ms (11.2ft/3.4m)
- Time Delay Increments 0.0625ms (0.85in/2.1 cm), 1ms (13.5in/34.3cm)
- Generated +12V Output >500mA
