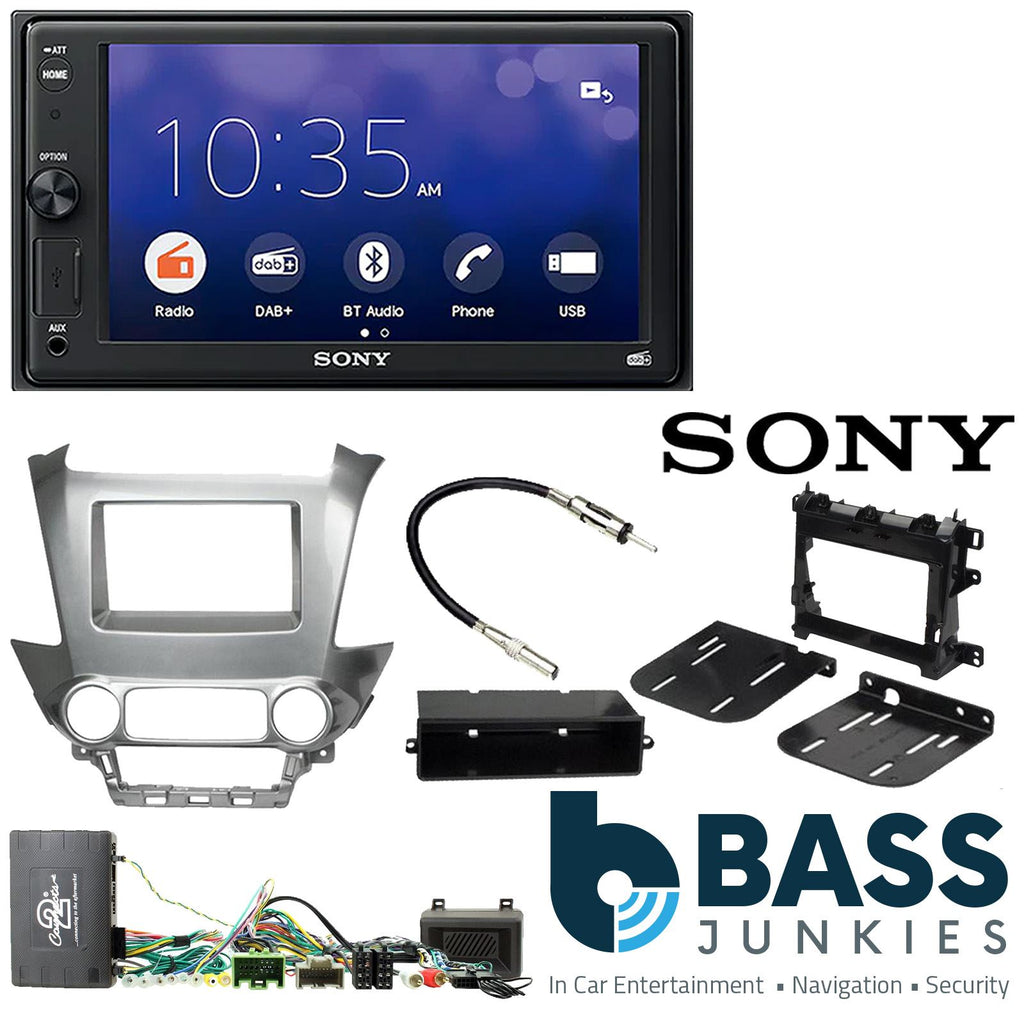

SONY DAB+ Smart Bluetooth Double Din Stereo Fitting Kit + Steering Wheel Stalk Controls to fit Chevrolet Suburban 14- | Chevrolet Tahoe 14- | GMC Yukon 14-

Sony XAV-1550D Car Stereo 6.2" Touch Screen Double Din Bluetooth | USB | DAB+ Radio | FM Radio | WebLink Cast mirrors your smartphone contents | Rear-view camera ready | Anti-Glare Screen | Extra Bass

Stereo Information:
PLEASE NOTE A DAB AERIAL IS NOT INCLUDED WITH THIS LISTING

Sony XAV-1550D Car Stereo features
Turn or push to control
The ergonomic rotary dial makes operation distraction free. Turn it to control volume, or push the integrated button to launch sound control menus. Alternatively, hold the button to use voice commands.
Hear music your way
Multiple customization options let you adapt the audio experience to your liking. And with the built-in powerful amplification, music sounds clear even at high volumes.
Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.
Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.
Listen to DAB+ radio
Tune into DAB+ radio for even more choice and better audio quality. The receiver picks up your DAB favorites too.

Technical Details
• Output Power 55W x4
• Pre Out 3 Pre (Front / Rear / Sub x 1)
• Aux-In
• Rear View Camera in
• USB (Front x 1)
• Firmware upgradability
• DSO (Dynamic Stage Organizer)
• Equalizer 10-band Graphic Equalizer
• EXTRA BASS (Off / 1 / 2)

Connectivity
• Bluetooth®

Tuner Features
• Preset DAB18 / FM12 / AM6
• Auto Memory BTM
• RDS / EON (RDS)

Bluetooth Profile
• HFP (1.6)
• A2DP (1.3)
• AVRCP (1.3)
• PBAP (1.1)

Bluetooth Calling Features
• Speed Dial (6 memories)
• Recent Calls (# of)
• Last Dialed Call (select from the dialed call history)
• Phonebook Access via PBAP
• Alphabetical Phonebook Sorting
• Ring Volume Level Control
• Call Volume Level Control
• External Microphone Supplied
• Battery Reminder
• Signal Strength Indication

Bluetooth Audio Features
• Audio Codec (Bluetooth Audio) SBC / AAC
• Pause (Bluetooth Audio)
• CUE / REV
• TRACK +∕−
• Group (Folder) +∕−
• Audio Level Adjustment -6dB to +6dB
• Repeat Control (Audio Device side)
• Shuffle Control (Audio Device side)
• Meta Data Indication

Panel Design
• Panel Surface Finish Color Black
• Key Illumination (White)
• Monitor(AVC)
• LCD Type TFT Active Matrix
• Screen Aspect 16: 9
• Screen Diagonal (inch / mm) 6.2 inch
• Screen Size (W x H mm) 137.52 x 77.232 (mm)
• Resolution (DOT) 800 x 480
• Dimmer
• Contrast Ratio 600
• Brightness 400cd / m2
• Display Panel
• Key Illumination Initial (White)
• Dimmer Adjust
• User Interface
• Touch Panel / Resistive + AG (Not Multi Touch Compatible)
• Gesture Command
• Parking Control
• Parking Line Adjust
• Aspect Ratio Select
• Rear View Camera-In Marker Setting

Fitting Kit Information:

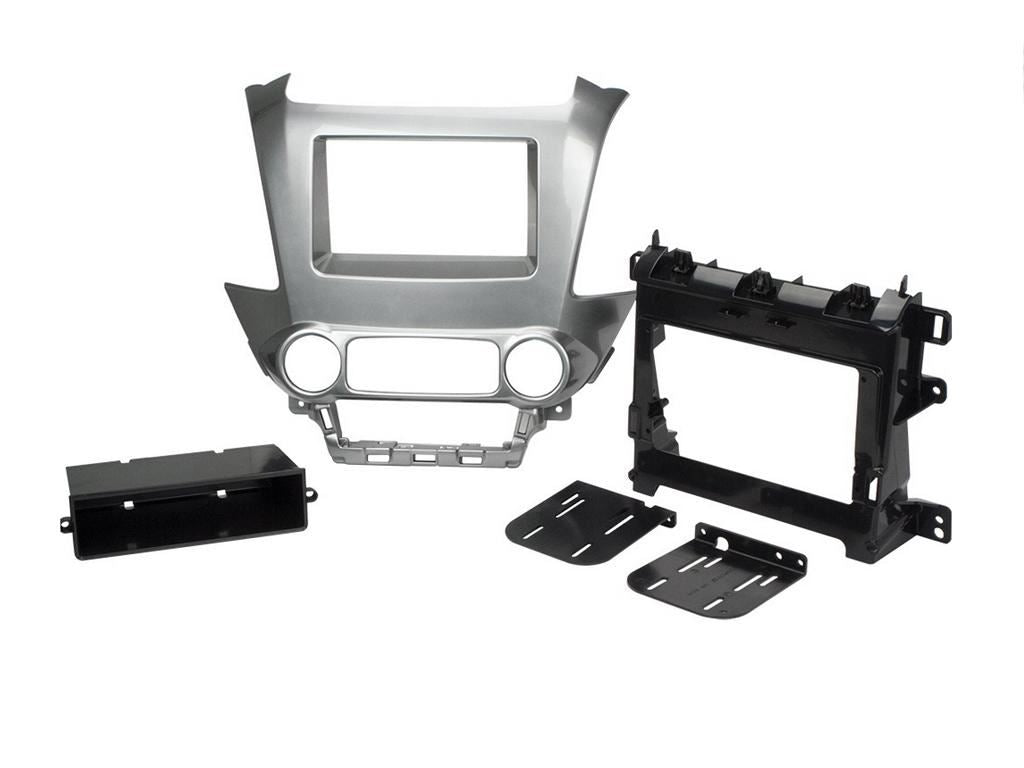

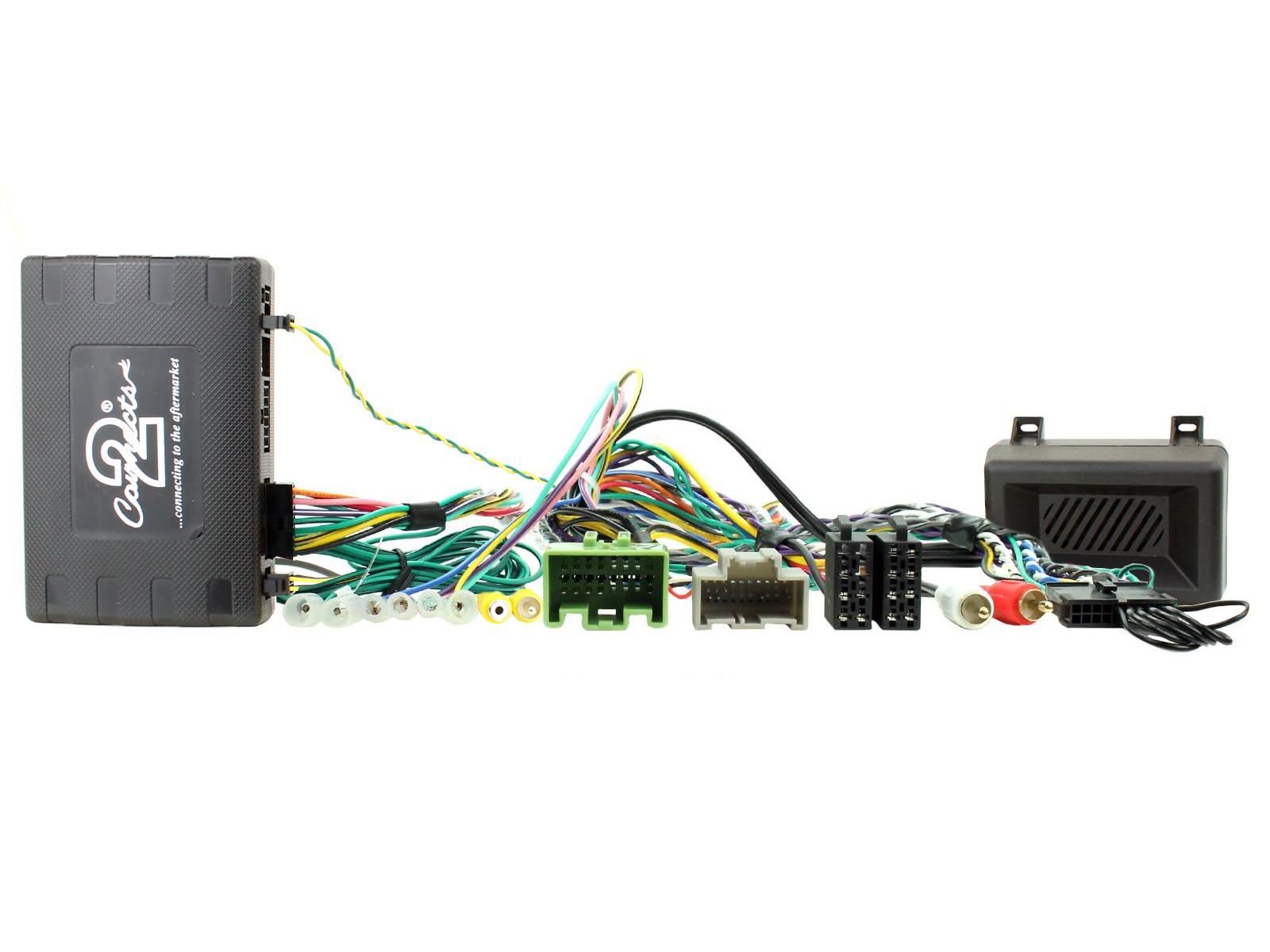

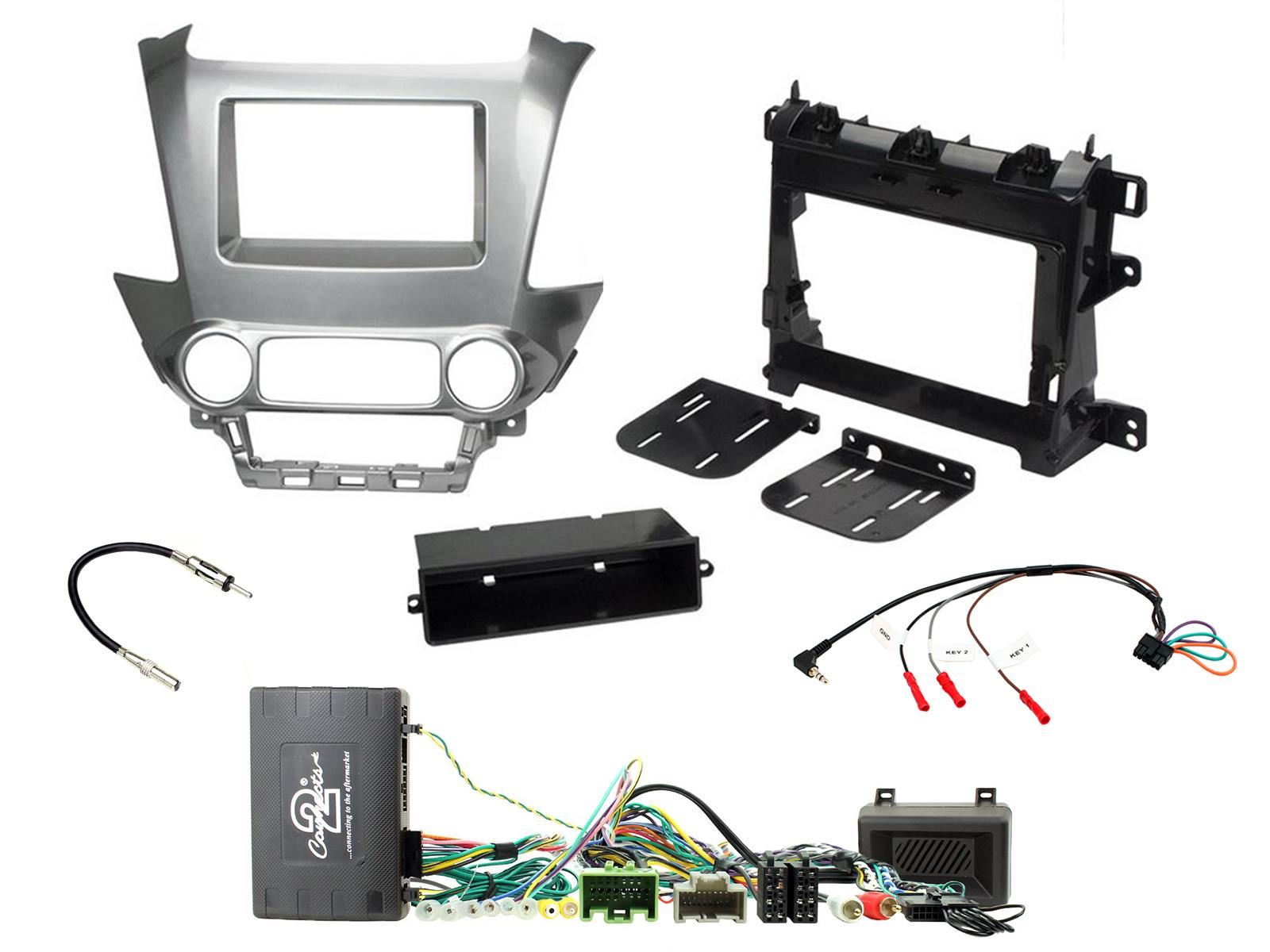

Chevrolet Installation Kit. Supplied with double DIN fascia kit, Infodapter and universal patchlead. The Infodapter interface retains on board vehicle settings, optical parking sensor display & climate control visualization. Note: in order to retain the OEM On-Star audio, the CTUCV02-OS (sold separately) must be used with this interface.

Features & Benefits
• This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

This kit is designed to fit the following vehicles:
• Chevrolet Suburban 2014-2020 Connection:OEM Specific
• Chevrolet Tahoe 2014-2020 Connection: OEM Specific
• GMC Yukon 2014-2020 Connection: OEM Specific

What you will receive when you purchase this listing:
Sony XAV-1550D
Fitting Frame
ISO connector
Warranty Card
Instruction Manual
Vehicle specific fitting kit which fits vehicles listed above.

DISCLAIMER:
Please check the plugs and connections in our picture matches the plugs and connections in your vehicle before you make your purchase. If unsure please message us with pictures of the plugs and connections so we can advise further.
