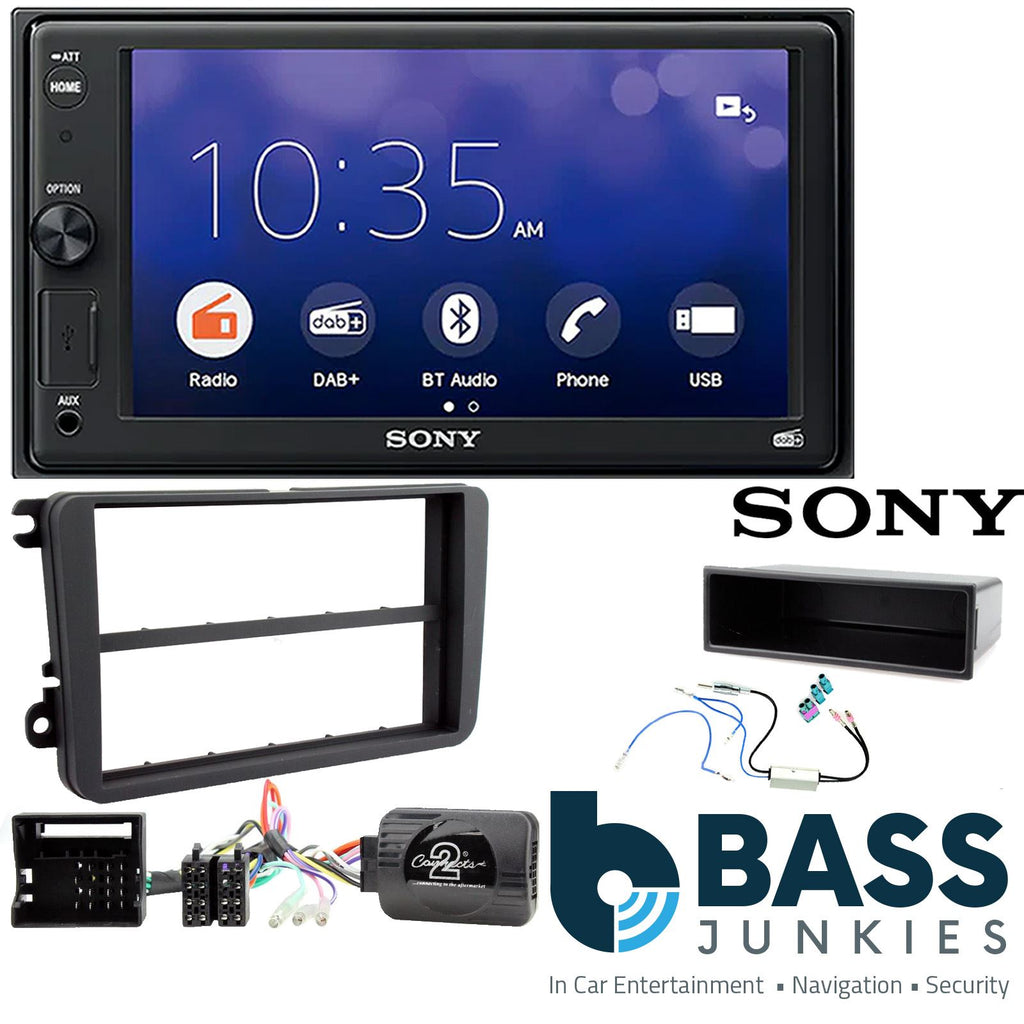

Sony XAV-1550D 6.2" Mechless Bluetooth DAB Media Receiver with WebLink 2.0 Cast + Vehicle specific double din stereo fitting kit (to retain stalk controls)
What you will receive when you purchase this listing:
- Sony XAV-1550
- Fitting Frame
- ISO connector
- Warranty Card
- Instruction Manual

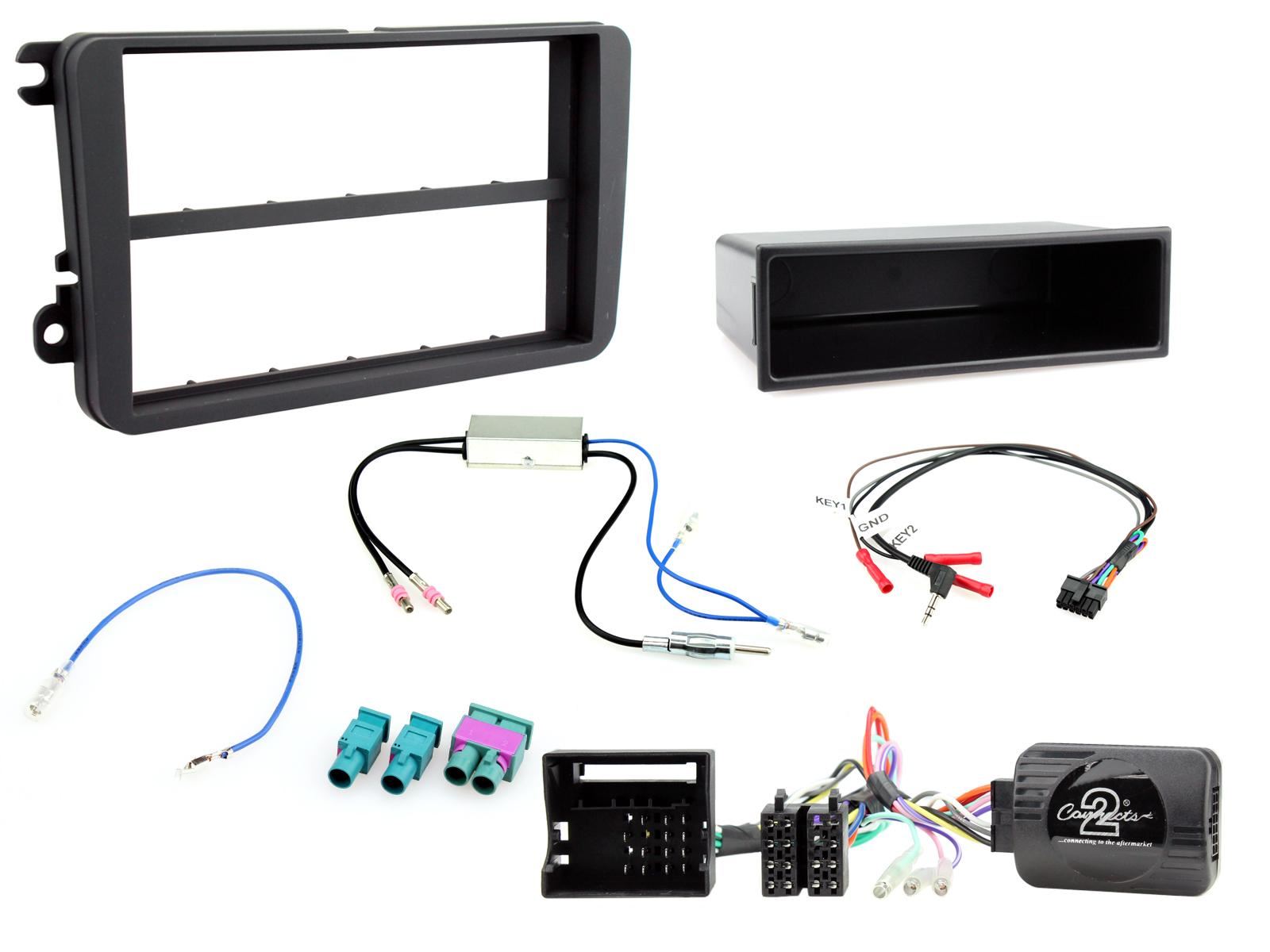

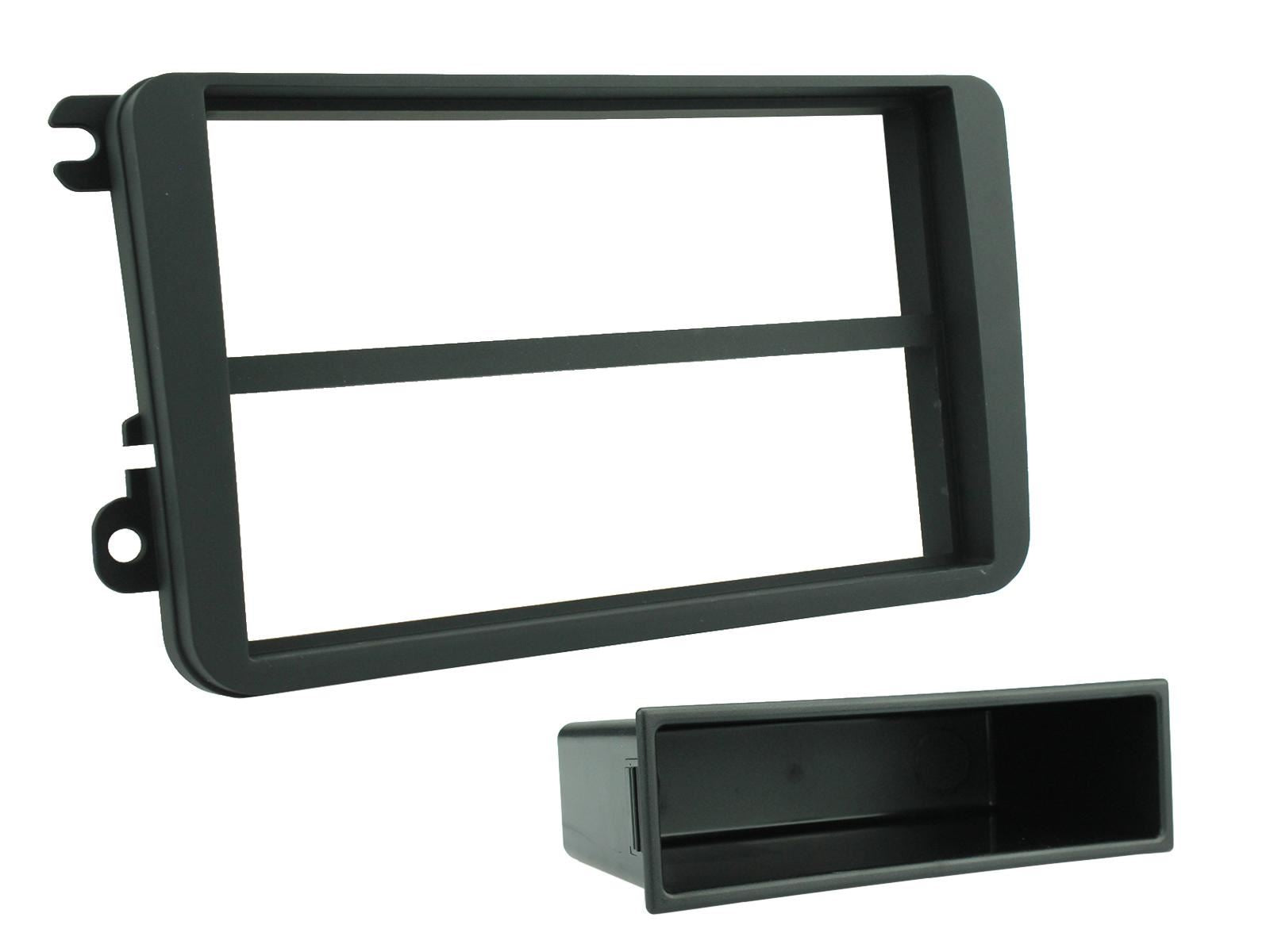

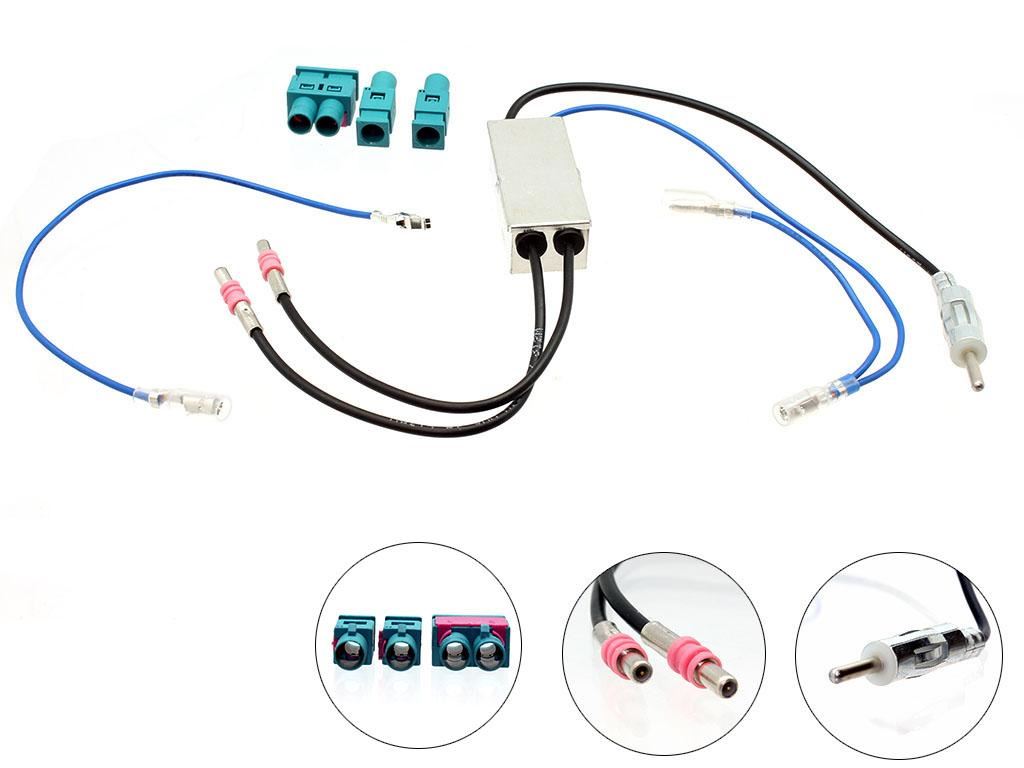

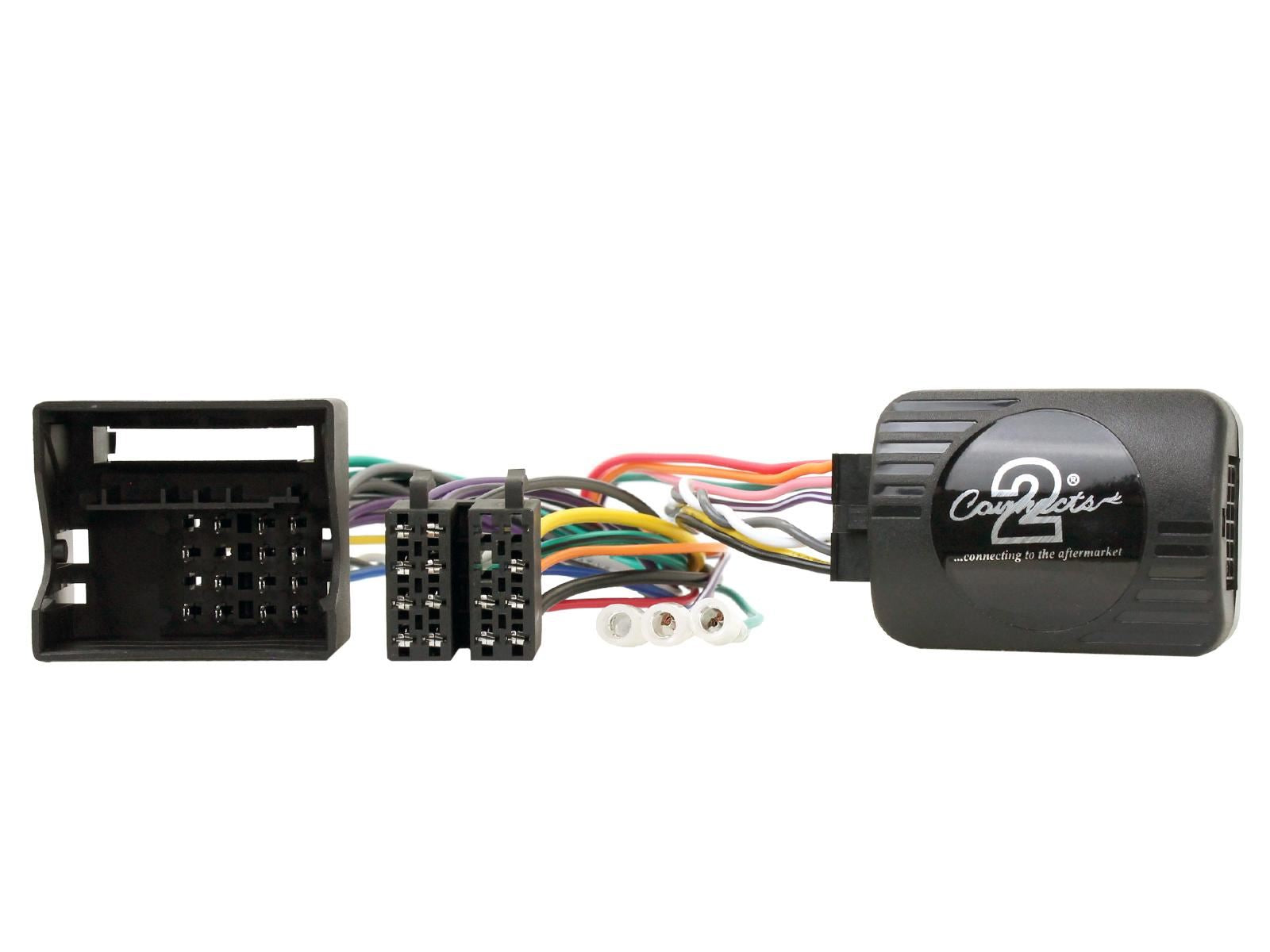

Vehicle specific Volkswagen Passat Installation Kit. Supplied With Black Single/Double DIN Fascia, CAN-Bus Steering Wheel Control Interface, FAKRA Antenna Adapter & Universal Patchlead
Features & Benefits
- Contains universal patchlead CTMULTILEAD.2
- This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
PLEASE NOTE A DAB AERIAL IS NOT INCLUDED WITH THIS LISTING
Sony XAV-1550D Car Stereo featuresTurn or push to control
The ergonomic rotary dial makes operation distraction free. Turn it to control volume, or push the integrated button to launch sound control menus. Alternatively, hold the button to use voice commands.
Hear music your way
Multiple customization options let you adapt the audio experience to your liking. And with the built-in powerful amplification, music sounds clear even at high volumes.
Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.
Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.
Listen to DAB+ radio
Tune into DAB+ radio for even more choice and better audio quality. The receiver picks up your DAB favorites too.
Technical Details
- Output Power 55W x4
- Pre Out 3 Pre (Front / Rear / Sub x 1)
- Aux-In
- Rear View Camera in
- USB (Front x 1)
- Firmware upgradability
- DSO (Dynamic Stage Organizer)
- Equalizer 10-band Graphic Equalizer
- EXTRA BASS (Off / 1 / 2)
Connectivity
Tuner Features
- Preset DAB18 / FM12 / AM6
- Auto Memory BTM
- RDS / EON (RDS)
Bluetooth Profile
- HFP (1.6)
- A2DP (1.3)
- AVRCP (1.3)
- PBAP (1.1)
Bluetooth Calling Features
- Speed Dial (6 memories)
- Recent Calls (# of)
- Last Dialed Call (select from the dialed call history)
- Phonebook Access via PBAP
- Alphabetical Phonebook Sorting
- Ring Volume Level Control
- Call Volume Level Control
- External Microphone Supplied
- Battery Reminder
- Signal Strength Indication
Bluetooth Audio Features
- Audio Codec (Bluetooth Audio) SBC / AAC
- Pause (Bluetooth Audio)
- CUE / REV
- TRACK +∕−
- Group (Folder) +∕−
- Audio Level Adjustment -6dB to +6dB
- Repeat Control (Audio Device side)
- Shuffle Control (Audio Device side)
- Meta Data Indication
Panel Design
- Panel Surface Finish Color Black
- Key Illumination (White)
- Monitor(AVC)
- LCD Type TFT Active Matrix
- Screen Aspect 16: 9
- Screen Diagonal (inch / mm) 6.2 inch
- Screen Size (W x H mm) 137.52 x 77.232 (mm)
- Resolution (DOT) 800 x 480
- Dimmer
- Contrast Ratio 600
- Brightness 400cd / m2
- Display Panel
- Key Illumination Initial (White)
- Dimmer Adjust
- User Interface
- Touch Panel / Resistive + AG (Not Multi Touch Compatible)
- Gesture Command
- Parking Control
- Parking Line Adjust
- Aspect Ratio Select
- Rear View Camera-In Marker Setting
