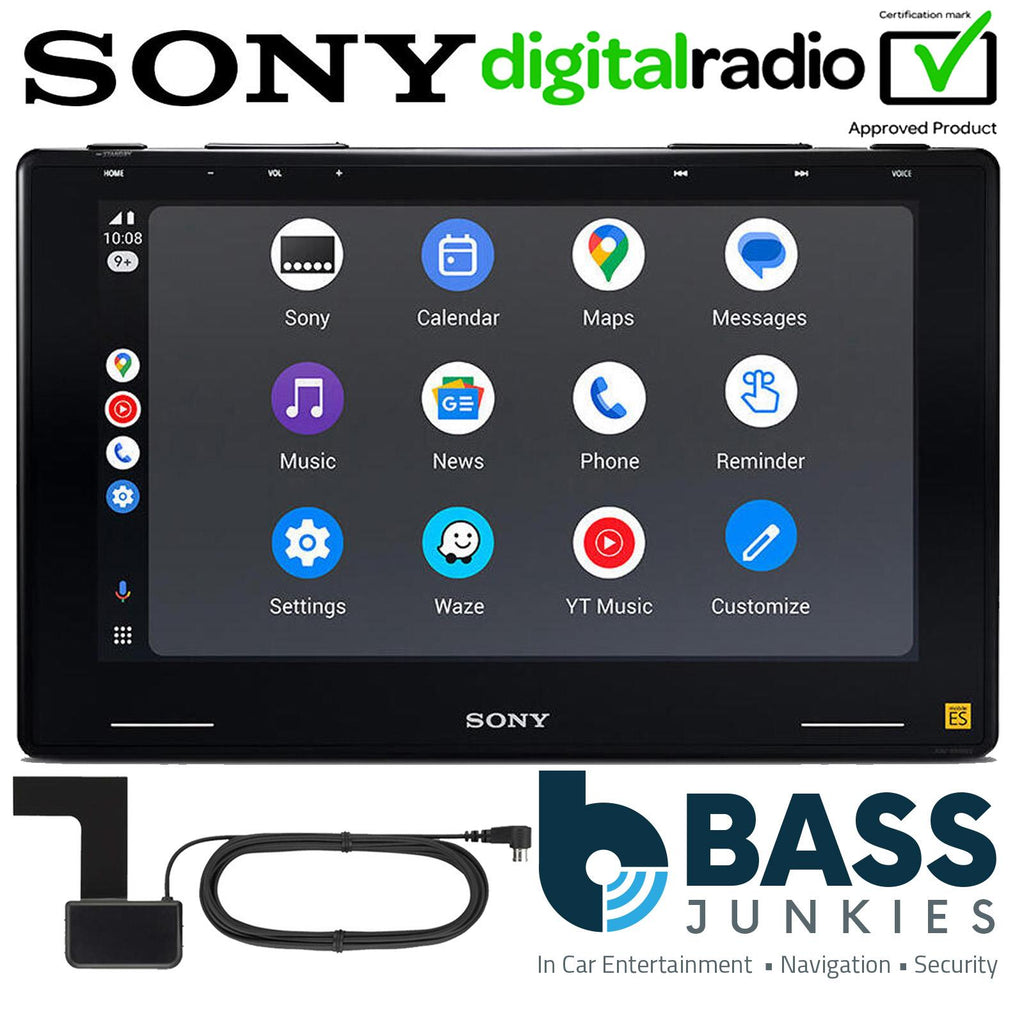

Sony XAV-9550ES 10.1" Floating Touchscreen DAB+ Bluetooth CarPlay Android Screen

Sony XAV-9550ES 10.1" Floating Touchscreen DAB+ Bluetooth CarPlay Android AV Screen & DAB Aerial

Meet the XAV-9550ES, your gateway to outstanding in-car audio-visuals. With a 25.7 cm (10.1 inch) capacitive HD touchscreen, powerful and dynamic amplification, and wired and wireless connectivity for your smartphone, you’ll get a sound so good you’ll never want your car journey to end.

DAB AERIAL IS INCLUDED

Highlights

• Bezel-less 25.7 cm (10.1 inch) HD (1280 x 720) capacitive touchscreen
• Native 192 kHz / 24-bit WAV, FLAC, ALAC audio playback, and DSD file playback via 192 kHz / 24-bit PCM conversion
• LDAC™ allows wireless streaming of High-Resolution Audio with exceptional quality
• Time alignment and 14-band EQ for pitch-perfect sound customisation
• USB Type-C® for compatible smartphone

DAB AERIAL INCLUDED

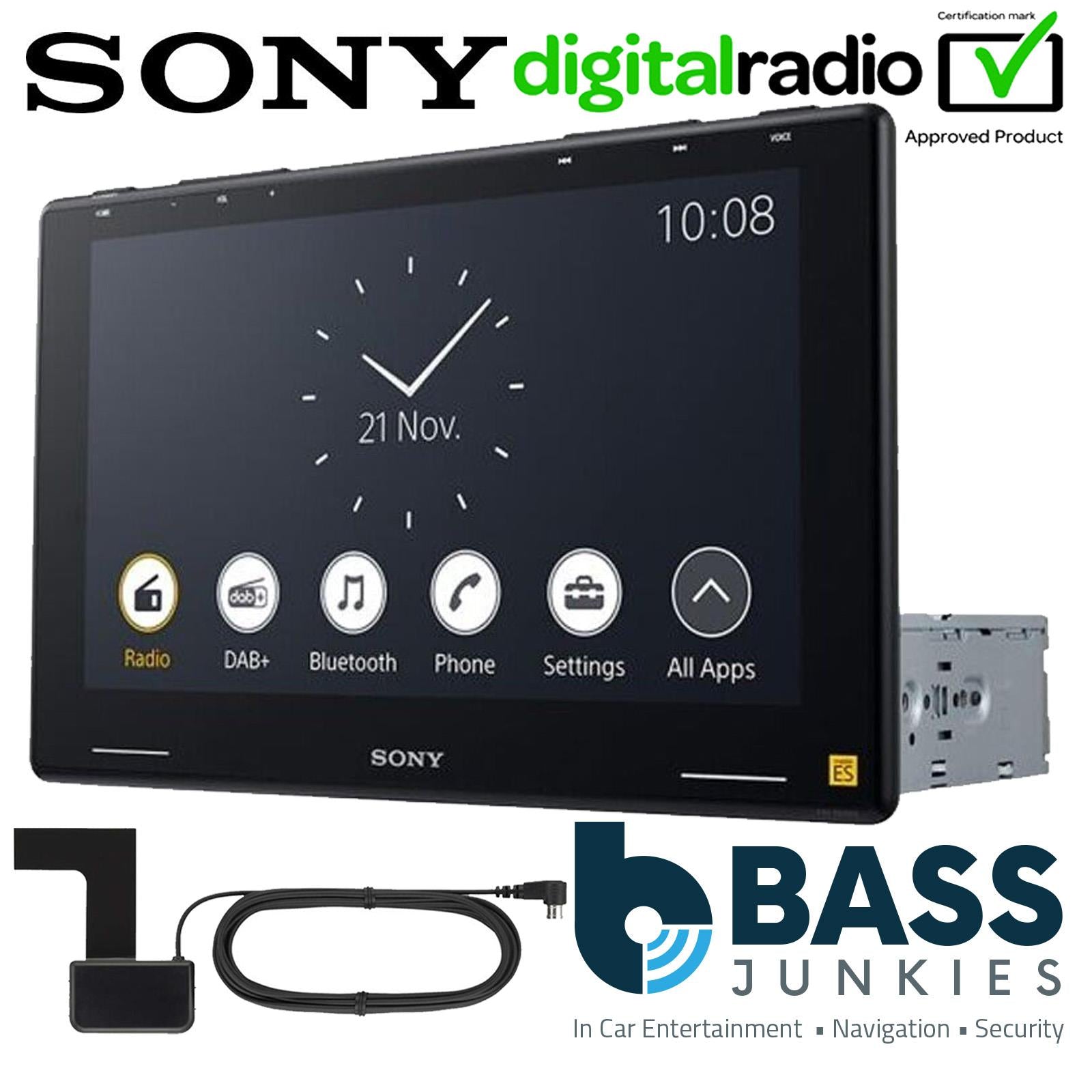

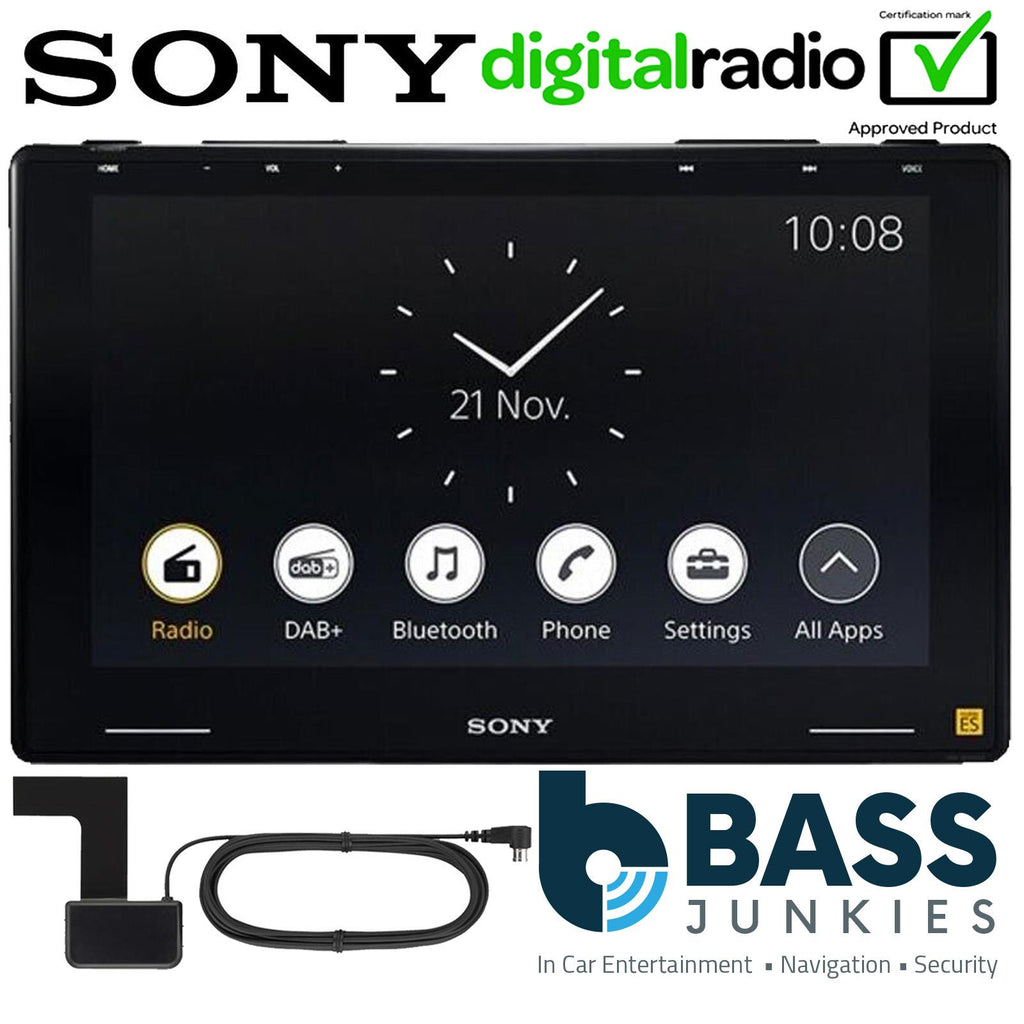

Floating 25.7 cm (10.1 inch) High-Definition Display

Now updated with a 25.7 cm (10.1 inch) high-definition LCD panel and optically gapless design, it boasts best-in-class picture quality while assuring safer and easier operation than ever.

Capacitive touchscreen with 1280 x 720-pixel Resolution

Our first Mobile ES™media receiver features a large floating 25.7 cm (10.1 inch) capacitive touchscreen with 1280 x 720-pixel high resolution. It gives crisp detail, higher brightness and contrast for superior in-car experience.

Gapless Anti-glare Capacitive Touchscreen

Unlike a conventional display, the LCD is bonded directly to the protective glass touch layer with a transparent adhesive. The result is an extremely precise touch experience along with enhanced contrast and visual performance. Moreover, its glass surface is made with a special technique called anti-glare etching process that reduces reflection drastically for safer and easier operation.

LEFT IMAGE : DISPLAY DEVICE WITH NO ANTI-GLARE ETCHING.                                       RIGHT IMAGE : DISPLAY DEVICE WITH ANTI-GLARE ETCHING.

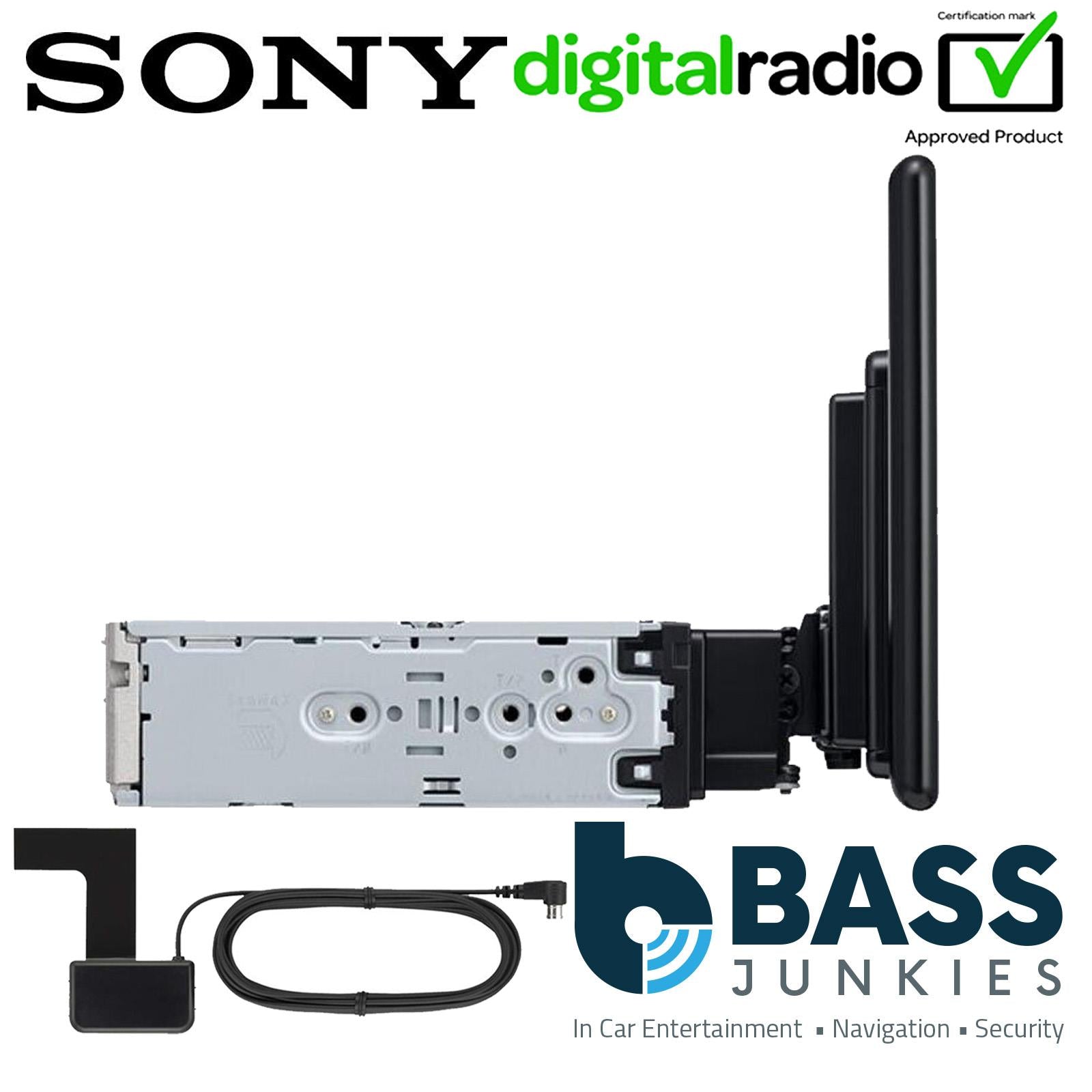

Easy Mounting and Adjustment

The sturdy and adjustable mount is designed for single-DIN installation to suit a wide variety of vehicles. The four-way adjustment makes it easy to position the oversized display in your perfect spot.

Premium Quality Audio and Sound Customization

Enjoy the subtle nuances of studio-quality sound with High-Resolution Audio. An industry-leading ESS digital-to-analogue converter and premium components together with our precision audio tuning make sure you will always enjoy high quality sound while you’re on the road.

Engineered for Ultimate Listening Pleasure—ESS Digital-to-Analogue Converter

Experience the calibre of sound usually reserved for high-end home audio products, thanks to the ESS DAC chip—a premium converter that provides precision analogue conversion for all your digital music files. With high-performance 32-bit processing, and a design that eliminates timing jitter, this D/A converter delivers unprecedented dynamic range and low harmonic distortion.

Choices for Optimum Performance

Carefully selected components ensure superb sound quality. The dedicated choke coil features powerful bass while filtering unwanted frequencies for controlled and dynamic audio reproduction. Audiophile-grade capacitors deliver effortless power for clear and tight bass, while multi-layer polymer capacitors help ensure natural sound character.

Built-in 4-channel Class A/B Amp for High-Resolution Audio

Dedicated left and right power circuits provide consistent, filtered power to the built-in amplifier, for accurate sound staging. The amplifier block itself also incorporates a range of updated circuit configurations to minimise interference, including a new volume control IC carefully selected for minimal distortion and noise.

Anti-Resonance Dual-Layer Chassis

The dual-layer design of the chassis separates analogue and digital circuitry, preventing electro-magnetic interference for uncompromised sound quality.

High-Resolution Wireless LDAC™ Audio

Enjoy the convenience of Bluetooth® wireless audio and exceptional sound quality thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit quality, with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.

High-Grade 192 kHz / 24‑bit DSP

The 192 kHz / 24-bit DSP offers pristine sound processing and 8-band parametric equaliser in addition to the time alignment and 14-band equaliser. Together with the updated 3-zone crossover, which enables bi-amp front 2-way speaker drive settings, you can create the perfect match of front, rear and subwoofers.

6-Channel Time Alignment

The powerful DSP enables incredibly precise time-alignment, for accurate sound imaging in any car. You can align individual speaker distances to as little as 1 cm or 0.1 inch increments from your seat position.

14-Band Equaliser

A 14-band EQ lets you adjust the overall sound to your music or taste, allowing you to manually cut and boost 14 different frequencies for all the speaker and subwoofer outputs at the same time.

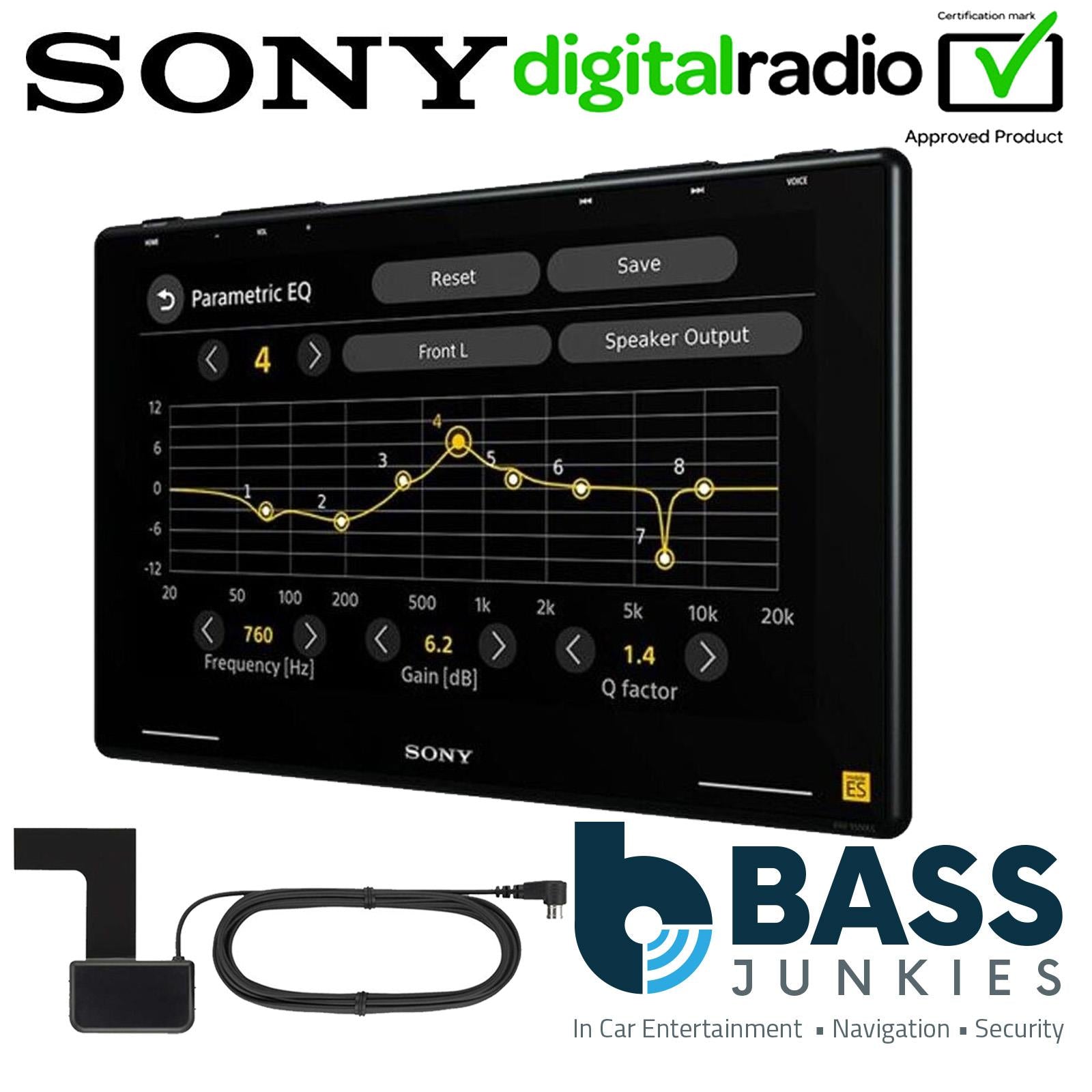

8-Band Parametric EQ

To get optimum performance across different speaker configurations, you can apply an 8-band parametric EQ to each of the 6 channels (FL, FR, RL, RR, SWL, SWR) independently by cutting and boosting 8 custom frequencies for each individual speaker output and subwoofer output. You can also adjust the bandwidth (Q) for each of the 8 select frequencies of the speaker and subwoofer outputs.

Bi-amp front 2-way Speaker Drive Settings

Unlike regular speaker configurations such as those for front and rear speakers, this mode allows you to customise the four speaker outputs by assigning two channels for the tweeters and other two channels for the woofers with band path crossover settings and dedicated time alignment.

Extensibility

The updated rear-view camera allows you to see the images of up to three connected cameras. And, by utilising the supplied trigger wires, each camera image can be switched on and off, or from one to another automatically by detecting vehicle’s turn signals or sensing signals from a connected front camera.

3-Camera Trigger Inputs

You can see the images of up to three connected cameras when you shift the vehicle’s transmission lever to the reverse position or tap the dedicated icons on the home screen. By utilising the supplied trigger wires, each camera image can be switched on and off, or from one to another automatically by detecting the vehicle’s turn signals or sensing compatible signals such as that for a connected front camera. An adjustable parking guide is also available for reverse gear.

Fully Wireless Smartphone Conversion

Thanks to a Wi-Fi® connection to your smartphone, together with the supplied GPS antenna, you can use voice control to navigate, communicate and play music on the road even with your device in your pocket.

Usability HD Graphical User Interface

The 1280x720 HD touchscreen offers an enhanced user interface for safety and ease of use. It features a high-contrast Mobile ES™ colour scheme, as well as customisable wallpaper to suit your vehicle and style.

Quick Wake-up

With the Quick Wake-up feature, you’re ready to go right after turning on the ignition

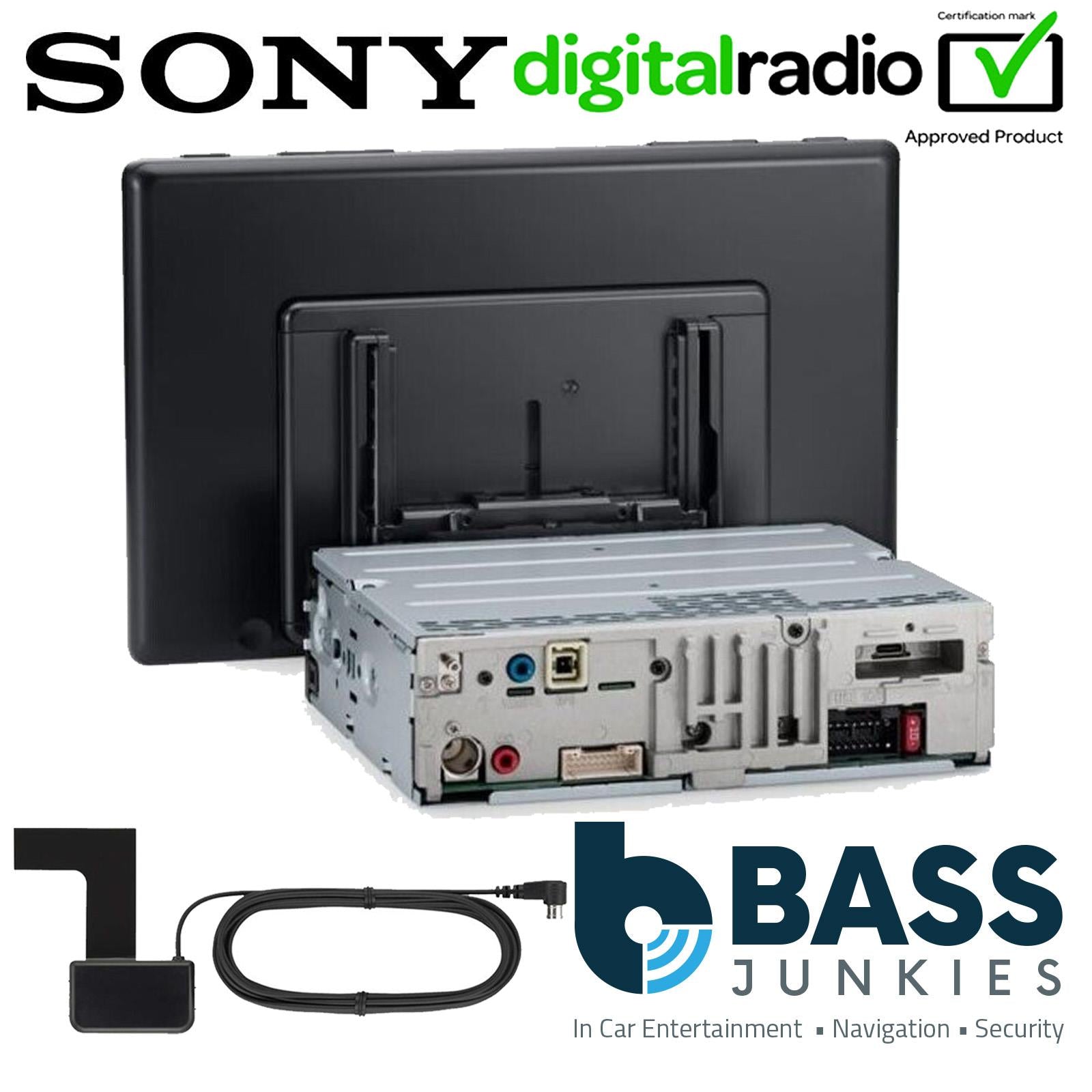

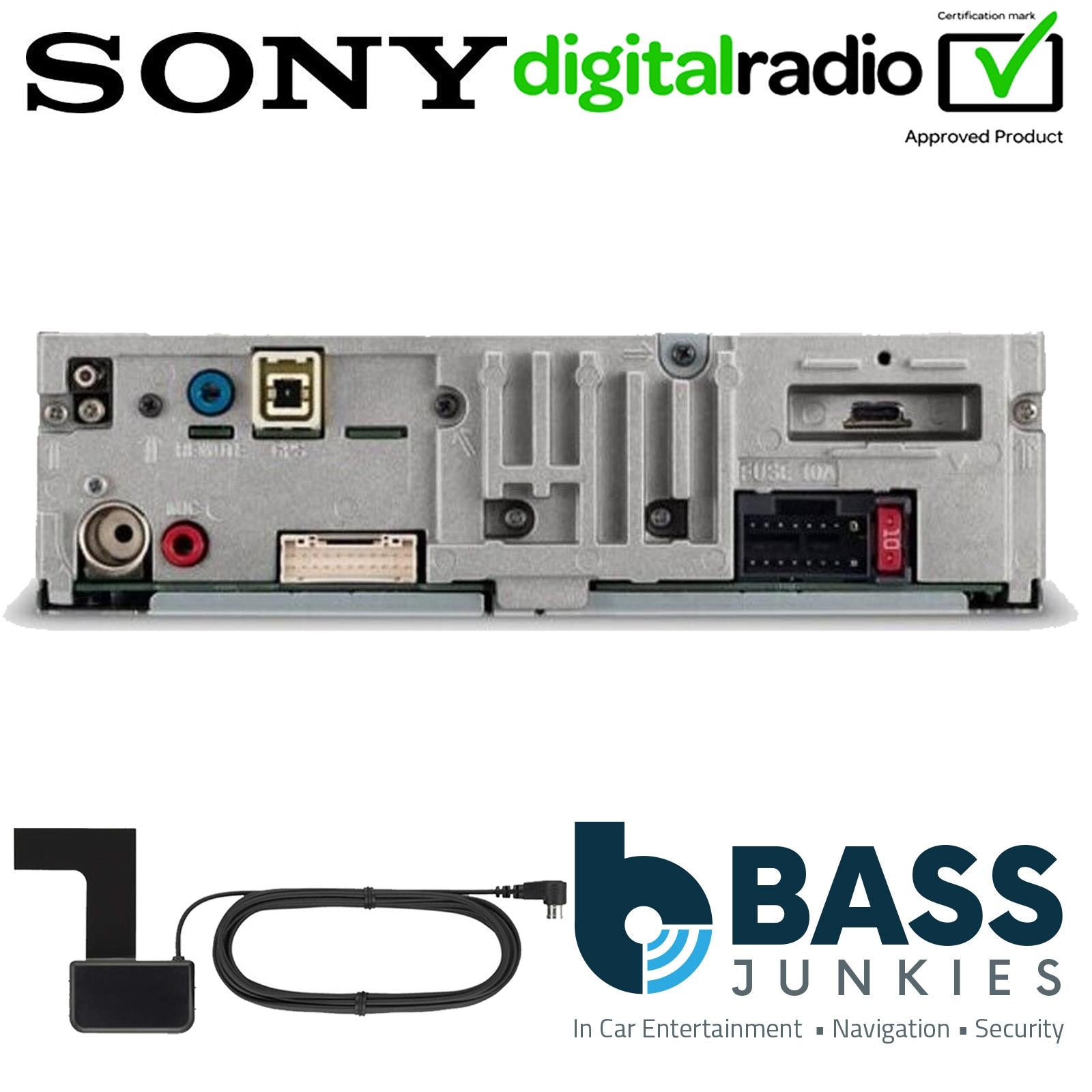

Easy Installation with a Single-Din Main Chassis

Despite its huge screen, the main unit is packed in a single-DIN chassis for flexible installation in both single and Double-DIN dashboards, while it leaves plenty of room for cables and harnesses when installed in Double-DIN vehicles.

Size & Weight

• Dimensions (W X H X D) 271 x 171 x 247 mm
• Weight 2.5 kg

General Features

• Album Artwork Indication
• Equalizer 14-band Equalizer and 8-band Parametric Equalizer
• Firmware Upgradability
• Output Power 55W x4
• Pre Out 5V 3 Pre (Front LR / Rear LR / Sub LR)
• Rear View Camera In Rear/Input 1/Input 2
• Time Alignment
• USB (Type-C x 1, REAR)

Tuner Features

• Auto Memory BTM
• Preset FM18/AM12
• RDS / EON (RDS)

Bluetooth Profile

• A2DP (1.3.1)
• AVRCP (1.6.1)
• HFP (1.7.1)
• PBAP (1.1)

Bluetooth Features

• Alphabetical Phonebook Sorting
• Battery Reminder
• Call Volume Level Control
• External Microphone Supplied
• Last Dialed Call (select from the dialed call history)
• Phonebook Access Via PBAP
• Recent Calls (# OF)
• Ring Volume Level Control
• Signal Strength Indication
• Speed Dial (6 memories)

Bluetooth Audio Features

• Audio Codec (Bluetooth Audio) SBC/AAC/LDAC
• Audio Level Adjustment (-6dB to +6dB)
• CUE / REV
• Group (Folder) +/-
• Meta Data Indication
• Pause (Bluetooth Audio)
• Repeat Control (Audio Device Side)
• Shuffle Control (Audio Device Side)
• Track +/-

Panel Design

• Key Illumination (White)

Monitor(AVC)

• Brightness 425 cd/m2
• Dimmer Auto/Manual select
• LCD Type TFT Active Matrix
• Resolution (DOT) 1280 x 720
• Screen Aspect 16 : 9
• Screen Diagonal (Inch / Cm) 10.1 inches / 25.7 cm

Display Panel

• Dimmer Adjust

User Interface

• Parking Control
• Parking Line Adjust
• Rear View Camera-in Marker Setting
• Touch Panel Capacitive

USB Mass Storage Device Control Feature

• USB Device Control (Audio Codec) MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
• USB Device Control (Audio Playable File Extension) .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
• USB Device Control (Pause)
• USB Device Control (Repeat) Track/Folder/Drive
• USB Device Control (Resume Play)
• USB Device Control (Shuffle) Off/Folder/Device
• USB Device Control (video Codec) ASF/WMV/AVI/MKV/MPEG-4
• USB Device Control (video Playable File Extension) .asf/.wmv/.avi/.mkv/.mp4

Multi-Language

• Caution English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
• Menu English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
